Toyota RAV4 Ventilation Hose — Figure 1201

Toyota RAV4 EPC diagram 1201, Ventilation Hose, with 2 images and 5 PNC and OE references.

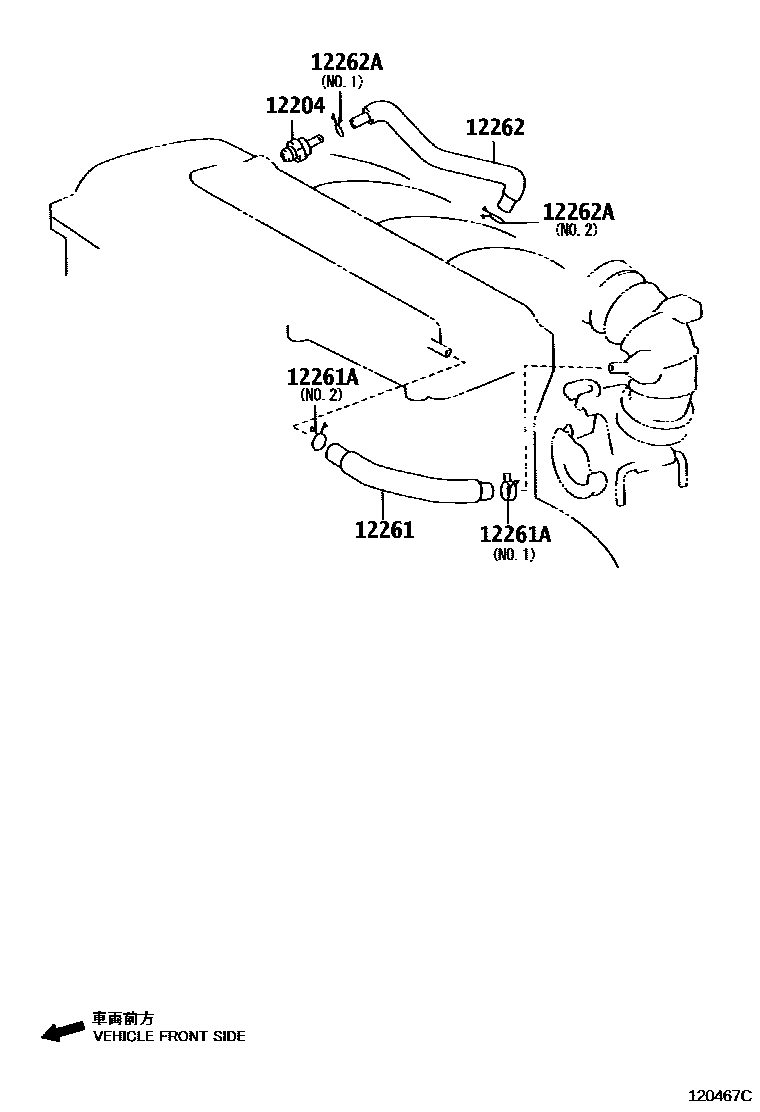

Toyota RAV4 Ventilation Hose EPC diagram — 120467C
Ventilation Hose — 120467C (200511 – 999999)

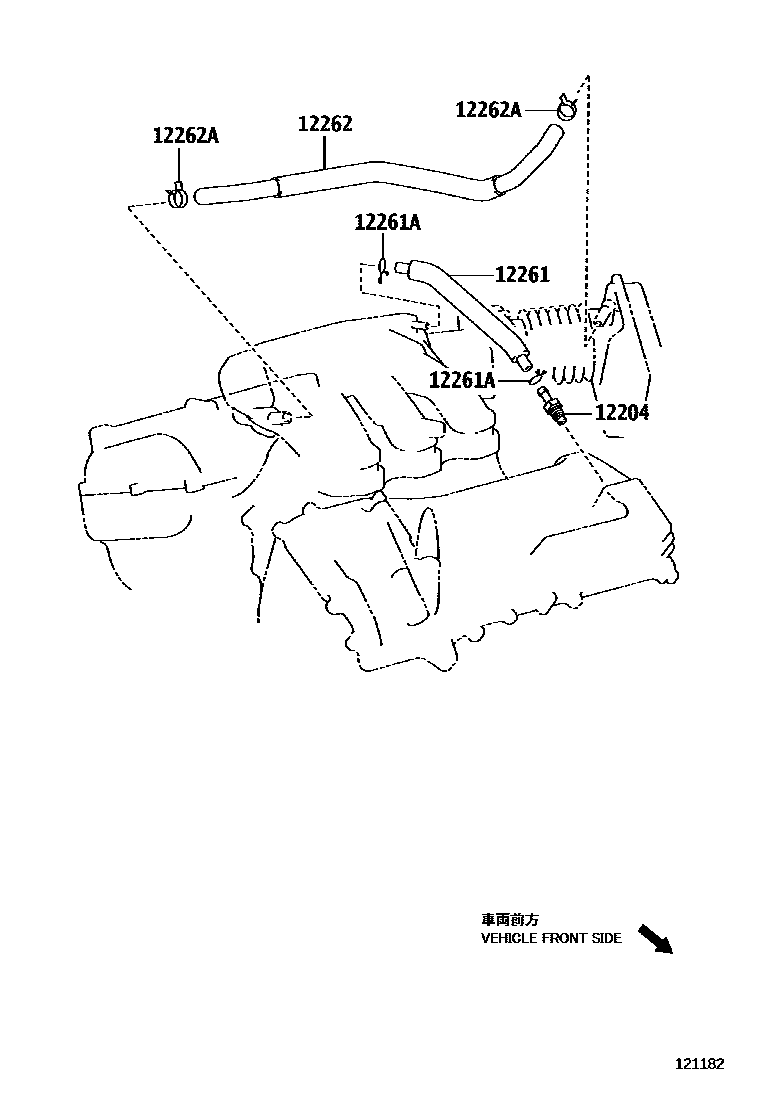

Toyota RAV4 Ventilation Hose EPC diagram — 121182
Ventilation Hose — 121182 (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0H020 · 12204-28030 · 12204-31040 · 12204-31120
12261Ventilation Hose12261-28160 · 12261-31050
12261AClip or clip (for vent hose)90467-14017 · 90467-19003 · 90467-21004 · 96134-41900
12262Ventilation hose No. 212262-28021 · 12262-31090
12262AClamp (for vent hose No. 2)90467-13103 · 90467-16035 · 90467-21004
