Toyota RAV4 Timing Gear Cover & Rear End Plate — Figure 1106

Toyota RAV4 EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 2 images and 12 PNC and OE references.

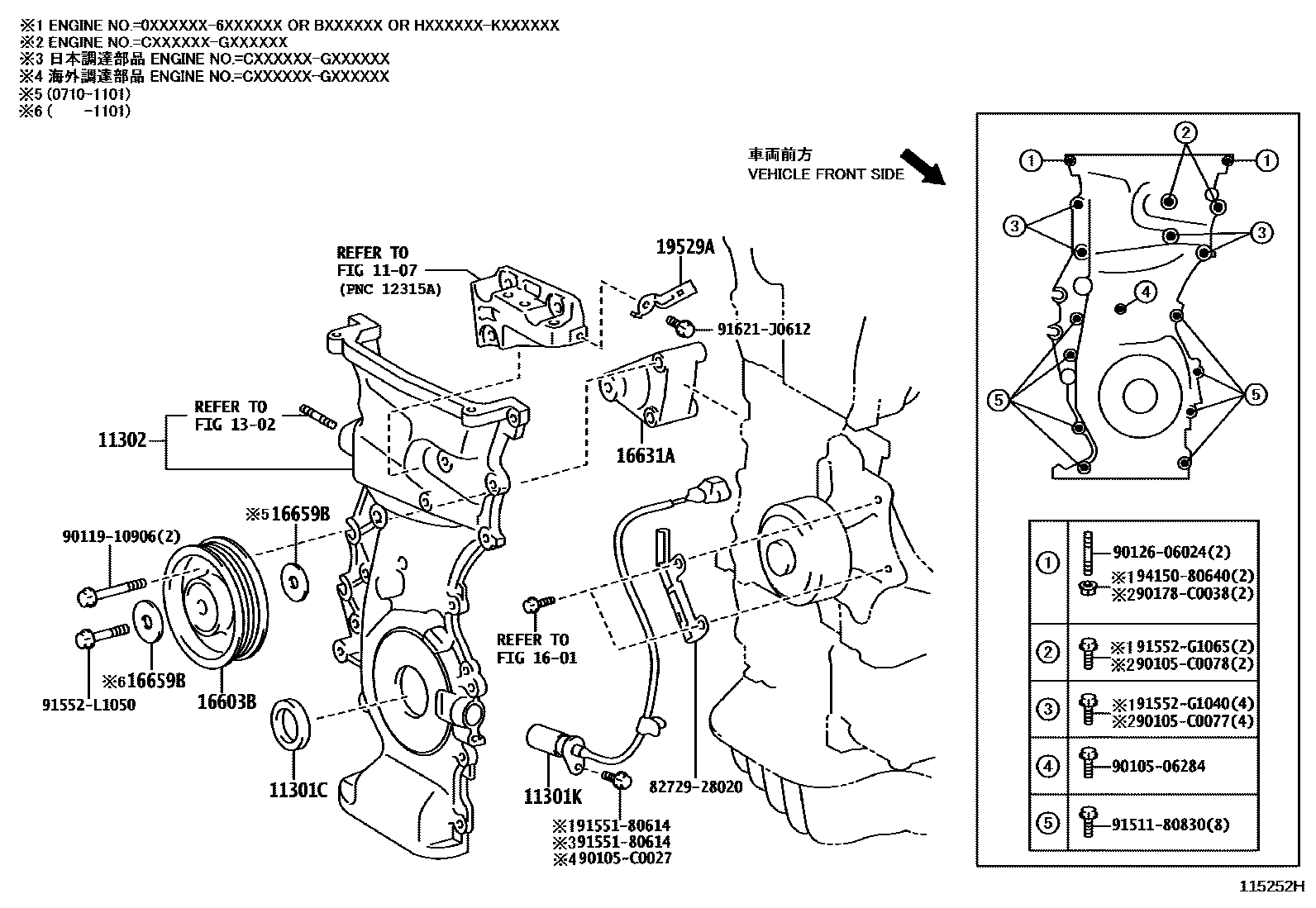

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 115252H
Timing Gear Cover & Rear End Plate — 115252H (200511 – 999999)

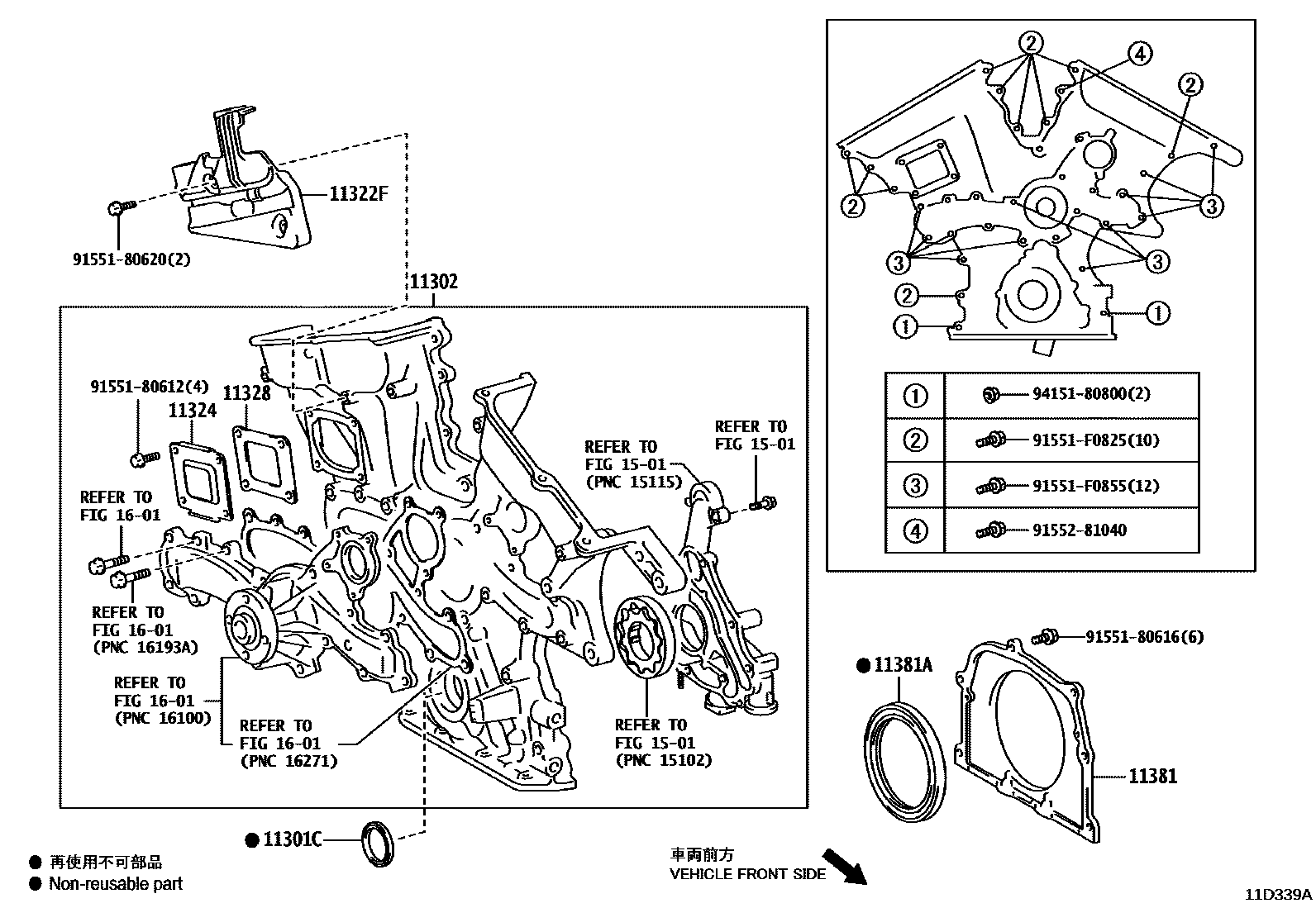

Toyota RAV4 Timing Gear Cover & Rear End Plate EPC diagram — 11D339A
Timing Gear Cover & Rear End Plate — 11D339A (200708 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-38089 · 90311-38098 · 90311-42037 · 90311-42045 · 90311-T0024
11301Kcrankshaft position sensor90919-05047
11302TIMING CHAIN OR BELT COVER SUB-ASSY11310-0H070 · 11310-28090 · 11310-31020
11322FNo. 2 timing gear cover11322-31021
11324Timing chain cover11324-31020
11328GASKET, TIMING GEAR OR CHAIN COVER11328-31030
11381RETAINER, ENGINE REAR OIL SEAL11381-31021
11381ASEAL, ENGINE REAR OIL90311-92006 · 90311-92009 · 90311-92010
16603BIdler gear sub-assembly16603-28020 · 16603-28050
16631AIdler gear bracket16631-28030 · 16631-28031
16659BNo. 2 idler cover16659-31011
19529Acard holder19529-28030
