Toyota RAV4 Engine Overhaul Gasket Kit — Figure 1103

Toyota RAV4 EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

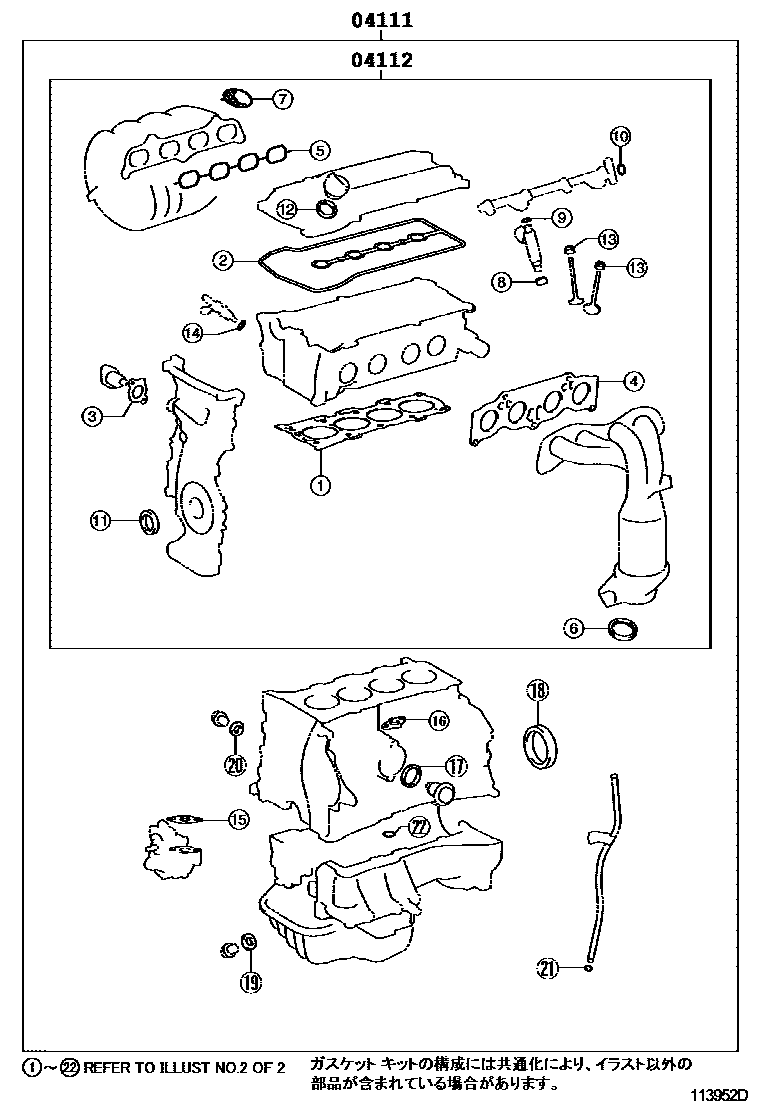

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 113952D
Engine Overhaul Gasket Kit — 113952D (200511 – 999999)

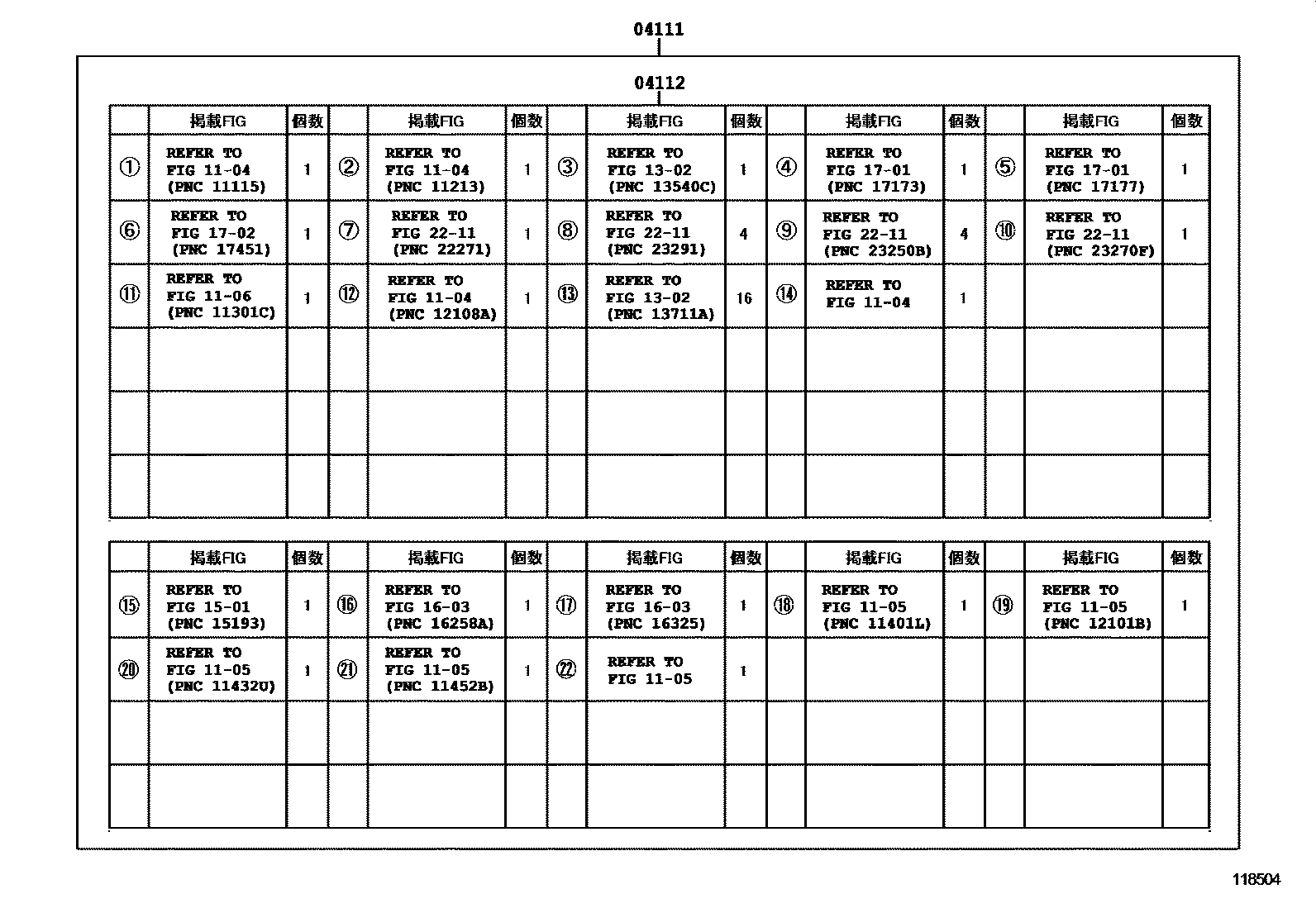

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118504
Engine Overhaul Gasket Kit — 118504 (200511 – 999999)

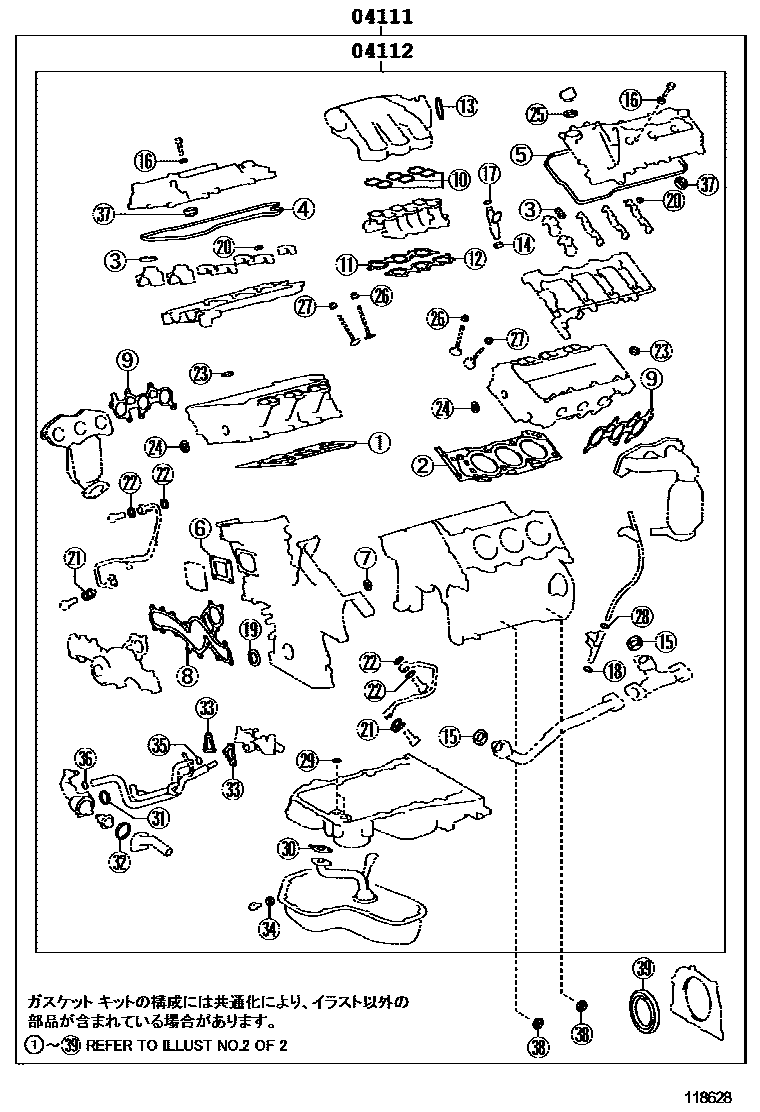

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118628
Engine Overhaul Gasket Kit — 118628 (201108 – 999999)

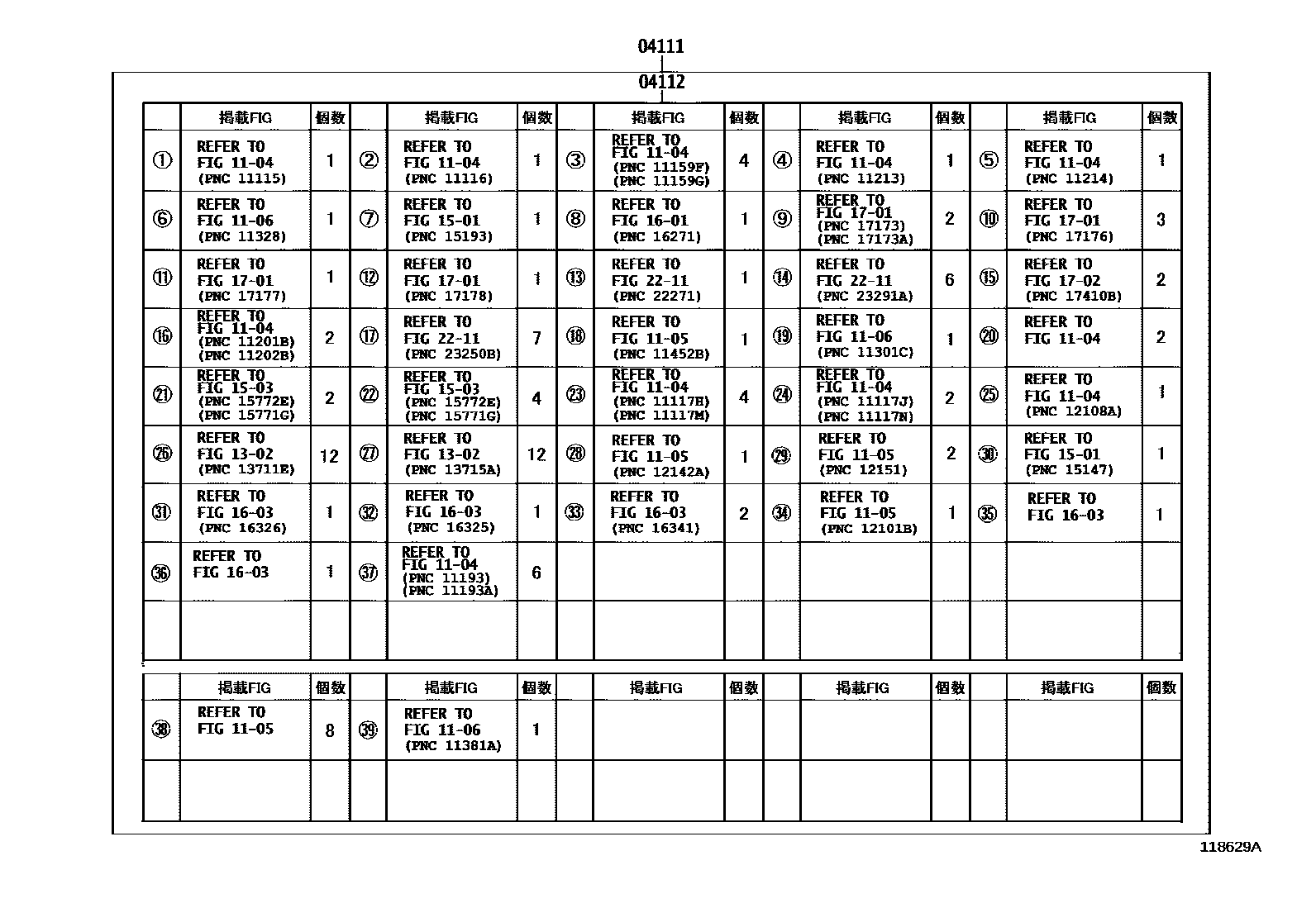

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118629A
Engine Overhaul Gasket Kit — 118629A (201108 – 999999)

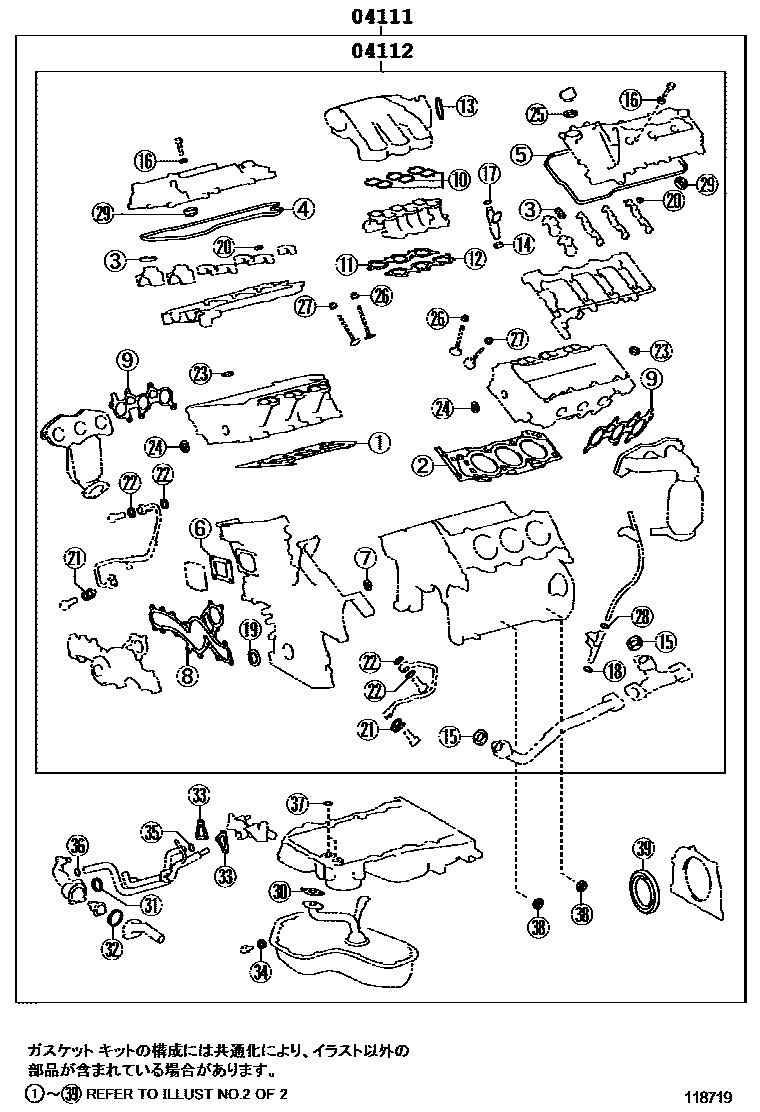

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118719
Engine Overhaul Gasket Kit — 118719 (200708 – 201108)

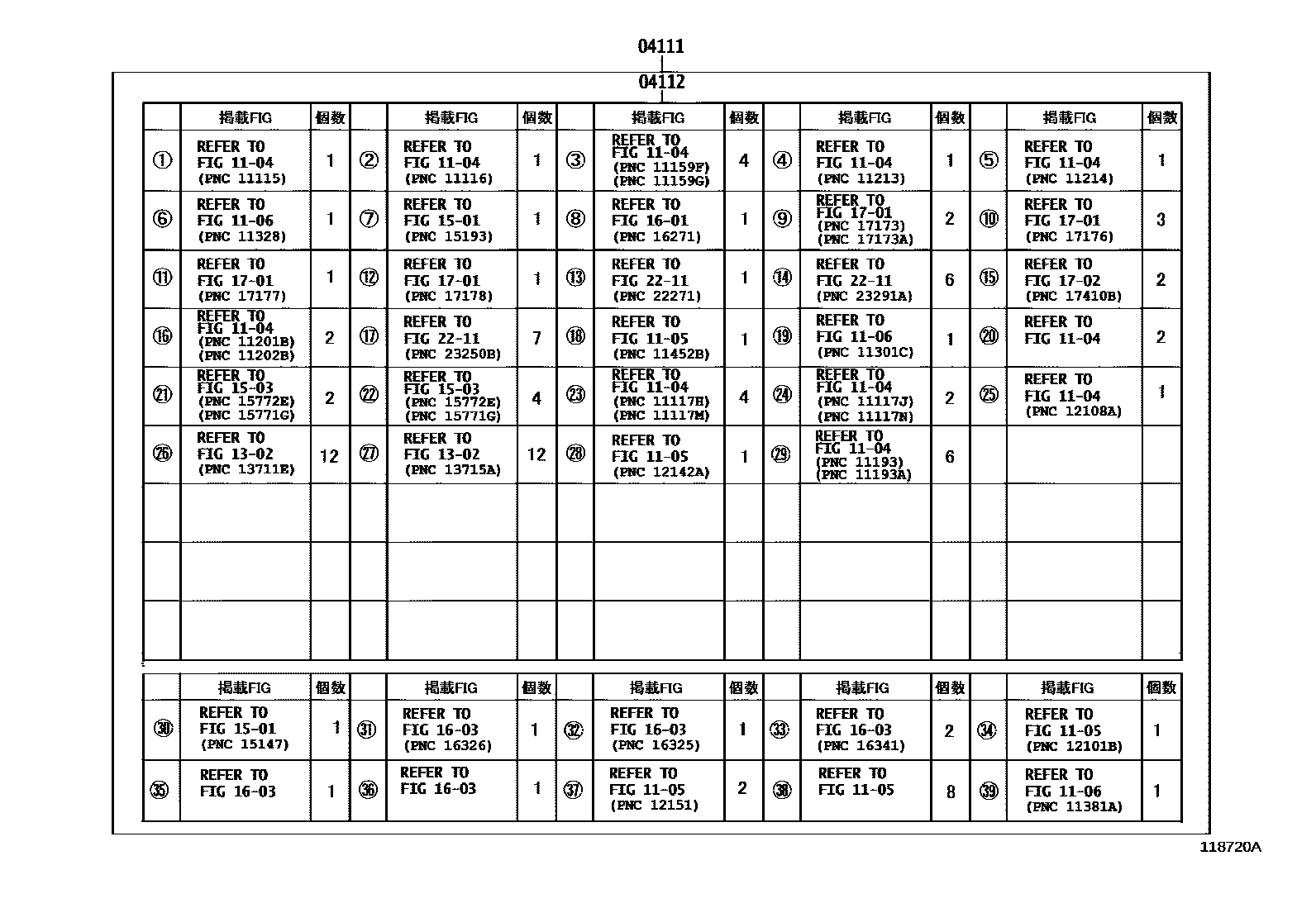

Toyota RAV4 Engine Overhaul Gasket Kit EPC diagram — 118720A
Engine Overhaul Gasket Kit — 118720A (200708 – 201108)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-28720 · 04111-28721 · 04111-28980 · 04111-28981 · 04111-28982 · 04111-28983 · 04111-31440 · 04111-31441 · 04111-31442 · 04111-31443 · 04111-31444
04112Engine valve grinding pad assembly04112-28590 · 04112-28591 · 04112-28592 · 04112-28593 · 04112-28594 · 04112-28595 · 04112-31270 · 04112-31271 · 04112-31272 · 04112-31273 · 04112-31274
