Toyota RAV4 Heating & Air Conditioning - Compressor — Figure 8719

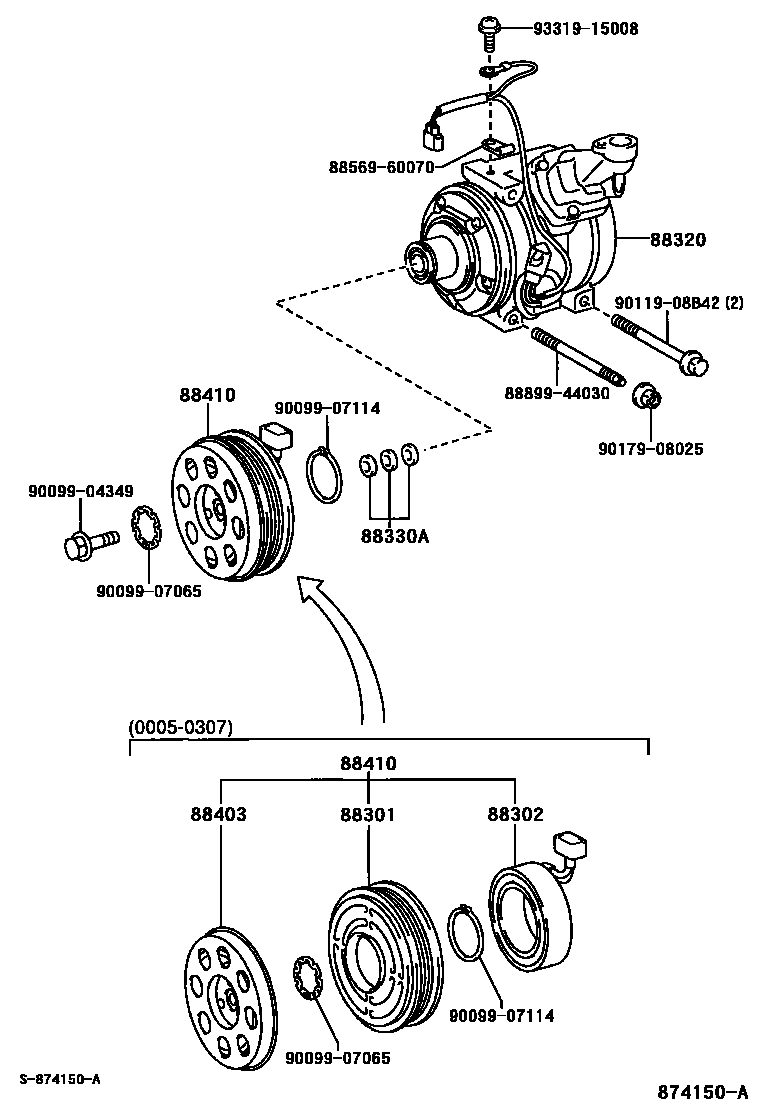

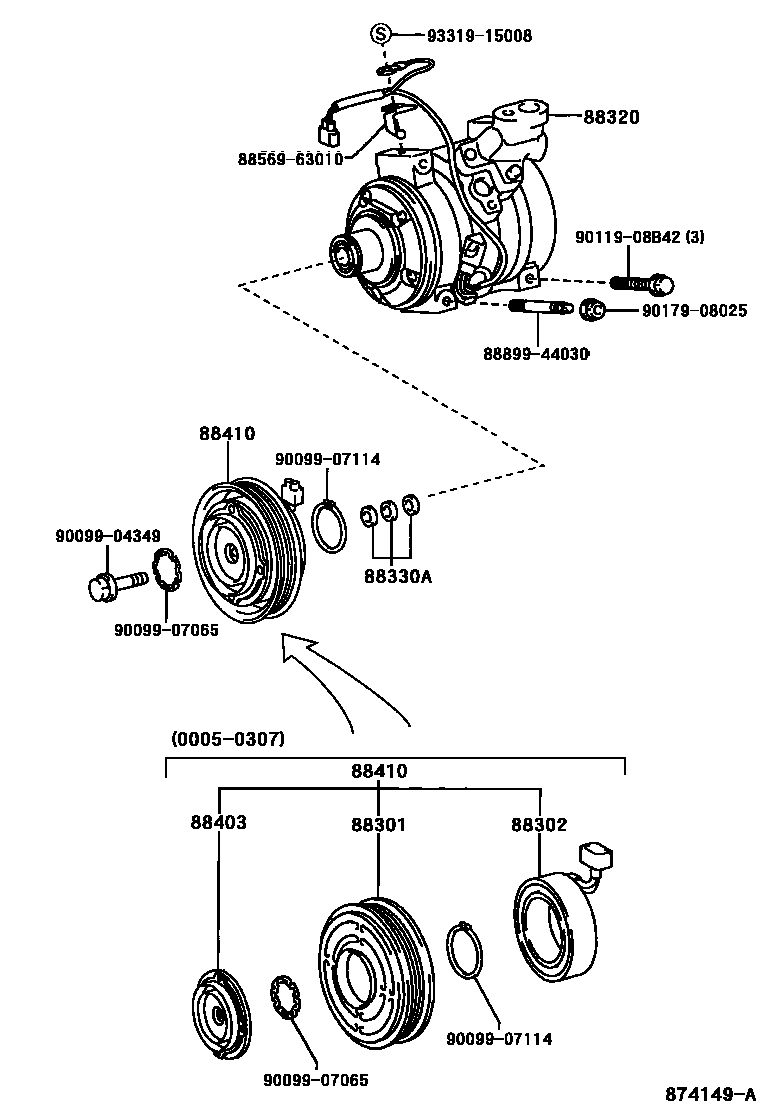

Toyota RAV4 EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-32120 · 88412-42010 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-44010 |
| 88320 | Cooler Compressor Assembly | 88320-42080 · 88320-42100 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-28020 · 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-42040 · 88410-42050 · 88410-42070 · 88410-42080 |
