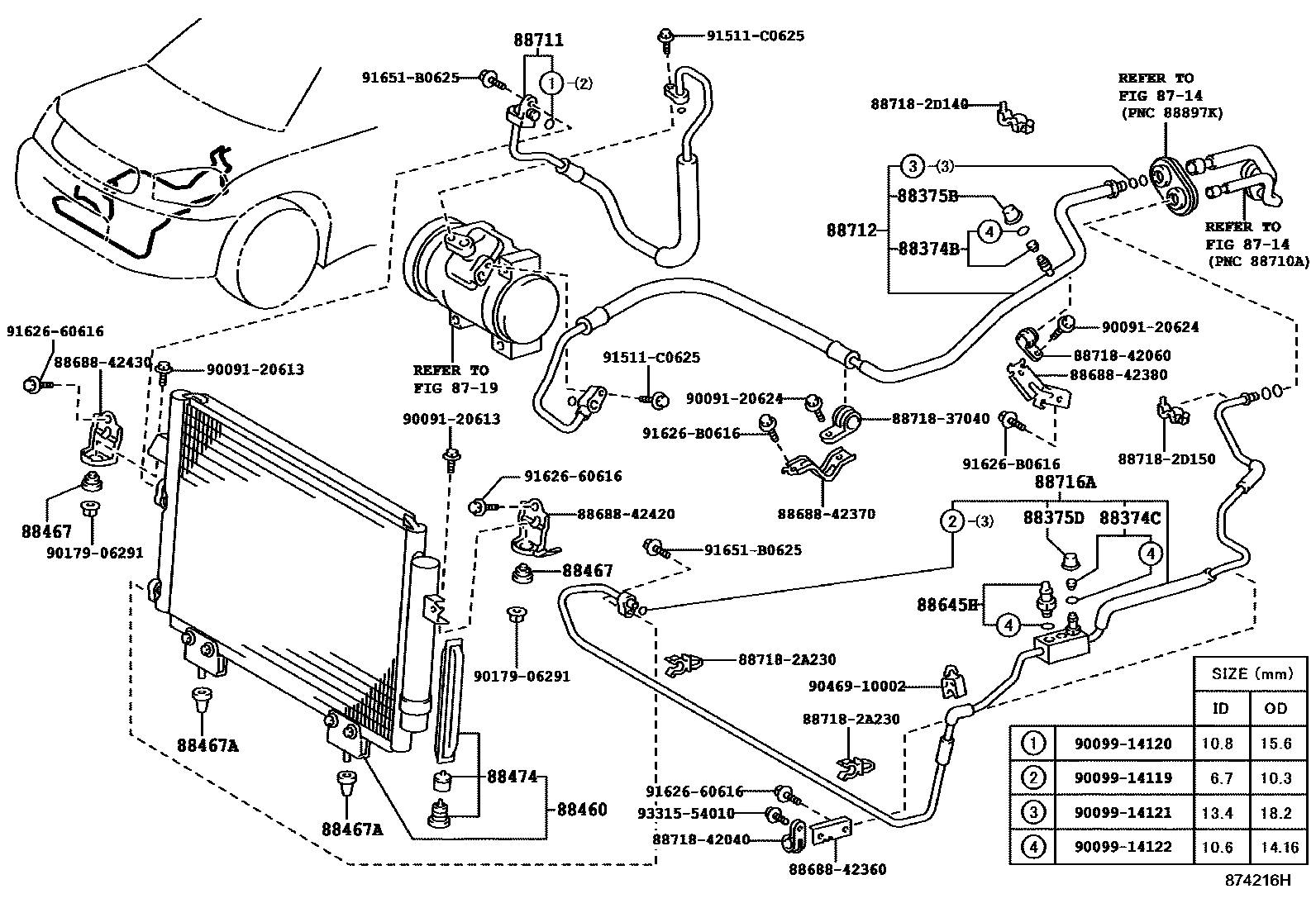

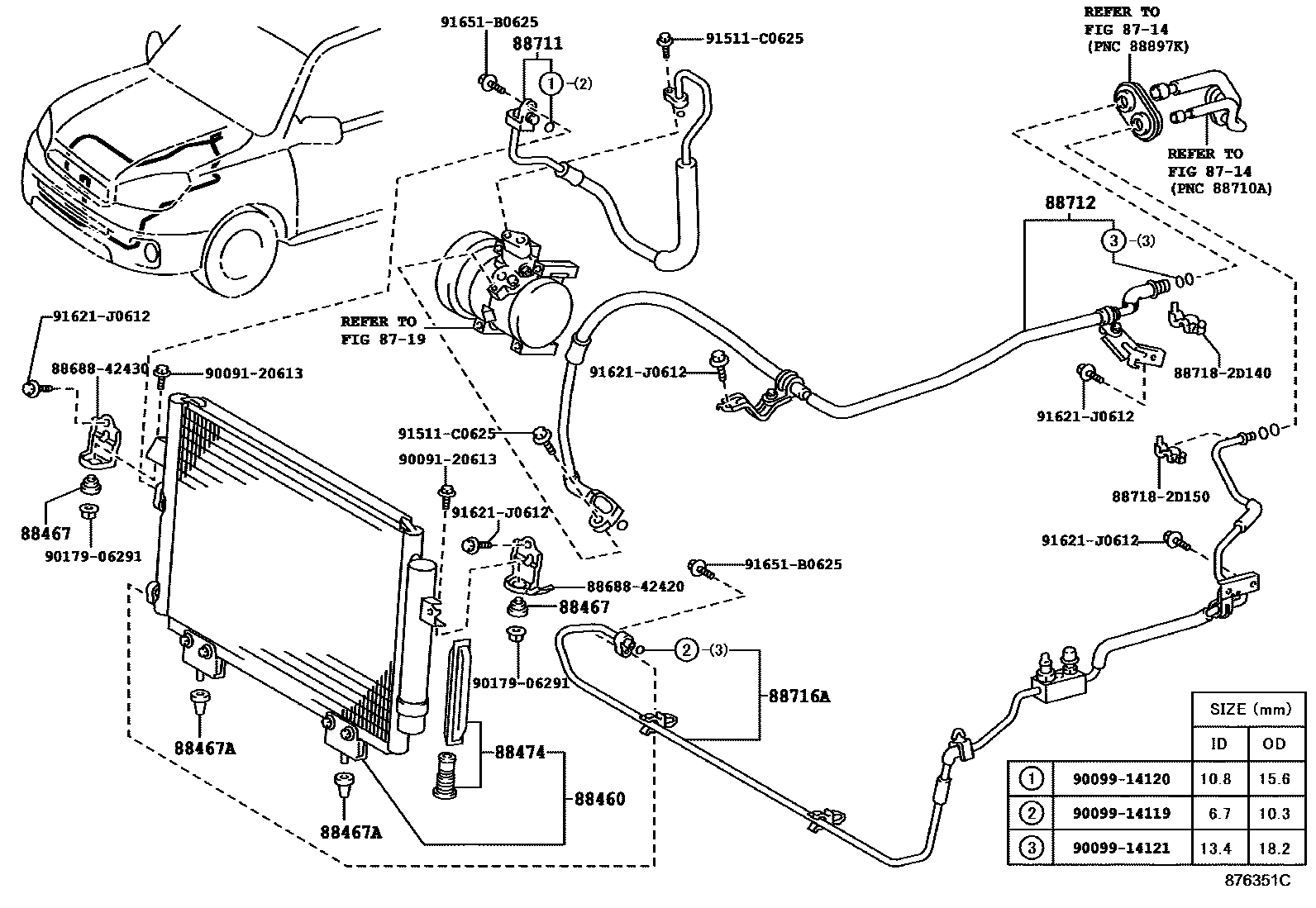

Toyota RAV4 Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota RAV4 EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88460 | Air conditioning condenser assembly | 88460-42070 · 88460-42090 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-42020 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-28040 |
| 88474 | cooler dryer | 88474-17010 · 88474-47010 |
| 88645H | No. 1 pressure switch | 88645-60030 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88703-42050 · 88703-42070 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88704-42120 · 88704-42130 · 88712-42070 · 88712-42090 |
| 88716A | Cooler refrigerant liquid pipe A | 88706-42260 · 88716-42210 |
