Toyota RAV4 后视镜 — Figure 8701

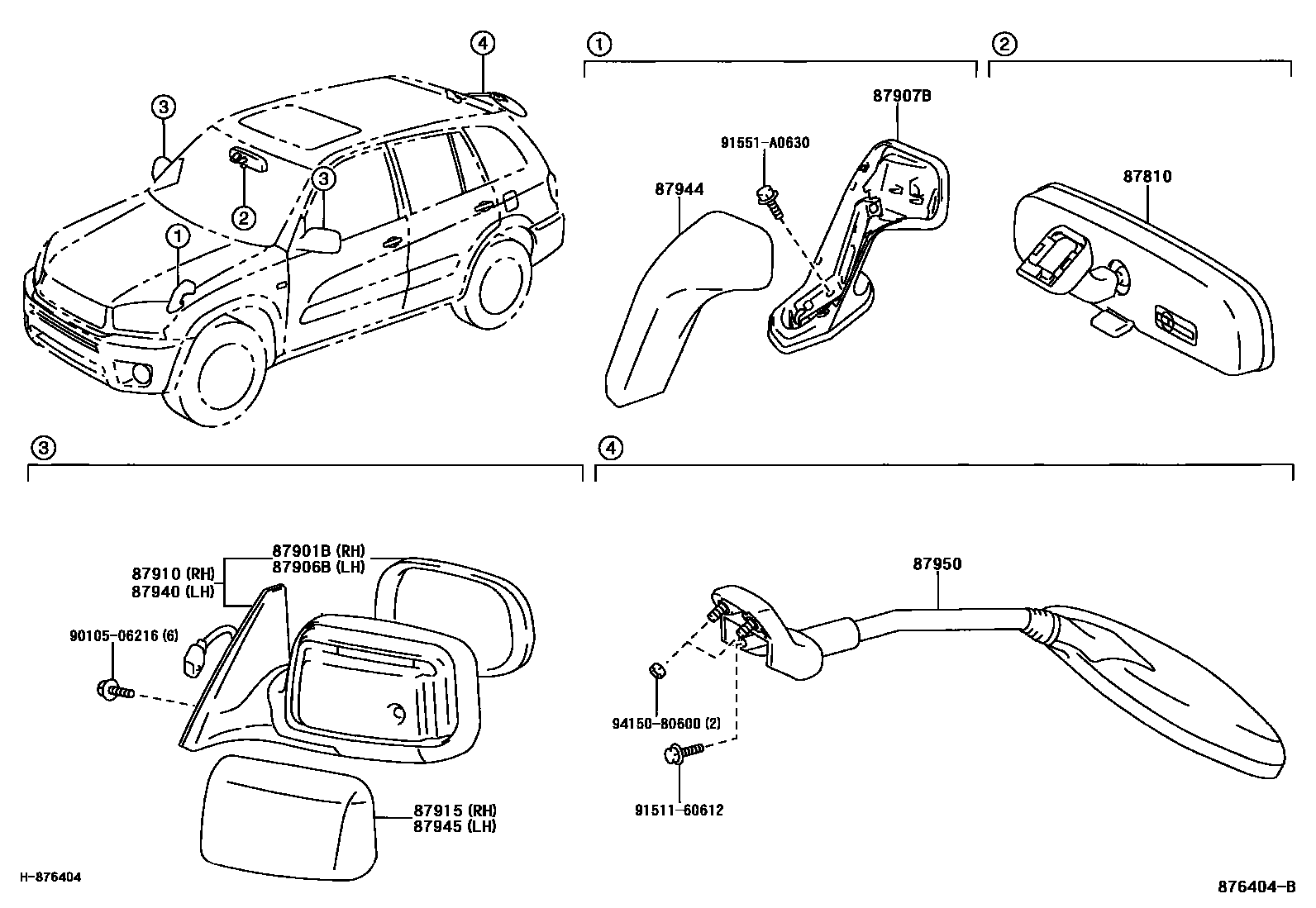

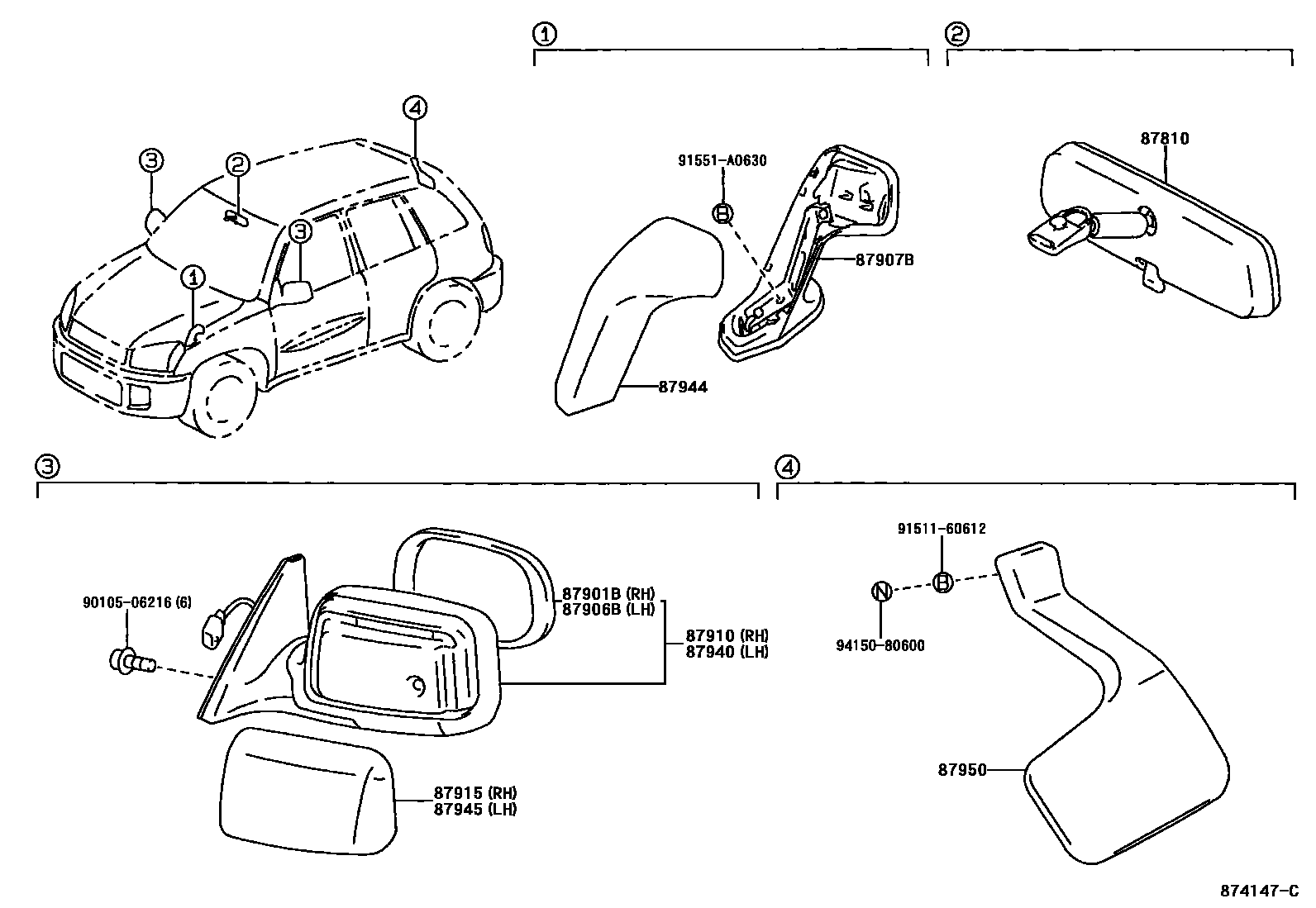

Toyota RAV4 EPC diagram 8701, 后视镜, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-0W030 · 87810-52040 |
| 87901B | Right exterior rearview mirror sub-assembly | 87931-42570 · 87931-42580 · 87931-42700 · 87931-42810 · 87931-46120 · 87931-46130 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-42540 · 87961-42550 · 87961-42650 · 87961-42750 · 87961-46120 · 87961-46130 |
| 87910 | Right exterior rearview mirror assembly | 87910-42560 · 87910-42570 · 87910-42700 · 87910-42710 · 87910-42730 · 87910-42810 · 87910-42820 |
| 87915 | Right exterior rearview mirror cover | 87915-42010 |
| 87940 | Left exterior rearview mirror assembly | 87940-42530 · 87940-42540 · 87940-42650 · 87940-42660 · 87940-42680 · 87940-42750 · 87940-42760 |
| 87945 | Left exterior rearview mirror cap | 87945-42010 |
| 87950 | Exterior rear view mirror assembly | 87950-42020 · 87950-42030 |
