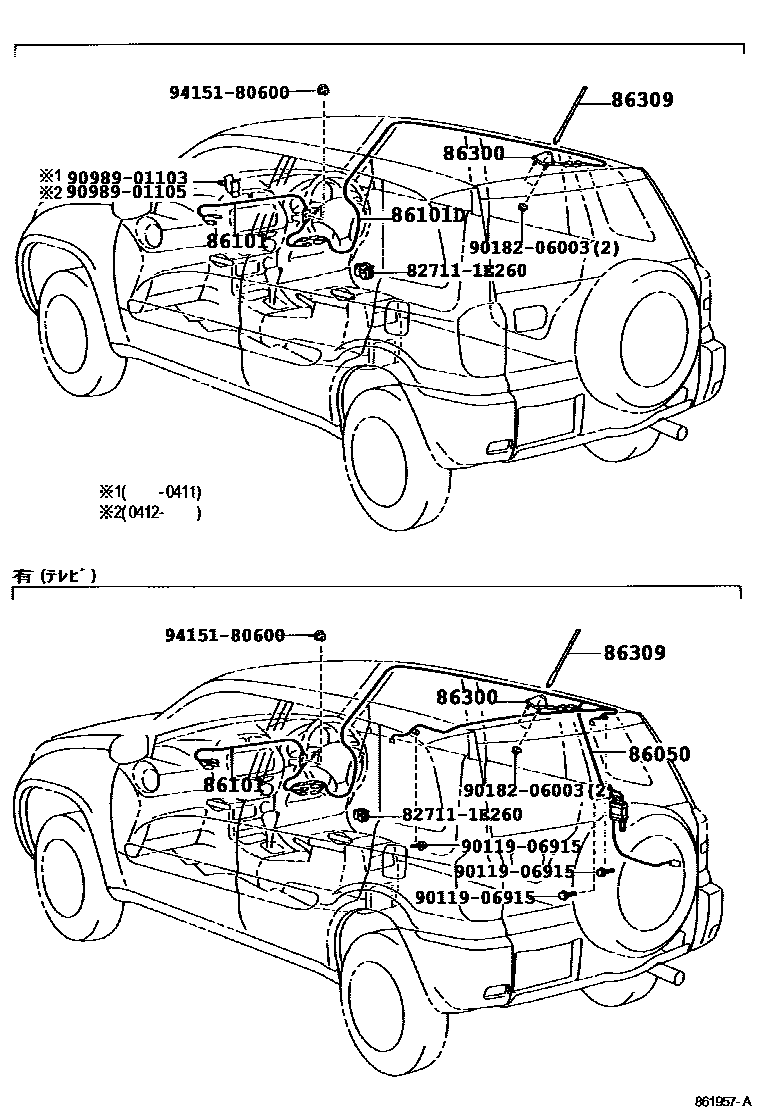

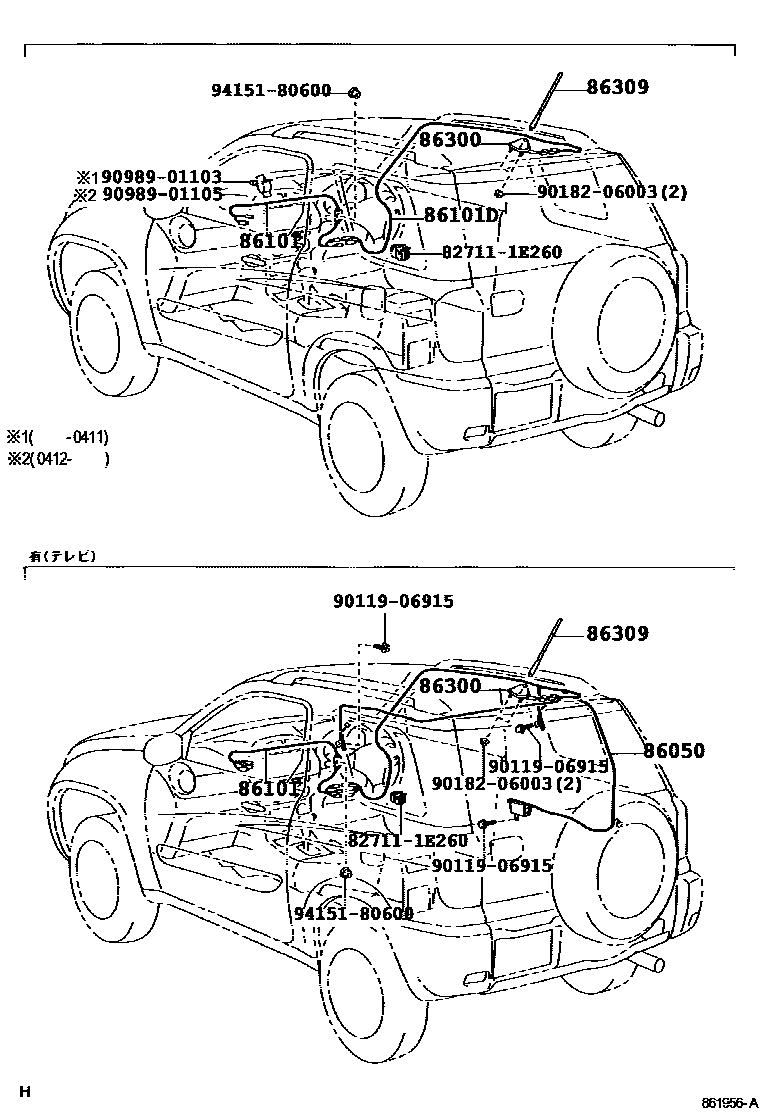

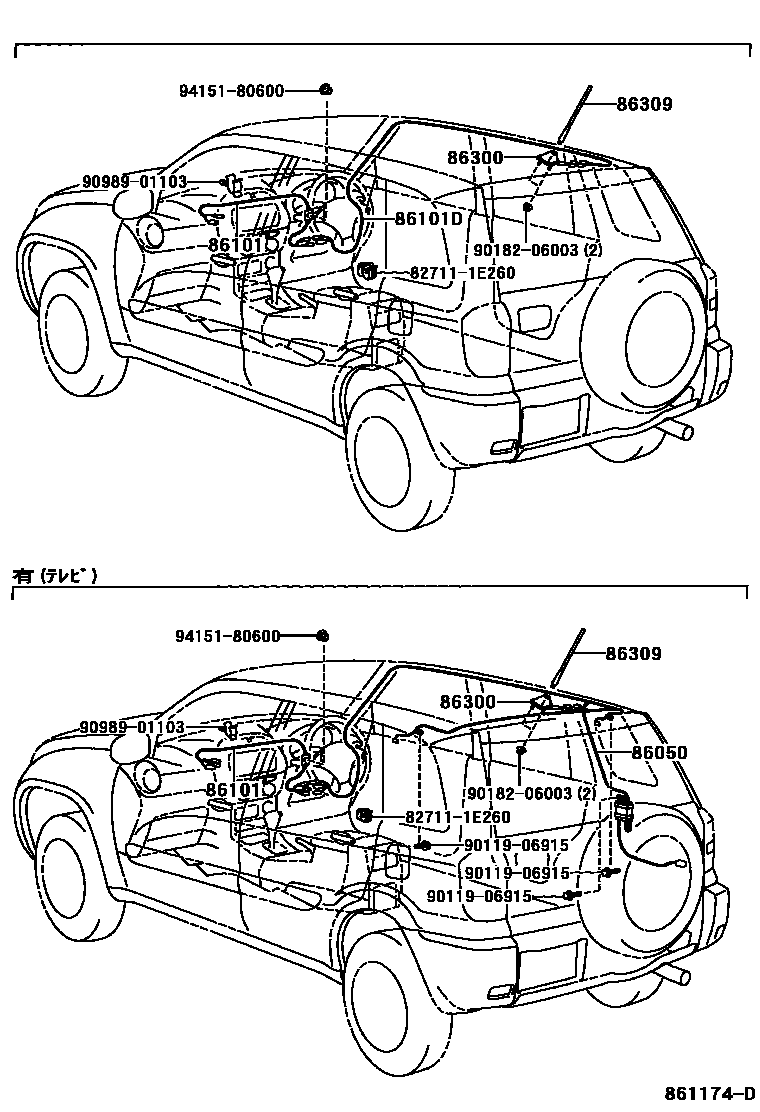

Toyota RAV4 antenna — Figure 8604
Toyota RAV4 EPC diagram 8604, antenna, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86050 | Monitor antenna assembly | 86050-42010 · 86050-42020 · 86050-42030 · 86050-42040 · 86050-42050 |
| 86101 | Antenna wire sub-assembly | 86101-42180 · 86101-42200 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-42120 · 86101-42140 · 86101-42170 · 86101-42220 · 86101-42240 |
| 86300 | Antenna assembly with fixing parts | 86300-42080 |
| 86309 | Cylindrical antenna sub-assembly | 86309-42010 |
