Toyota RAV4 导航和前监视器显示屏 — Figure 8603

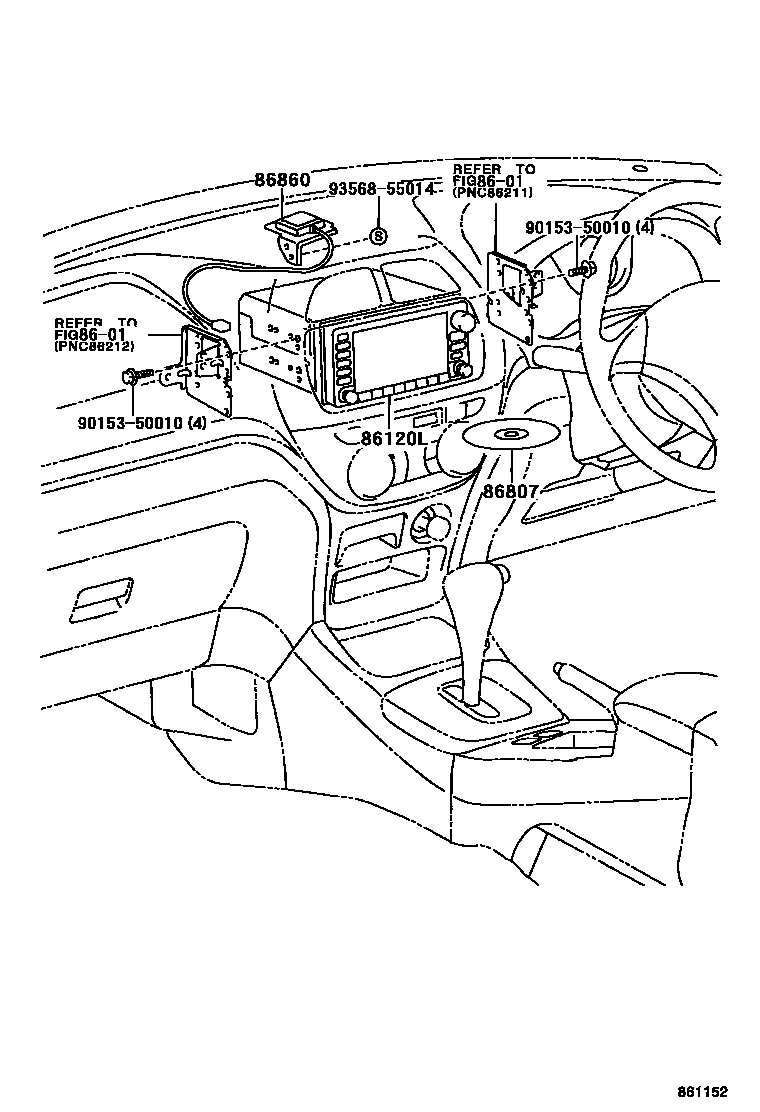

Toyota RAV4 EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-42020 · 86120-42080 |
| 86807 | CD-ROM disc repair kit | 86807-42010 · 86807-42020 · 86807-42021 · 86807-42022 · 86807-42023 · 86807-42024 |
| 86860 | Navigation antenna assembly | 86860-42010 · 86860-42011 · 86860-42020 |
