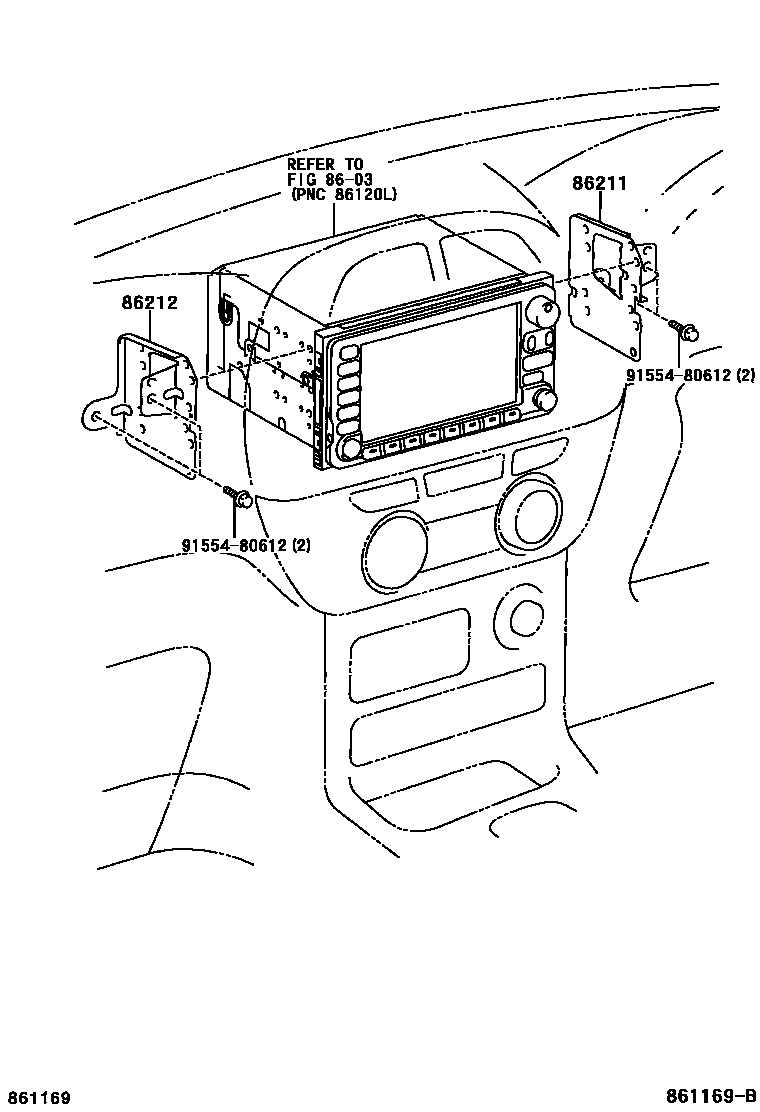

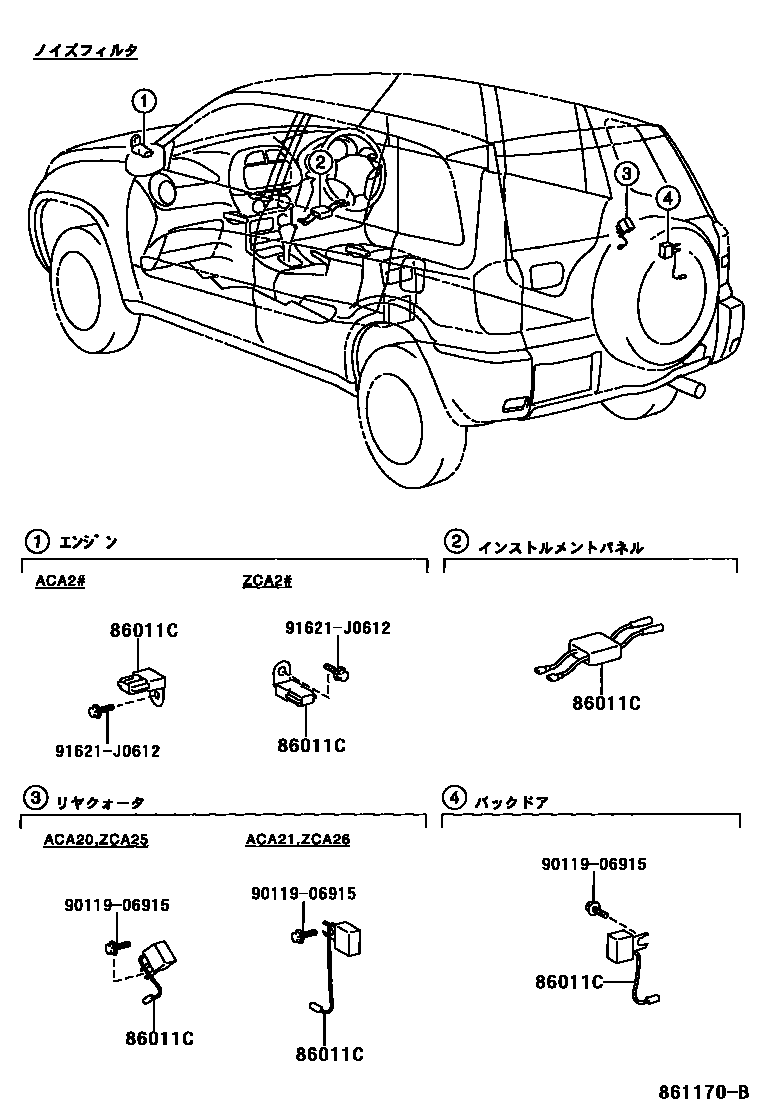

Toyota RAV4 收音机、放大器和冷凝器 — Figure 8601
Toyota RAV4 EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011C | Noise filter | 90980-05314 · 90980-05345 · 90980-05347 · 90980-05348 · 90980-05349 |
| 86211 | No. 1 radio bracket | 86211-42030 |
| 86212 | No. 2 radio bracket | 86212-42030 |
