Toyota RAV4 挡风玻璃清洗器 — Figure 8503

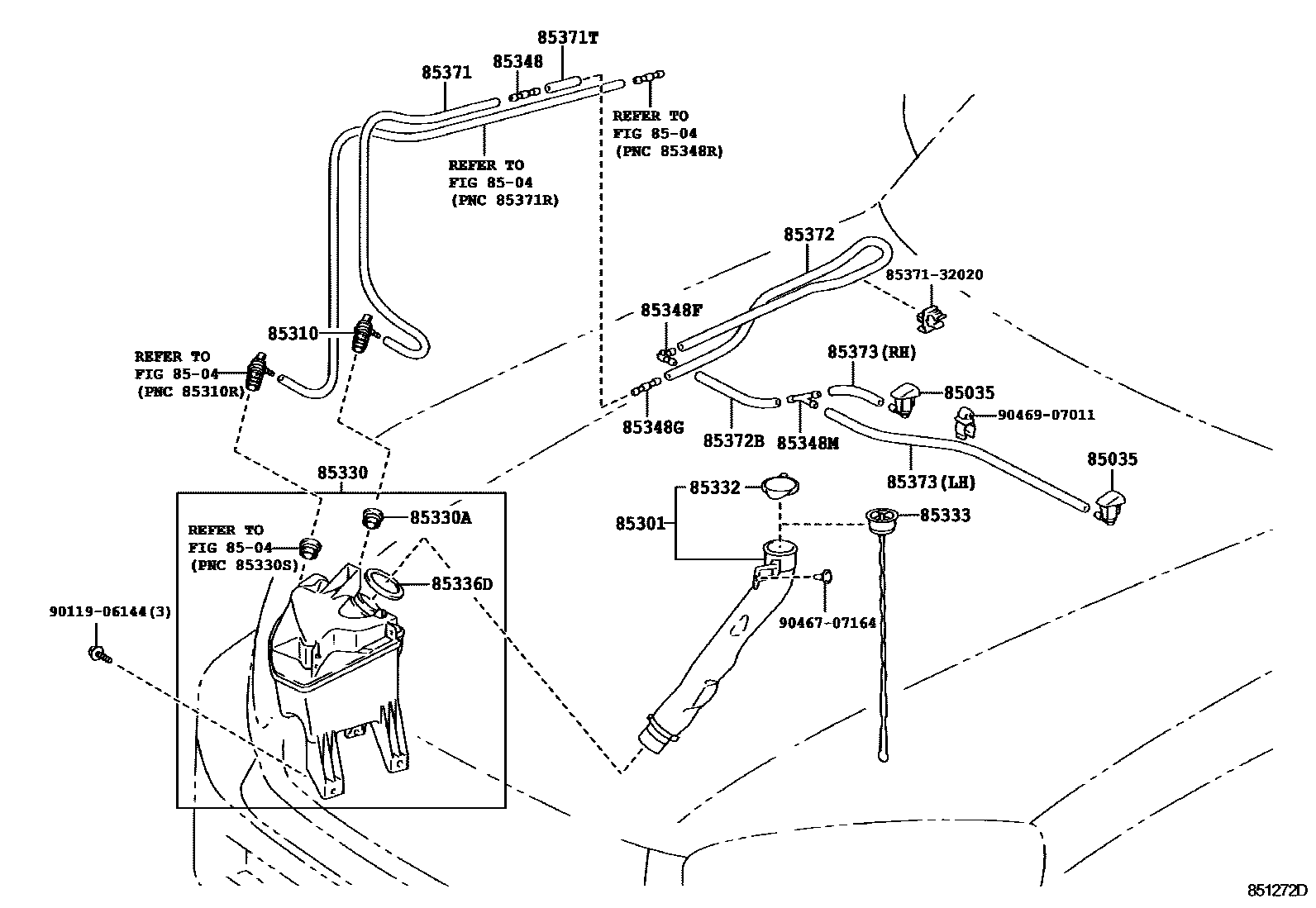

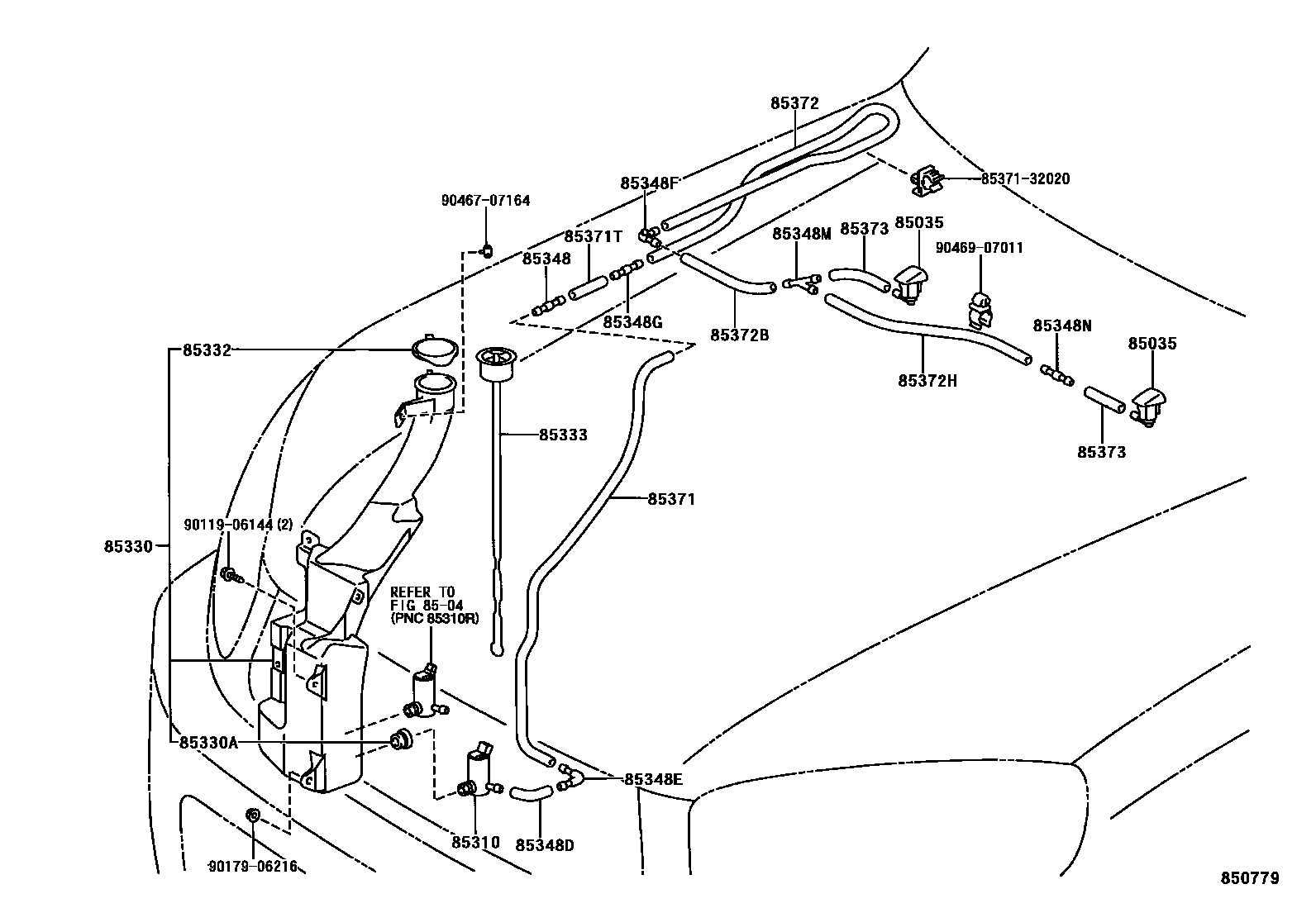

Toyota RAV4 EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-42050 |
| 85301 | Cleaner water inlet sub-assembly | 85301-42020 |
| 85310 | Windshield washer motor and pump assembly | 85330-10280 · 85330-21010 |
| 85330 | Windshield washer fluid tank assembly | 85315-42130 · 85315-42160 · 85315-42190 |
| 85330A | Windshield washer fluid tank bushing | 85336-60300 · 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-10270 · 85386-60040 |
| 85333 | Windshield washer fluid tank filter | 85312-42020 · 85312-68010 |
| 85336D | Windshield washer fluid tank seal | 85336-42190 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-14481 |
| 85348E | No. 2 windshield washer elbow joint | 85355-20200 |
| 85348F | No. 3 windshield washer elbow joint | 85375-42110 |
| 85348G | Windshield washer hose connector No. 2 | 85375-10260 |
| 85348M | No. 3 windshield washer hose connector | 85348-14390 |
| 85348N | No. 4 windshield washer hose connector | 85349-89122 |
