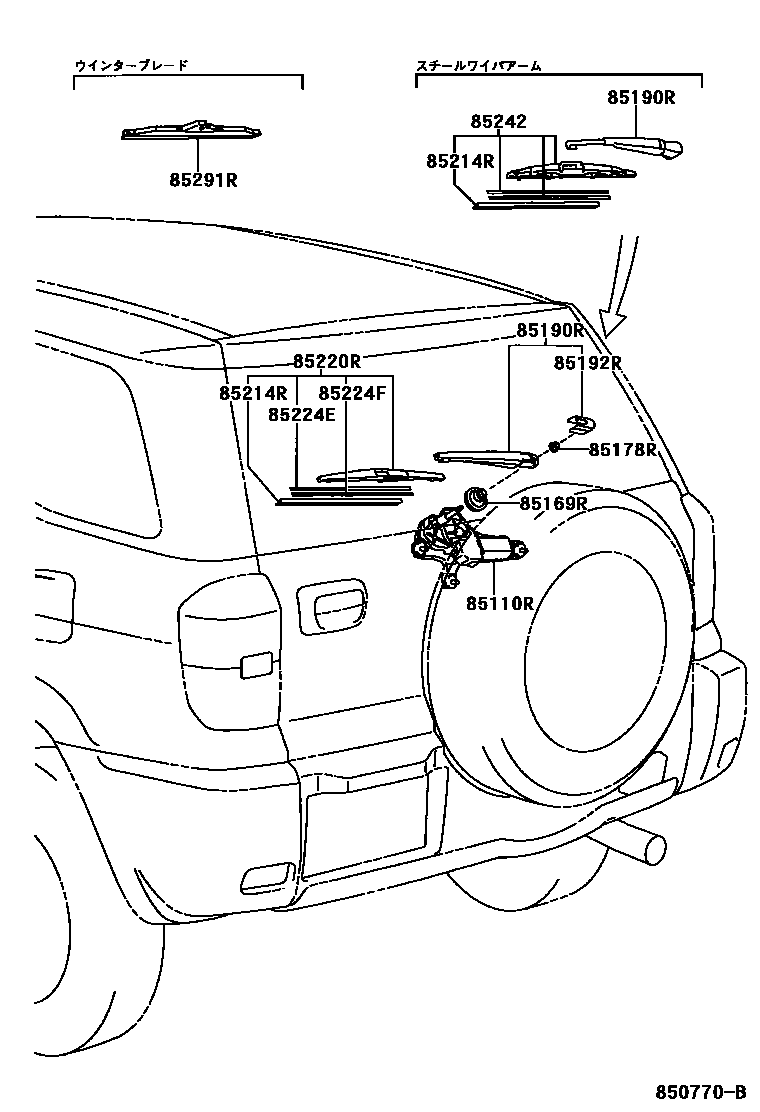

Toyota RAV4 后刮水器 — Figure 8502
Toyota RAV4 EPC diagram 8502, 后刮水器, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-42040 |
| 85169R | No. 1 rear wiper link pivot washer | 85143-42030 |
| 85178R | Nut (for securing rear wiper arm) | 90179-06158 |
| 85190R | Rear wiper arm assembly | 85241-42040 · 85241-42050 |
| 85192R | Rear wiper arm cover | 85292-28030 |
| 85214R | Rear wiper rubber strip | 85214-31010 · 85214-42040 |
| 85220R | Rear wiper blade assembly | 85242-42020 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-42040 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-42040 |
| 85242 | Rear wiper blade | 85242-31011 |
| 85291R | Rear wiper blade for winter | 85291-33020 · 85291-42020 |
