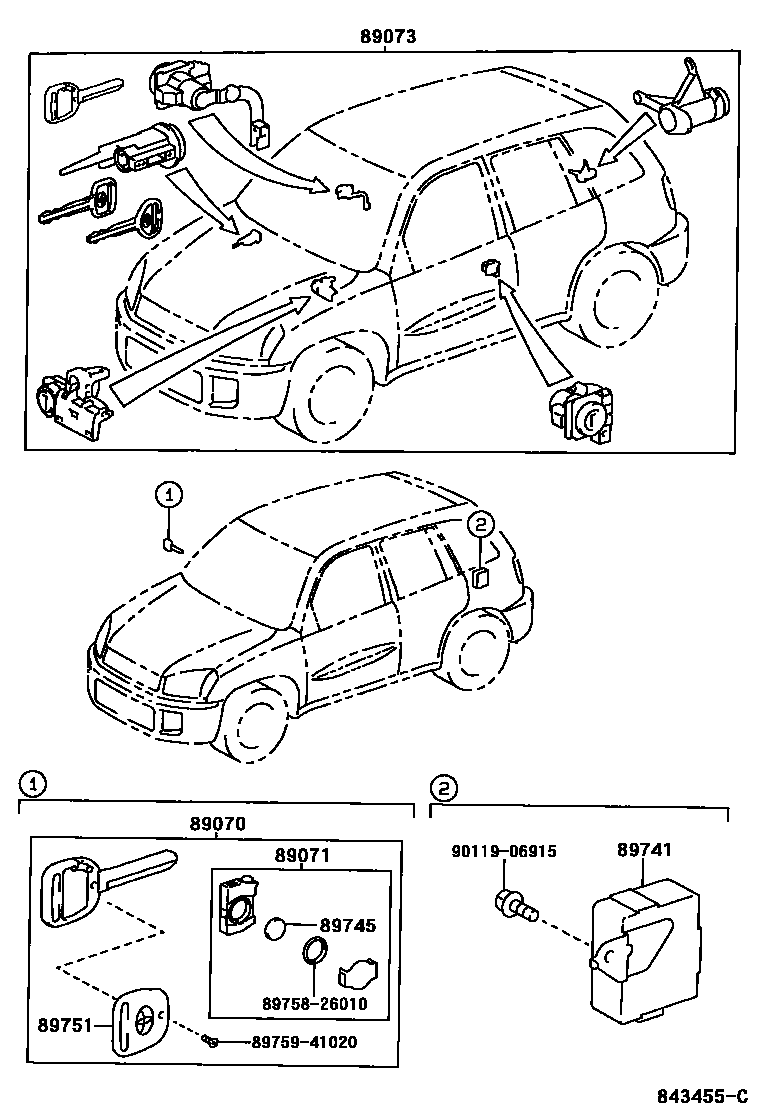

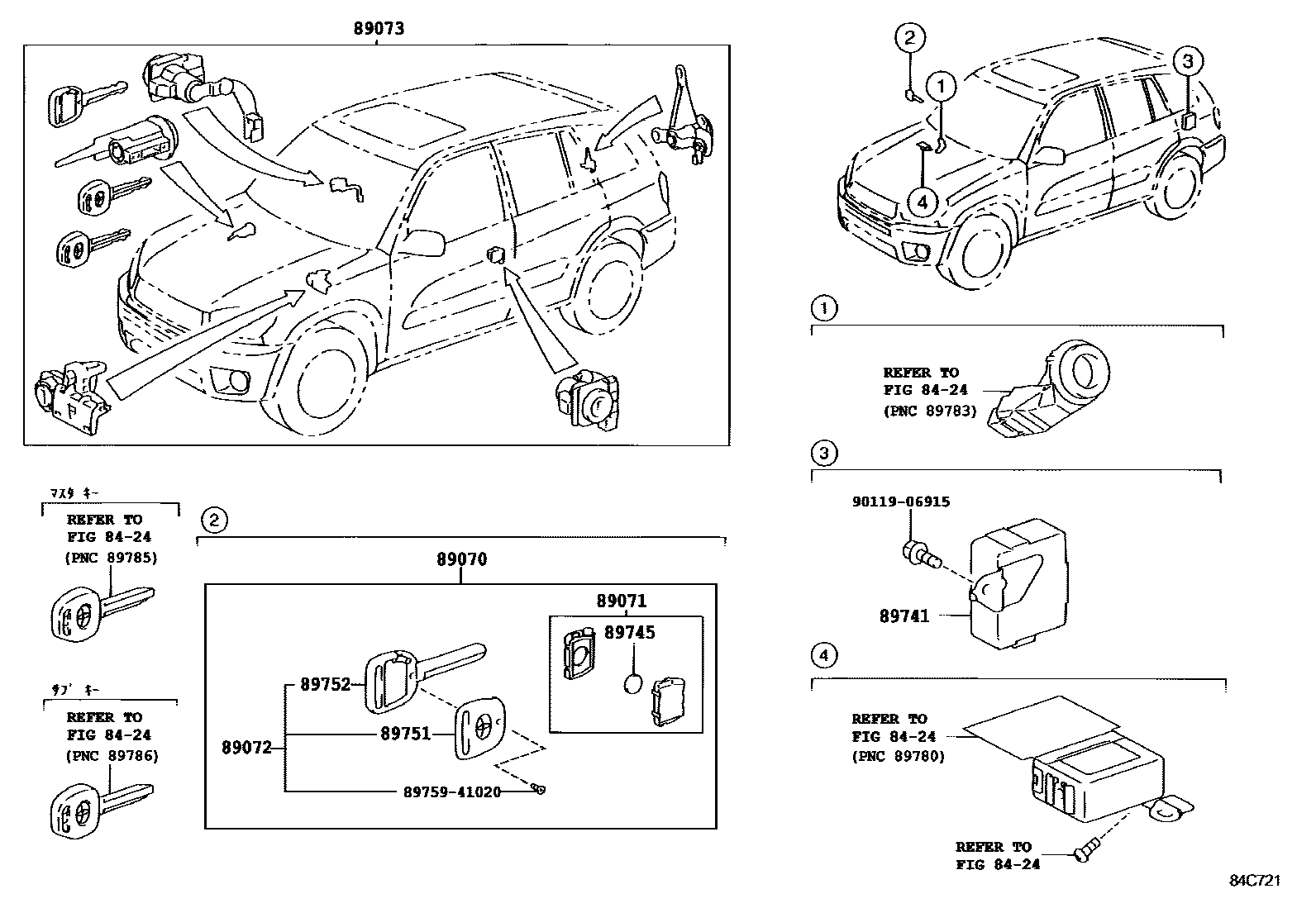

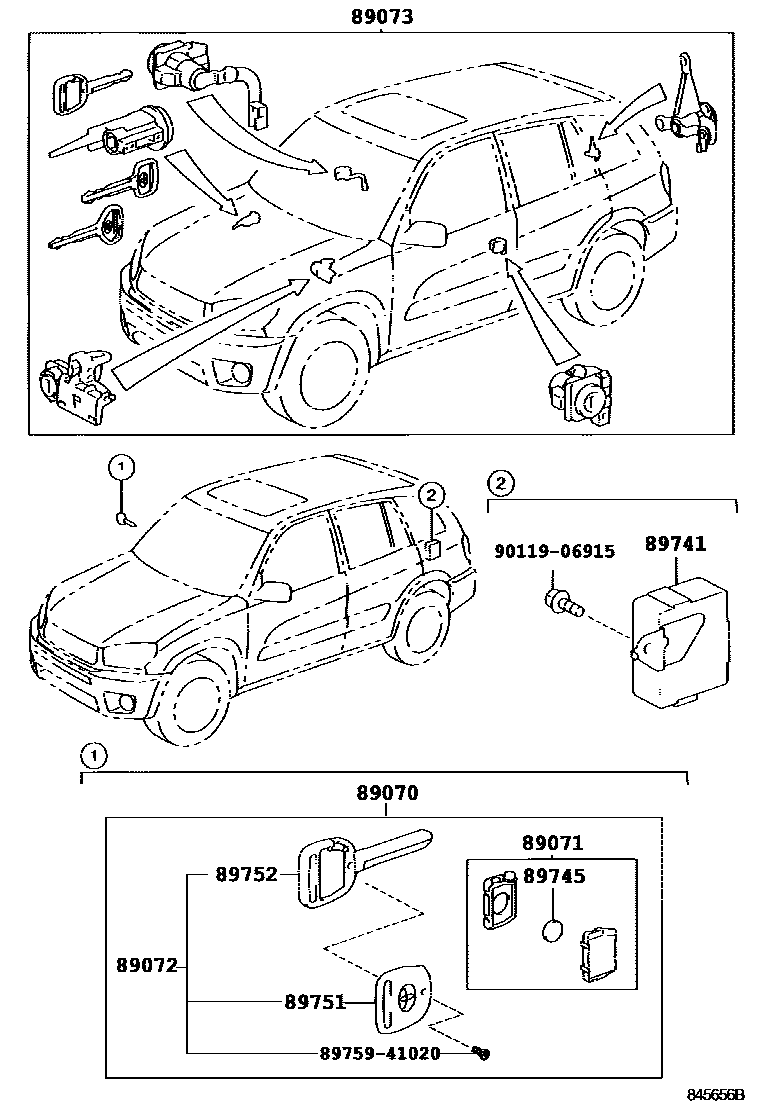

Toyota RAV4 遥控门锁 — Figure 8420
Toyota RAV4 EPC diagram 8420, 遥控门锁, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89070 | Remote key assembly | 89070-12270 · 89070-12340 · 89070-42180 · 89070-42181 |
| 89071 | Remote key sub-assembly module assembly | 89071-12021 · 89071-12031 · 89071-12060 · 89071-28050 |
| 89072 | Remote key shell assembly | 89072-47020 |
| 89073 | Lock cylinder assembly with transmitter housing (without module) | 69005-42320 · 69005-42330 · 89073-42090 |
| 89741 | door control receiver | 89741-42130 · 89741-42131 |
| 89745 | Transmitter battery | 89745-26010 |
| 89751 | Transmitter housing cover | 89751-44010 |
| 89752 | transmitter housing | 89752-46020 |
