Toyota RAV4 ABS 和 VSC — Figure 8414

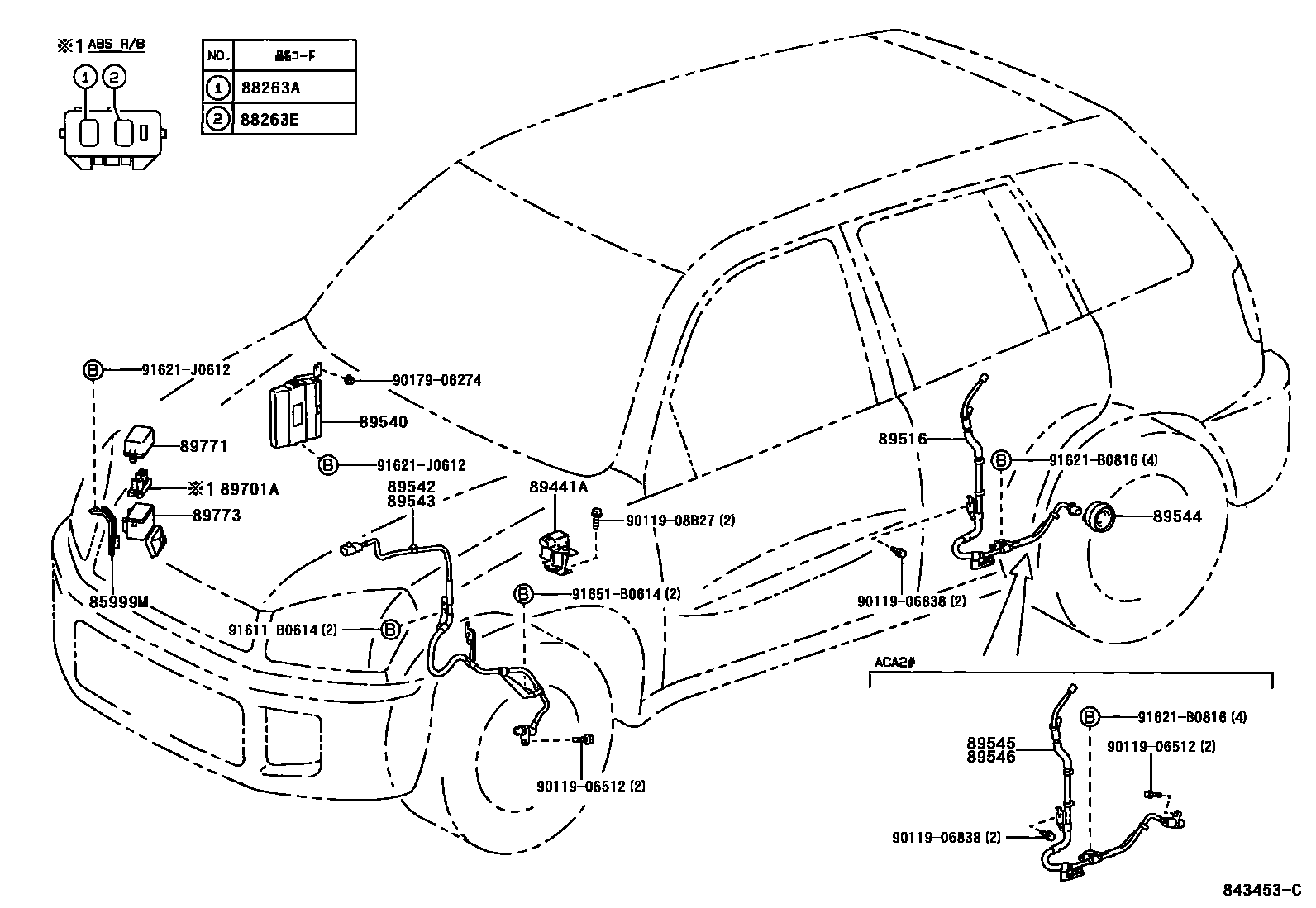

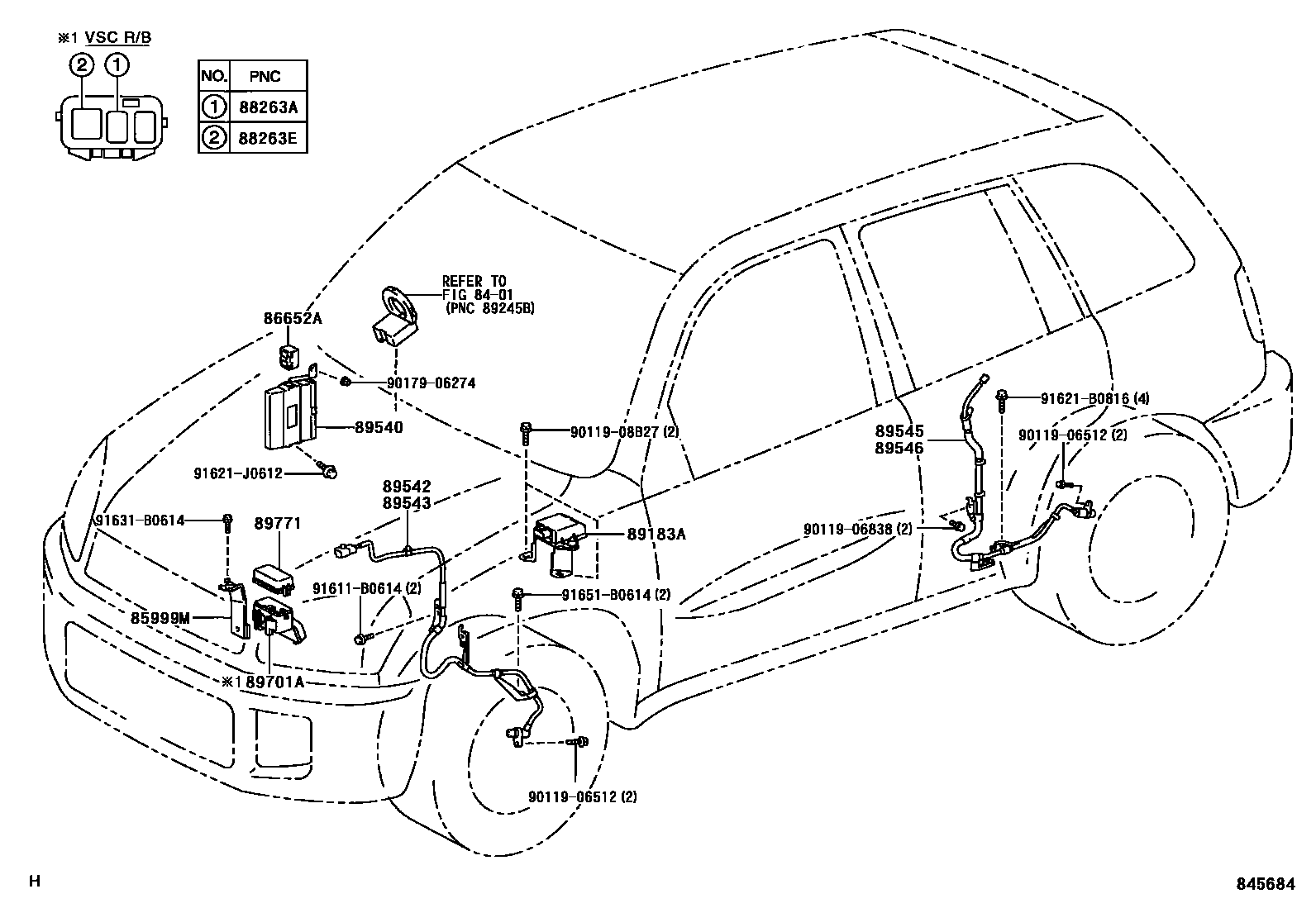

Toyota RAV4 EPC diagram 8414, ABS 和 VSC, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85999M | Relay bracket | 85999-42040 · 85999-42050 |
| 86652A | Anti-skid control buzzer assembly | 86652-48010 |
| 88263A | Anti-skid control relay | 88263-32070 |
| 88263E | No. 2 anti-skid control relay | 88263-21010 · 88263-32070 |
| 89183A | Yaw rate sensor | 89180-42010 |
| 89441A | deceleration sensor | 89440-42020 · 89440-42040 |
| 89516 | Anti-skid control sensor wiring harness | 89516-42030 · 89516-42040 |
| 89540 | Anti-skid control ECU assembly | 89540-42110 · 89540-42120 · 89540-42130 · 89540-42140 · 89540-42150 · 89540-42160 · 89540-42170 · 89540-42180 |
| 89542 | Right front wheel speed sensor | 89542-42040 |
| 89543 | Left front wheel speed sensor | 89543-42040 |
| 89544 | Anti-skid control sensor | 89544-32010 · 89544-32040 |
| 89545 | Right rear wheel speed sensor | 89545-42030 |
| 89546 | Left rear wheel speed sensor | 89546-42030 |
| 89701A | ABS relay box sub-assembly | 89701-21020 · 89701-42010 |
| 89771 | ABS relay box upper cover | 89771-21010 · 89771-21020 |
| 89773 | ABS relay box | 89773-21010 |
