Toyota RAV4 电子燃油喷射系统 — Figure 8404

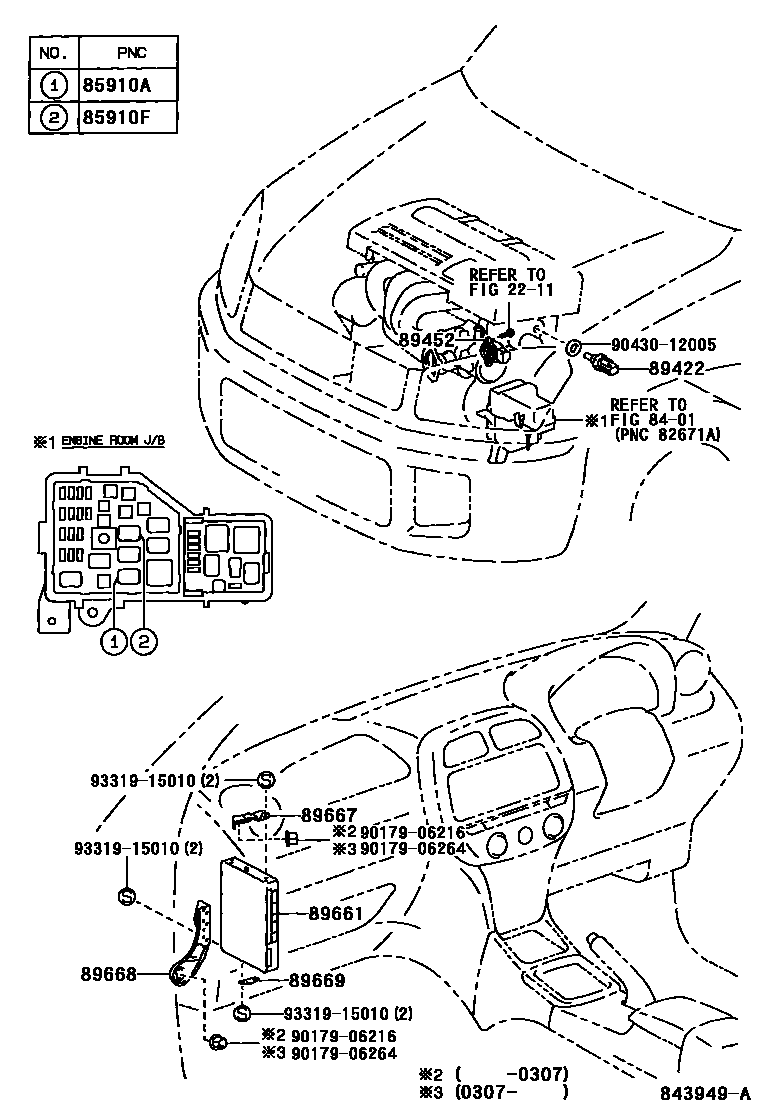

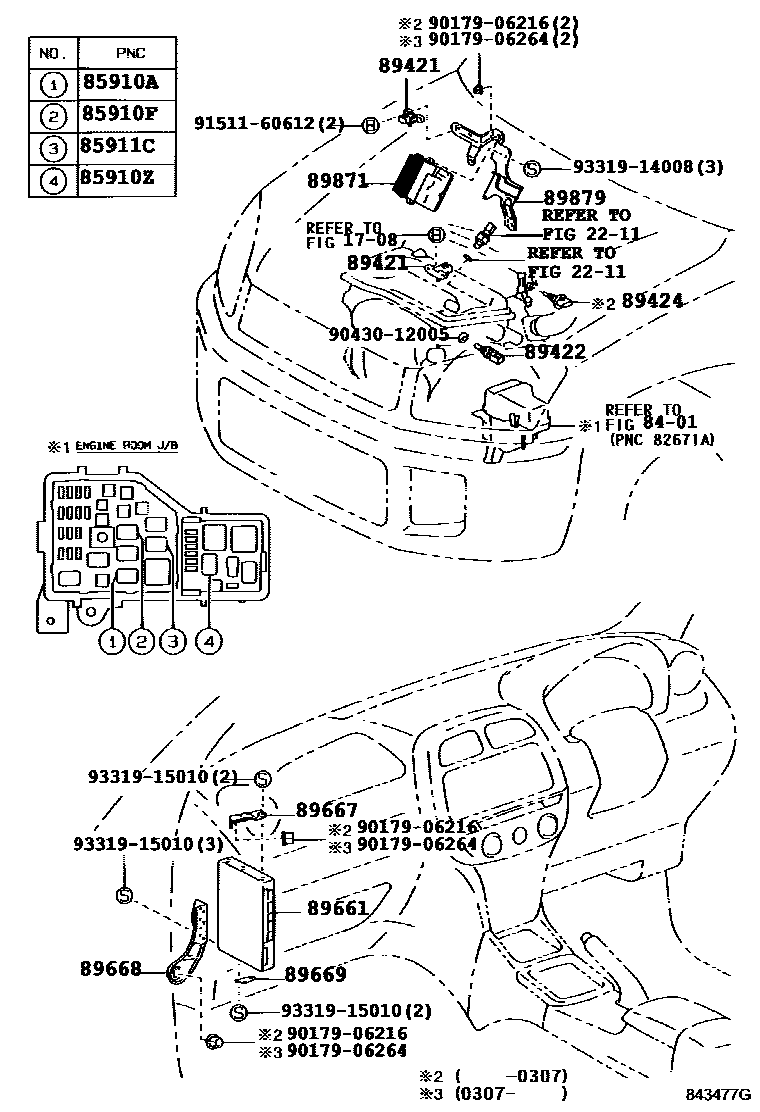

Toyota RAV4 EPC diagram 8404, 电子燃油喷射系统, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 · 90987-02027 |
| 85910F | ECU relay (for EFI) | 90987-02012 · 90987-02027 |
| 85910Z | Injection relay (for EFI) | 90987-02012 · 90987-02027 |
| 85911C | EFI2 relay | 90987-02012 · 90987-02027 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-20190 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 · 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20130 |
| 89661 | Engine control ECU | 89661-42160 · 89661-42610 · 89661-42611 · 89661-42620 · 89661-42621 · 89661-42830 · 89661-42840 · 89661-42A00 · 89661-42B40 |
| 89667 | Engine control ECU bracket | 89667-42030 |
| 89668 | No. 2 engine control ECU bracket | 89668-42030 |
| 89669 | No. 3 engine control ECU bracket | 89669-42040 |
| 89871 | Injector driver | 89871-20040 |
| 89879 | Injector driver bracket | 89879-42010 |
