Toyota RAV4 开关和继电器和ECU — Figure 8401

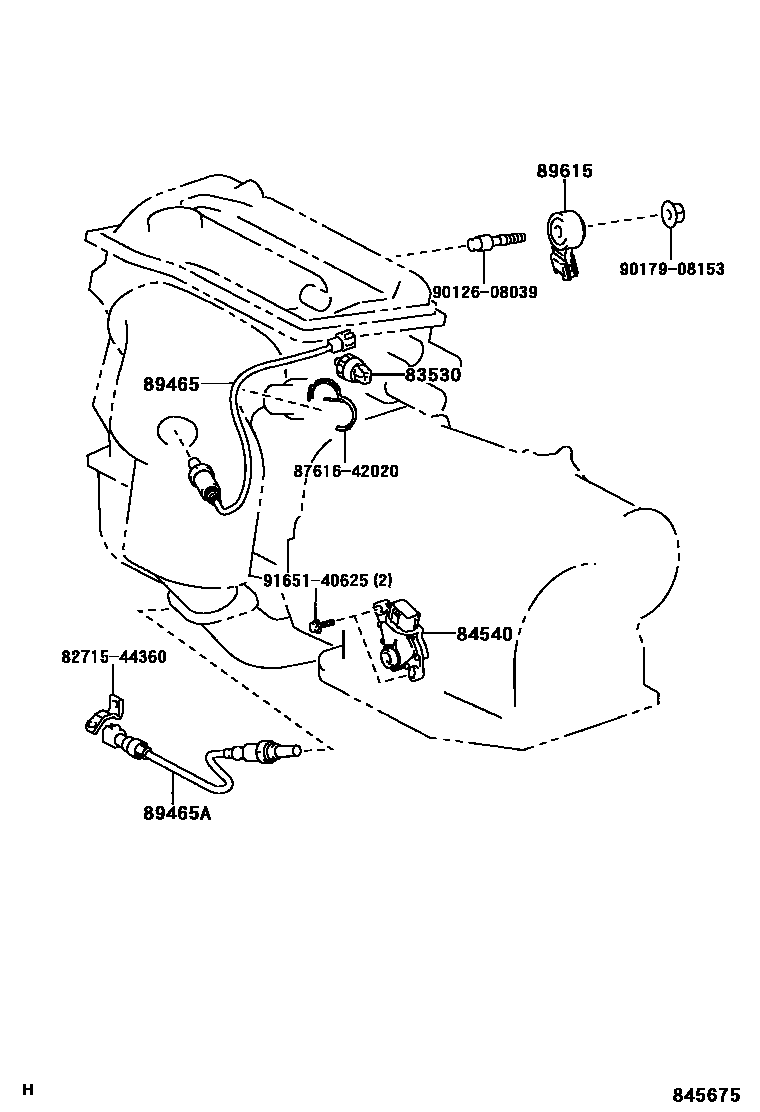

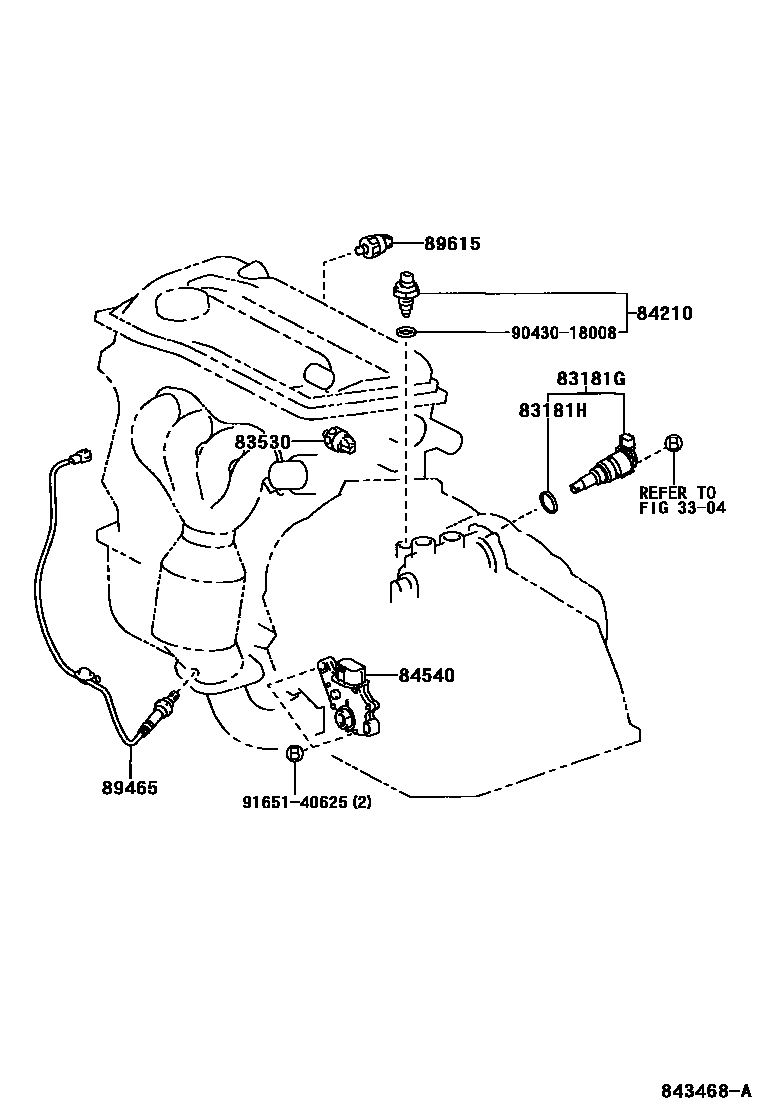

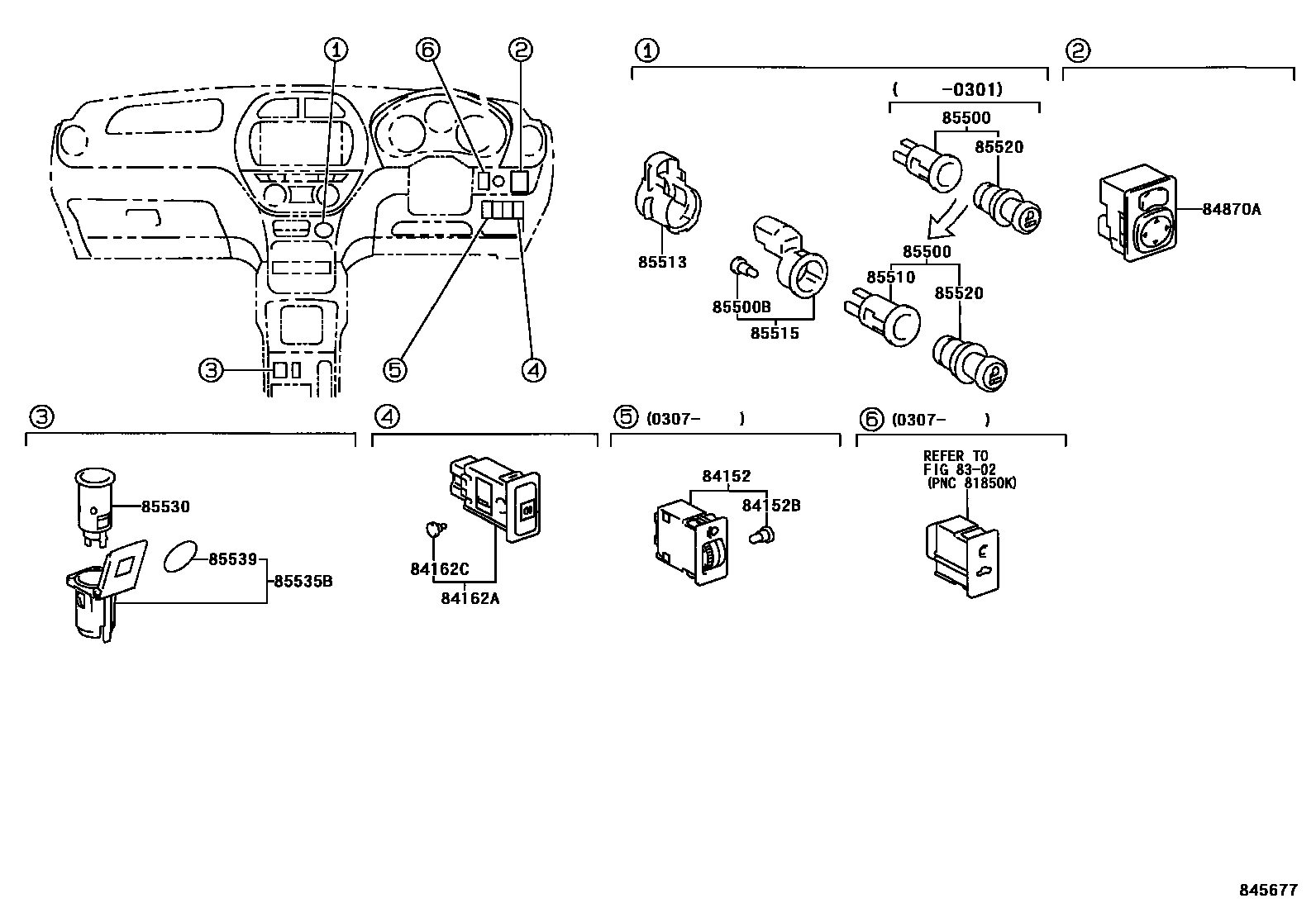

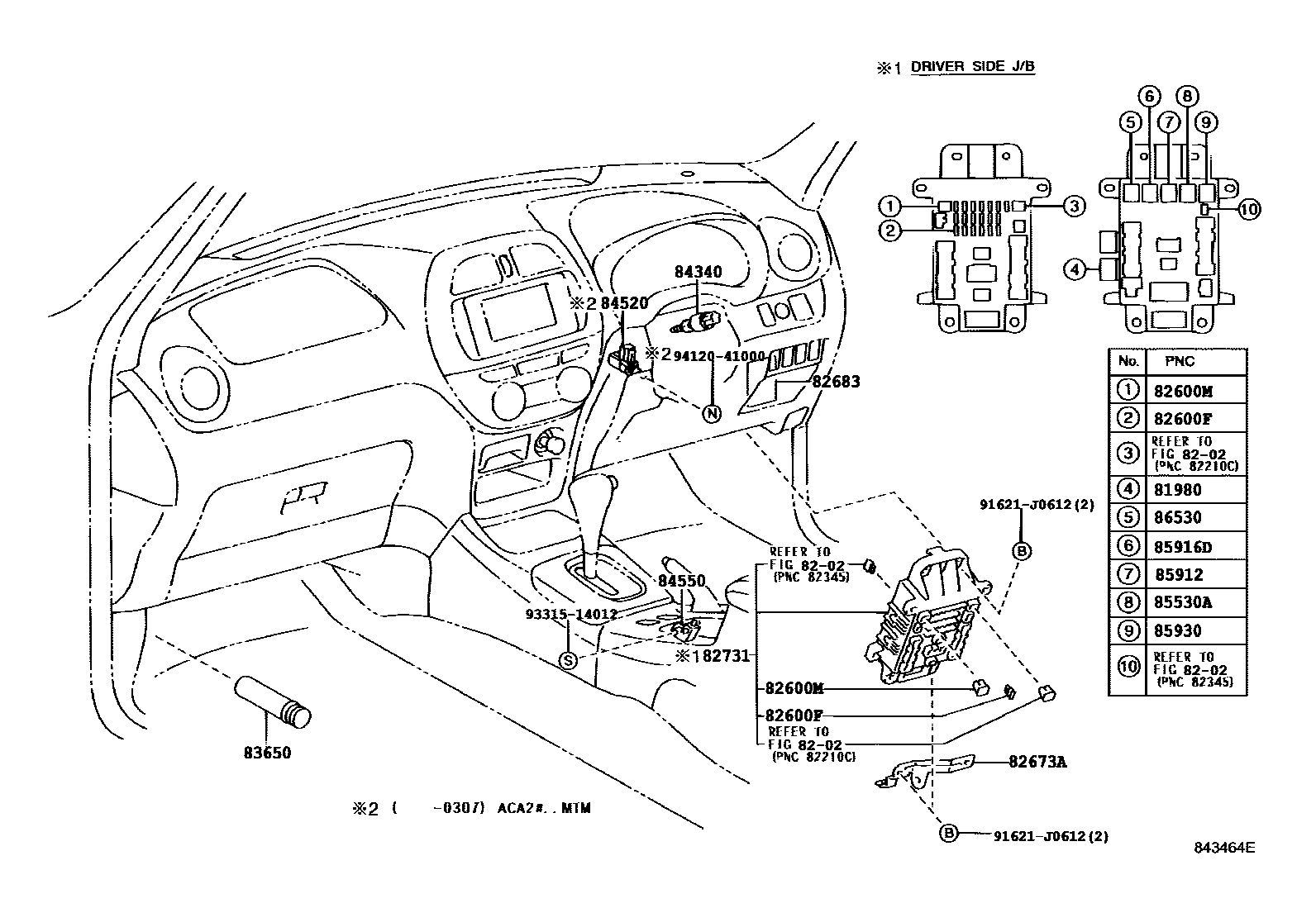

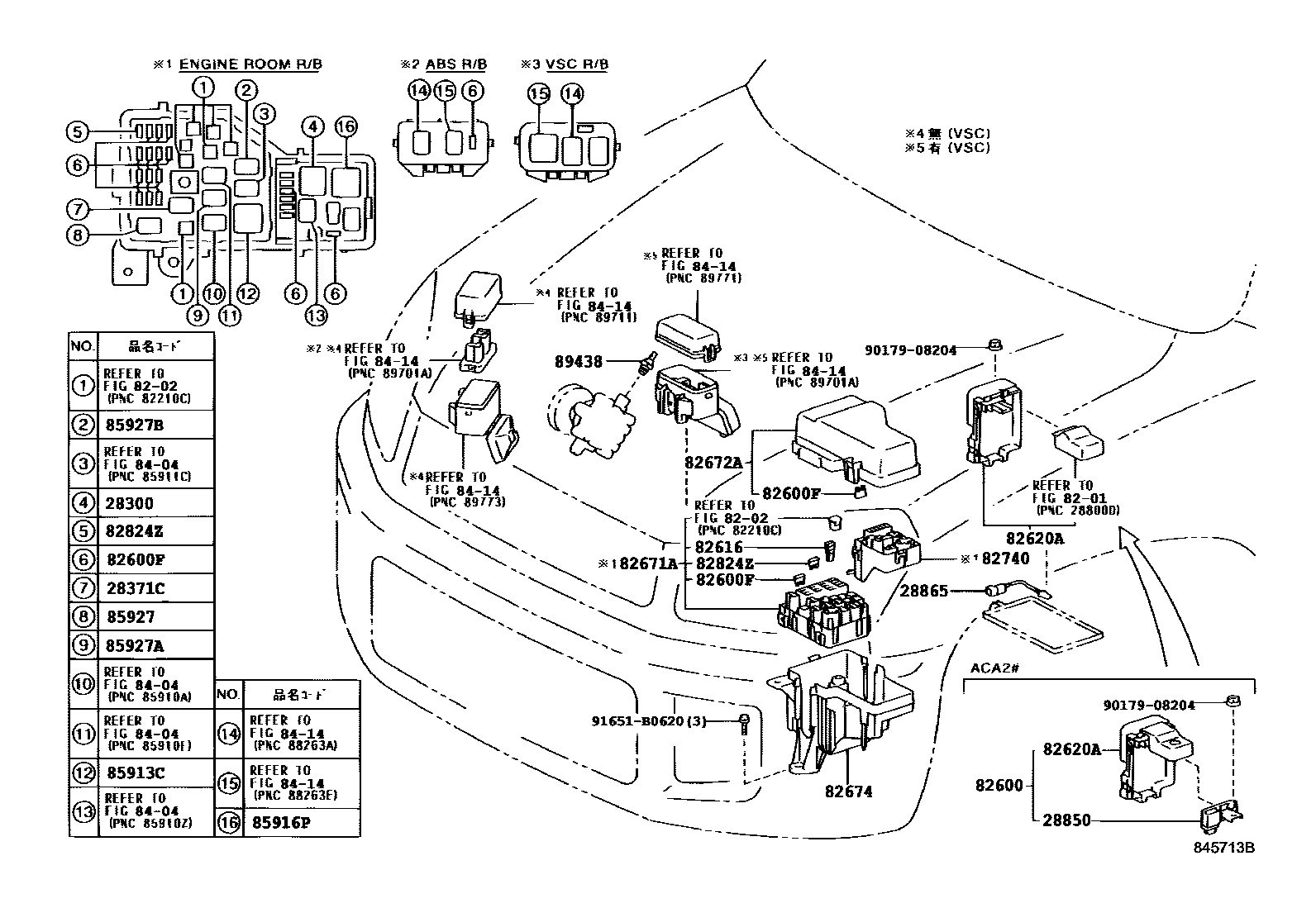

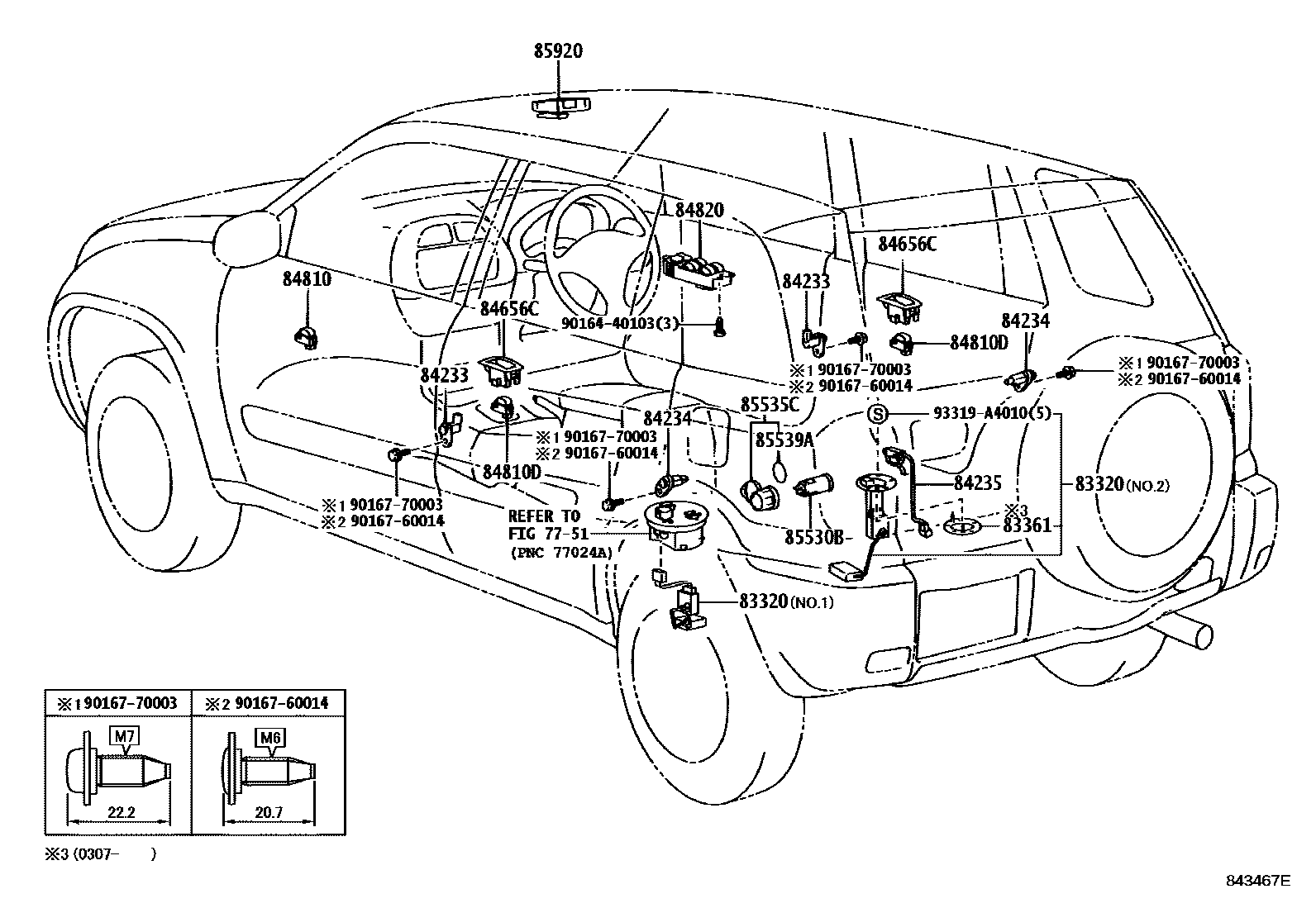

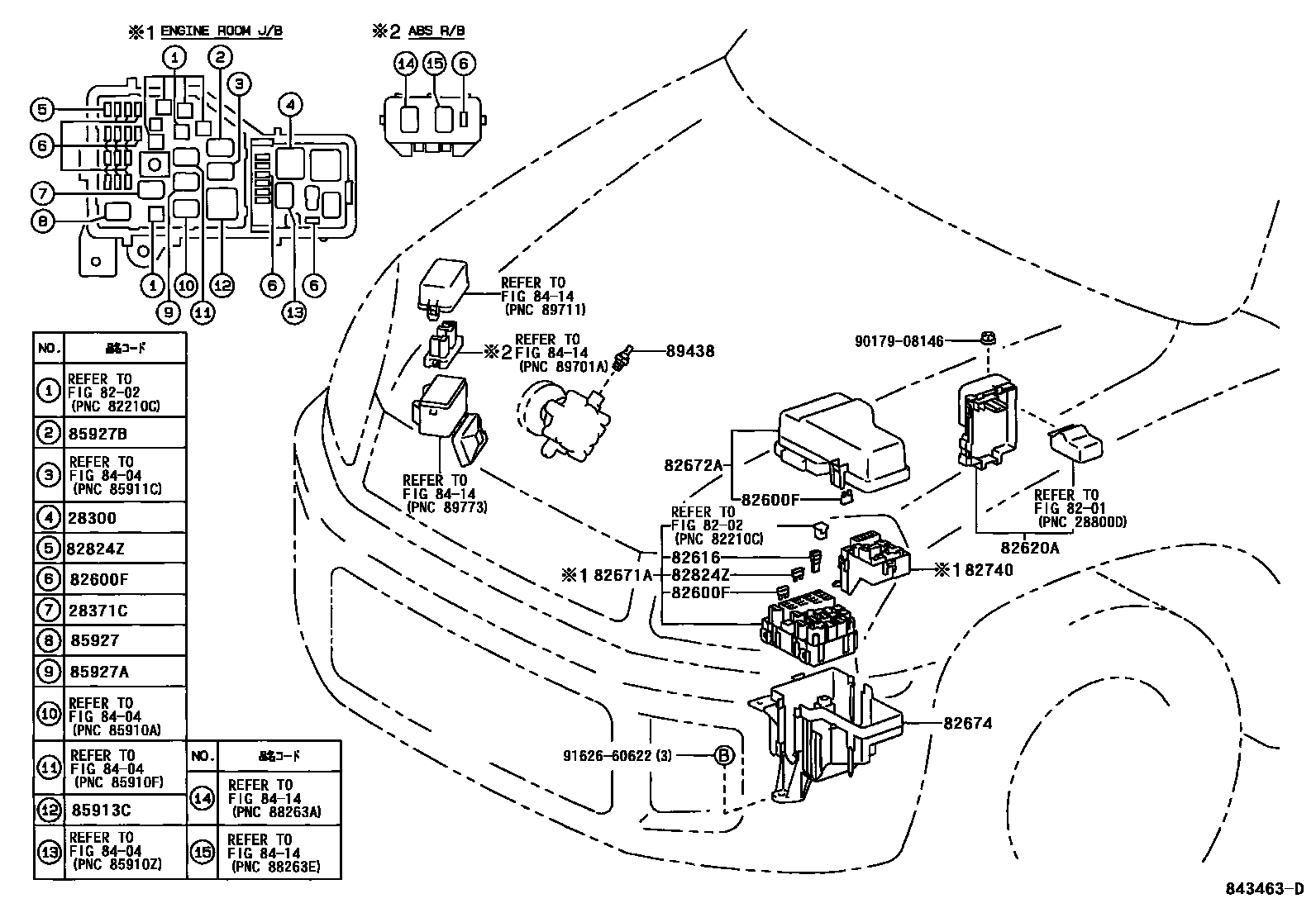

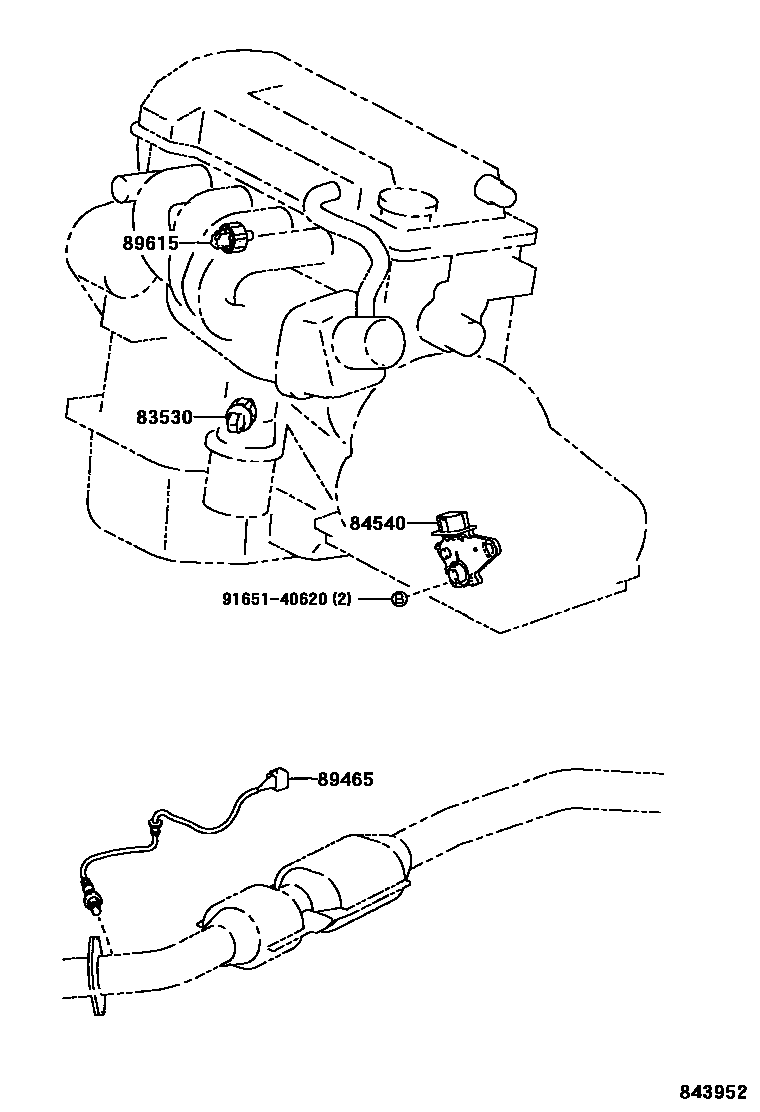

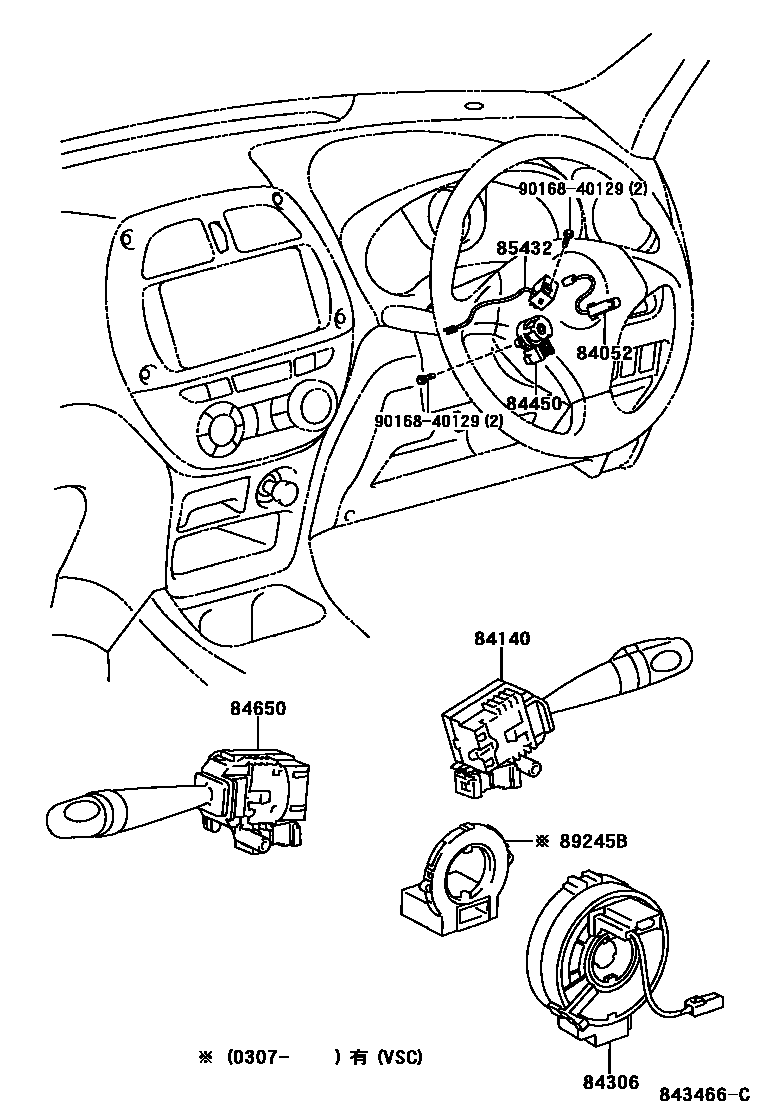

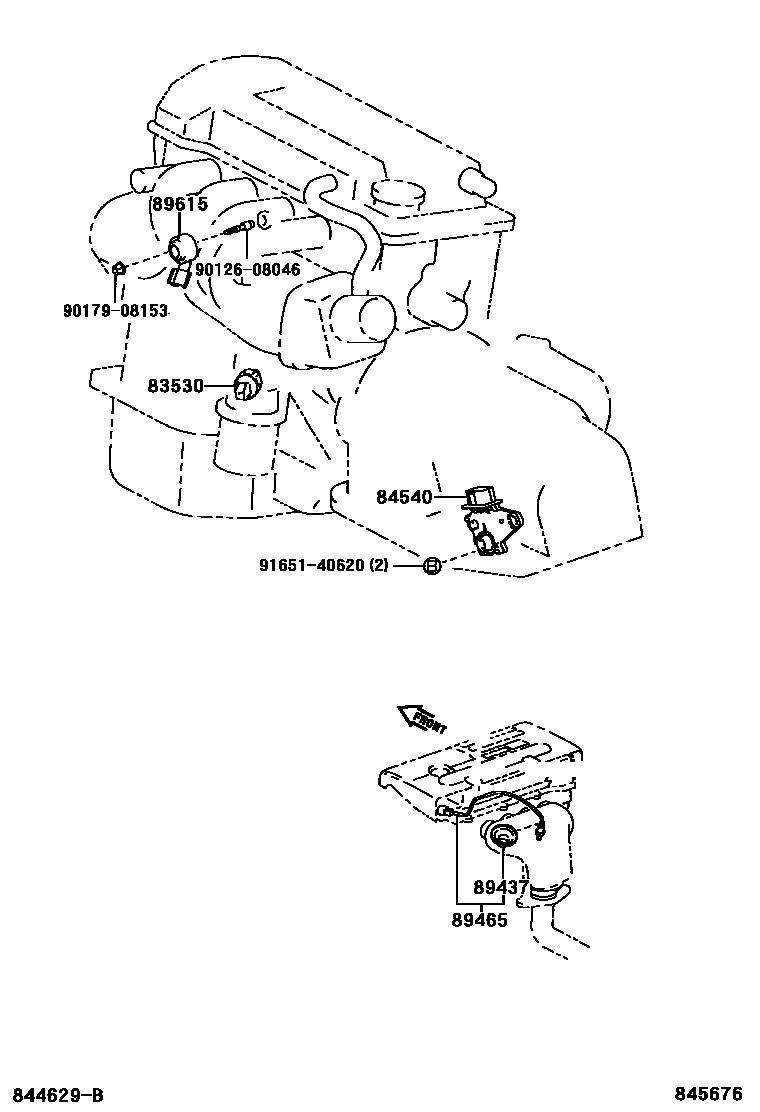

Toyota RAV4 EPC diagram 8401, 开关和继电器和ECU, with 10 images and 72 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 28371C | No. 2 ignition relay | 90987-02012 · 90987-02027 |
| 28850 | Battery current sensor assembly | 28850-28030 |
| 28865 | battery thermometer sensor | 28865-28030 |
| 81980 | Turn signal flasher relay assembly | 81980-50030 |
| 82600 | Fuse box assembly | 82610-42060 |
| 82600F | Spare fuse | 90982-09007 · 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09012 · 90982-09013 |
| 82600M | medium current fuse | 90982-10001 |
| 82616 | fuse puller | 82616-20010 |
| 82620A | Fuse box assembly | 82620-42030 · 82620-42050 |
| 82671A | junction box | 82721-42010 · 82721-42020 · 82721-42030 · 82721-42040 |
| 82672A | Junction box cover | 82672-42060 · 82672-42070 · 82672-42110 · 82672-42120 · 82672-42130 · 82672-42140 |
| 82673A | Junction box bracket | 82673-42050 |
| 82674 | Junction box lower cover | 82674-42010 |
| 82683 | Fuse box warning nameplate | 82683-42090 |
| 82731 | Driver's side junction box | 82731-42010 |
| 82740 | Engine room relay box assembly | 82740-42030 · 82740-42040 |
| 82824Z | Shorting pin | 82824-20140 |
| 83181G | speedometer sensor | 83181-12050 |
| 83181H | O-ring (for speedometer sensor) | 96711-24030 |
| 83320 | Fuel gauge sensor assembly | 83320-42040 · 83320-42041 · 83320-49165 · 83320-49195 |
| 83361 | fuel gauge sensor gasket | 77169-14020 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 83650 | fuse | 90986-01005 |
| 84052 | Unlock warning switch assembly | 84052-60020 |
| 84140 | Headlight dimmer switch assembly | 84140-12510 · 84140-12520 · 84140-12530 · 84140-42020 |
| 84152 | Headlight beam height adjustment switch | 84152-20050 |
| 84152B | Bulb (for headlight beam height adjustment switch) | 90010-08106 |
| 84162A | Rear fog light switch | 84165-42010 · 84165-42020 |
| 84162C | Bulb (for rear fog light switch) | 90010-09011 |
| 84210 | Reversing light switch assembly | 84210-12040 |
| 84233 | Door control light switch assembly (for front door) | 84231-53010 · 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-60070 |
| 84235 | Door control light switch assembly (for back door) | 84231-42030 |
| 84306 | Spiral cable sub-assembly | 84306-52020 · 84306-52041 · 84306-52050 |
| 84340 | brake light switch assembly | 84340-42010 · 84340-42020 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84520 | Clutch start switch assembly | 84520-42010 |
| 84540 | Neutral start switch assembly | 84540-12230 · 84540-46010 · 84540-48010 · 84540-52050 |
| 84550 | Parking brake switch assembly | 84550-16060 |
| 84650 | Windshield wiper switch assembly | 84652-42100 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84810D | Rear electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-42070 · 84820-42100 |
| 84870A | Exterior rearview mirror switch assembly | 84870-28020 · 84870-34010 |
| 85432 | Key interlock solenoid valve | 85432-42020 |
| 85500 | Cigarette lighter assembly | 85500-12240 · 85500-28050 |
| 85500B | Cigarette lighter bulb | 90010-01030 |
| 85510 | Cigarette lighter socket and fixing bracket assembly | 85510-16040 |
| 85513 | Cigarette lighter cover | 85513-28010 |
| 85515 | Cigarette lighter frame bracket | 85515-22040 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 · 85530-42010 |
| 85530A | power outlet relay | 90987-02020 · 90987-02027 |
| 85530B | No. 1 rear power socket assembly | 85530-33020 · 85530-42010 |
| 85539 | Power socket attention labels | 85539-60010 |
| 85539A | Note label on rear power outlet | 85539-60010 |
| 85912 | defogger relay | 90987-02020 · 90987-02027 |
| 85913C | Heater relay No. 1 | 90987-04006 · 90987-04010 |
| 85916D | fog light relay | 90987-02020 · 90987-02027 |
| 85916P | headlight relay | 90987-02016 · 90987-02025 |
| 85927 | cooling fan relay | 90987-02012 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02012 · 90987-02027 |
| 85930 | Electric window relay assembly | 90987-02020 · 90987-02027 |
| 86530 | Speaker relay assembly | 90987-02020 · 90987-02027 |
| 89245B | steering sensor | 89245-52010 |
| 89437 | sensor cover | 89437-12080 |
| 89438 | Power steering oil pressure switch | 89438-33010 |
| 89465 | oxygen sensor | 89465-12710 · 89465-42080 · 89465-42110 · 89465-68010 |
| 89465A | Oxygen sensor No. 2 | 89465-42140 |
| 89615 | knock control sensor | 89615-12120 · 89615-20090 · 89615-30080 · 89615-32030 · 89615-44010 |
