Toyota RAV4 线束和卡夹 — Figure 8202
Toyota RAV4 EPC diagram 8202, 线束和卡夹, with 8 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

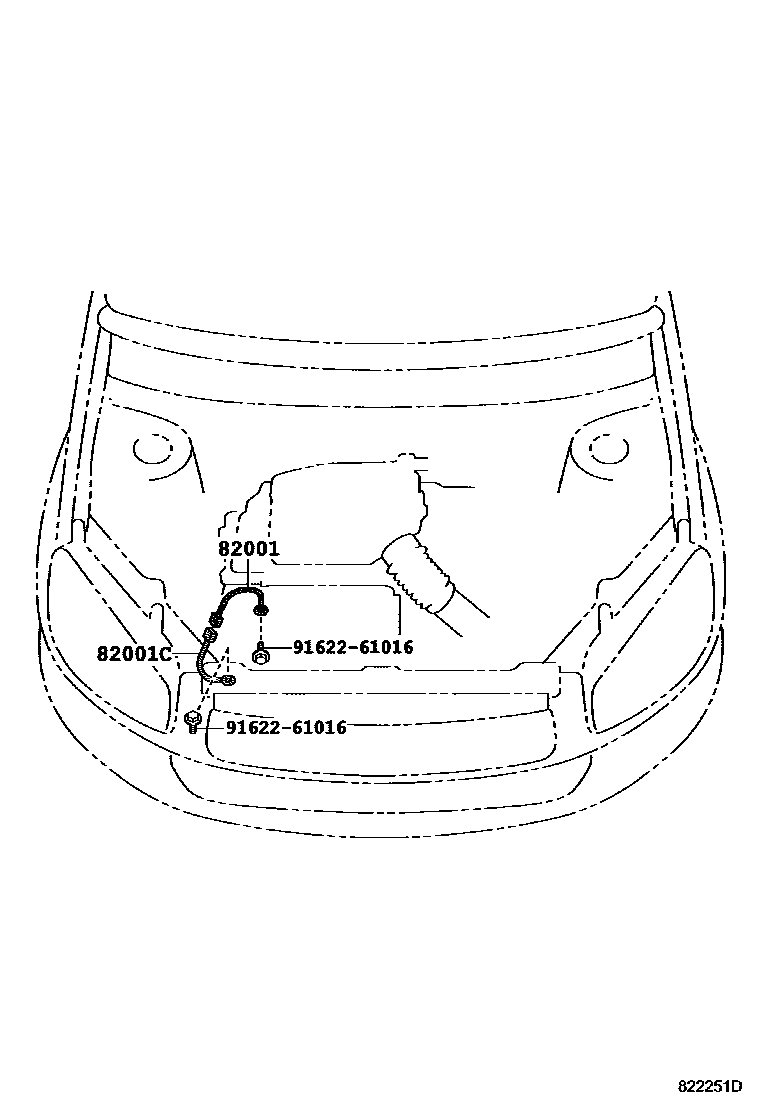

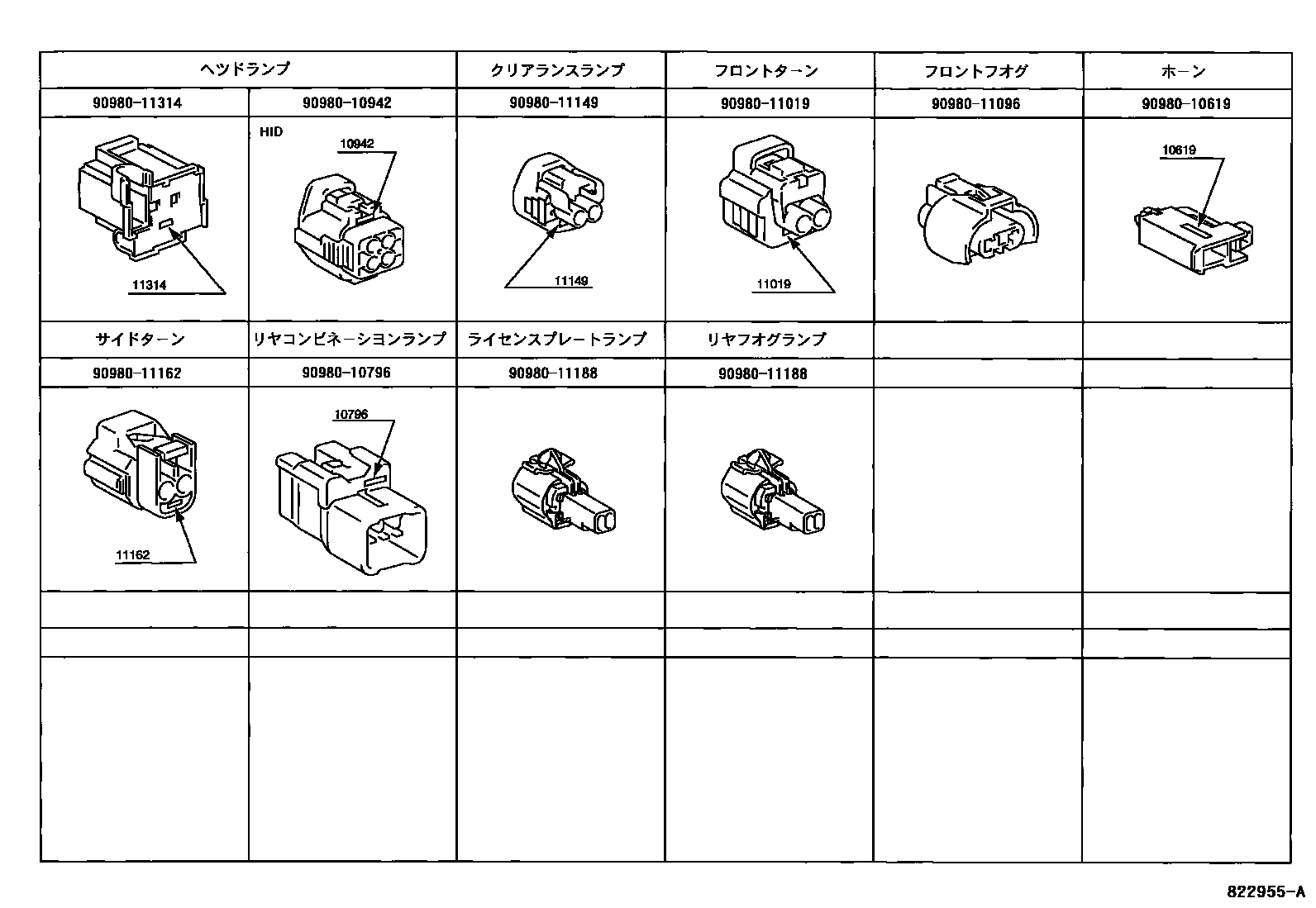

| 82001 | Connection cable No. 1 | 90980-07205 |
| 82001C | Connection cable No. 2 | 90980-07315 |

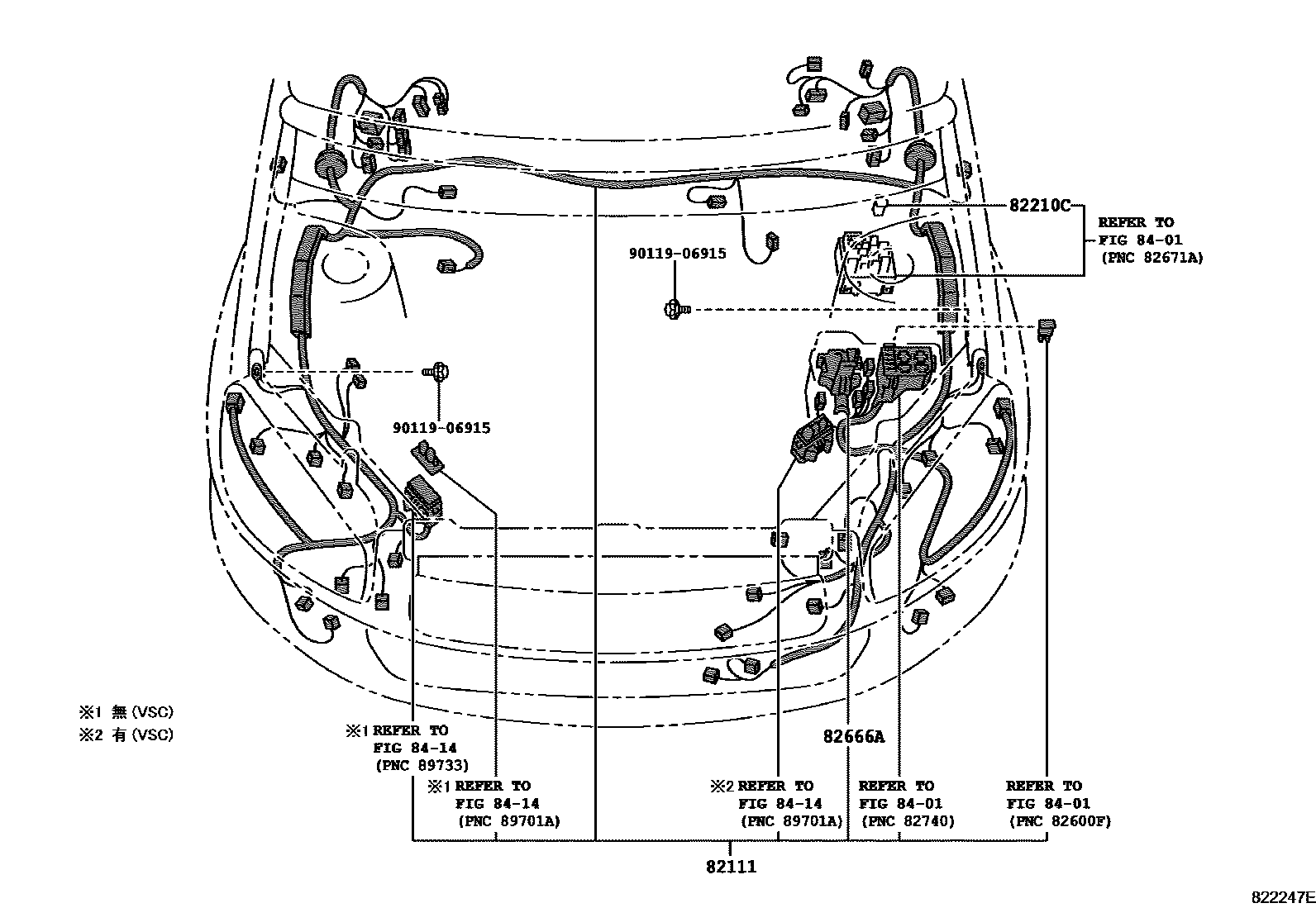

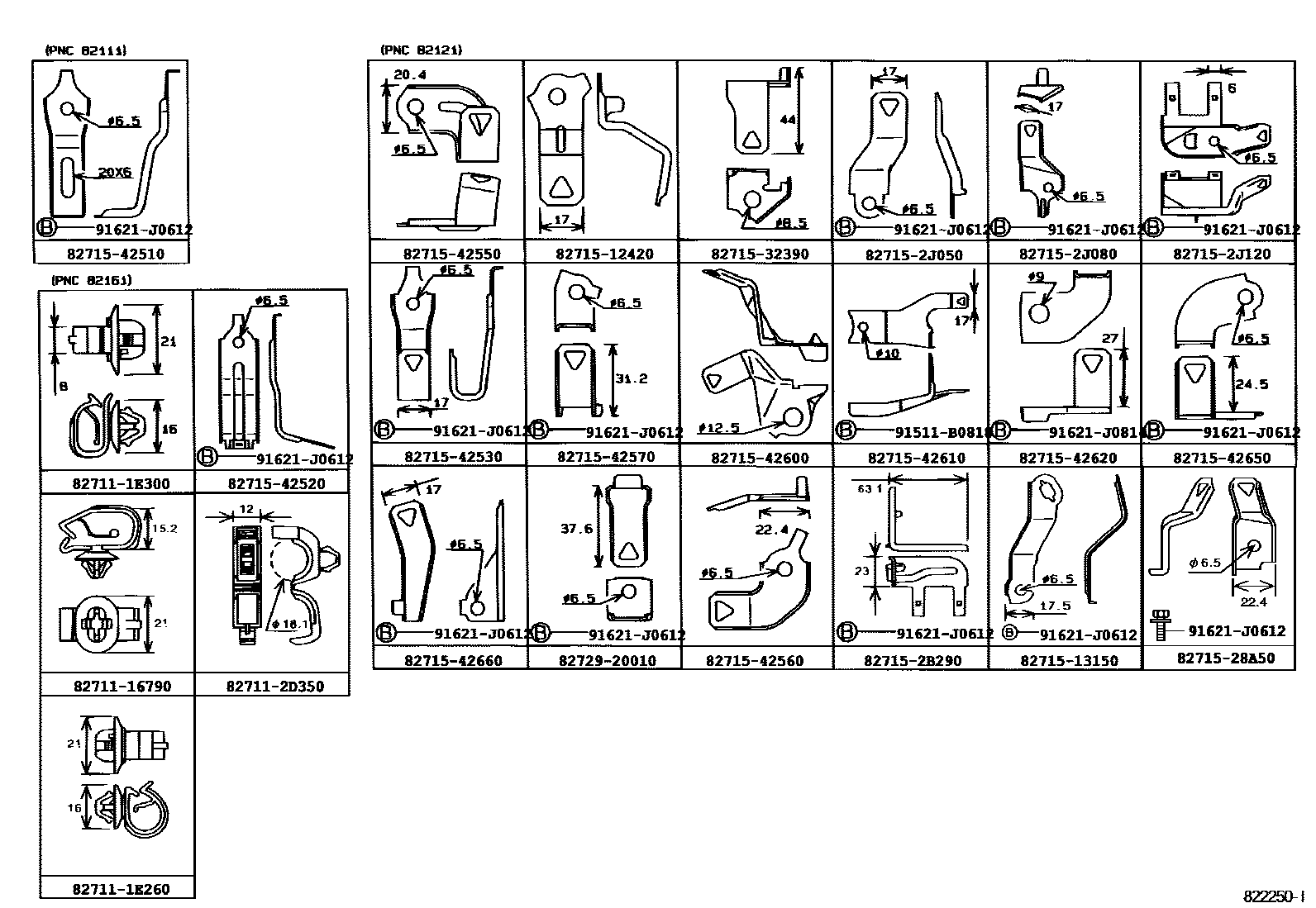

| 82111 | Engine room main wiring harness | 82111-42A00 · 82111-42A01 · 82111-42A10 · 82111-42A11 · 82111-42D10 · 82111-42D11 · 82111-4A070 · 82111-4A071 · 82111-4A080 · 82111-4A081 · 82111-4A390 · 82111-4A391 · 82111-4A400 · 82111-4A401 · 82111-4A410 · 82111-4A411 |

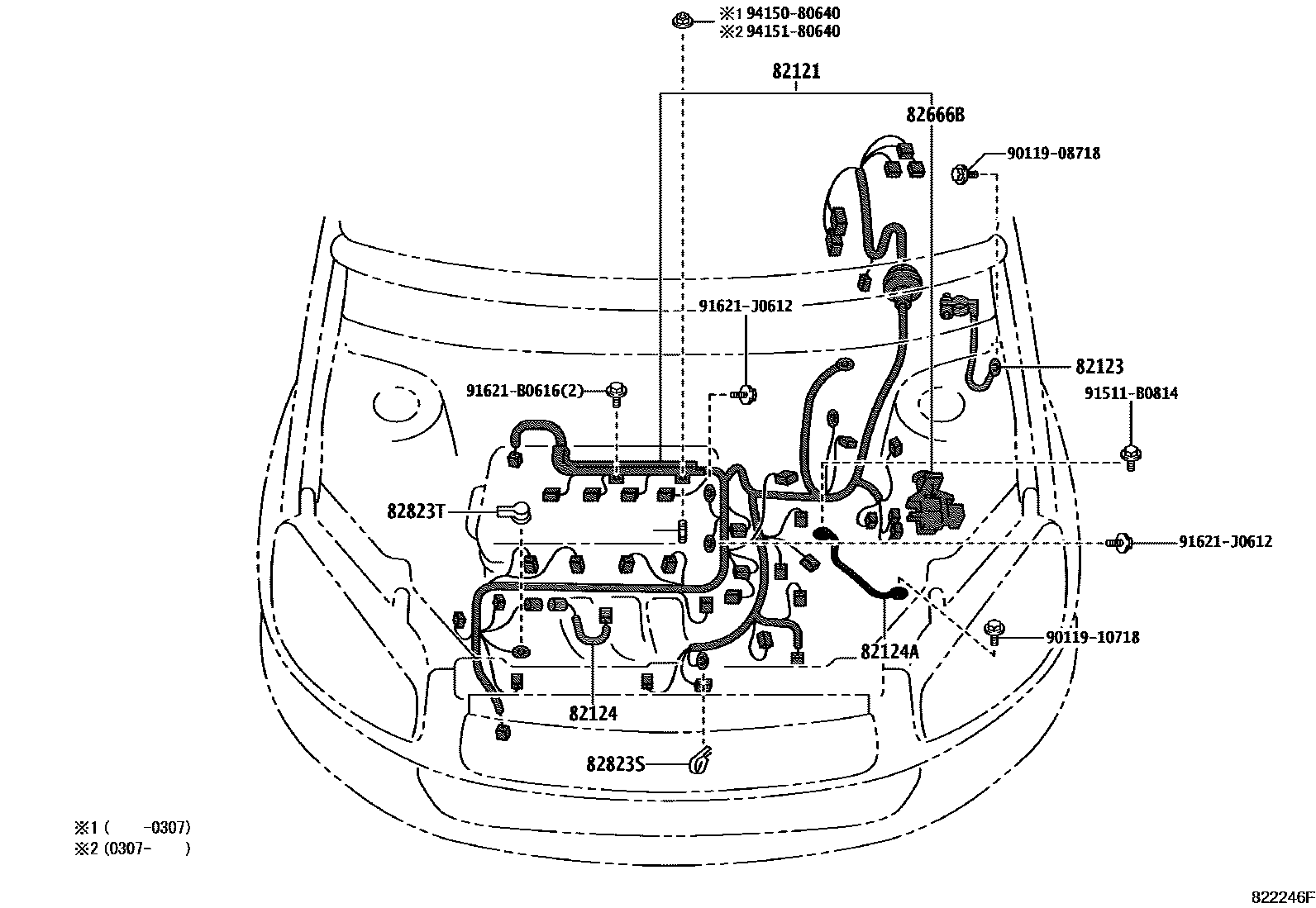

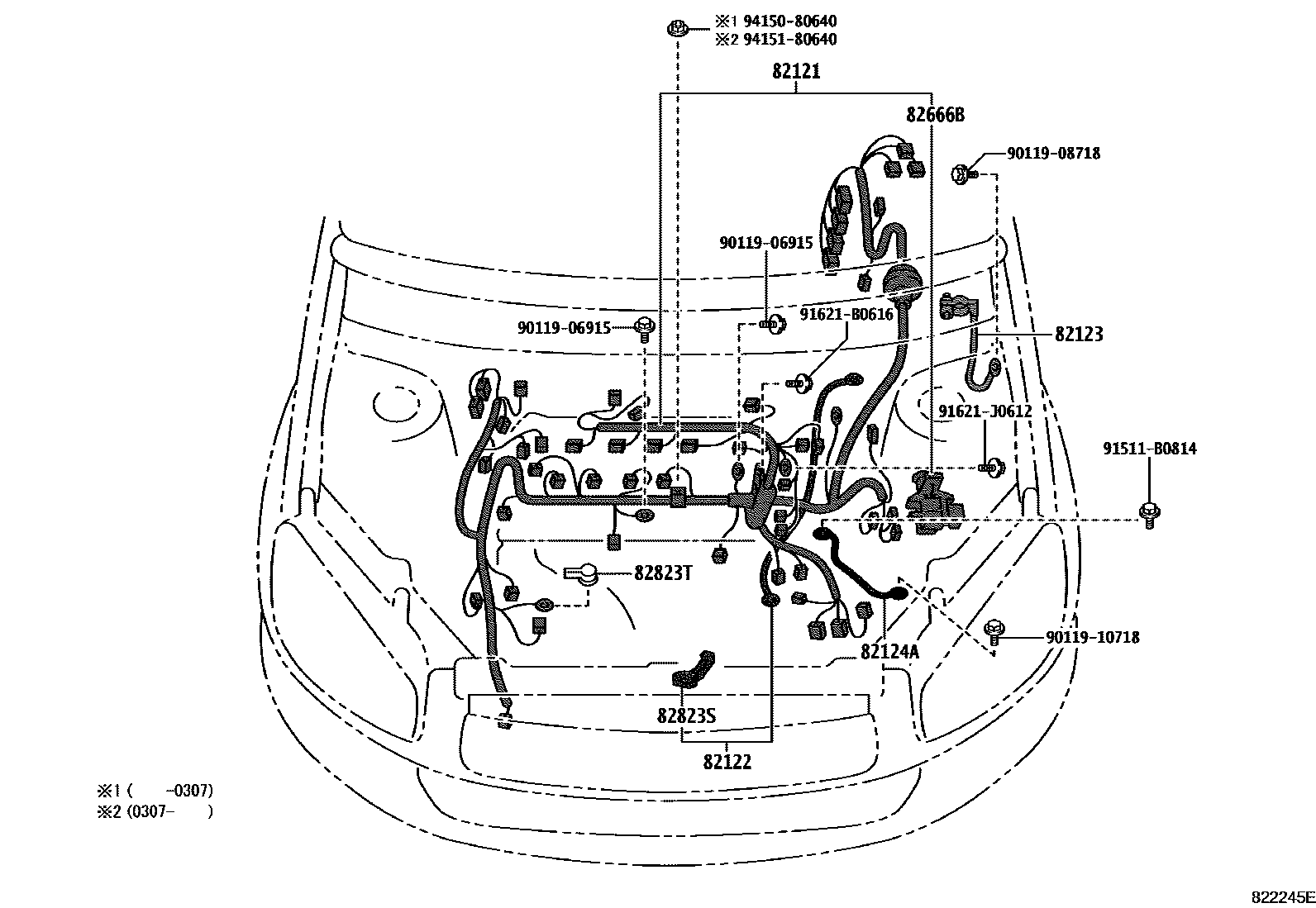

| 82121 | Engine wiring harness | 82121-42580 · 82121-42590 · 82121-42600 · 82121-42750 · 82121-42751 · 82121-42760 |
| 82122 | Engine No. 2 wiring harness | 82122-42010 |
| 82123 | Engine No. 3 wiring harness | 82123-42070 |
| 82124 | Engine No. 4 wiring harness | 82124-13020 · 82124-32050 |
| 82124A | Engine No. 5 wiring harness | 82124-42040 · 82124-42050 |

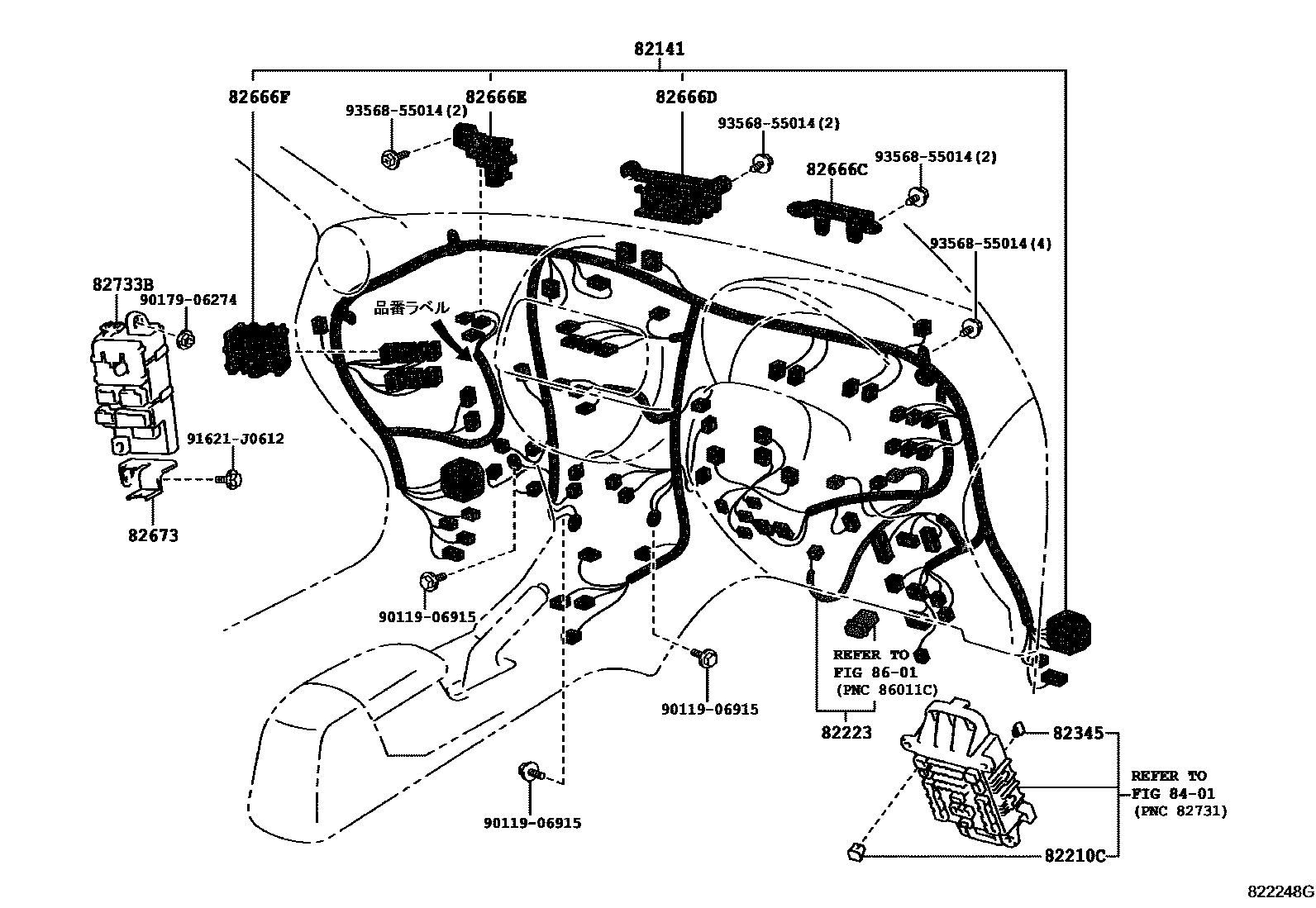

| 82141 | Dashboard wiring harness | 82141-42A00 · 82141-42A01 · 82141-42A10 · 82141-42A11 · 82141-42A20 · 82141-42A21 · 82141-42A30 · 82141-42A31 · 82141-42A40 · 82141-42A41 · 82141-4A720 · 82141-4A730 · 82141-4A740 · 82141-4A750 · 82141-4A760 · 82141-4A770 |
| 82151 | Right front door wiring harness | 82151-42450 · 82151-42460 · 82151-42560 · 82151-42570 · 82151-42650 · 82151-42770 · 82151-42780 |
| 82152 | Left front door wiring harness | 82152-42410 · 82152-42420 · 82152-42500 · 82152-42510 · 82152-42580 · 82152-42670 · 82152-42680 |
| 82153 | Rear door wiring harness No. 1 | 82153-42050 · 82153-42051 |
| 82154 | Rear door wiring harness No. 2 | 82153-42050 · 82153-42051 |

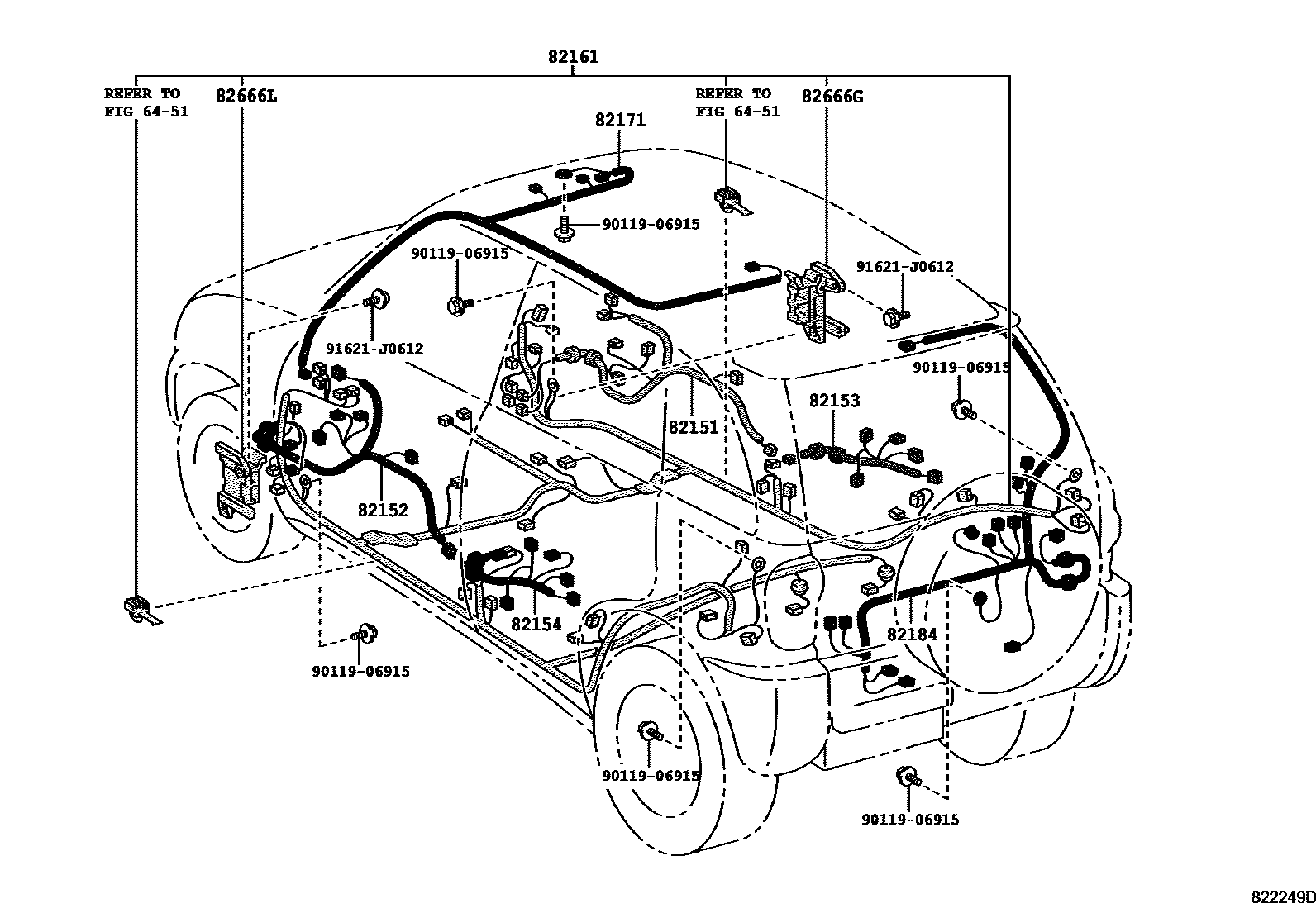

| 82161 | floor wiring harness | 82161-42670 · 82161-42800 · 82161-42850 · 82161-42851 · 82161-42860 · 82161-42861 · 82161-42B50 · 82161-42B51 · 82161-42B60 · 82161-42B61 |
| 82171 | Roof No. 1 wiring harness | 82171-42200 · 82171-42210 · 82171-42240 · 82171-42250 · 82171-42290 · 82171-42300 · 82171-42330 · 82171-42350 |
| 82184 | Rear door No. 1 wiring harness | 82184-42180 · 82184-42190 |
| 82210C | fuse | 90982-08280 · 90982-08281 · 90982-08282 |
| 82223 | switch harness | 82223-42010 · 82223-42020 · 82223-42140 |
| 82345 | diode | 82345-32020 |
| 82666A | Connector holder No. 2 | 82666-42090 |
| 82666B | No. 3 connector holder | 82666-42100 |
| 82666C | No. 4 connector holder | 82666-42030 |
| 82666D | No. 5 connector holder | 82666-42060 |
| 82666E | No. 6 connector holder | 82666-42070 · 82666-42140 |
| 82666F | No. 7 connector holder | 82666-42110 |
| 82666G | No. 8 connector holder | 82666-42040 · 82666-42120 |
| 82666L | No. 9 connector holder | 82666-42050 · 82666-42130 |
| 82673 | Junction box bracket | 82673-42070 |
| 82733B | Passenger side junction box | 82733-42030 |
| 82823S | Toyota part | 82823-35040 · 82823-42010 |
| 82823T | Toyota part | 82823-22050 |
