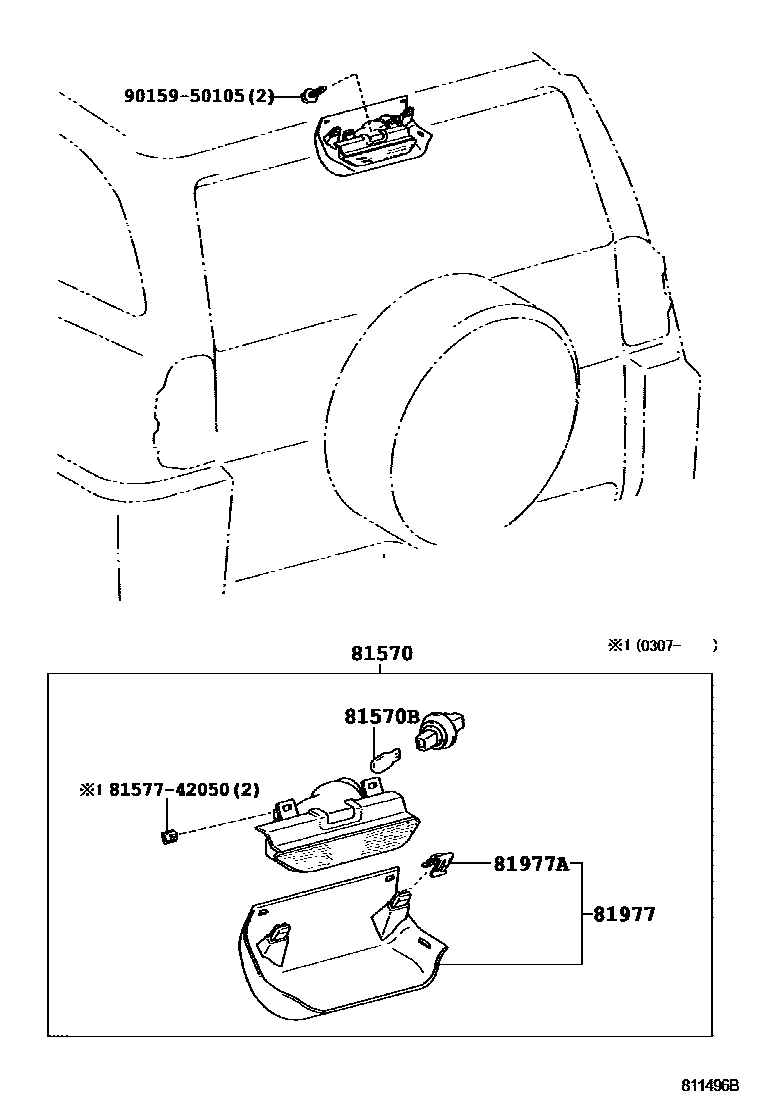

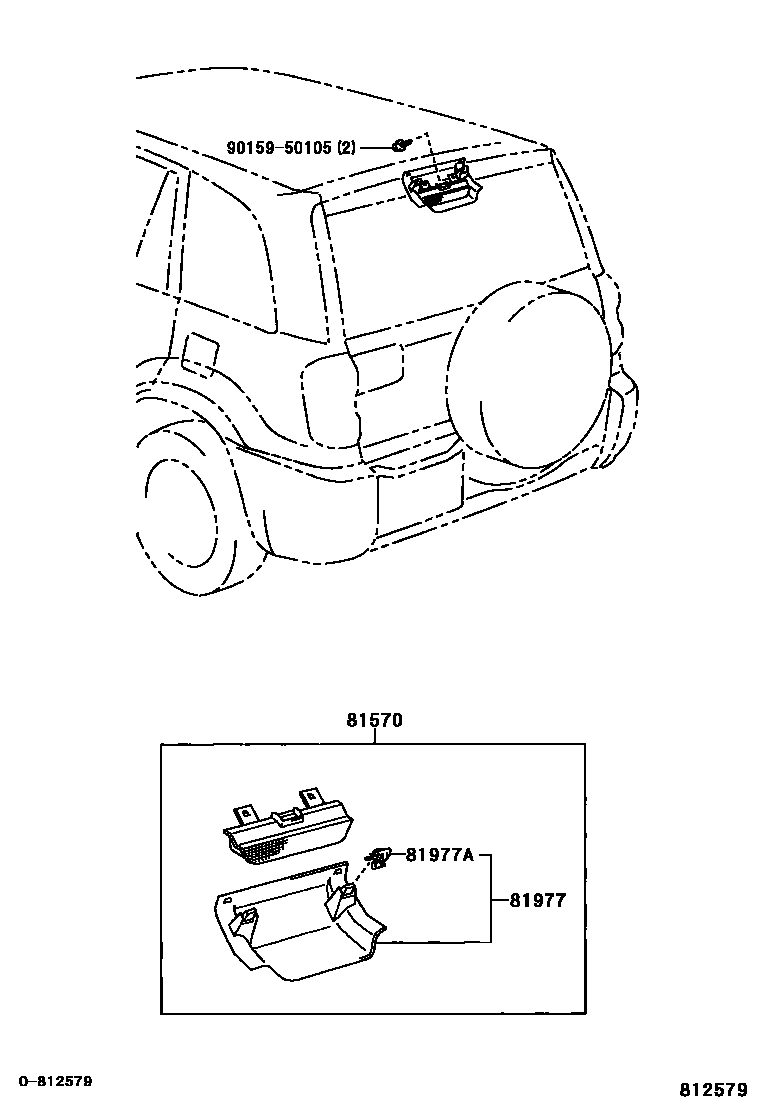

Toyota RAV4 高位刹车灯 — Figure 8117
Toyota RAV4 EPC diagram 8117, 高位刹车灯, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-49015 |
| 81570B | Bulb (for center brake light) | 90981-13043 |
| 81977A | Clip (for center brake light) | 90468-05060 |
