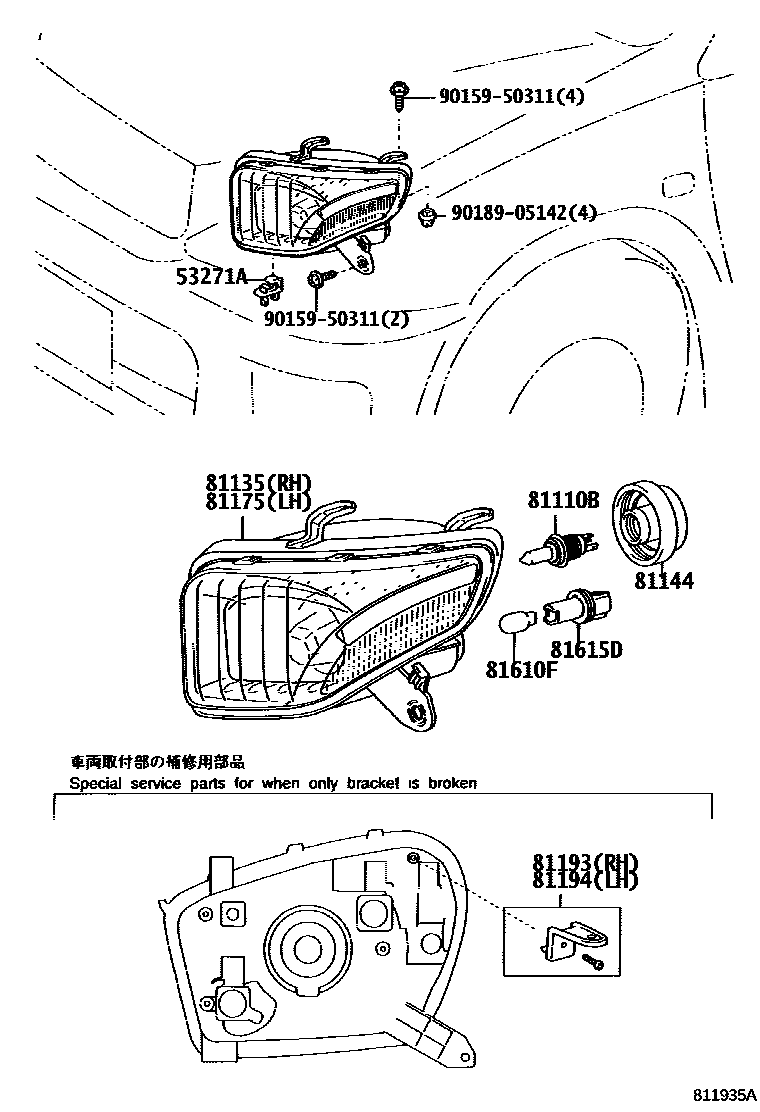

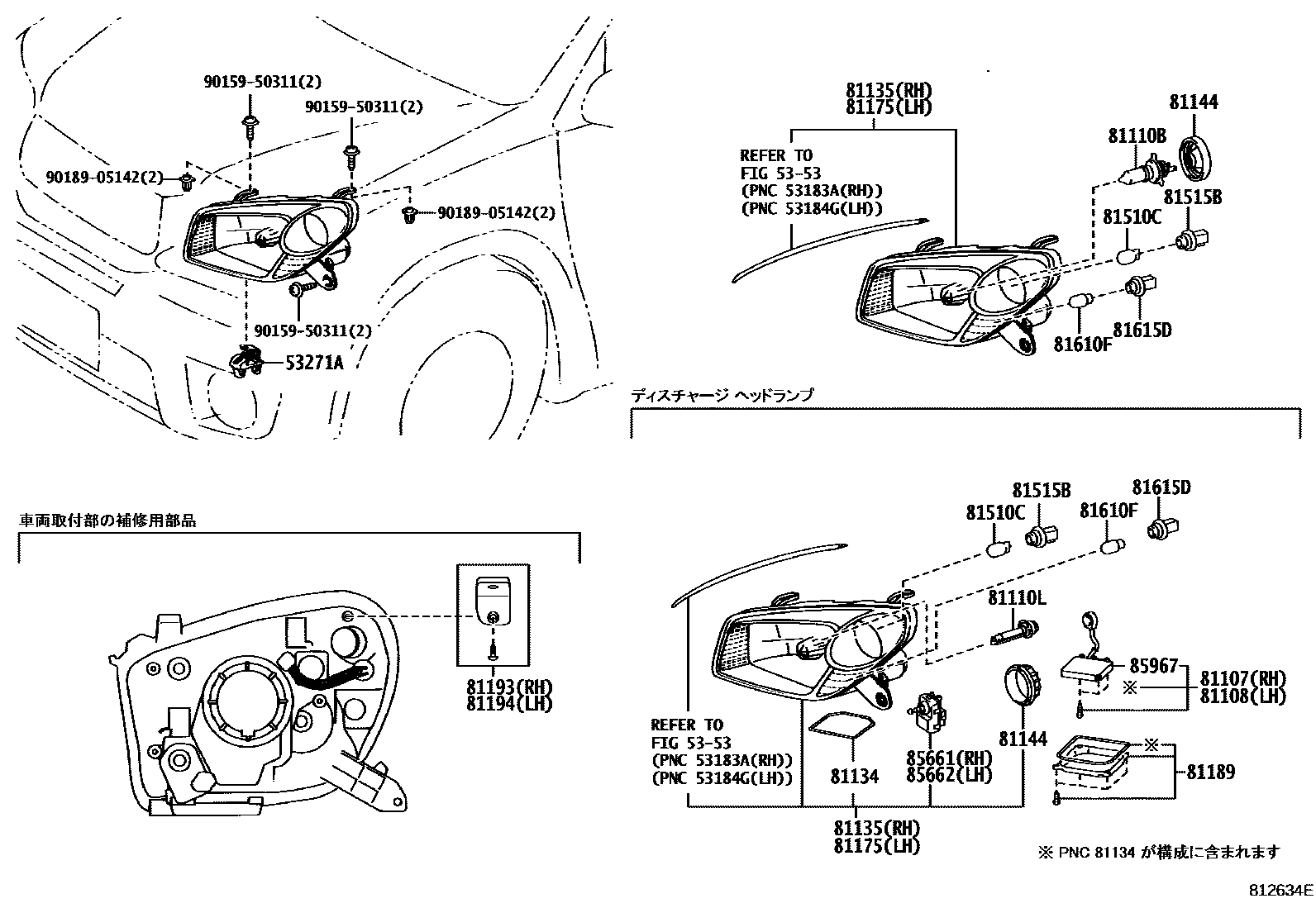

Toyota RAV4 Headlamp — Figure 8101
Toyota RAV4 EPC diagram 8101, Headlamp, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53271A | Headlight mounting bracket | 53271-44010 |
| 81107 | Right headlight control ECU sub-assembly | 81107-42240 |
| 81108 | Left headlight control ECU sub-assembly | 81107-42240 |
| 81110B | Bulb (for headlight No. 1) | 90981-13055 · 90981-13058 |
| 81110L | Discharge headlight bulb | 90981-20009 |
| 81134 | headlight gasket | 81134-52280 |
| 81135 | Right headlight assembly | 81105-42230 · 81130-42150 · 81130-42210 · 81145-42240 |
| 81144 | No. 1 headlight cover | 81135-52480 · 81139-37110 · 81139-52010 |
| 81175 | Left headlight assembly | 81106-42230 · 81170-42150 · 81170-42210 · 81185-42240 |
| 81189 | headlight cover | 81189-13290 |
| 81193 | Right headlight upper protective ring | 81193-42020 |
| 81194 | Left headlight upper protective ring | 81194-42020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-15011 |
| 81515B | Front turn signal lamp holder | 81515-42050 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81615-12590 |
| 85661 | Right headlight beam height adjustment motor | 85661-22020 |
| 85662 | Left headlight beam height adjustment motor | 85661-22020 |
| 85967 | Light control ECU | 85967-50020 |
