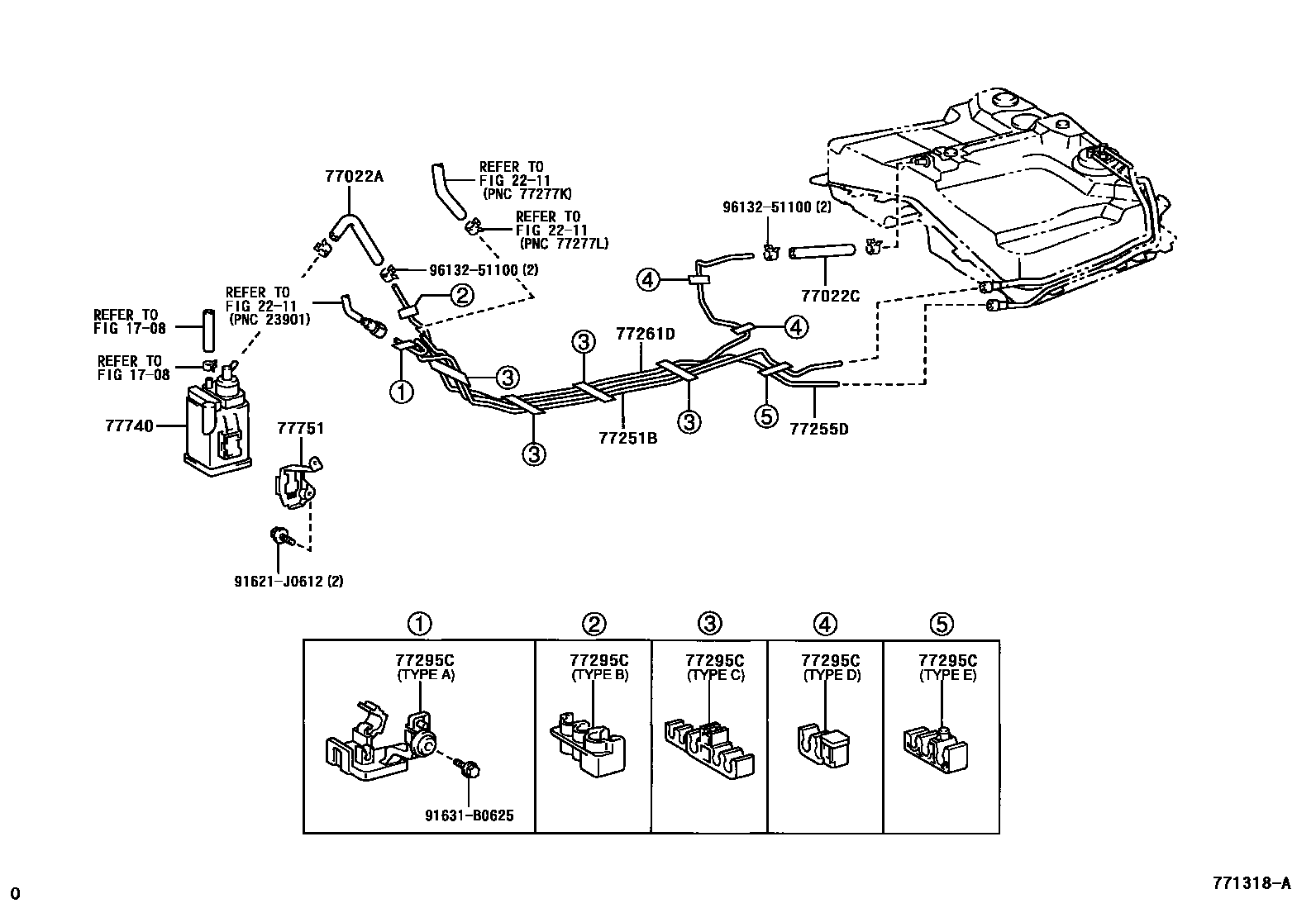

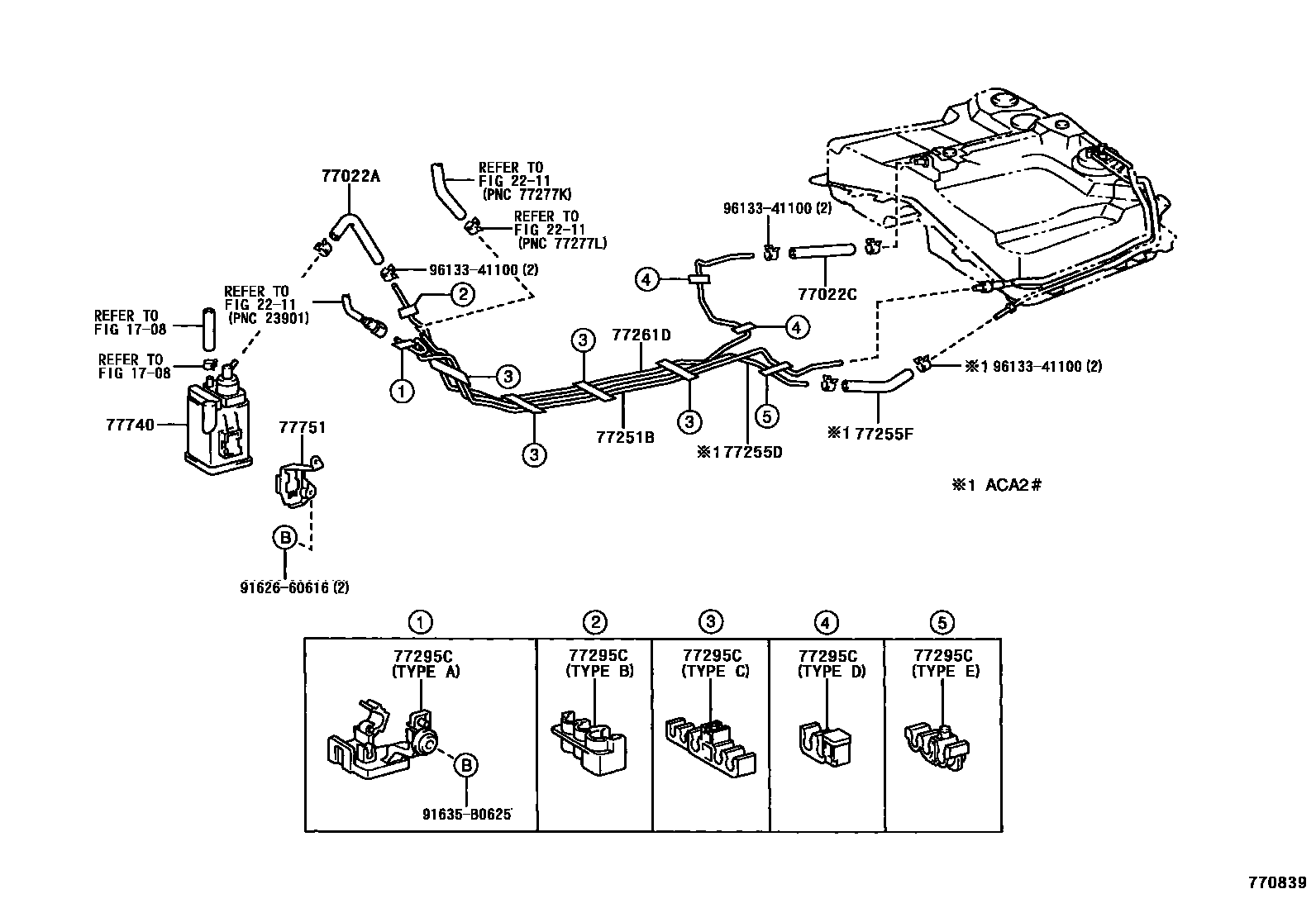

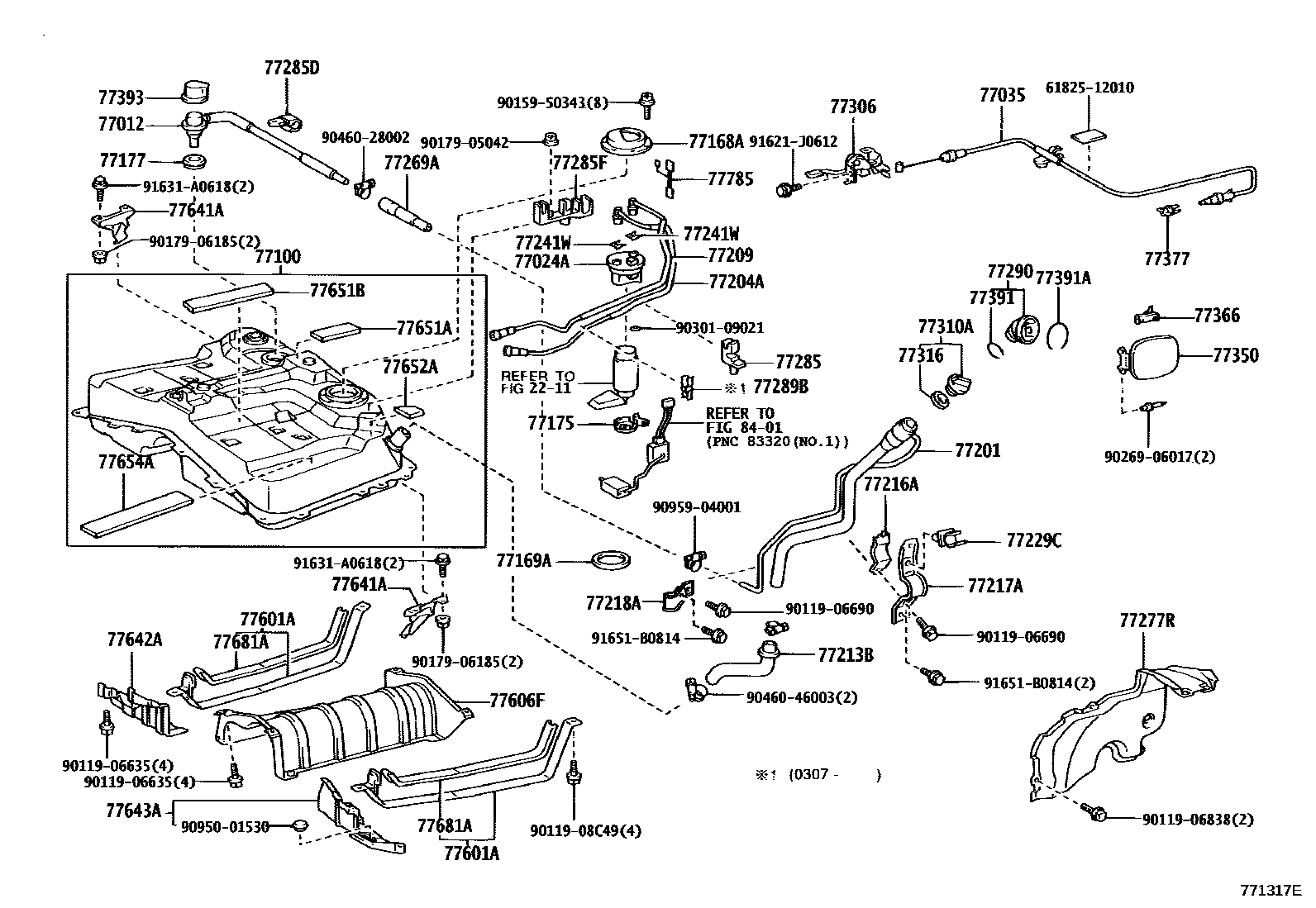

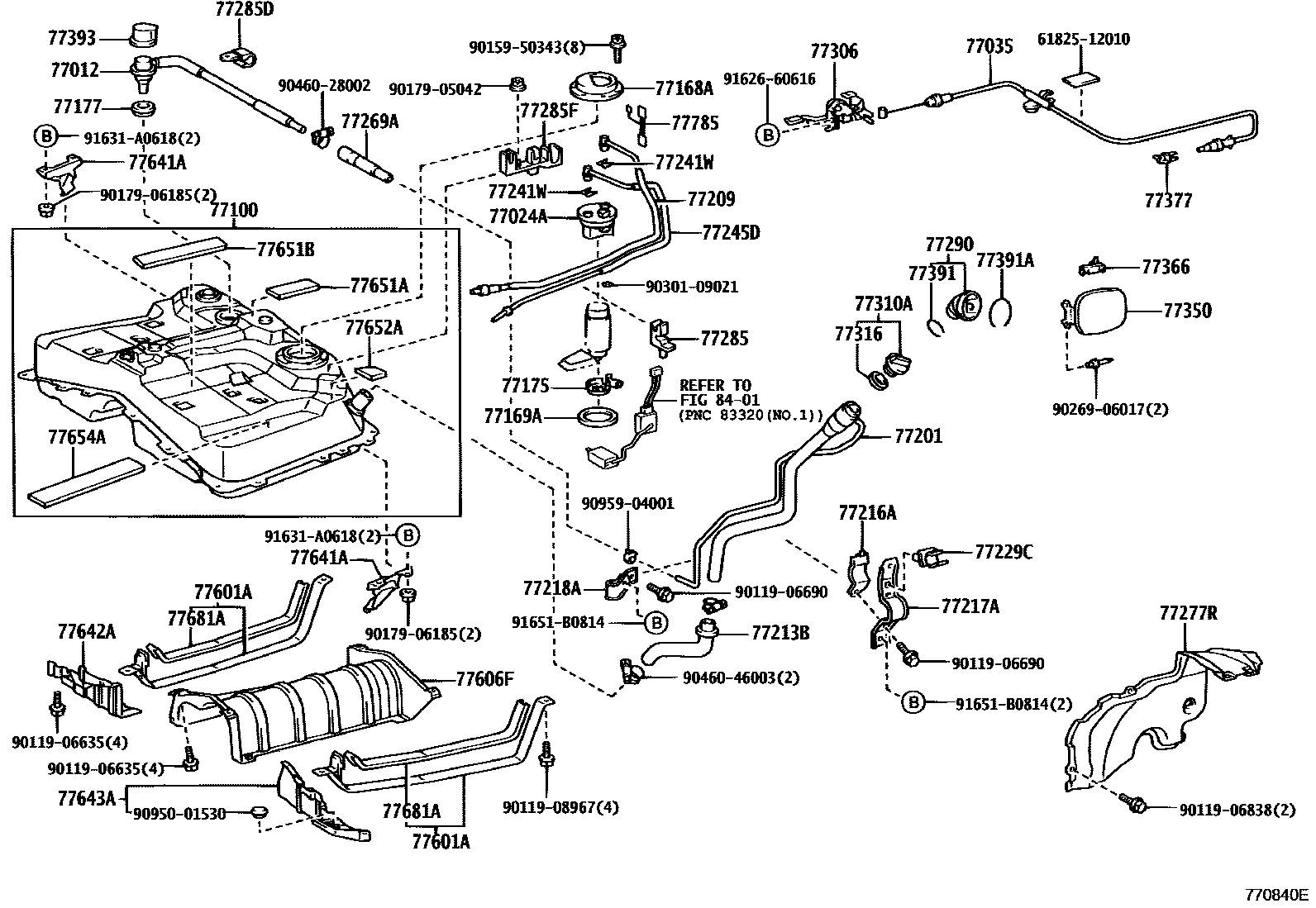

Toyota RAV4 燃油箱和燃油管 — Figure 7751
Toyota RAV4 EPC diagram 7751, 燃油箱和燃油管, with 4 images and 53 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 77012 | Fuel tank breather pipe sub-assembly | 77012-42040 |
| 77022C | Hoses or tubes (for fuel vapor separators) | 95337-06013 · 95337-06020 |
| 77024A | Fuel absorber sub-assembly | 77024-42010 · 77024-42020 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-42090 · 77035-42110 |
| 77100 | fuel tank assembly | 77001-42080 · 77001-42120 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-12240 · 77168-33050 · 77168-52010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-52020 |
| 77177 | Check valve gasket | 77177-33010 |
| 77201 | Fuel tank inlet pipe sub-assembly | 77201-42100 · 77201-42120 |
| 77204A | fuel tank return pipe | 77204-42071 · 77204-42072 |
| 77209 | Fuel pipe connector sub-assembly | 77209-42050 · 77209-42080 · 77209-42100 |
| 77213B | Fuel tank to filler pipe hose | 77213-42050 |
| 77216A | No. 1 fuel tank filler pipe bracket | 77216-42030 |
| 77217A | No. 2 fuel tank filler pipe bracket | 77217-42020 |
| 77218A | No. 3 fuel tank filler pipe bracket | 77218-42020 |
| 77229C | Snorkel clamp | 77229-42010 |
| 77241W | Pipe joint clip | 77241-32060 |
| 77245D | Fuel tank return vent pipe | 77245-42010 |
| 77251B | main fuel pipe | 77251-42090 · 77251-42100 |
| 77255D | fuel return pipe | 77255-42030 · 77255-42040 · 77255-42071 · 77255-42081 |
| 77255F | No. 2 fuel hose (for fuel return pipe) | 95337-06015 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-42030 · 77261-42040 |
| 77269A | fuel tank breather hose | 77269-42010 |
| 77277R | Fuel tank filler pipe protection device | 77277-42040 |
| 77285 | Fuel pipe bracket | 77285-42020 |
| 77285D | No. 1 fuel pipe clamp | 77286-42010 |
| 77285F | No. 1 fuel pipe clamp | 77285-42030 |
| 77289B | No. 3 fuel pipe clamp | 77289-42010 |
| 77290 | Fuel tank filler pipe cover assembly | 77291-42020 |
| 77295C | Fuel pipe retaining ring | 77295-42020 · 77295-42030 · 77295-42040 · 77295-42050 · 77295-42060 · 77295-42061 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-32010 |
| 77310A | Fuel tank cap assembly | 77310-48010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77350 | Fuel filler cap assembly | 77350-42050 · 77350-42060 |
| 77366 | Fuel filler cap hinge spring | 77360-30030 · 77360-30070 |
| 77377 | Fuel filler cap lock retainer | 77377-12050 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-20030 |
| 77393 | One-way valve protection device | 77393-42010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-42050 |
| 77606F | Fuel tank cover vent housing sub-assembly | 77606-42020 |
| 77641A | No. 1 fuel tank protective shell | 77641-42020 · 77641-42030 |
| 77642A | No. 2 fuel tank protective shell | 77642-42030 · 77642-42040 |
| 77643A | No. 3 fuel tank protective shell | 77643-42030 · 77643-42040 |
| 77651A | No. 1 fuel tank liner | 77653-26040 |
| 77651B | fuel tank liner | 77651-35060 |
| 77652A | No. 2 fuel tank liner | 77652-12100 |
| 77654A | No. 4 fuel tank liner | 77654-42010 · 77654-60030 |
| 77681A | Fuel tank strap seat | 77682-16010 |
| 77740 | Carbon canister assembly | 77740-42080 |
| 77751 | Carbon canister base bracket | 77751-42030 |
| 77785 | fuel pump wiring harness | 77785-32010 |
