Toyota RAV4 扰流板和侧挡泥板 — Figure 7652

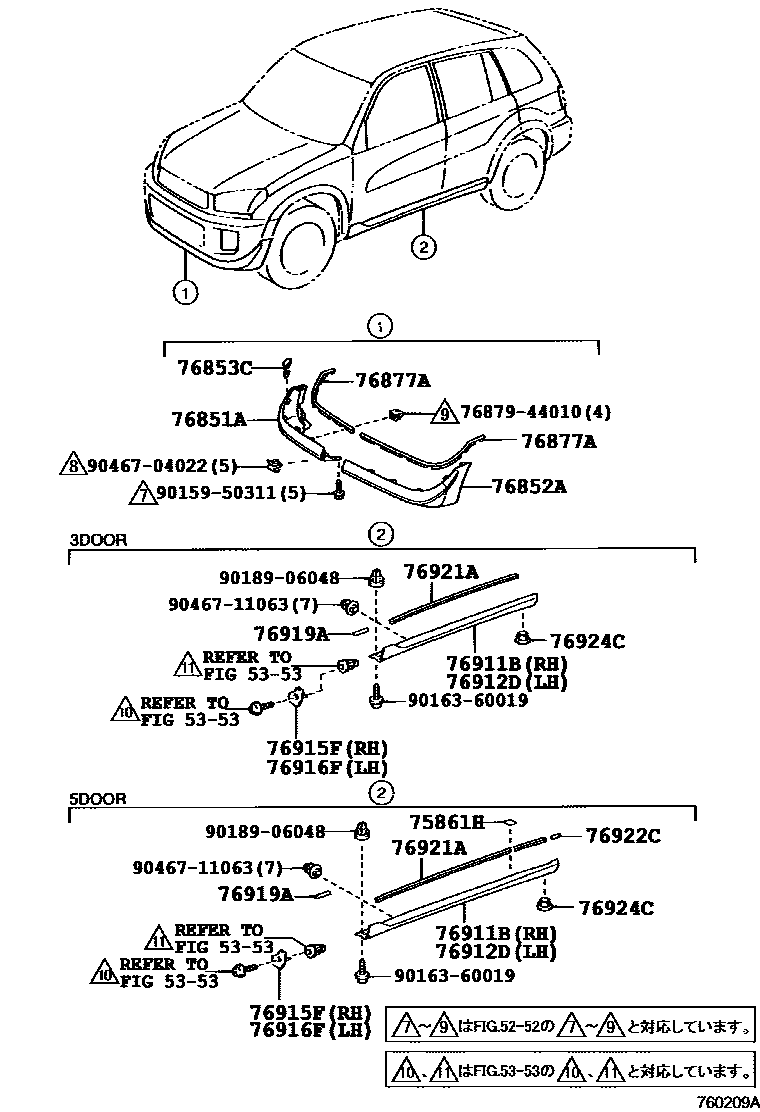

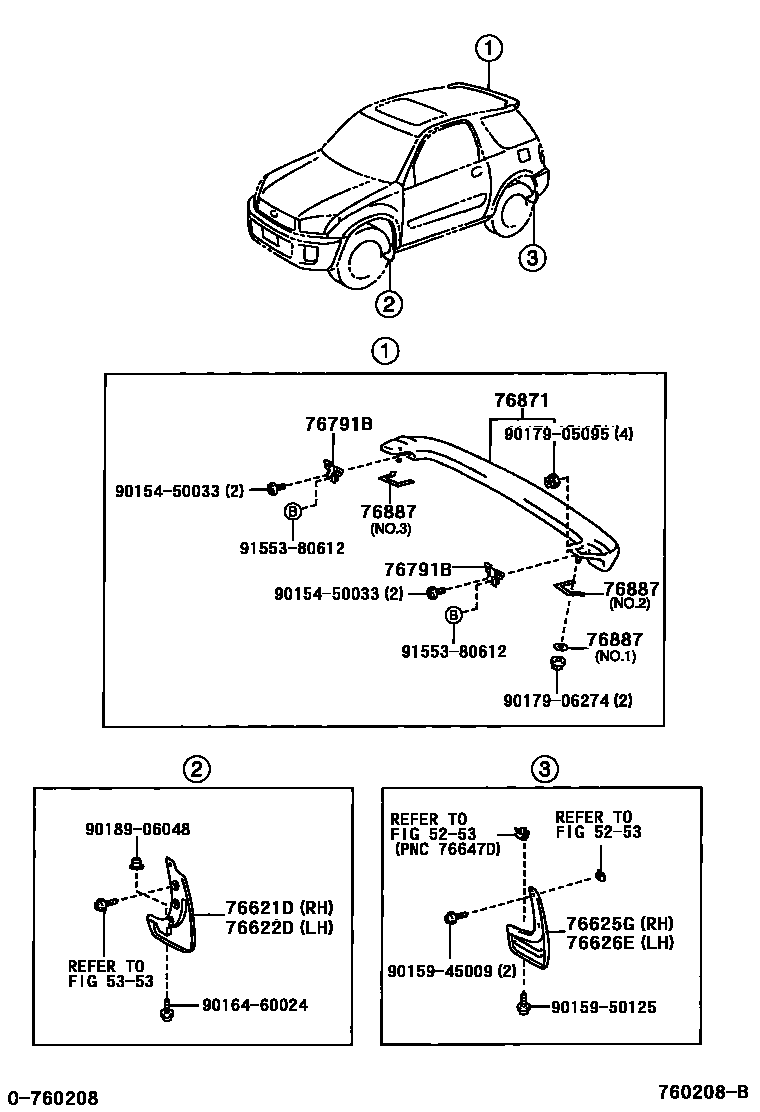

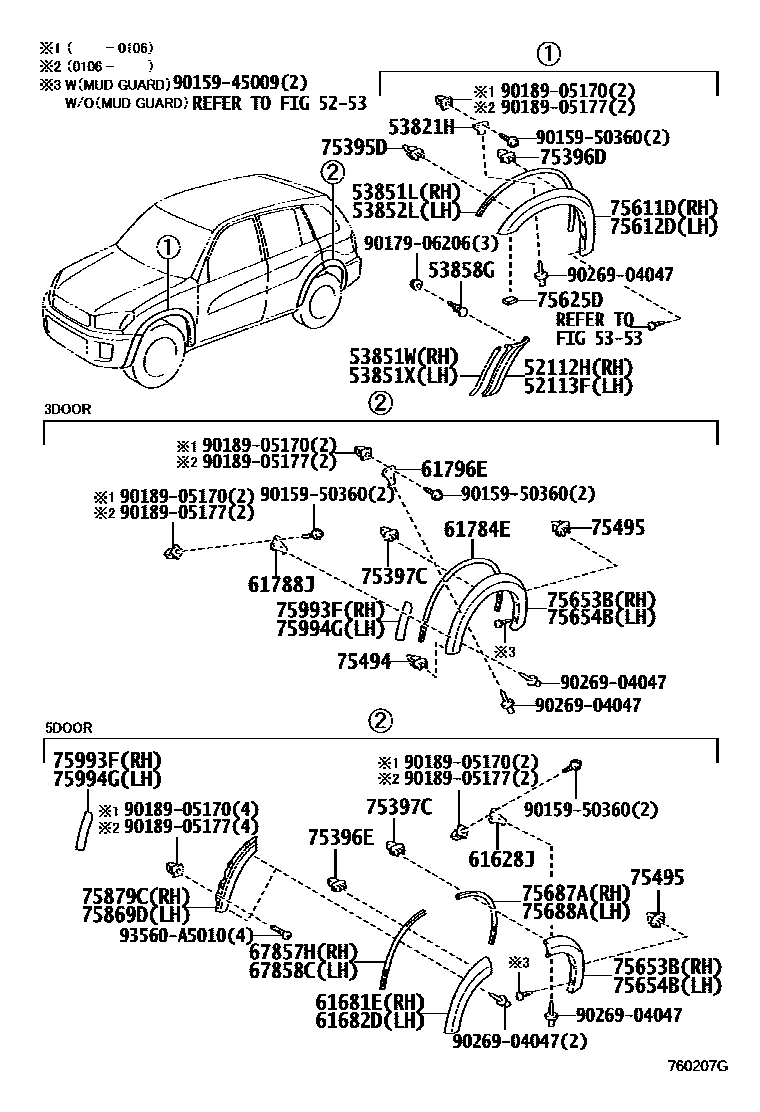

Toyota RAV4 EPC diagram 7652, 扰流板和侧挡泥板, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821H | Front fender rear support | 53821-42010 · 53821-42011 |
| 53858G | Fender outer panel fixing bolts | 53858-60050 |
| 61628J | Front side panel outer panel extension | 61628-42040 · 61628-42041 |
| 61788J | No. 5 rear fender external panel bracket | 61788-42020 · 61788-42021 |
| 61796E | No. 7 rear fender external panel bracket | 61796-42010 · 61796-42011 |
| 75395D | No. 1 outer protective strip clip | 75395-42020 |
| 75396D | No. 2 outer protective strip clip | 75396-42020 |
| 75396E | No. 2 outer protective strip clip | 75396-42020 |
| 75397C | No. 3 outer protective strip clip | 75397-42010 |
| 75494 | No. 3 outer protective strip clip | 75494-42010 |
| 75495 | No. 4 outer protective strip clip | 75495-42010 |
| 75625D | Front fender outer upper protective strip pad | 75625-42010 |
| 75861H | No. 1 door sill panel protective strip protective cover | 75861-42030 |
| 75869D | Left side panel opening fixing | 75869-42020 · 75869-42021 |
| 75879C | Right side panel opening fixing | 75879-42020 · 75879-42021 |
| 75993F | Right front side panel | 75991-42040 · 75993-42030 |
| 75994G | Left front side panel | 75992-42030 · 75994-42030 |
| 76621D | Right front fender fender | 76621-42070 · 76621-42080 |
| 76622D | Left front fender fender | 76622-42070 · 76622-42080 |
| 76625G | Right rear side fender | 76625-42080 · 76625-42090 |
| 76626E | Left rear side fender | 76626-42140 · 76626-42150 |
| 76791B | Rear spoiler bracket | 76791-42010 |
| 76853C | No. 1 front spoiler fixing piece | 76853-10010 |
| 76887 | Rear spoiler seal | 76887-26020 · 76887-42090 · 76887-42100 |
| 76915F | Right front fender | 76915-42020 |
| 76916F | Left front fender | 76916-42020 |
| 76919A | Side fender liners | 76919-42020 |
| 76922C | No. 2 side fender protection strip | 76922-42010 |
| 76924C | No. 2 side fender fixings | 76924-13020 |
