Toyota RAV4 warning nameplate — Figure 7455

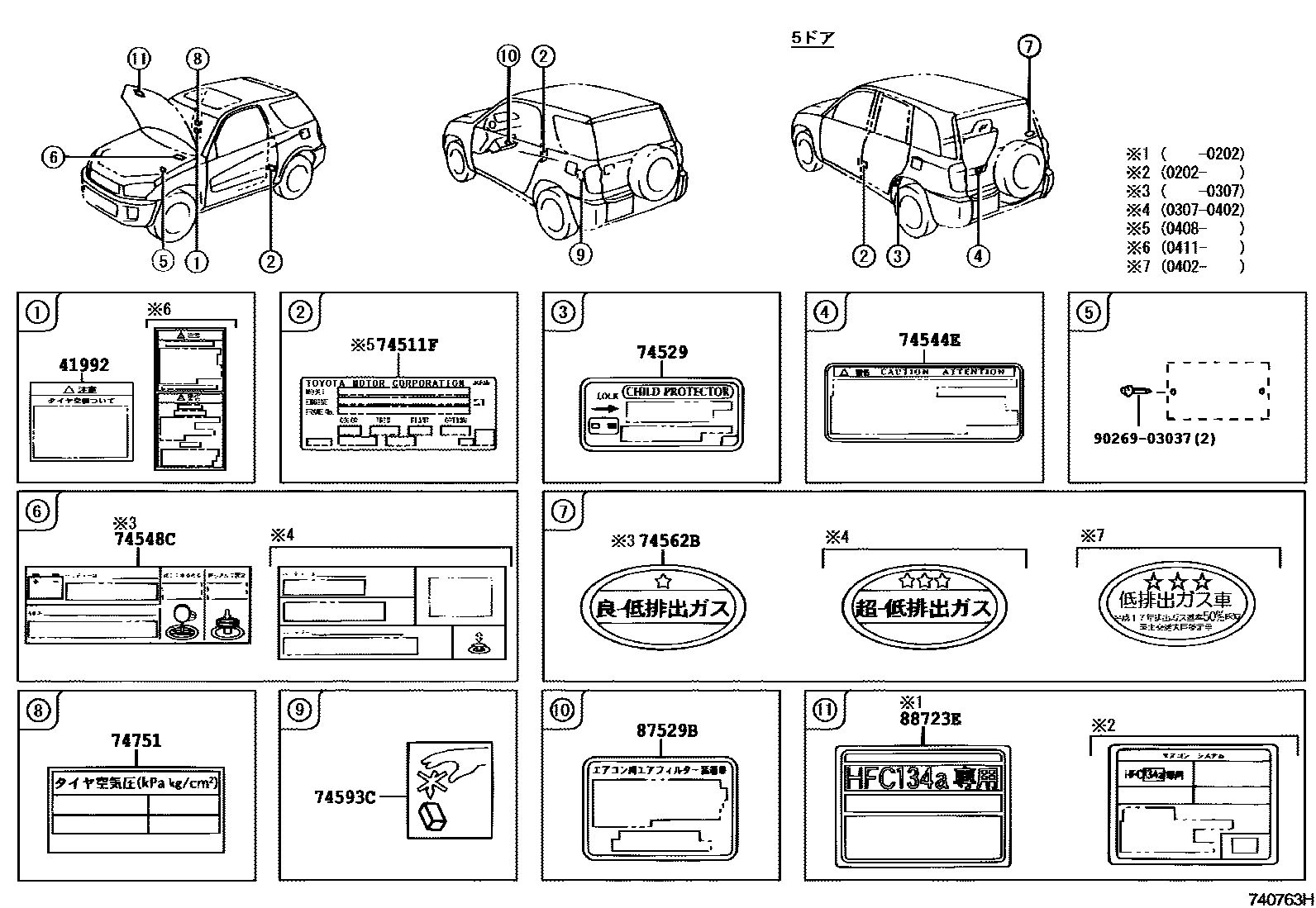

Toyota RAV4 EPC diagram 7455, warning nameplate, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41992 | Differential attention label | 41992-33010 · 41992-42020 |
| 74511F | Nameplate (laser identification label) | 74511-2B300 |
| 74529 | Child safety or child restraint lock warning nameplate | 69339-51010 · 69349-51010 |
| 74544E | Rear seat number 2 information label | 74544-42010 · 74544-42011 |
| 74548C | Battery cover warning label | 74548-42020 · 74548-42021 |
| 74561A | fuel consumption information label | 74561-52010 |
| 74562B | Emission information label | 74562-12610 · 74562-40040 · 74562-40050 |
| 74593C | Decorative bags note labels | 74593-42010 |
| 74751 | tire pressure information label | 42661-42110 · 42661-42111 · 42661-42112 · 42661-42150 · 42661-42151 · 42661-42152 |
| 87529B | Cabin filter information label | 87529-50020 |
| 88723E | Cooler maintenance warning label | 88723-42050 · 88733-42040 |
| 89176A | Air bag deployment information label | 89176-51010 |
