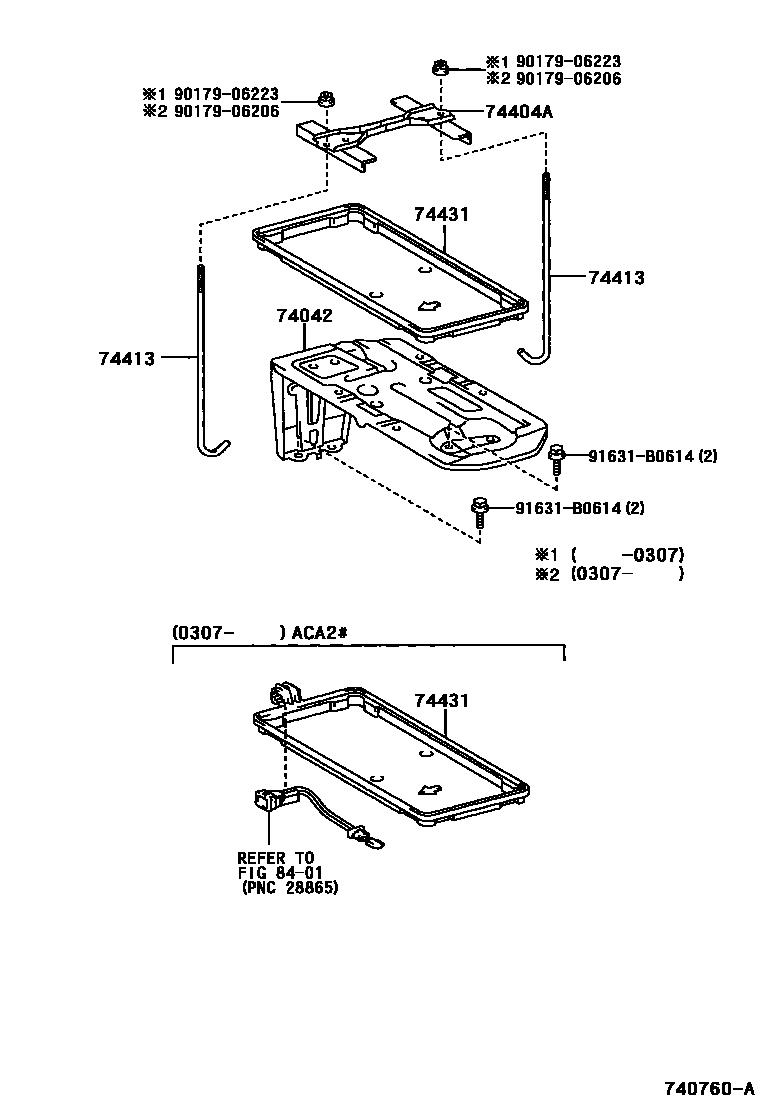

Toyota RAV4 battery holder — Figure 7454
Toyota RAV4 EPC diagram 7454, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74042 | Battery bracket sub-assembly | 74402-42010 |
| 74404A | Battery clip sub-assembly | 74404-42010 |
| 74413 | Battery clamp bolt | 74451-10060 |
| 74431 | battery tray | 74431-42070 · 74431-42080 |
