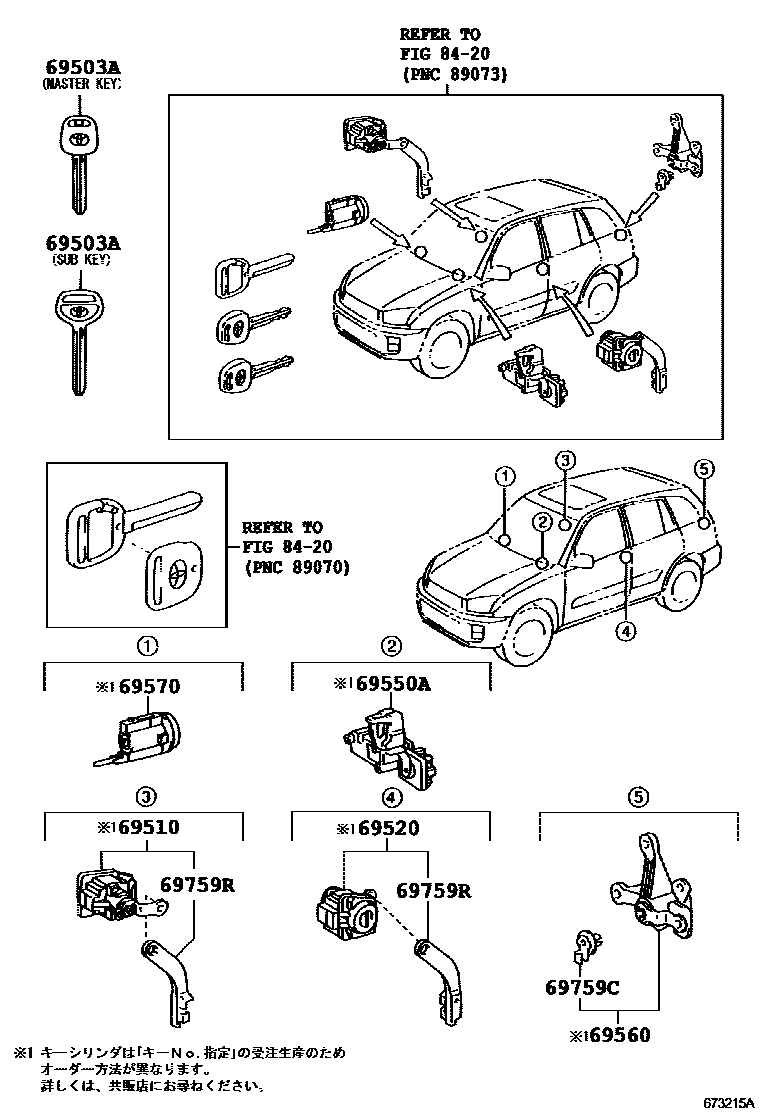

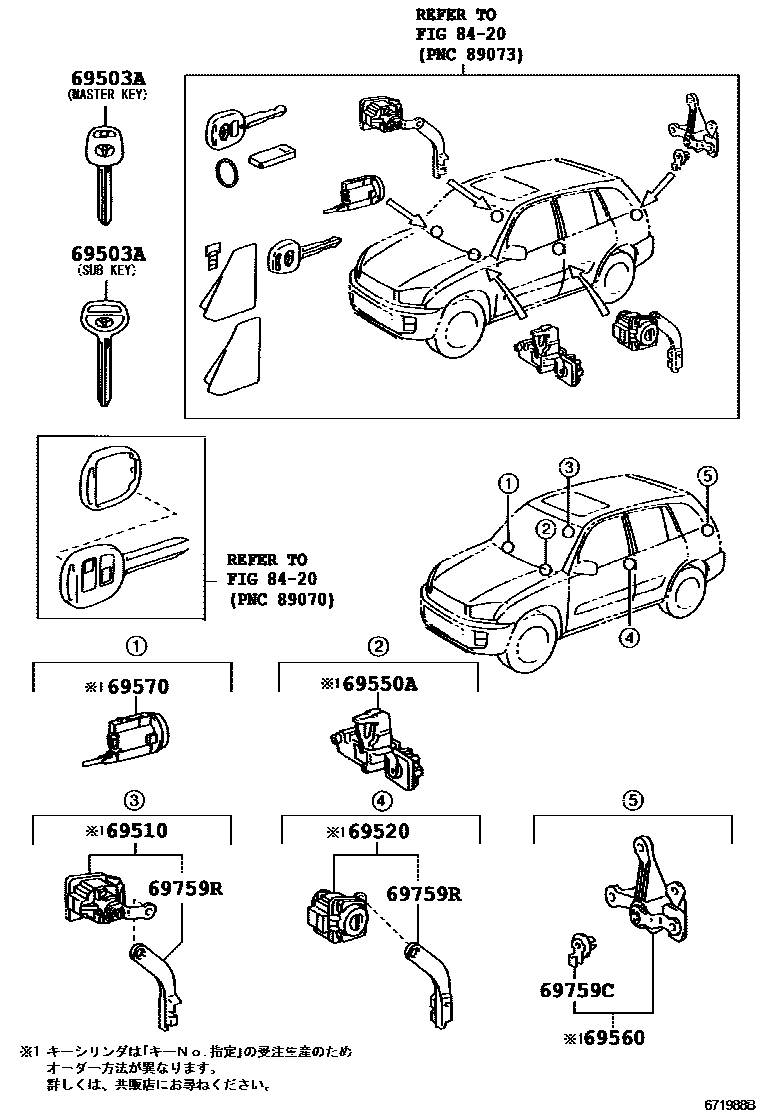

Toyota RAV4 锁芯组件 — Figure 6765
Toyota RAV4 EPC diagram 6765, 锁芯组件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69503A | external tooth key | 90999-00185 · 90999-00186 · 90999-00187 · 90999-00188 · 90999-00199 · 90999-00200 |
| 69510 | Right front door lock cylinder assembly | 69510-42040 |
| 69520 | Left front door lock cylinder assembly | 69520-42020 |
| 69550A | Glove box cover lock cylinder assembly | 69550-33020 |
| 69560 | Rear door lock cylinder assembly | 69560-42020 |
| 69570 | Ignition switch lock cylinder assembly | 69570-42040 · 69570-42050 |
| 69759C | Back door lock cylinder buckle | 69759-22080 |
| 69759R | Front door lock cylinder buckle | 69759-42010 · 69759-42020 |
