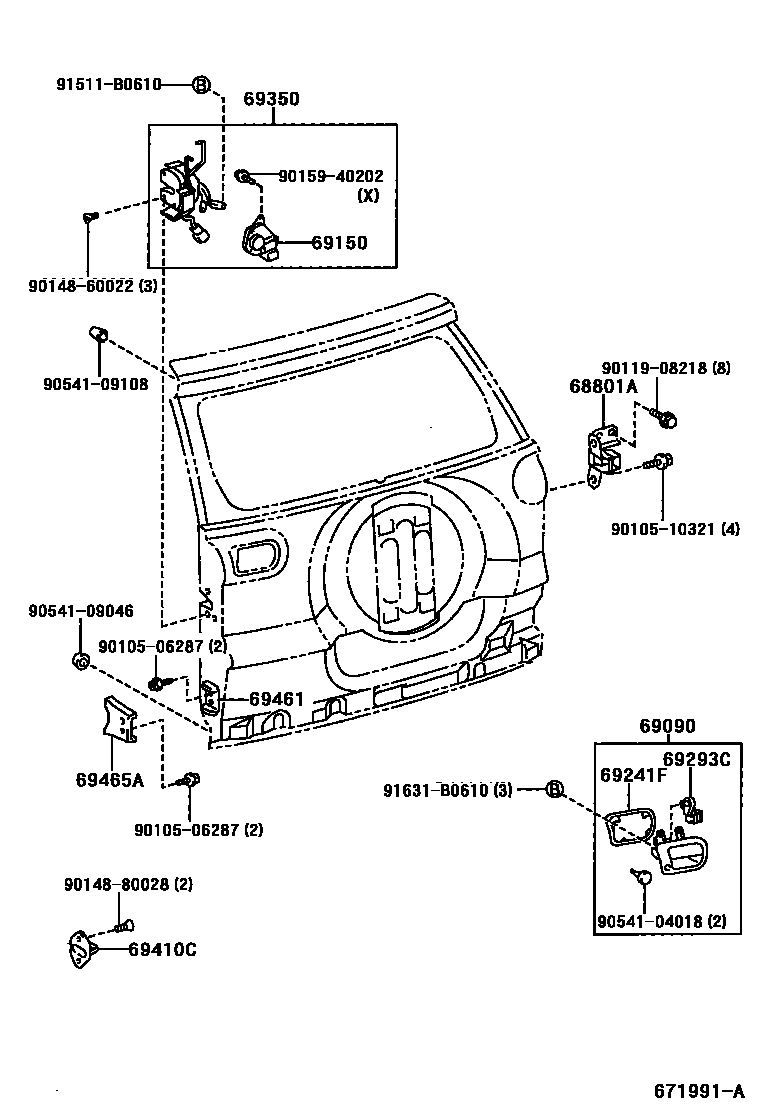

Toyota RAV4 背门锁和合页 — Figure 6762
Toyota RAV4 EPC diagram 6762, 背门锁和合页, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-42040 · 68801-42041 |
| 69090 | Rear door outer handle assembly | 69090-42050 |
| 69150 | Rear door lock actuator assembly | 69150-42020 |
| 69241F | Car door outer handle pad | 69241-42030 |
| 69293C | Rear door handle buckle | 69293-12030 |
| 69350 | Rear door lock assembly | 69110-42080 |
| 69410C | Back door lock plate assembly | 69410-42020 |
| 69461 | Rear door right side protruding stopper | 69461-42011 |
| 69465A | Rear door underside stopper | 69465-42011 |
