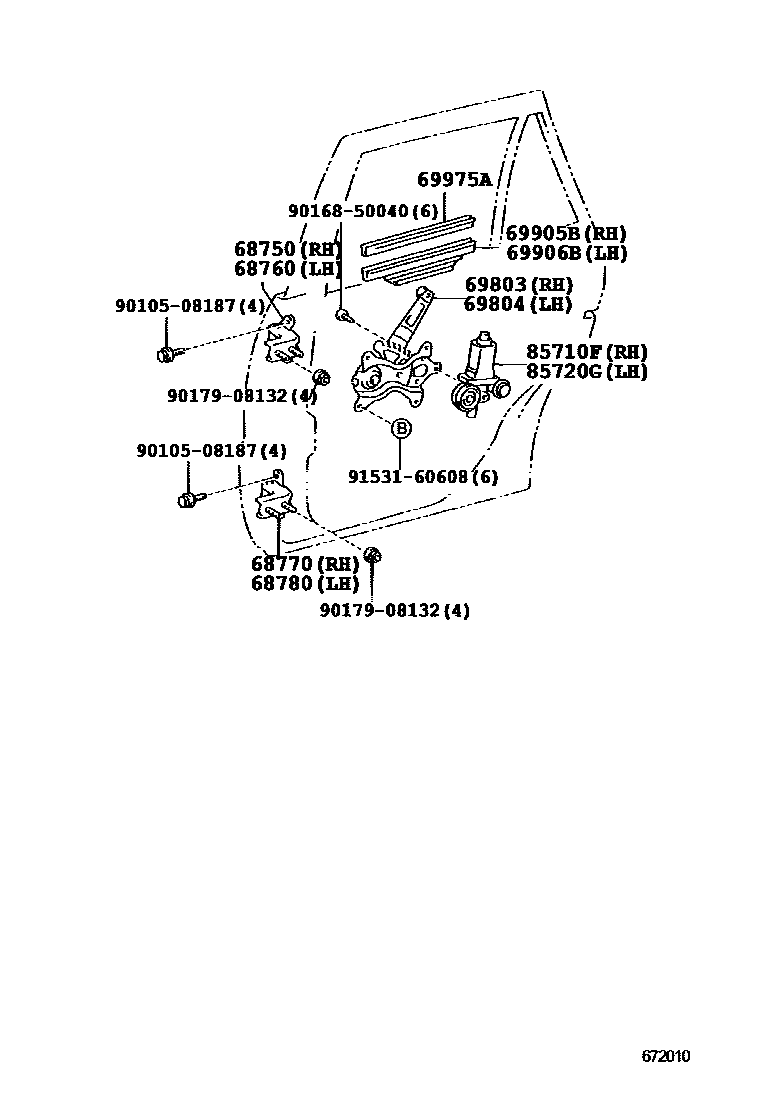

Toyota RAV4 后门车窗升降器和合页 — Figure 6757
Toyota RAV4 EPC diagram 6757, 后门车窗升降器和合页, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68750 | Right rear door upper hinge assembly | 68750-32060 |
| 68760 | Left rear door upper hinge assembly | 68760-32060 |
| 68770 | Right rear door lower hinge assembly | 68770-12100 |
| 68780 | Left rear door lower hinge assembly | 68780-12090 |
| 69803 | Right rear door window lifter sub-assembly | 69803-42020 |
| 69804 | Left rear door window lifter sub-assembly | 69804-42020 |
| 69905B | Right rear door glass groove sub-assembly | 69905-42020 |
| 69906B | Left rear door glass groove sub-assembly | 69906-42020 |
| 69975A | Rear door glass channel filler | 69975-12010 |
| 85710F | Right power window lift motor assembly | 85720-32150 |
| 85720G | Left electric window lift motor assembly | 85710-42070 |
