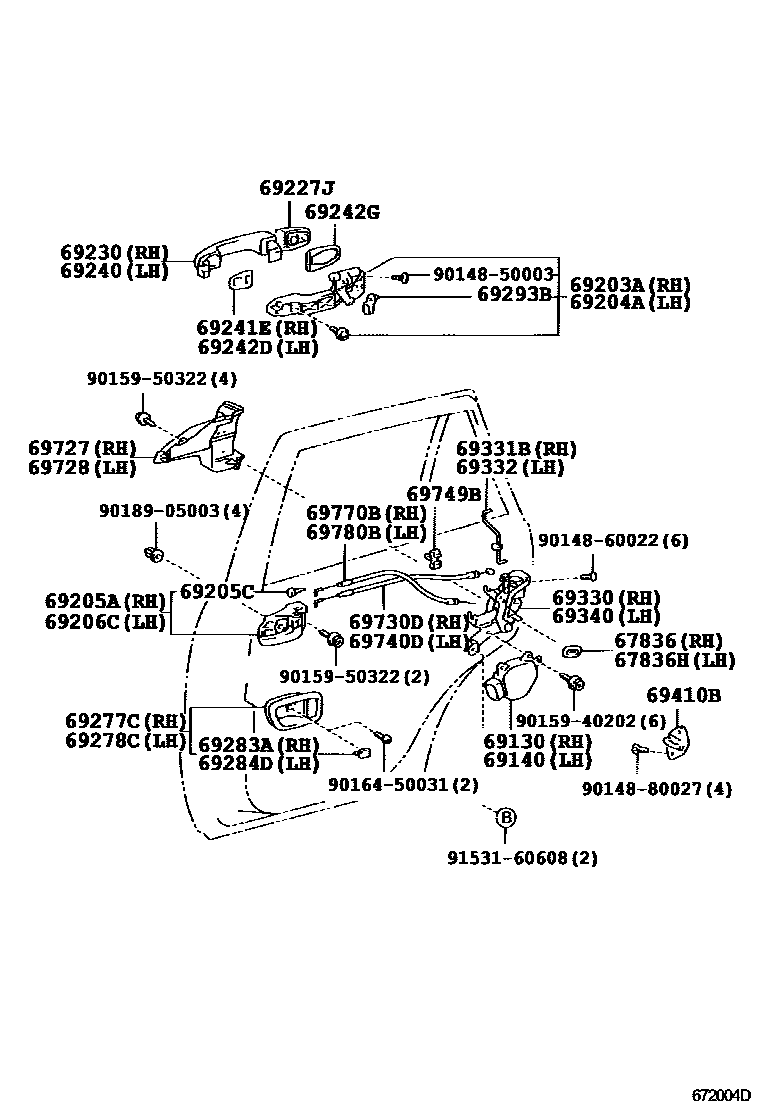

Toyota RAV4 后门锁和后门把手 — Figure 6756
Toyota RAV4 EPC diagram 6756, 后门锁和后门把手, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67836 | Right rear door lock child restraint cover | 67836-14010 |
| 67836H | Left rear door lock child restraint cover | 67836-14010 |
| 69130 | Right rear door lock actuator assembly | 69130-42030 |
| 69140 | Left rear door lock actuator assembly | 69140-42030 |
| 69203A | Right rear door outer handle frame sub-assembly | 69203-42010 · 69203-42020 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-42010 · 69204-42020 |
| 69205C | Cushion pad (for rear door inner handle) | 90541-04014 |
| 69227J | Right rear door outer handle cover | 69227-42060 |
| 69230 | Right rear door outer handle assembly | 69211-42010 |
| 69240 | Left rear door outer handle assembly | 69211-42010 |
| 69241E | Right rear door outer handle pad | 69241-42020 |
| 69242D | Left rear door outer handle pad | 69241-42020 |
| 69242G | Rear door rear outer handle pad | 69242-42010 |
| 69293B | Rear door outer handle buckle | 69293-12030 · 69293-12040 |
| 69330 | Right rear door door lock assembly | 69330-42060 |
| 69331B | Right rear door lock opening lever | 69331-42020 |
| 69332 | Left rear door lock opening lever | 69332-42020 |
| 69340 | Left rear door lock assembly | 69340-42060 |
| 69410B | Rear door lock plate assembly | 69410-20110 |
| 69727 | Right rear door inner locking link guard | 69727-42030 |
| 69728 | Left rear door inner locking link guard | 69728-42030 |
| 69730D | Right rear door lock remote control cable assembly | 69730-42020 |
| 69740D | Left rear door lock remote control cable assembly | 69730-42020 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-42040 |
| 69780B | Left rear door inner lock cable assembly | 69780-42040 |
