Toyota RAV4 后门板和后门玻璃 — Figure 6755

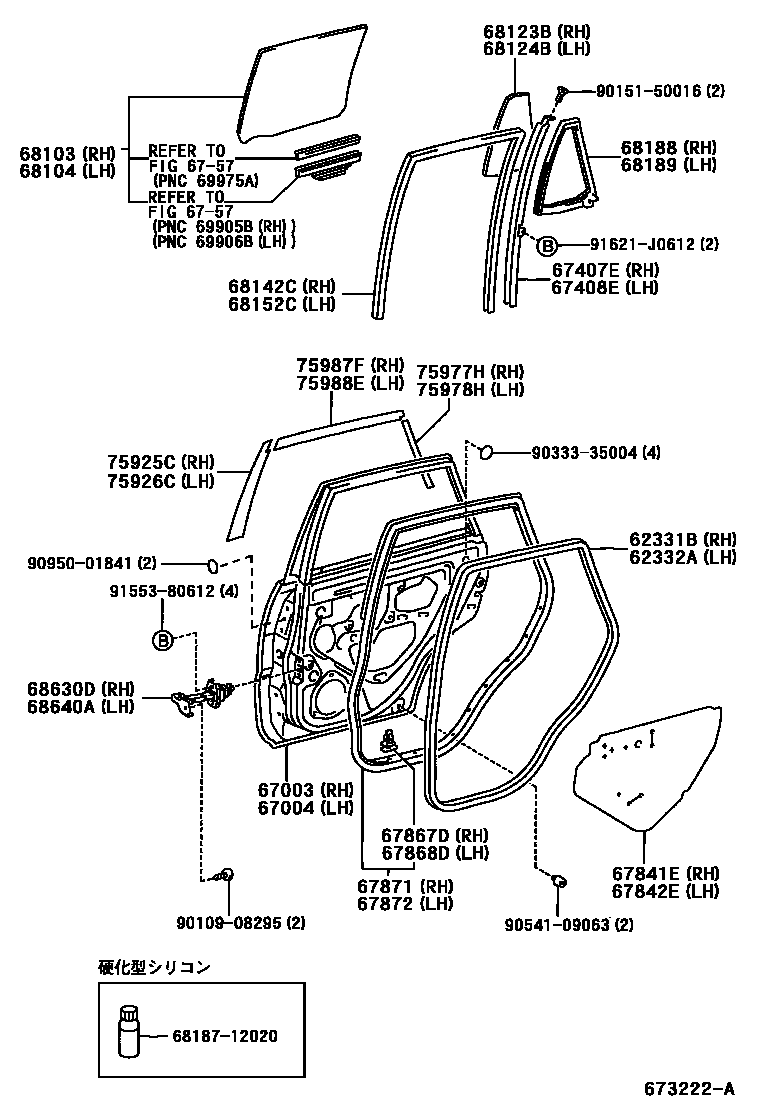

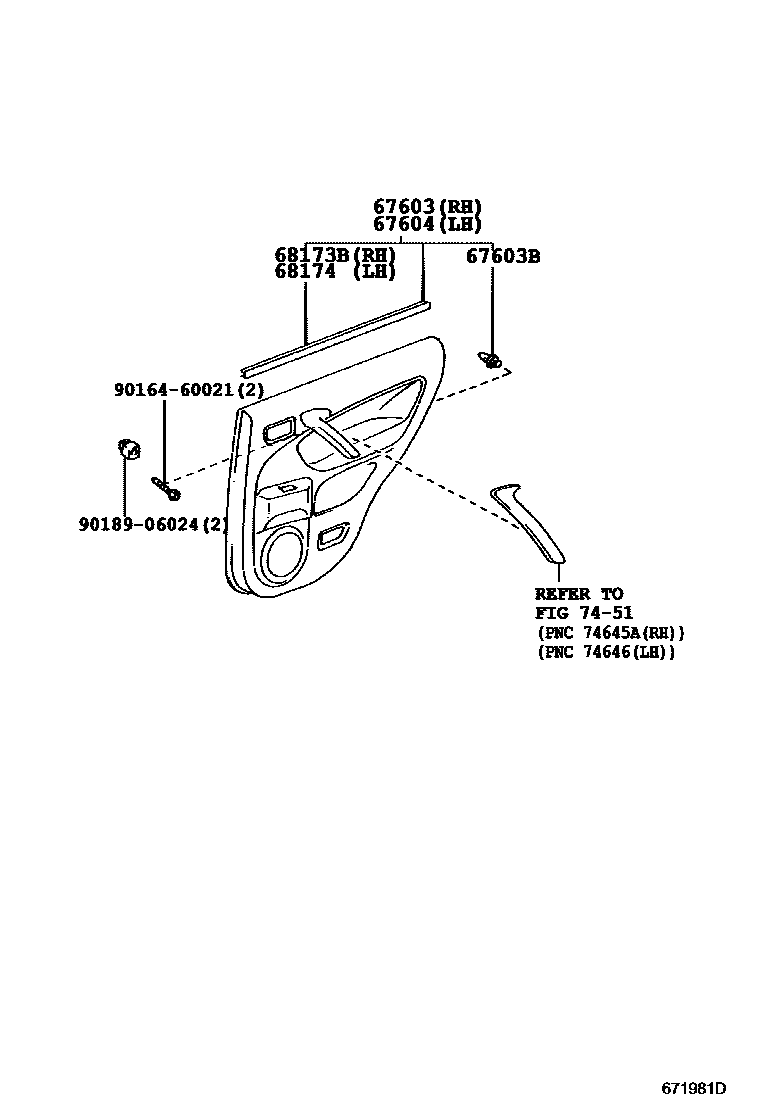

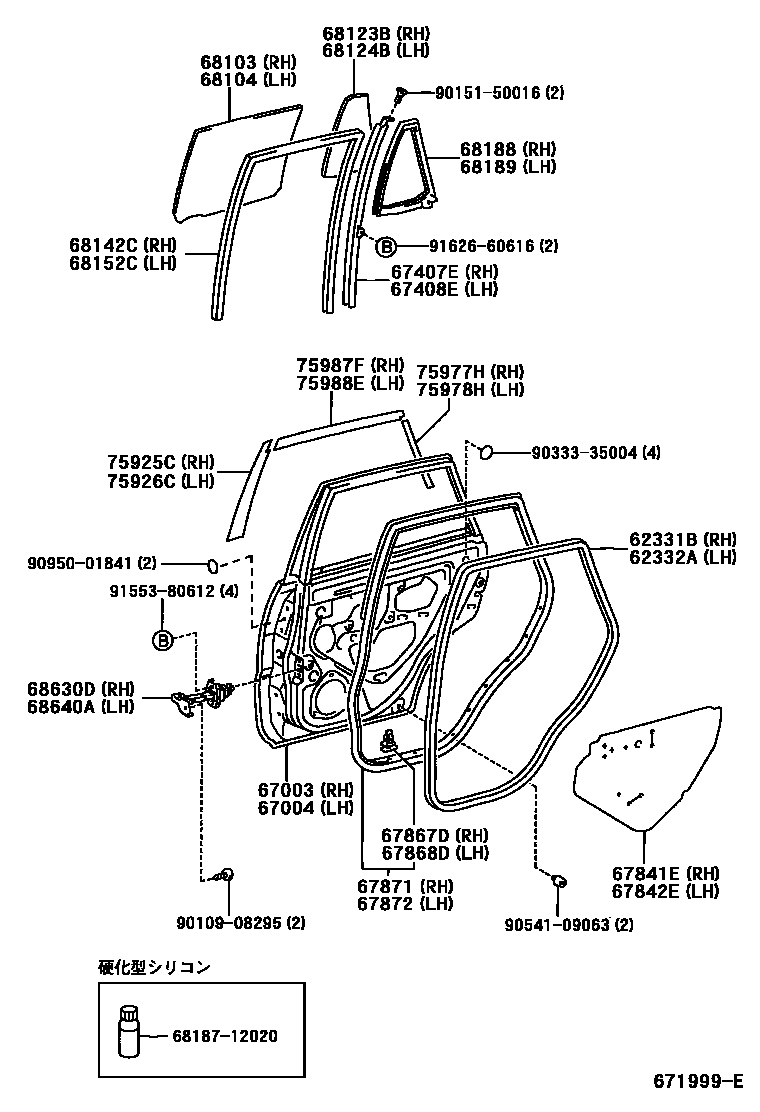

Toyota RAV4 EPC diagram 6755, 后门板和后门玻璃, with 3 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-42040 · 67003-42050 |
| 67004 | Left rear door panel sub-assembly | 67004-42040 · 67004-42050 |
| 67407E | Right rear door window divider sub-assembly | 67407-42020 |
| 67408E | Left rear door window divider sub-assembly | 67408-42020 |
| 67603B | Catch (for rear door trim panel) | 90467-09206 |
| 67841E | Right rear door access hole cover | 67841-42030 |
| 67842E | Left rear door access hole cover | 67841-42030 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-42020 |
| 67872 | Left rear door sealing strip | 67872-42020 |
| 68103 | Right rear door glass sub-assembly | 68103-42080 · 68103-42090 · 68113-42050 · 68113-42060 |
| 68104 | Left rear door glass sub-assembly | 68104-42080 · 68104-42090 · 68114-42050 · 68114-42060 |
| 68123B | Right rear door corner window glass | 68123-42050 · 68123-42060 · 68123-42070 · 68123-42080 |
| 68124B | Left rear door corner window glass | 68124-42060 · 68124-42070 · 68124-42080 · 68124-42090 |
| 68142C | Right rear door glass lift slot | 68142-42020 · 68142-42021 |
| 68152C | Left rear door glass lift slot | 68152-42020 · 68152-42021 |
| 68173B | Right rear door glass inner sealing strip | 68173-42020 |
| 68174 | Left rear door glass inner sealing strip | 68174-42010 |
| 68188 | Right rear door corner window seal | 68188-42020 |
| 68189 | Left rear door corner window seal | 68189-42020 |
| 68630D | Right rear door opening limiter assembly | 68630-42020 |
| 68640A | Left rear door opening limiter assembly | 68640-42020 |
| 75925C | No. 3 right side light-blocking film | 75925-42010 |
| 75926C | No. 3 left shading film | 75926-42010 |
| 75977H | Right rear door outer lower trim strip | 75977-42010 |
| 75978H | Left rear door outer lower trim strip | 75978-42010 |
| 75987F | Right rear door outer trim | 75987-42010 |
| 75988E | Left rear door outer trim | 75988-42010 |
