Toyota RAV4 前门板和前门玻璃 — Figure 6751

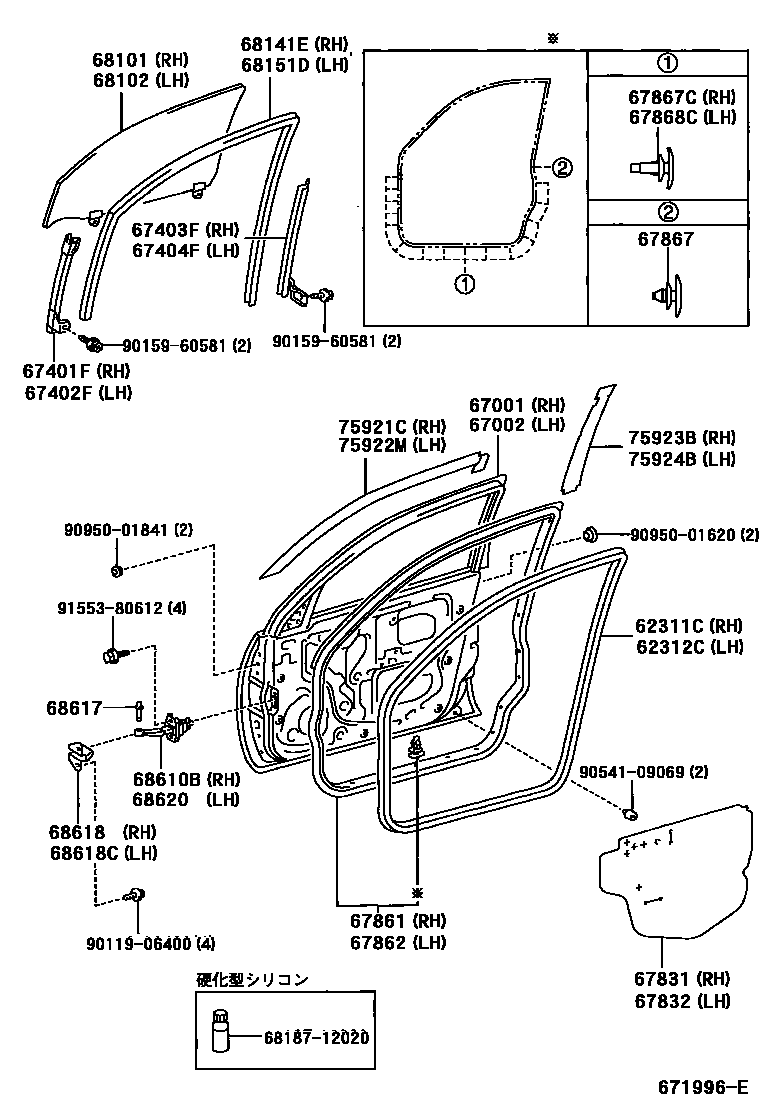

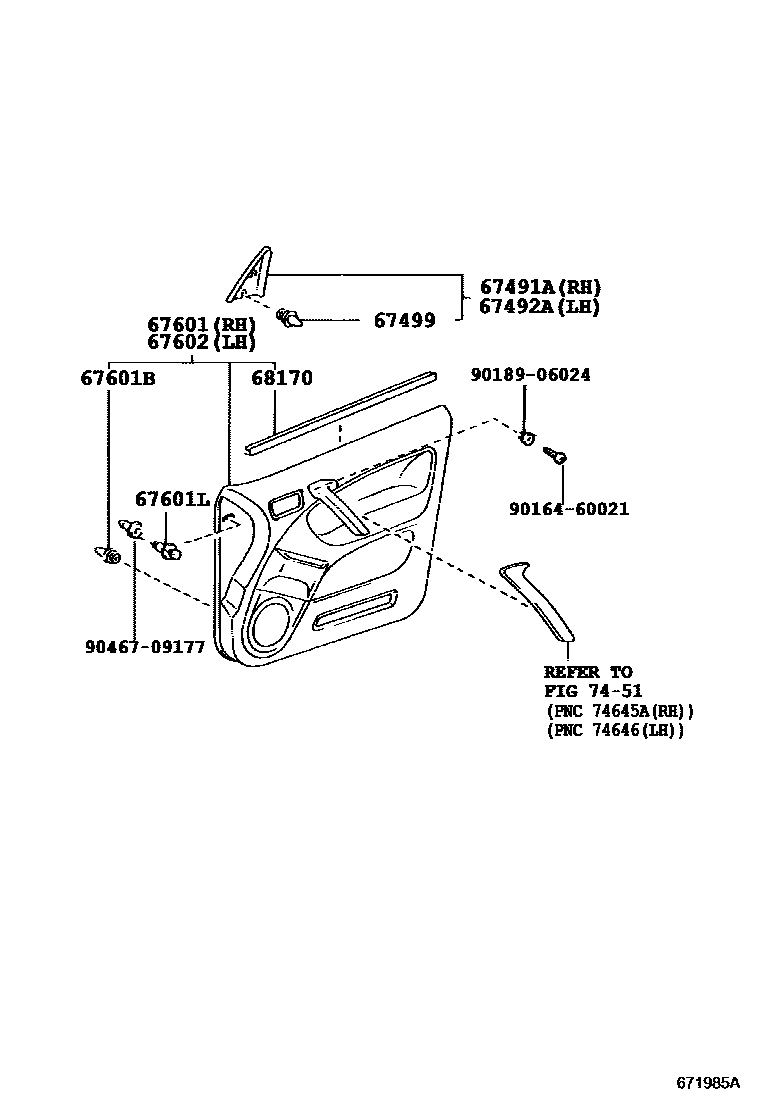

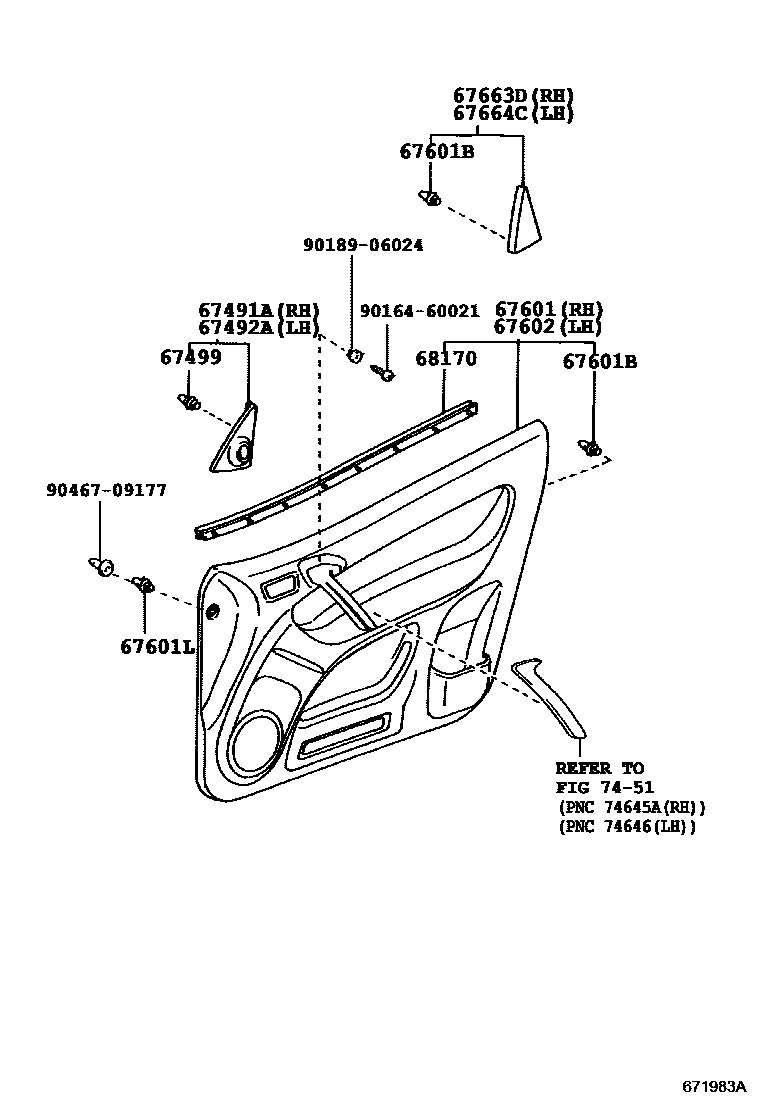

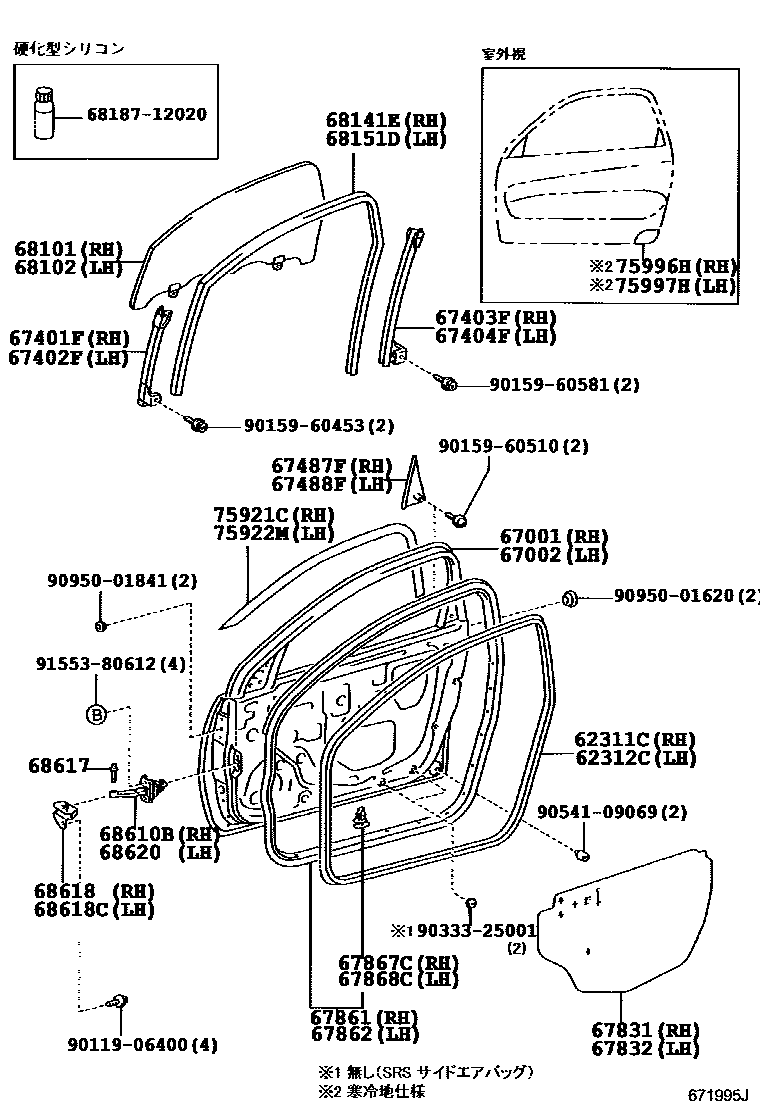

Toyota RAV4 EPC diagram 6751, 前门板和前门玻璃, with 6 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-42070 · 67001-42080 · 67001-42100 |
| 67002 | Left front door panel sub-assembly | 67002-42070 · 67002-42080 · 67002-42100 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-42020 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-42020 |
| 67403F | Right front door rear lower door frame sub-assembly | 67403-42010 · 67403-42020 |
| 67404F | Left front door rear lower door frame sub-assembly | 67404-42010 · 67404-42020 |
| 67487F | Right rear door rear rail bracket decorative strip | 67487-42020 |
| 67488F | Left rear door rear guide rail bracket decorative strip | 67488-42020 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-42030 · 67491-42040 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-42030 · 67492-42040 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67771-17020 |
| 67601B | Catch (for front door trim panel) | 90467-09206 |
| 67663D | Right door frame decorative strip | 67663-42010 |
| 67664C | Left door frame decorative strip | 67664-42010 |
| 67831 | Right front door access hole cover | 67831-42050 · 67831-42060 |
| 67832 | Left front door access hole cover | 67831-42050 · 67832-42010 |
| 67861 | Right front door seal | 67861-42030 · 67861-42031 · 67861-42040 · 67861-42041 |
| 67862 | Left front door seal | 67862-42030 · 67862-42031 · 67862-42040 · 67862-42041 |
| 67867 | Car door seal strip clip | 67867-48010 |
| 67867C | Right front door seal strip fixing | 67867-12150 |
| 67868C | Left front door seal strip fixing | 67867-12150 |
| 68101 | Right front door glass sub-assembly | 68101-42070 · 68101-42080 · 68101-42090 · 68101-42100 · 68101-42120 · 68101-42130 · 68101-42140 · 68101-42150 |
| 68102 | Left front door glass sub-assembly | 68102-42070 · 68102-42080 · 68102-42090 · 68102-42100 · 68102-42120 · 68102-42130 · 68102-42140 · 68102-42150 |
| 68141E | Right front door glass lift channel | 68141-42040 · 68141-42041 · 68141-42042 · 68141-42050 · 68141-42051 · 68141-42052 |
| 68151D | Left front door glass lift channel | 68151-42040 · 68151-42041 · 68151-42042 · 68151-42050 · 68151-42051 · 68151-42052 |
| 68170 | Front door glass inner sealing strip assembly | 68171-42030 · 68171-42040 · 68172-42030 · 68172-42040 |
| 68610B | Right front door opening limiter assembly | 68610-42040 |
| 68617 | Front door opening limiter pin | 68617-20011 · 68617-53010 |
| 68618 | Right front door opening limiter arm bracket | 68618-42010 |
| 68618C | Left front door opening limiter arm bracket | 68618-42010 |
| 68620 | Left front door opening limiter assembly | 68610-42040 |
| 75921C | No. 1 right side light-shielding film | 75921-42010 · 75921-42020 |
| 75922M | No. 1 left shading film | 75922-42010 · 75922-42020 |
| 75923B | No. 2 right side light-shielding film | 75923-42020 |
| 75924B | No. 2 left shading film | 75924-42020 |
| 75996H | Right rear body trim | 75996-42080 |
| 75997H | Left rear body trim | 75997-42080 |
