Toyota RAV4 侧梁 — Figure 6151

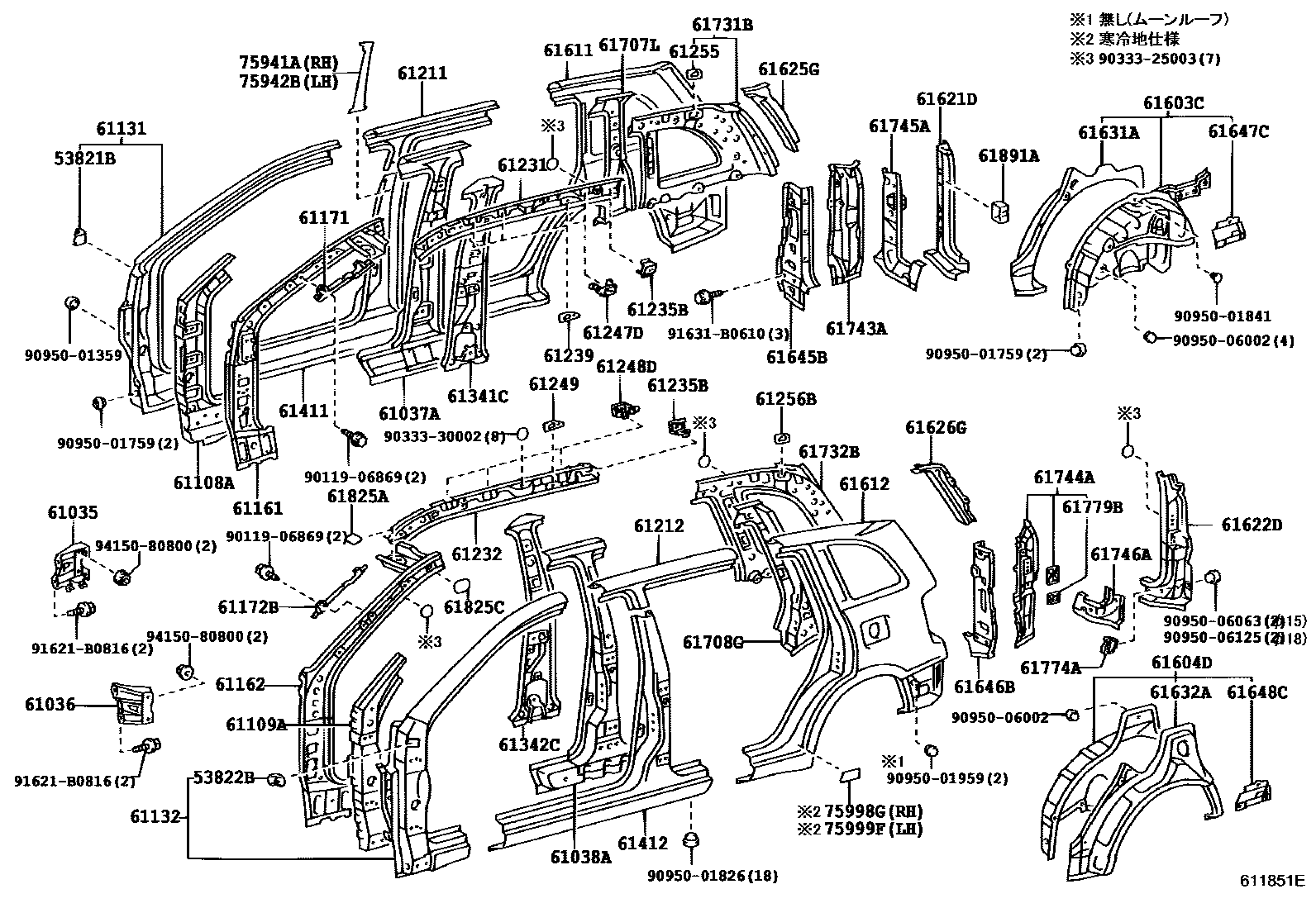

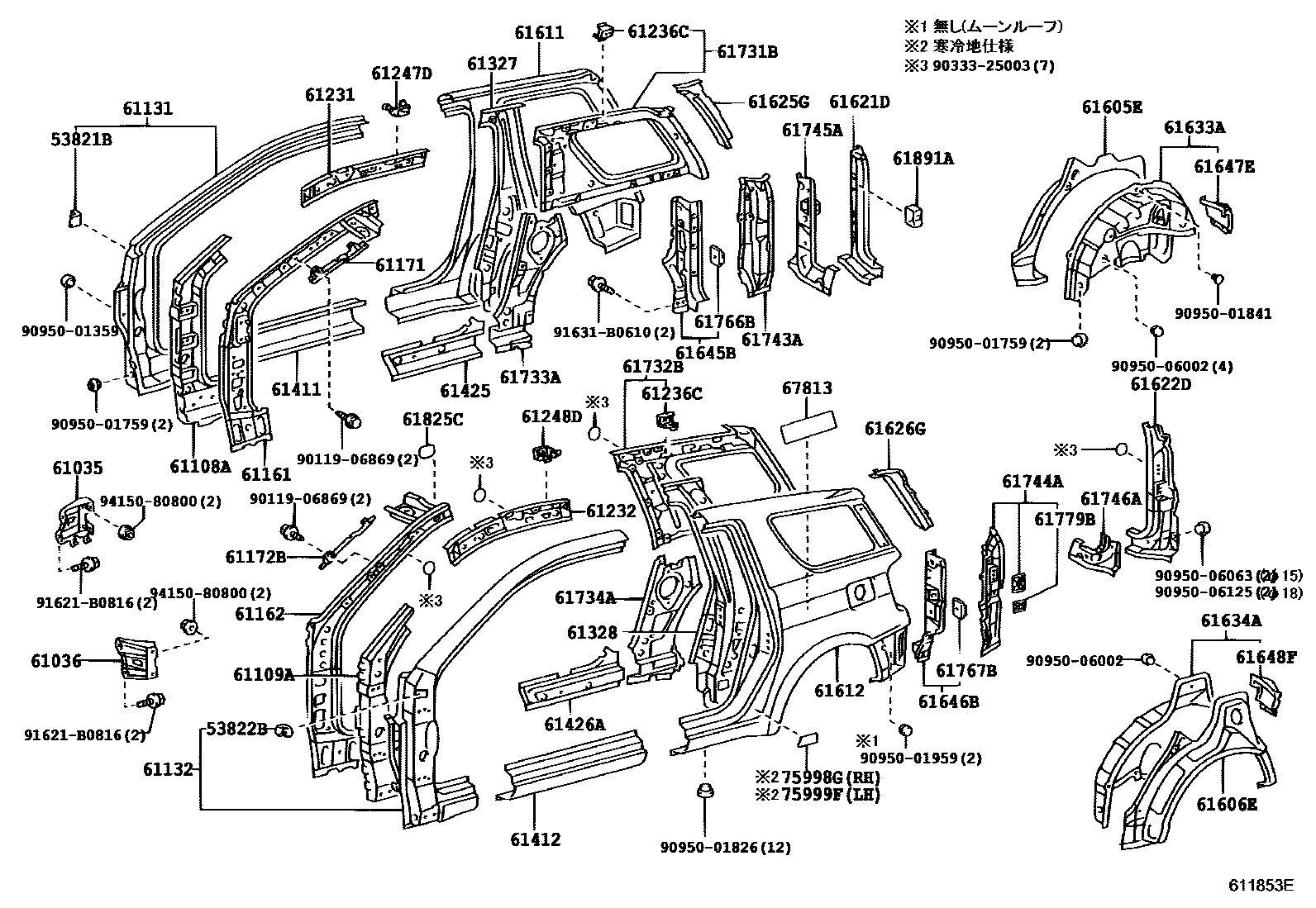

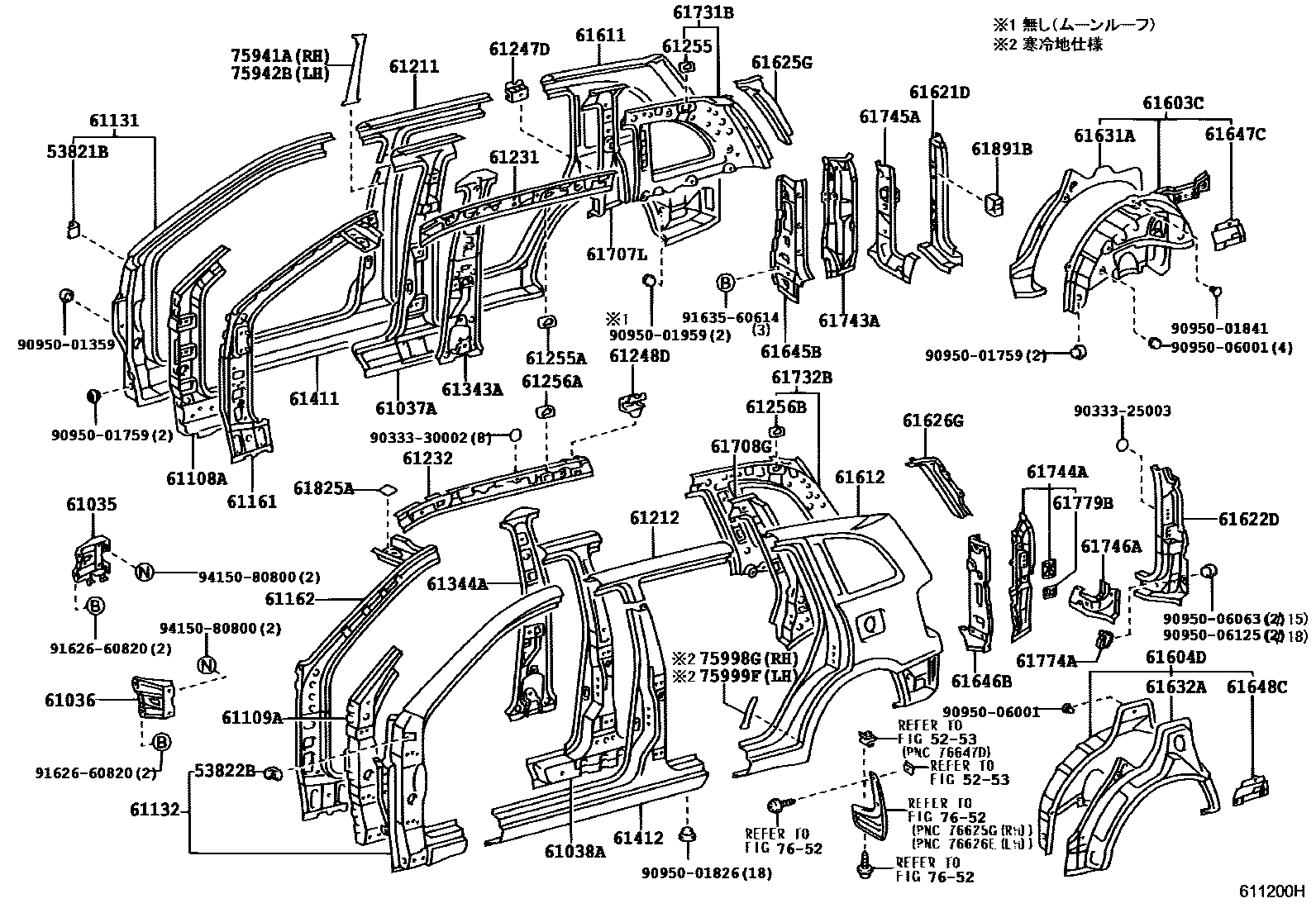

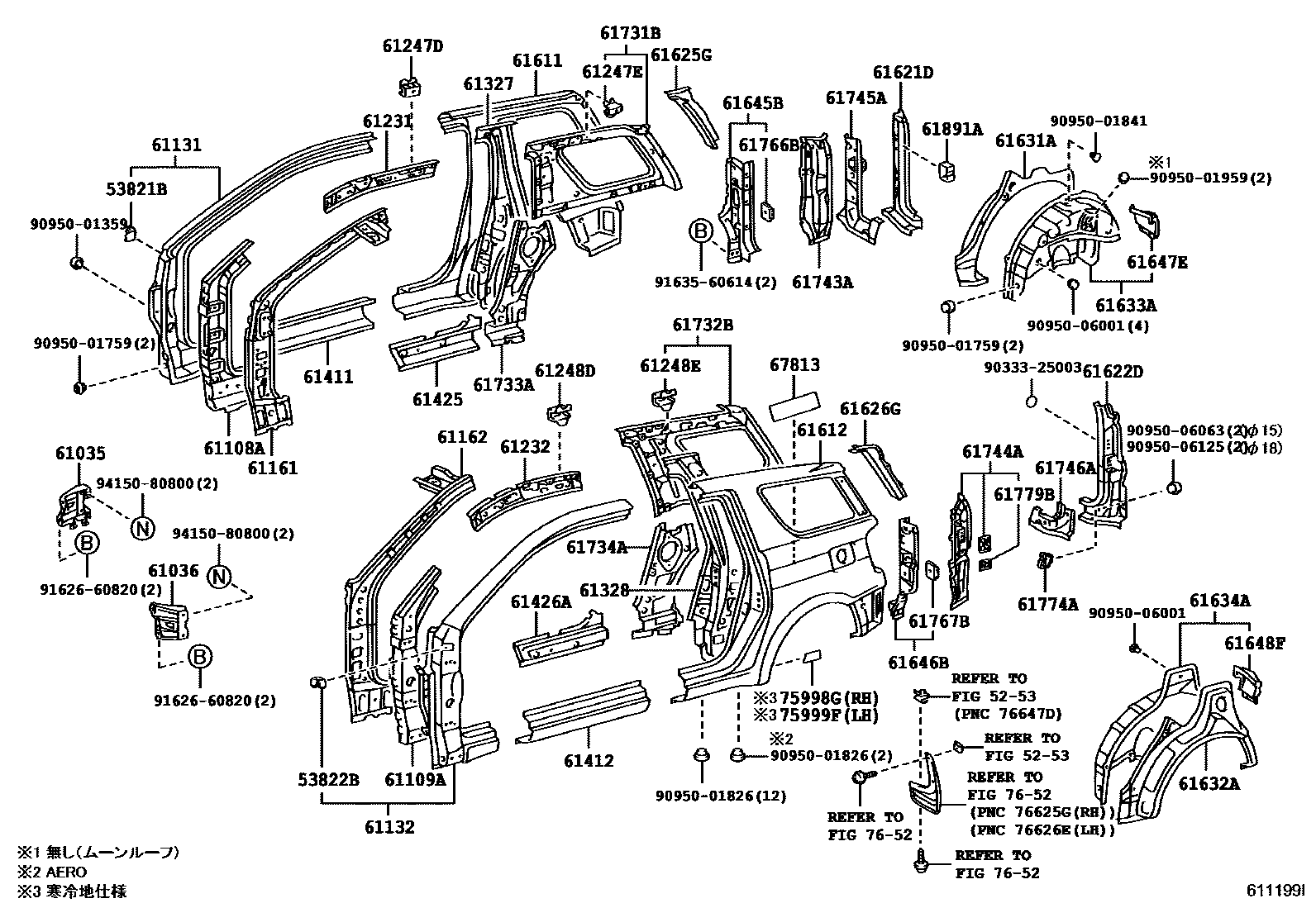

Toyota RAV4 EPC diagram 6151, 侧梁, with 4 images and 83 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53821B | Right front fender rear support | 53821-16010 |
| 53822B | Left front fender rear support | 53821-16010 |
| 61035 | Instrument panel to right front wall side bracket sub-assembly | 61165-42020 |
| 61036 | Instrument panel to left front wall side bracket sub-assembly | 61166-42020 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61303-42901 · 61303-42902 · 61303-42903 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61304-42901 · 61304-42902 · 61304-42903 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-42050 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-42050 |
| 61131 | Right body outer front upper pillar | 61110-42120 · 61110-42150 · 61110-42160 · 61110-42180 |
| 61132 | Left body outer front upper pillar | 61120-42110 · 61120-42130 · 61120-42140 · 61120-42160 |
| 61161 | Right upper body inner front pillar | 61023-42090 · 61023-42100 |
| 61162 | Left side inner front upper pillar | 61024-42090 · 61024-42100 |
| 61171 | Right inner front pillar lower fixing piece | 61171-42010 |
| 61172B | Left inner front pillar lower fixing piece | 61172-42010 |
| 61211 | Roof right outer longitudinal beam | 61211-42050 |
| 61212 | Roof left outer longitudinal beam | 61212-42050 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-42080 · 61231-42090 · 61231-42110 · 61231-42120 |
| 61232 | Roof left inner longitudinal beam | 61232-42080 · 61232-42090 · 61232-42110 · 61232-42120 |
| 61235B | Auxiliary handle bracket | 61235-42010 |
| 61236C | Auxiliary handle bracket | 61235-42010 |
| 61239 | Roof right outer longitudinal beam fixing piece | 61239-42010 · 61239-42020 |
| 61247D | Right auxiliary handle bracket | 61247-42020 · 61247-42030 |
| 61247E | Right No. 4 auxiliary handle bracket | 61247-42020 |
| 61248D | Left auxiliary handle bracket | 61247-42020 · 61247-42030 |
| 61248E | Right No. 4 auxiliary handle bracket | 61247-42020 |
| 61249 | Roof left outer longitudinal beam fixing piece | 61239-42020 · 61249-42010 |
| 61255 | Roof right outer longitudinal beam panel | 61255-32010 |
| 61255A | Roof right outer longitudinal beam panel | 61255-32010 |
| 61256A | Roof left outer longitudinal beam panel | 61255-32010 |
| 61256B | Roof left outer longitudinal beam panel | 61255-32010 |
| 61327 | Right body outer center pillar reinforcement | 61303-42904 · 61327-42900 |
| 61328 | Left body outer center pillar reinforcement | 61304-42904 · 61328-42900 |
| 61341C | Right inner middle pillar | 61341-42900 |
| 61342C | Left side inner center pillar | 61342-42900 |
| 61343A | Right body inner center pillar | 61307-42901 · 61307-42902 |
| 61344A | Left body inner center pillar | 61308-42901 · 61308-42902 |
| 61411 | Right door outer sill panel | 61411-42100 · 61411-42110 · 61411-42120 · 61411-42130 |
| 61412 | Left door outer sill panel | 61412-42090 · 61412-42120 · 61412-42130 · 61412-42140 |
| 61425 | Right side door sill panel No. 4 reinforcement | 61425-42050 |
| 61426A | Left side door sill panel No. 4 reinforcement | 61426-42060 |
| 61603C | Right wheel cover sub-assembly | 61603-42905 |
| 61604D | Left side wheel cover sub-assembly | 61604-42904 · 61604-42905 |
| 61605E | Right side hoarding | 61605-42080 |
| 61606E | left side panel | 61606-42090 |
| 61611 | Right side hoarding | 61610-42190 · 61610-42200 · 61610-42210 · 61611-42140 · 61611-42170 · 61611-42180 |
| 61612 | left side panel | 61620-42160 · 61620-42200 · 61620-42210 · 61620-42230 · 61620-42240 · 61620-42250 |
| 61621D | Back door right opening slot | 61621-42030 |
| 61622D | Rear door left opening slot | 61622-42030 |
| 61625G | Right rear side panel extension | 61625-42020 · 61625-42030 |
| 61626G | Left rear side panel extension | 61626-42020 · 61626-42030 |
| 61631A | Right wheel cover outer panel | 61605-42060 · 61631-42050 |
| 61632A | Left side wheel cover outer panel | 61606-42070 · 61606-42900 |
| 61633A | Right wheel housing lining panel | 61607-42050 |
| 61634A | Left side wheel housing lining panel | 61608-42060 |
| 61645B | Right rear side wheel housing corner panel | 61645-42050 · 61645-42901 |
| 61646B | Left rear side wheel housing corner panel | 61646-42050 · 61646-42901 |
| 61647C | Right wheel arch reinforcement | 61647-42030 |
| 61647E | Right side panel lower reinforcement | 61647-42020 |
| 61648C | Left wheel arch reinforcement | 61648-42030 · 61648-42031 · 61648-42040 |
| 61648F | Reinforcement piece under left side hoarding | 61648-42020 |
| 61707L | Right front roof inner panel sub-assembly | 61707-42020 · 61707-42021 · 61707-42030 |
| 61708G | Left front roof inner panel sub-assembly | 61708-42020 · 61708-42021 · 61708-42050 |
| 61731B | Roof right inner panel | 61731-42900 · 61731-42901 · 61731-42902 · 61731-42903 |
| 61732B | Roof left inner panel | 61732-42900 · 61732-42901 · 61732-42902 · 61732-42903 |
| 61733A | Right front roof inner panel | 61733-42900 |
| 61734A | Left front roof inner panel | 61734-42900 |
| 61743A | Rear door opening right reinforcement | 61743-42010 · 61743-42030 |
| 61744A | Rear door opening left reinforcement | 61744-42900 · 61744-42901 |
| 61745A | Back door opening lower right reinforcement | 61745-42010 |
| 61746A | Rear door opening lower left reinforcement | 61746-42010 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-42010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61766-42010 |
| 61774A | Back door opening lower left lining | 61774-42010 |
| 61779B | Rear door opening lower left panel | 61779-42010 |
| 61825A | Noise Control Panel No. 2 | 61825-12010 |
| 61825C | No. 2 silencer panel gasket | 61825-42010 |
| 61891A | Back door upper hinge right fixing piece | 61891-42010 |
| 61891B | Back door upper hinge right fixing piece | 61891-42010 |
| 67813 | Side panel sound absorbing pads | 67812-42010 |
| 75941A | Right center pillar trim | 75941-42010 |
| 75942B | Left center pillar trim | 75942-42010 |
| 75998G | Lower side panel on right side | 75998-42010 · 75998-42020 · 75998-42030 |
| 75999F | Lower side panel on left side | 75999-42010 · 75999-42020 · 75999-42030 |
