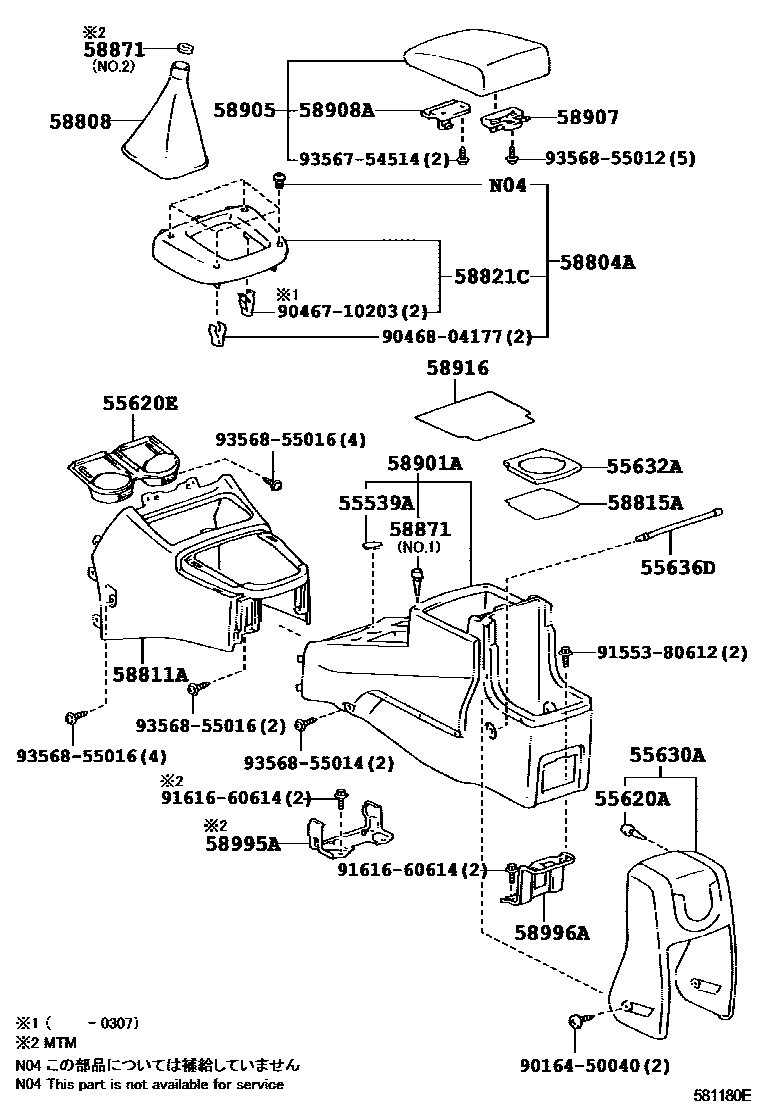

Toyota RAV4 中央扶手箱和支架 — Figure 5855
Toyota RAV4 EPC diagram 5855, 中央扶手箱和支架, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55620A | Cushion (for coasters) | 90541-03078 |
| 55632A | Dashboard bottom bracket No. 2 bracket | 55632-42010 |
| 55636D | Instrument panel cup holder shaft No. 1 | 55636-42010 |
| 58804A | Armrest box upper panel sub-assembly | 58804-42010 · 58804-42020 |
| 58808 | Shift hole cover sub-assembly | 58808-42010 |
| 58815A | Armrest box felt pad | 58815-42010 |
| 58821C | Armrest box upper panel | 58821-42010 · 58821-42020 |
| 58871 | Armrest box cushion | 58871-20060 · 90541-03078 |
| 58908A | Armrest box lid lock assembly | 58908-32050 |
| 58916 | Armrest box bottom pad | 58916-42010 |
| 58995A | Armrest box No. 1 mounting bracket | 58995-42010 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-42020 |
