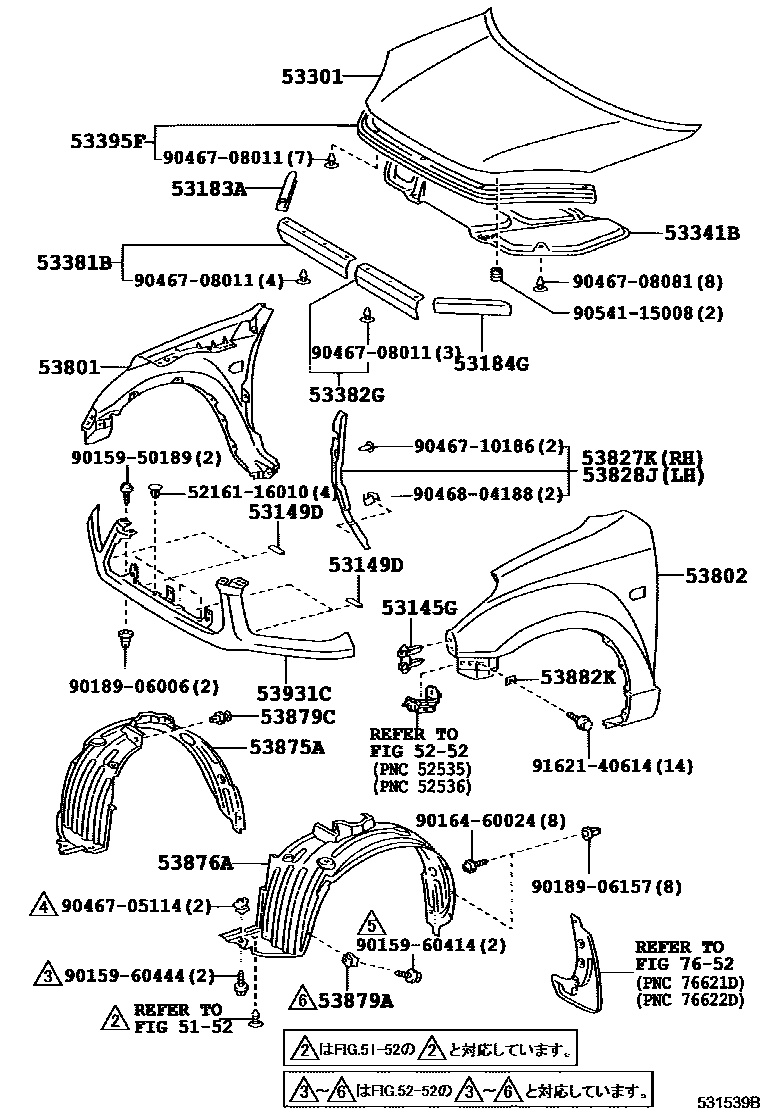

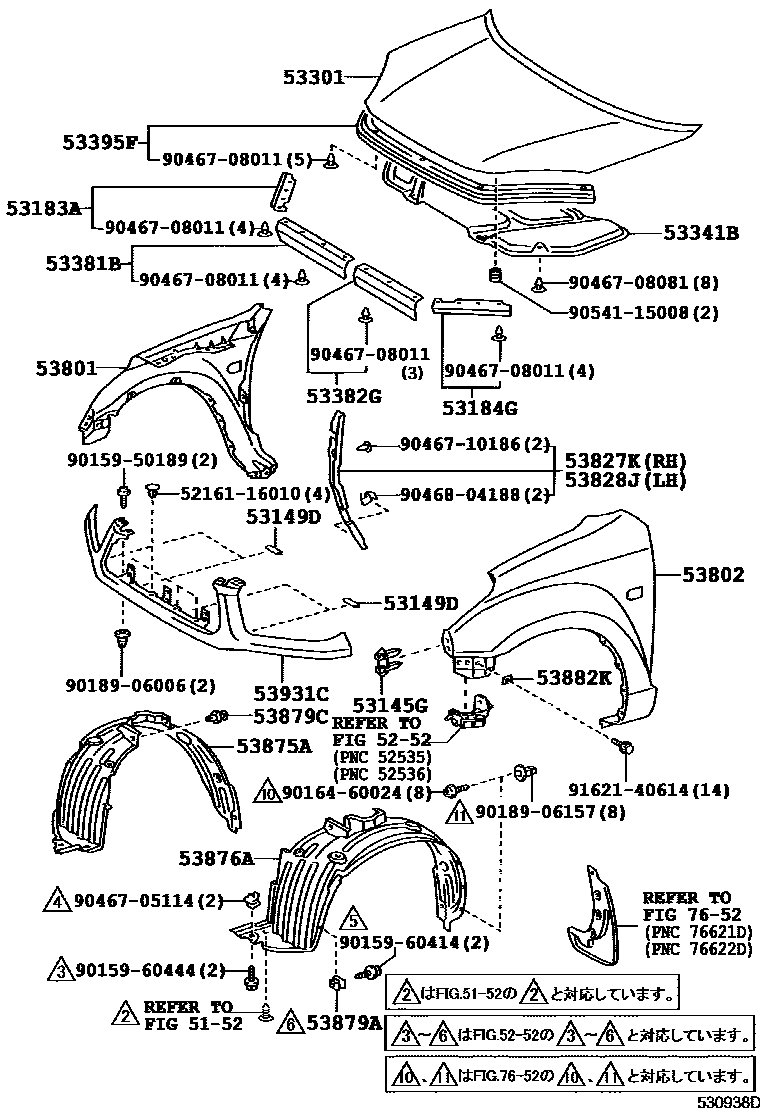

Toyota RAV4 发动机盖和前翼子板 — Figure 5353
Toyota RAV4 EPC diagram 5353, 发动机盖和前翼子板, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53145G | Radiator grille clip | 53145-42010 |
| 53149D | Radiator grille No. 2 protective cover | 53149-46010 |
| 53183A | Right headlight cover seal | 53183-42010 · 53183-42020 |
| 53184G | Left headlight cover seal | 53184-42010 · 53184-42020 |
| 53301 | Engine cover sub-assembly | 53301-42030 |
| 53341B | engine cover gasket | 53341-42020 · 53341-42021 |
| 53381B | Right seal (engine cover to radiator bracket) | 53381-42020 |
| 53382G | Seal, left side (engine cover to radiator bracket) | 53382-42010 |
| 53395F | Engine cover to radiator grille seal | 53395-42010 · 53395-42011 |
| 53801 | Right front fender sub-assembly | 53811-42150 · 53811-42160 · 53811-42190 · 53811-42200 |
| 53802 | Left front fender sub-assembly | 53802-42120 · 53802-42130 · 53802-42140 · 53802-42150 |
| 53827K | Right front fender side panel protector | 53827-42030 · 53827-42031 |
| 53828J | Left front fender side panel protector | 53828-42040 · 53828-42041 |
| 53875A | Right front fender lining | 53875-42050 · 53875-42051 |
| 53876A | Left front fender lining | 53876-42050 · 53876-42051 |
| 53879A | Front fender lining fixing parts | 53879-44010 |
| 53879C | Front fender lining fixing parts | 53879-60010 |
| 53882K | front fender seal | 53882-16030 |
| 53931C | front board | 53931-42020 · 53931-42030 |
