Toyota RAV4 radiator grille — Figure 5351

Toyota RAV4 EPC diagram 5351, radiator grille, with 2 images and 2 PNC and OE references.

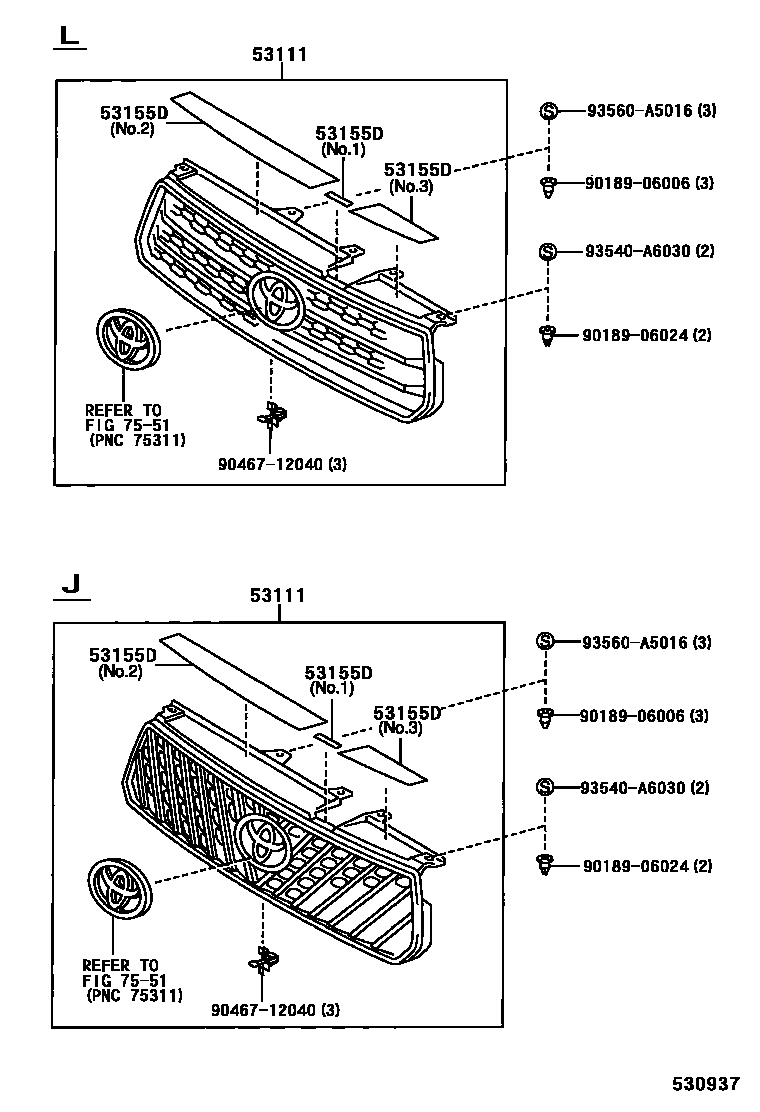

Toyota RAV4 radiator grille EPC diagram — 530937
radiator grille — 530937 (200005 – 200307)

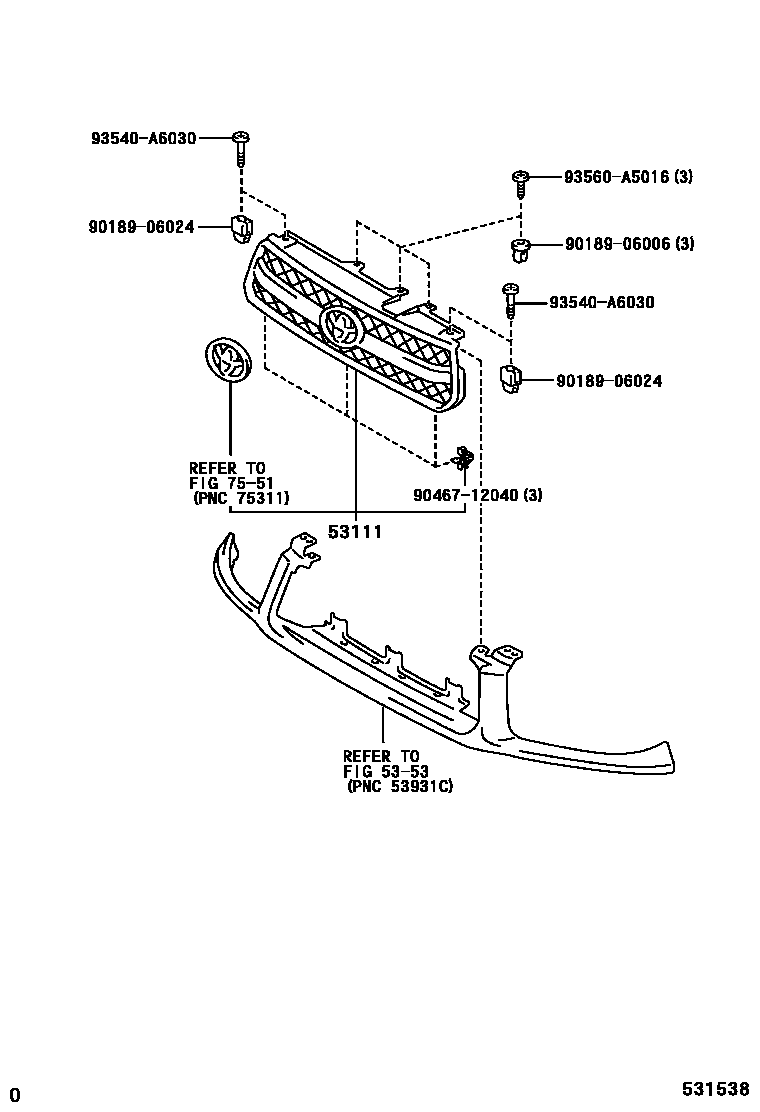

Toyota RAV4 radiator grille EPC diagram — 531538
radiator grille — 531538 (200307 – 999999)

PNC and OE references

PNCPart nameOE numbers
53111radiator grille53101-42100 · 53101-42110 · 53101-42120 · 53101-42130 · 53101-42140
53155DRadiator grille seal No. 153155-42020 · 53156-42010 · 53157-42010
