Toyota RAV4 前保险杠及附件 — Figure 5252

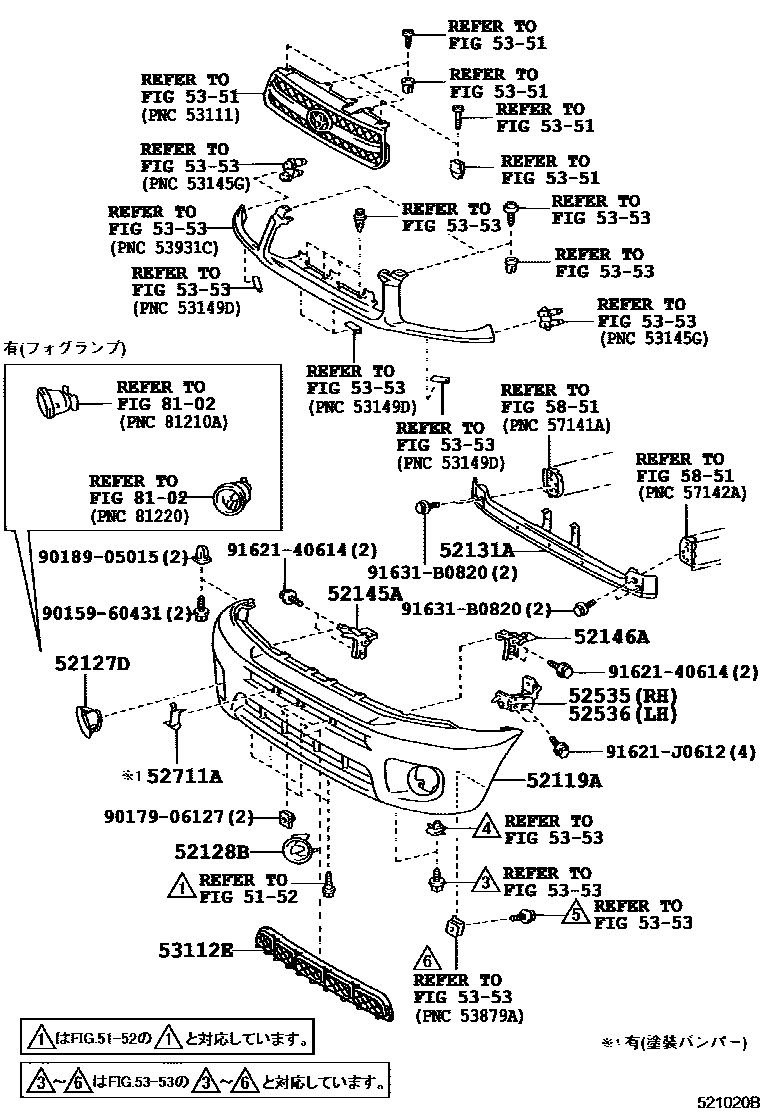

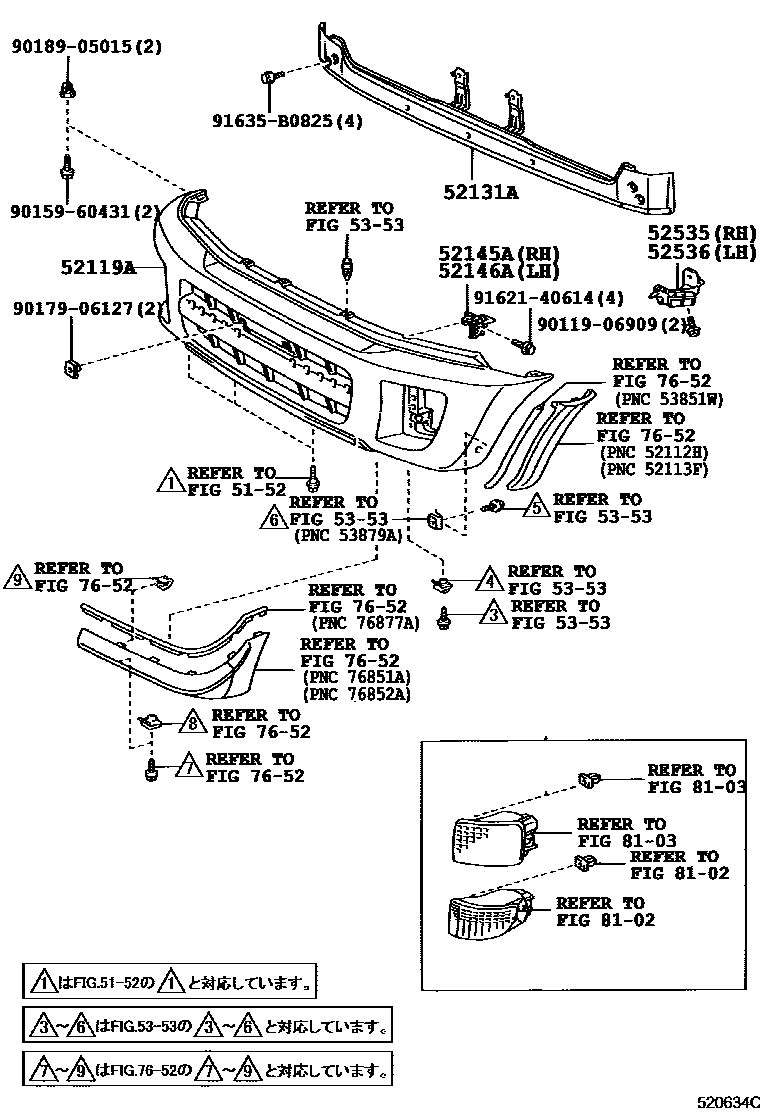

Toyota RAV4 EPC diagram 5252, 前保险杠及附件, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52119A | front bumper cover | 52119-42903 · 52119-42905 |
| 52127D | Front bumper right hole cover | 52127-42030 |
| 52128B | Front bumper left hole cover | 52128-42030 |
| 52131A | Front bumper reinforcement | 52021-42040 · 52021-42041 |
| 52145A | Front bumper No. 2 right side stay | 52145-42020 · 52145-42030 |
| 52146A | Front bumper No. 2 left side stay | 52146-42020 · 52146-42030 |
| 52535 | Front bumper right side fixing bracket | 52535-42010 |
| 52536 | Front bumper left fixed bracket | 52536-42010 |
| 52711A | front bumper decorative panel | 52711-42010 |
| 53112E | No. 1 radiator lower grille | 53113-42020 |
