Toyota RAV4 前桥控制臂和转向节 — Figure 4802

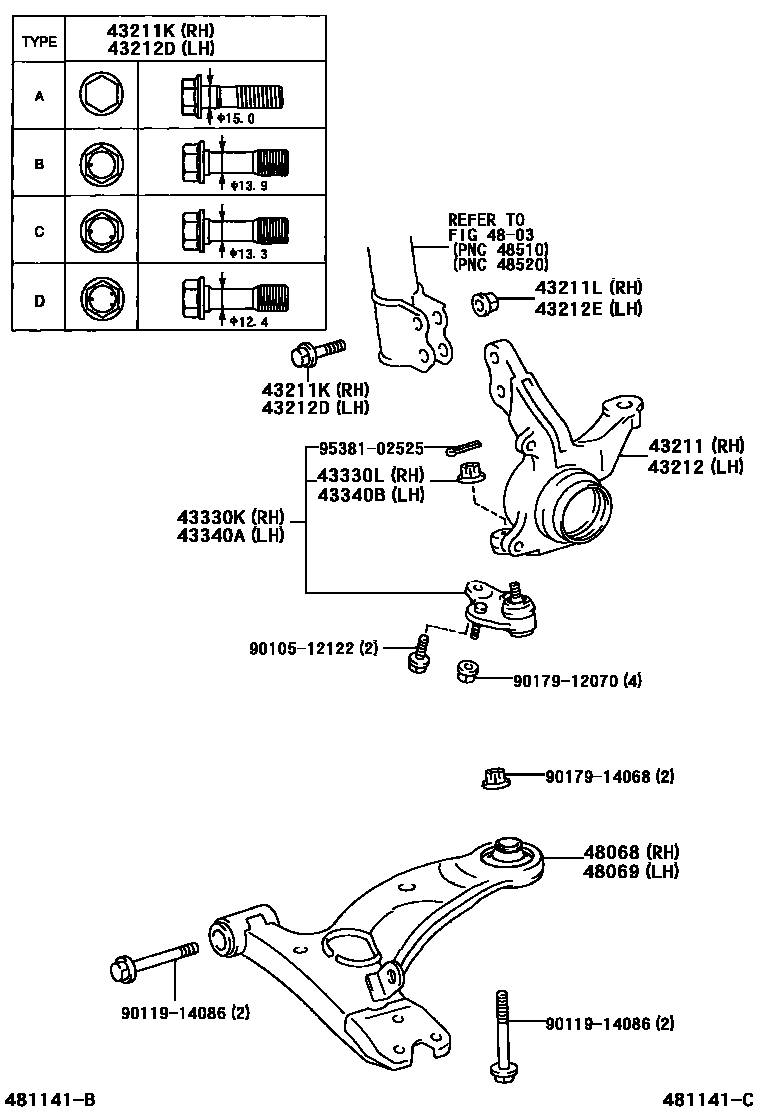

Toyota RAV4 EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-42060 |
| 43211K | Bolt (for right steering knuckle) | 90105-15001 · 90105-15009 · 90105-15010 · 90105-15011 |
| 43211L | Nut (for right steering knuckle) | 90179-15006 |
| 43212 | left steering knuckle | 43212-42060 |
| 43212D | Bolt (for left steering knuckle) | 90105-15001 · 90105-15009 · 90105-15010 · 90105-15011 |
| 43212E | Nut (for left steering knuckle) | 90179-15006 |
| 43330K | Right front lower ball joint assembly | 43330-19115 |
| 43330L | Castle nut (for right front lower ball joint) | 90171-14003 |
| 43340A | Left front lower ball joint assembly | 43330-19115 |
| 43340B | Castle nut (for left front lower ball joint) | 90171-14003 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-42040 · 48068-42041 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-42040 · 48069-42041 |
