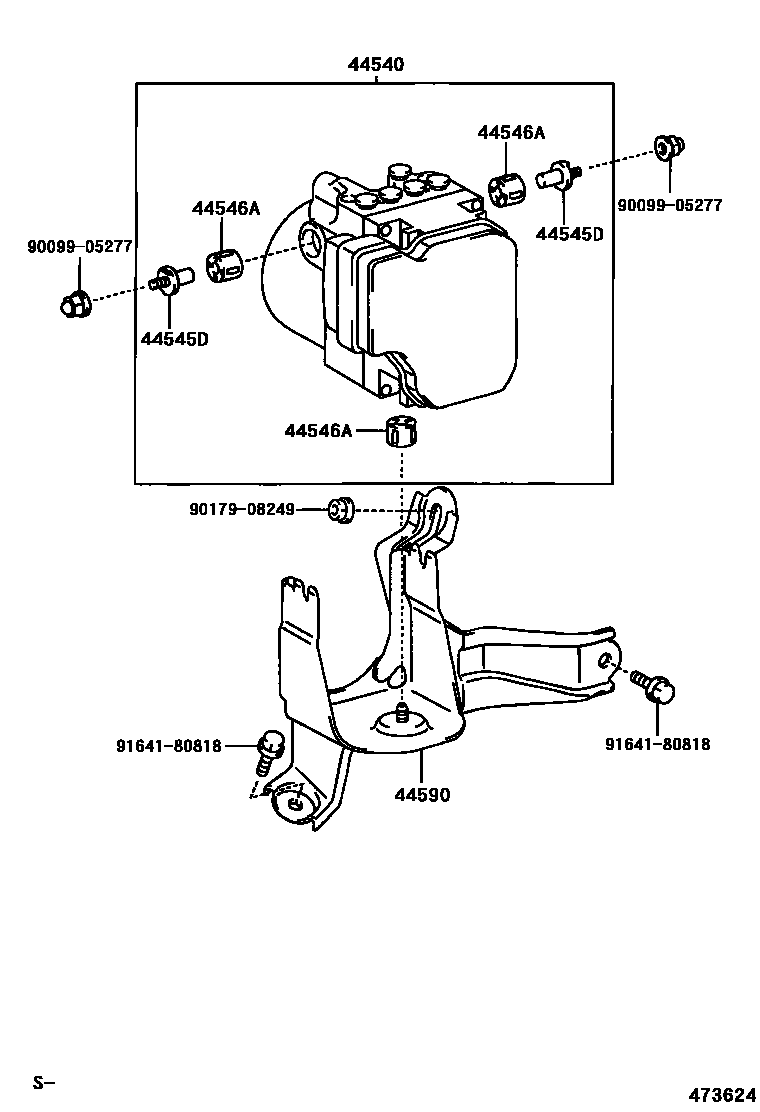

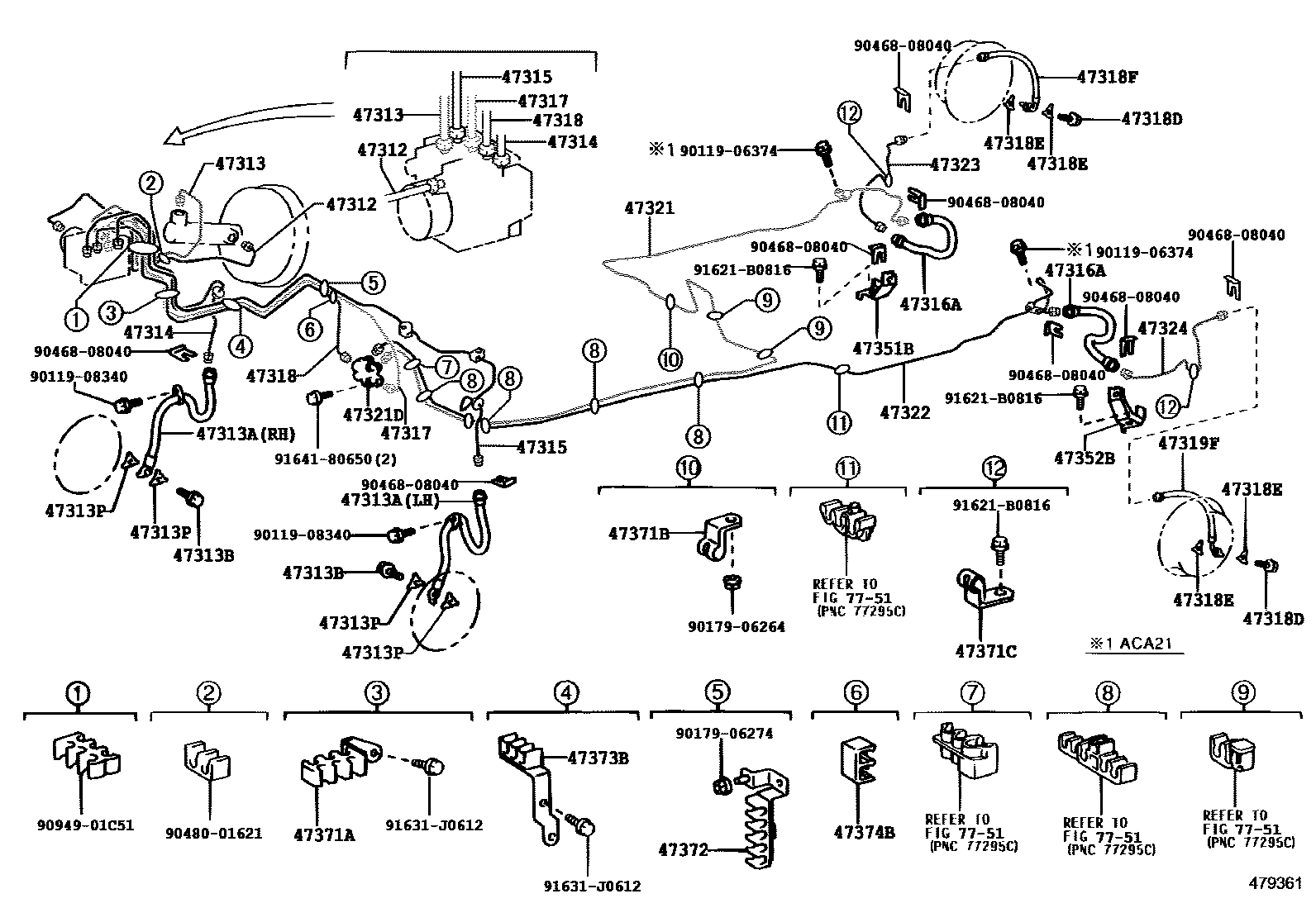

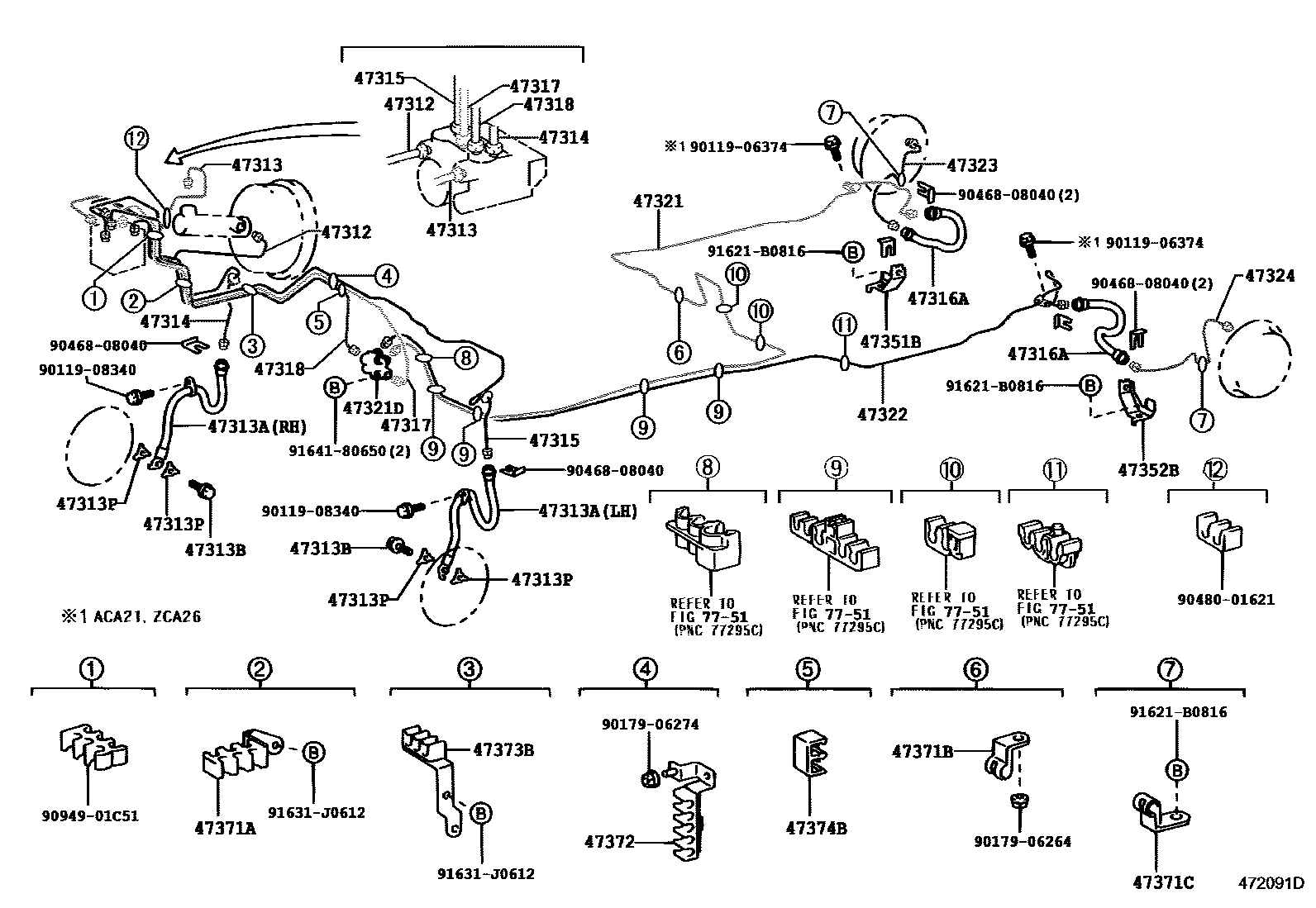

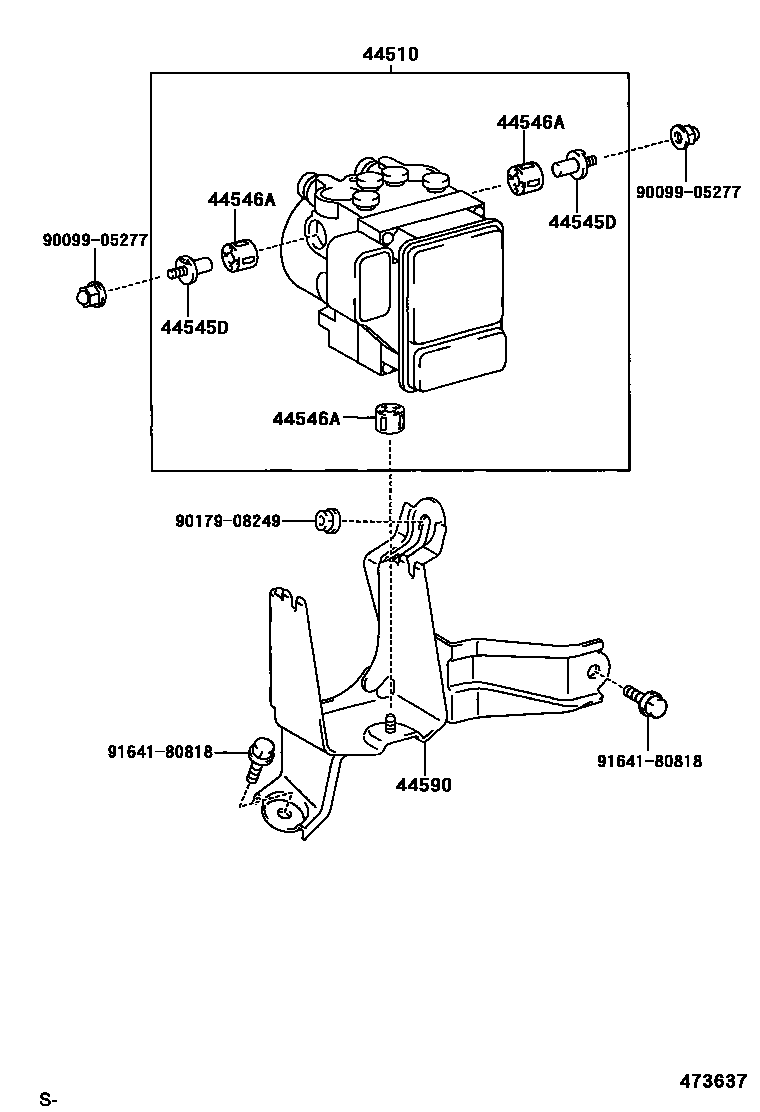

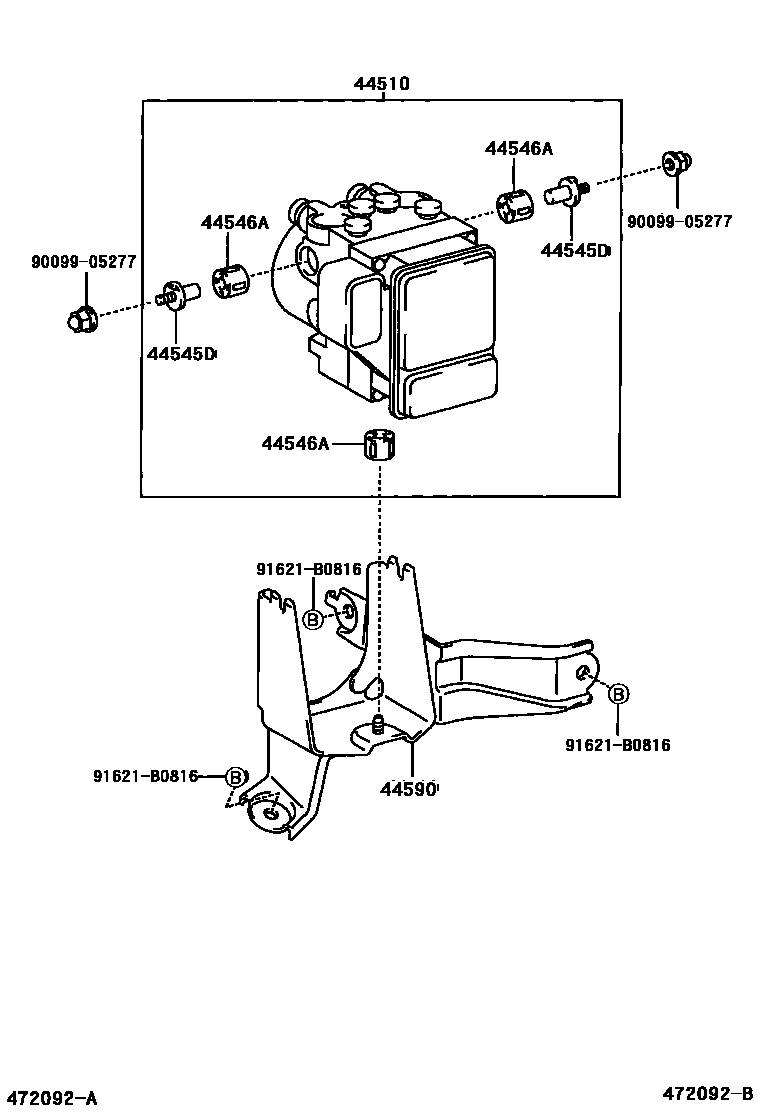

Toyota RAV4 制动配管和卡箍 — Figure 4708
Toyota RAV4 EPC diagram 4708, 制动配管和卡箍, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-42070 |
| 44540 | ABS and traction actuator assembly | 44050-42120 · 44050-42130 · 44050-42131 |
| 44545D | Brake actuator bolt mount | 44545-42090 |
| 44546A | Brake actuator bolt cushion | 44546-42090 |
| 44590 | Brake actuator bracket assembly | 44590-42070 · 44590-42080 · 44590-42090 |
| 47312 | No. 2 front brake pipe | 47312-42160 · 47312-42170 · 47312-42250 |
| 47313 | No. 3 front brake pipe | 47313-42160 · 47313-42170 · 47313-42250 |
| 47313A | No. 1 front flexible hose | 90947-02C54 · 90947-02C55 |
| 47313B | Connector bolt (for front flex hose) | 90401-10015 |
| 47313P | Gasket (for front flex hose) | 47389-30010 |
| 47314 | No. 4 front brake pipe | 47314-42110 · 47314-42120 |
| 47315 | No. 5 front brake pipe | 47315-42170 · 47315-42171 · 47315-42220 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02C53 |
| 47317 | No. 7 front brake pipe | 47317-42110 · 47317-42111 · 47317-42112 · 47317-42160 |
| 47318 | No. 8 front brake pipe | 47318-42110 · 47318-42111 · 47318-42160 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10015 |
| 47318E | Gasket (for rear flex hose) | 47389-30010 |
| 47318F | Right rear flexible hose | 90947-02D02 |
| 47319F | Left rear flexible hose | 90947-02D03 |
| 47321 | No. 1 rear brake pipe | 47321-42100 · 47321-42101 · 47321-42110 · 47321-42111 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10140 |
| 47322 | No. 2 rear brake pipe | 47322-42070 · 47322-42071 · 47322-42080 · 47322-42081 |
| 47323 | No. 3 rear brake pipe | 47323-42040 · 47323-42041 · 47323-42050 |
| 47324 | No. 4 rear brake pipe | 47324-42040 · 47324-42041 · 47324-42050 |
| 47351B | No. 1 Flexible Hose Bracket | 47351-42060 |
| 47352B | No. 2 Flexible Hose Bracket | 47352-42060 |
| 47371A | No. 1 brake pipe clamp | 47371-42200 |
| 47371B | No. 6 brake pipe clamp | 90461-08715 |
| 47371C | No. 7 brake pipe clamp | 90461-08726 |
| 47372 | No. 2 brake pipe clamp | 47371-42210 |
| 47373B | No. 3 brake pipe clamp | 47371-42250 |
| 47374B | No. 4 brake pipe clamp | 90949-01972 |
