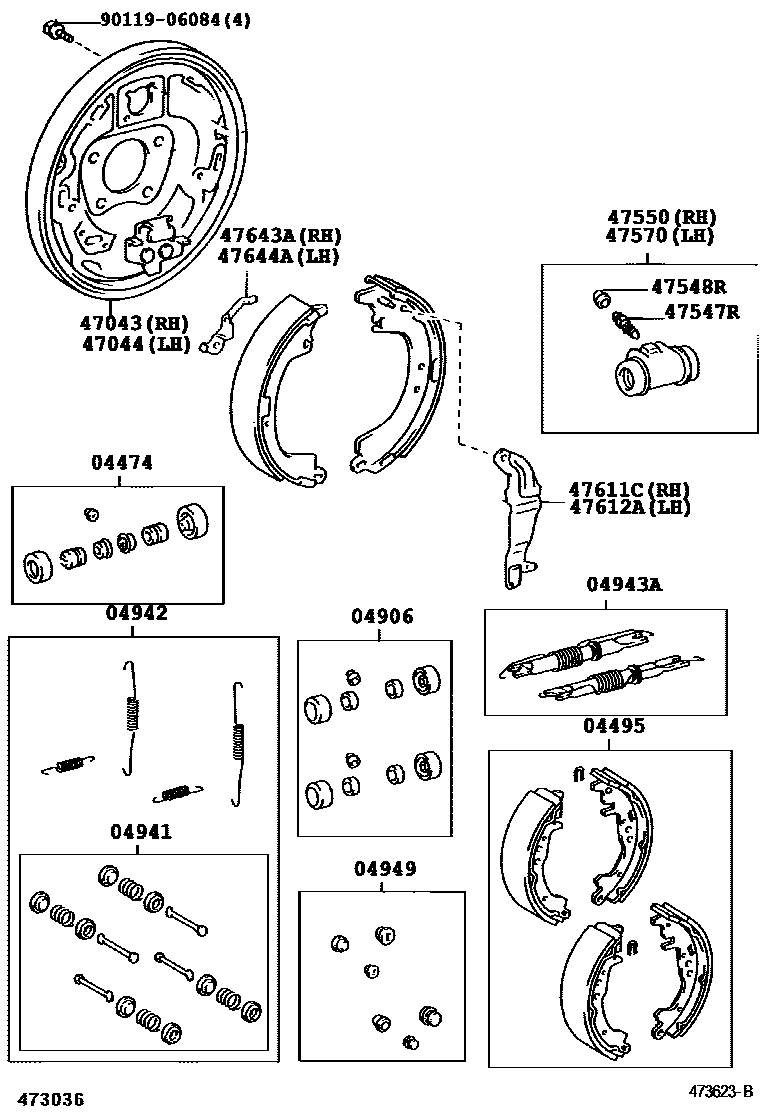

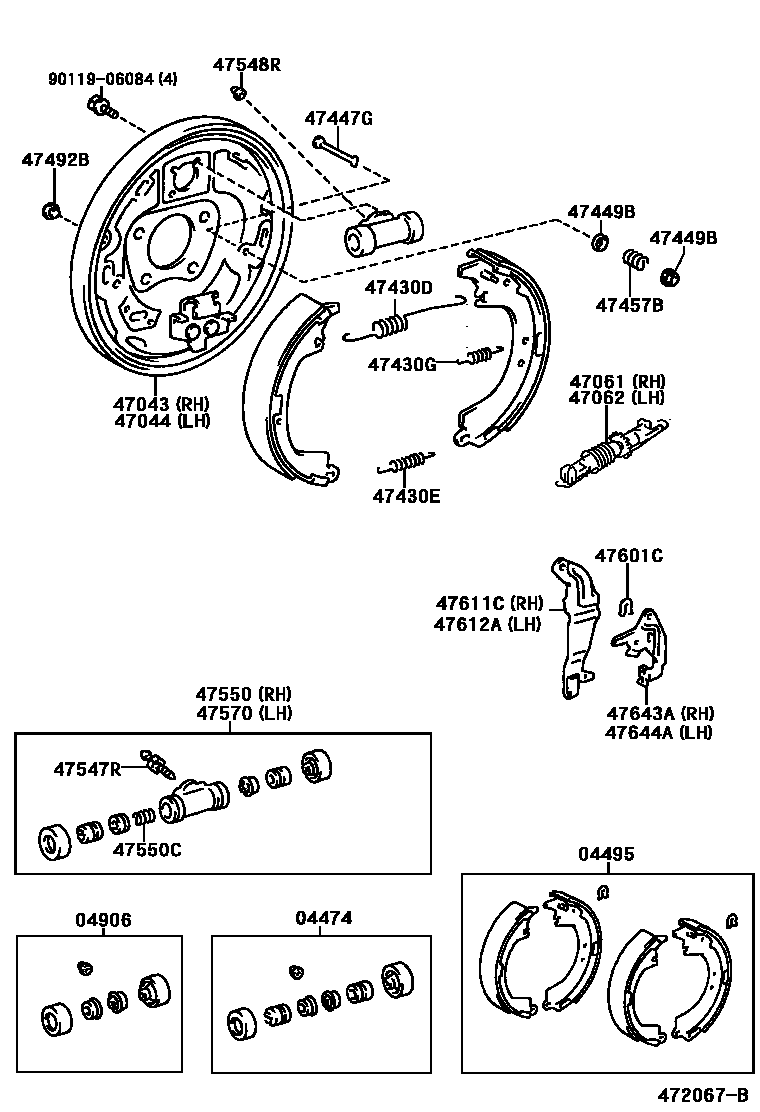

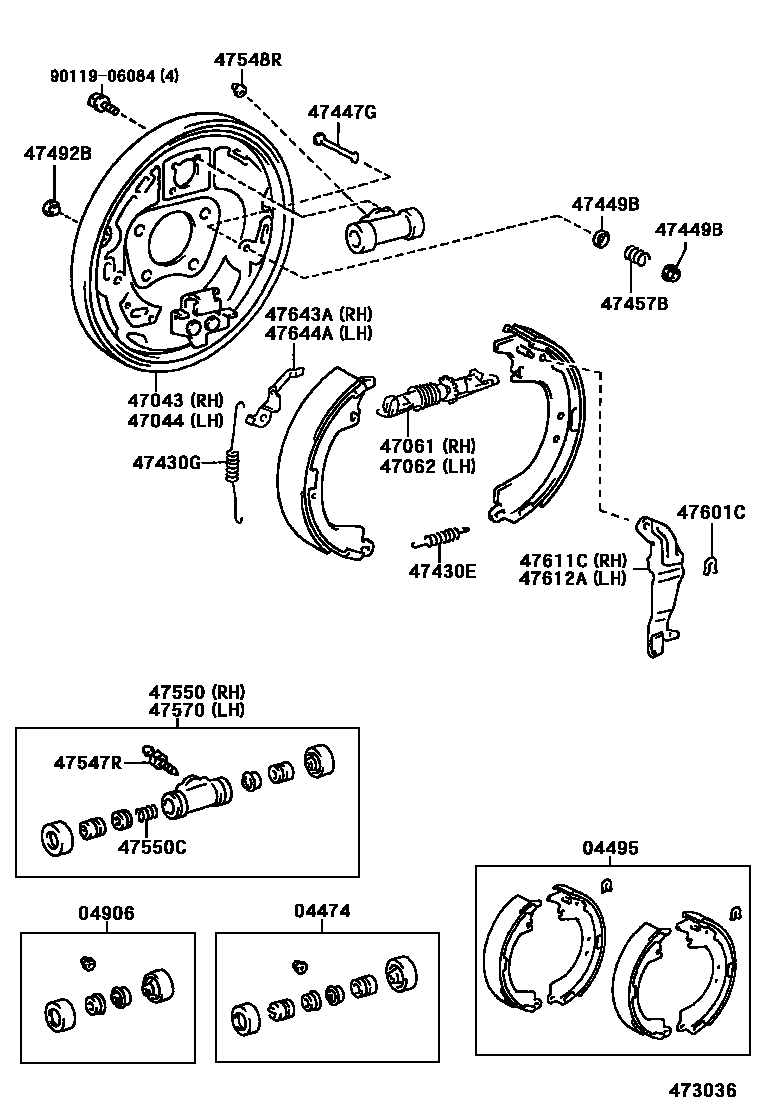

Toyota RAV4 后鼓式制动器分泵和底板 — Figure 4706
Toyota RAV4 EPC diagram 4706, 后鼓式制动器分泵和底板, with 3 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-42020 |
| 04495 | Rear brake shoe assembly | 04495-42040 · 04495-42080 |
| 04906 | Rear wheel pump cup assembly | 04906-42020 |
| 04941 | Rear brake shoe limit spring assembly | 04941-28010 |
| 04942 | Rear brake spring assembly | 04942-13020 · 04942-13030 |
| 04943A | Rear brake bracket assembly | 04943-42010 |
| 04949 | Rear brake plug assembly | 04949-44010 |
| 47043 | Right rear brake base plate sub-assembly | 47043-42014 · 47043-42030 |
| 47044 | Left rear brake base plate sub-assembly | 47044-42014 · 47044-42030 |
| 47061 | Right parking brake shoe push rod assembly | 47061-33010 · 47061-42010 |
| 47062 | Left parking brake shoe push rod assembly | 47062-33010 · 47062-42010 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-29008 · 90506-29009 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-18076 · 90506-23346 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12011 · 90506-14072 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-20030 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-30020 |
| 47457B | Compression spring (for rear brake shoe limit spring pin) | 90501-20756 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47492-28010 |
| 47547R | Bleed plug (for rear drum brake) | 47547-26010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-42020 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90501-09079 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-42020 |
| 47601C | C-shaped washer (for rear brake) | 90213-06013 |
| 47611C | Right parking brake shoe lever | 47611-33010 |
| 47612A | Left parking brake shoe lever | 47612-33010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47643-33010 · 47643-42010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47644-33010 · 47644-42010 |
