Toyota RAV4 制动助力器和真空管 — Figure 4703

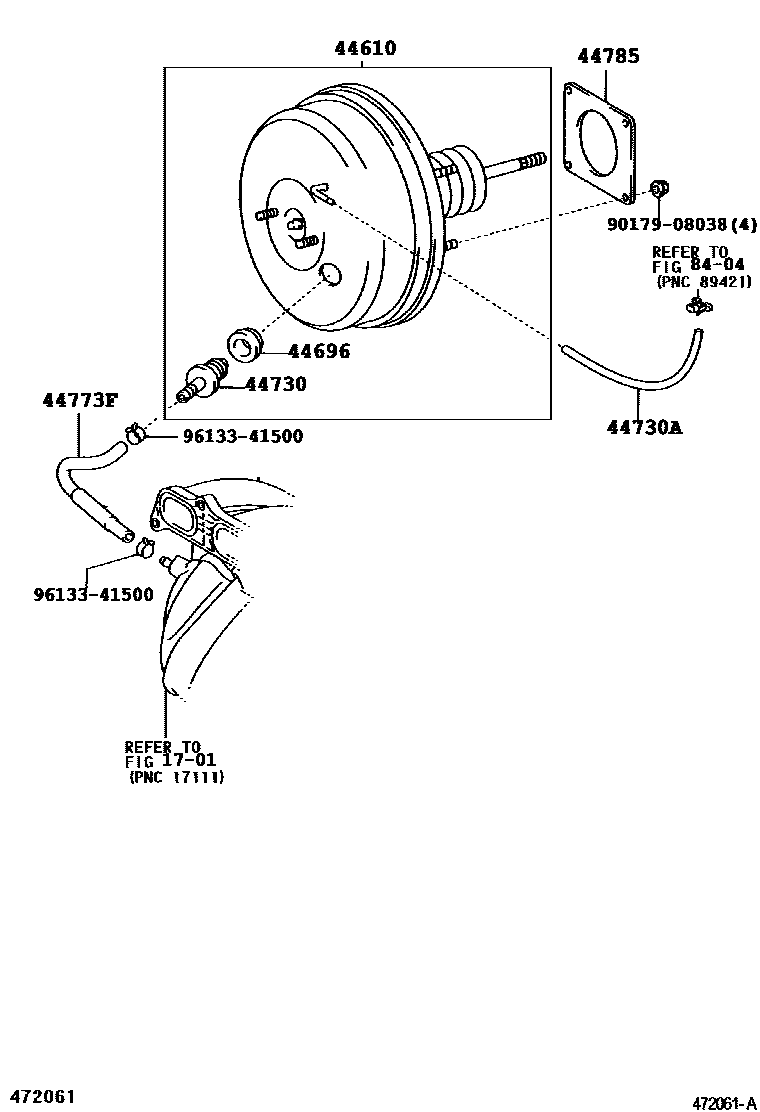

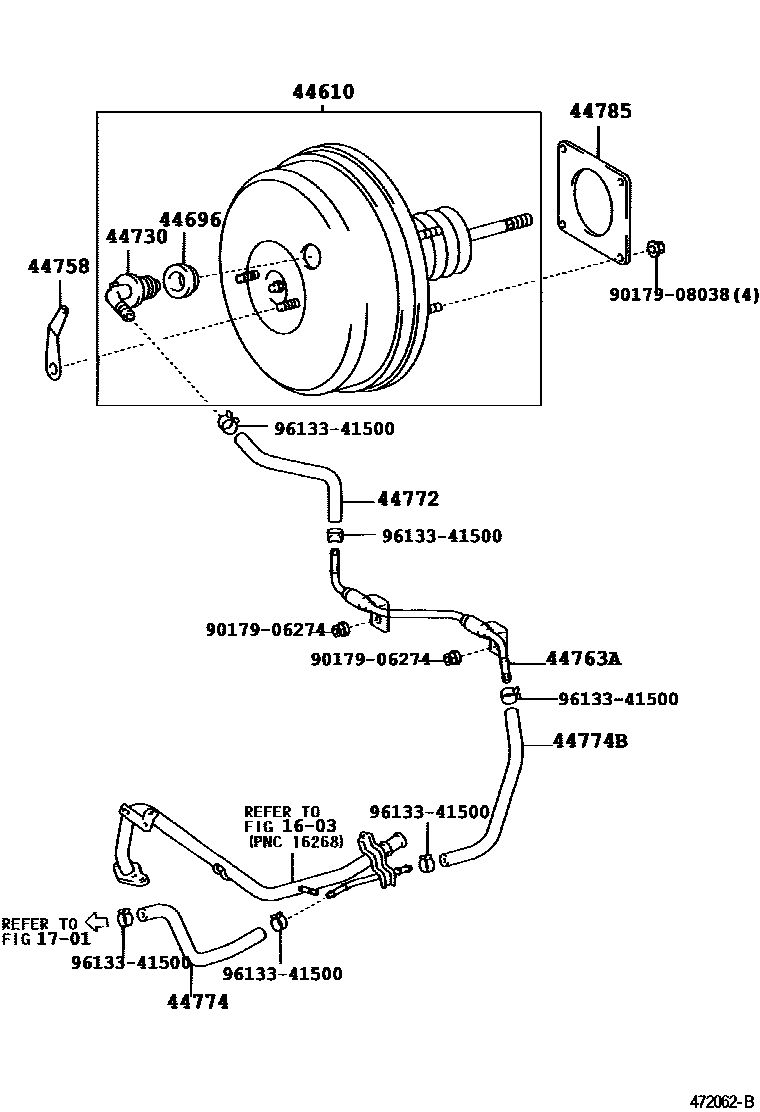

Toyota RAV4 EPC diagram 4703, 制动助力器和真空管, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44610 | brake booster assembly | 44610-42080 · 44610-42090 · 44610-42091 · 44610-42180 · 44610-42190 · 44610-42191 |
| 44696 | One-way valve seal | 90480-24439 |
| 44730 | Vacuum check valve assembly (for brake) | 44730-12040 · 44730-14050 · 44730-20080 |
| 44730A | No. 1 vacuum hose | 90999-92002 |
| 44758 | Vacuum check valve bracket | 44758-42030 |
| 44763A | Pipe No. 1 (hose to hose) | 44763-42030 |
| 44772 | Hoses (check valve to connector tube) | 44772-42040 · 44772-42041 |
| 44773F | Hoses (connector to check valve) | 44773-42090 |
| 44774 | Hoses (joints to connector tubes) | 44774-20310 · 44774-63010 |
| 44774B | Hoses (joints to connector tubes) | 44774-42020 |
| 44785 | brake booster pad | 44785-20020 |
