Toyota RAV4 制动总泵 — Figure 4702

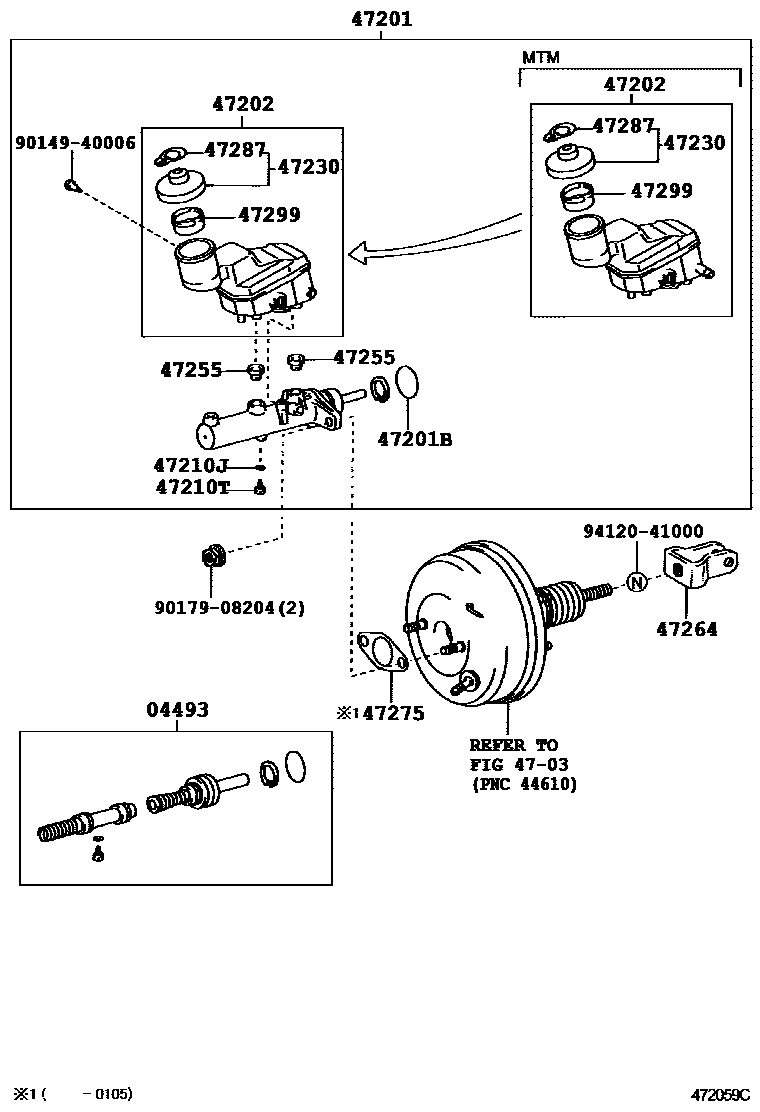

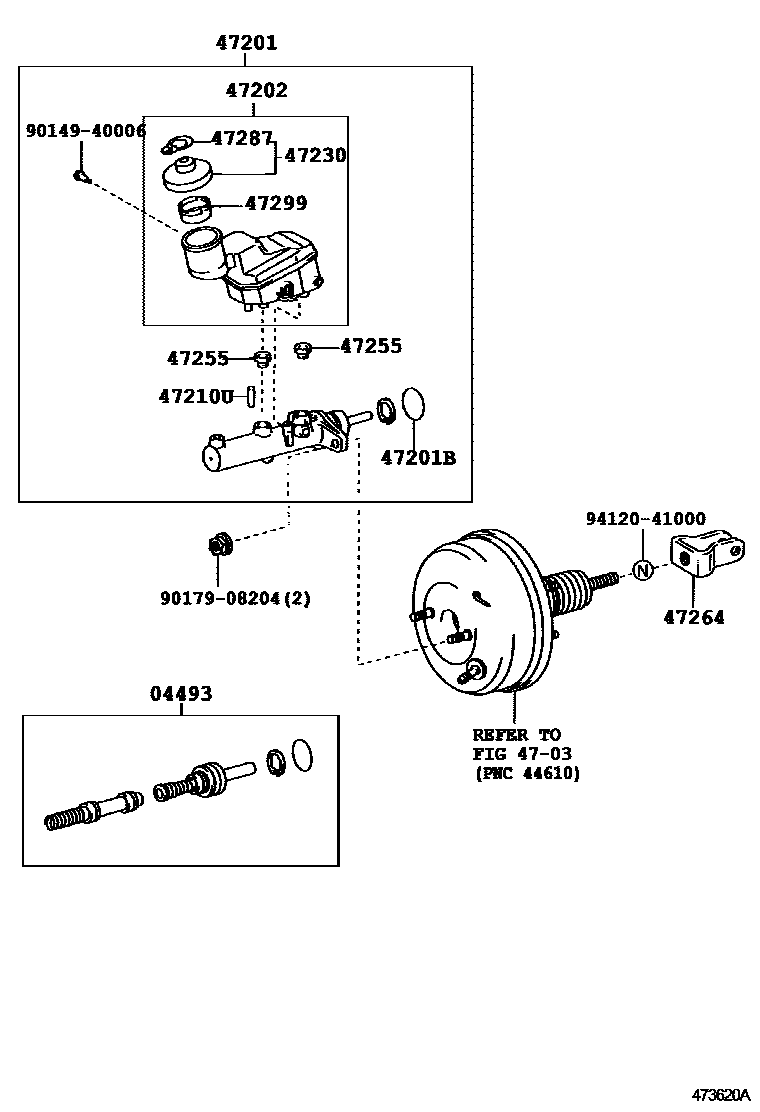

Toyota RAV4 EPC diagram 4702, 制动总泵, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04493 | Brake master cylinder assembly | 04493-28150 · 04493-28160 · 04493-42050 |
| 47201 | Brake master cylinder sub-assembly | 47201-42170 · 47201-42180 · 47201-42210 · 47201-42220 · 47201-42221 · 47201-42250 |
| 47201B | O-ring (for brake master cylinder) | 90029-20059 |
| 47202 | Brake master cylinder reservoir sub-assembly | 47220-42060 · 47220-42070 · 47220-42080 |
| 47210J | Gasket (for master cylinder) | 90029-43001 · 90430-06104 |
| 47210T | Bolt (for brake master cylinder) | 90109-06077 |
| 47210U | Direct sales (for brake master cylinder) | 90029-14204 |
| 47230 | Brake master cylinder fluid reservoir filler cap assembly | 47230-20140 |
| 47255 | Master pump reservoir seal | 47255-16010 |
| 47264 | Master cylinder push rod U-shaped clamp | 47264-42010 |
| 47275 | brake master cylinder gasket | 47275-12020 |
| 47287 | brake fluid information label | 47287-20010 |
| 47299 | Brake master cylinder reservoir filter | 47299-25010 |
