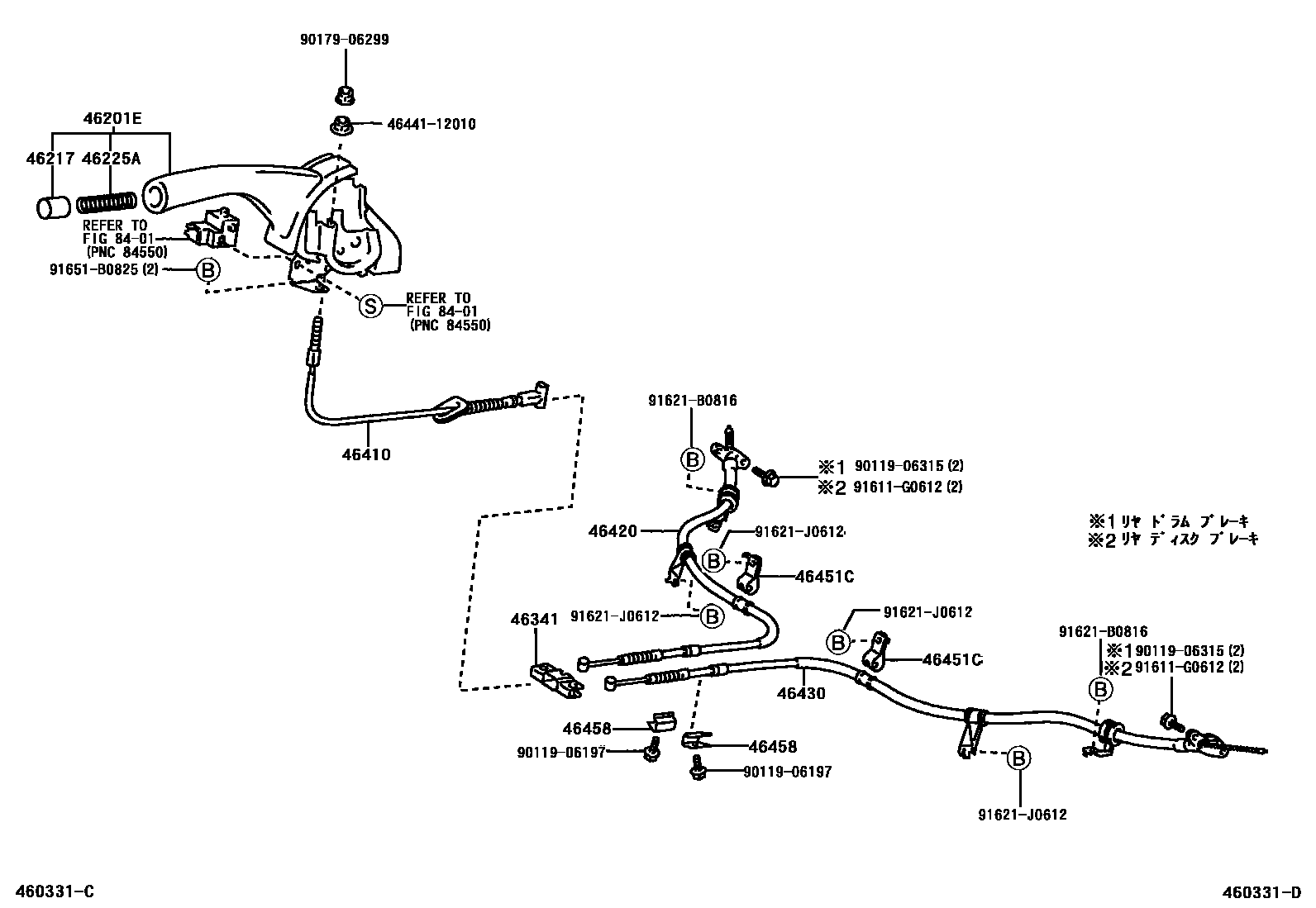

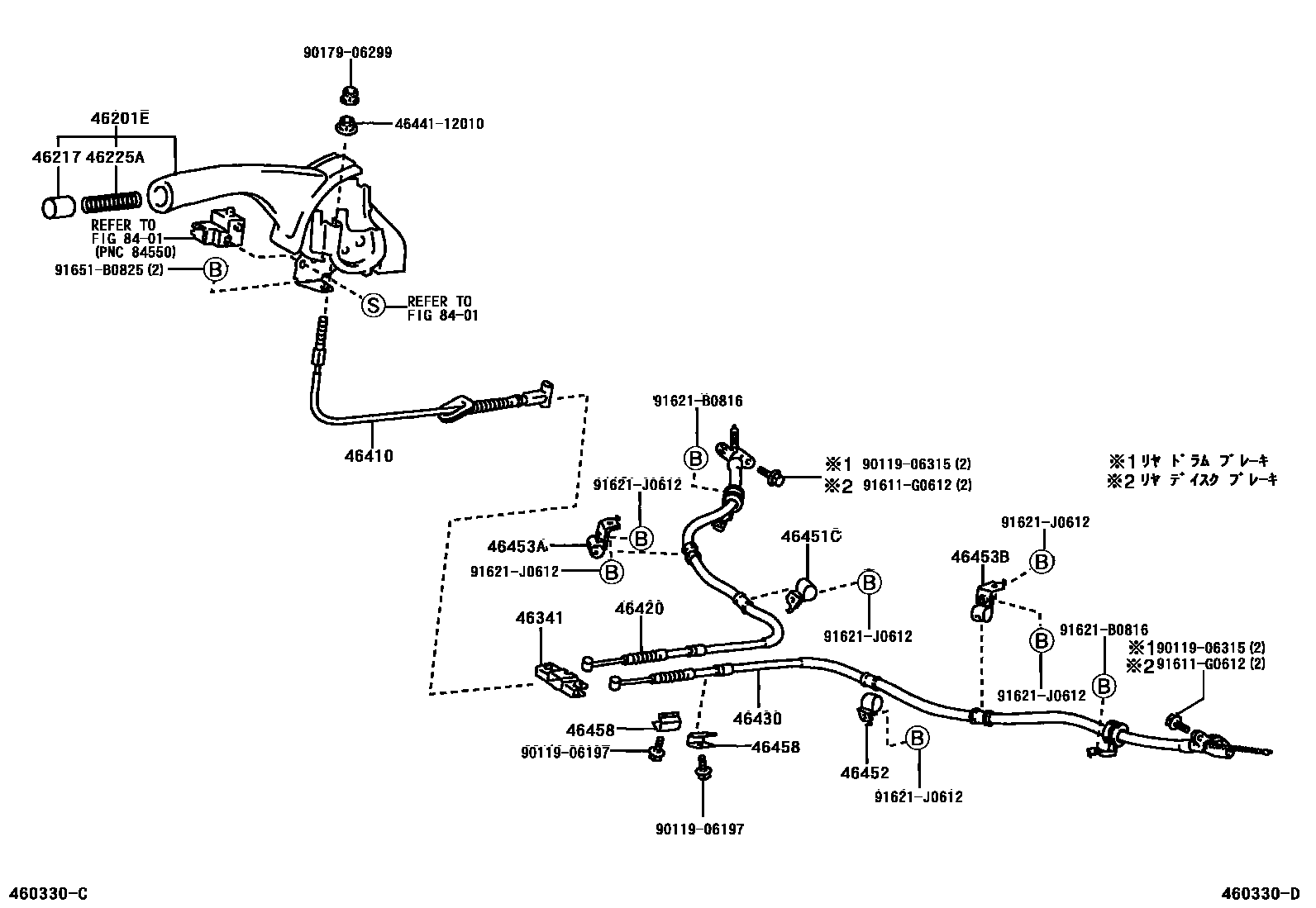

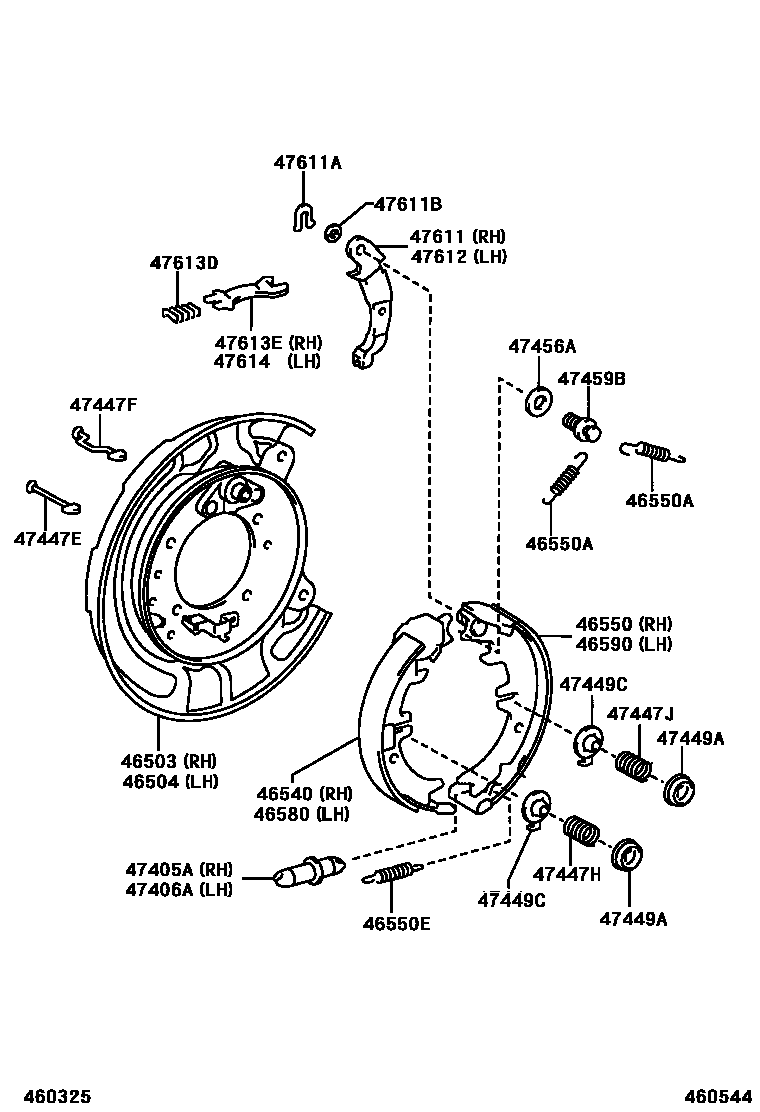

Toyota RAV4 Parking Brake & Cable — Figure 4601
Toyota RAV4 EPC diagram 4601, Parking Brake & Cable, with 3 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46225A | Compression spring (for parking brake pawl lever) | 90501-10132 |
| 46341 | Parking brake balancer | 46341-42010 |
| 46410 | Parking brake cable assembly No. 1 | 46410-42040 |
| 46420 | Parking brake No. 2 cable assembly | 46420-42070 · 46420-42080 · 46420-42090 · 46420-42100 |
| 46430 | Parking brake No. 3 cable assembly | 46430-42070 · 46430-42080 · 46430-42090 · 46430-42100 |
| 46451C | Parking brake cable bracket No. 1 | 46451-42070 · 46451-42090 |
| 46452 | Parking brake cable bracket No. 2 | 46452-42080 |
| 46453A | No. 3 cable bracket | 46451-42100 |
| 46453B | No. 3 cable bracket | 46452-42090 |
| 46458 | Cable fixings | 46458-28010 |
| 46503 | Right parking brake pad sub-assembly | 46503-42021 |
| 46504 | Left parking brake pad sub-assembly | 46504-42021 |
| 46540 | No. 1 right or middle parking brake shoe assembly | 46540-44010 |
| 46550 | No. 2 right or middle parking brake shoe assembly | 46550-44010 |
| 46550A | No. 1 tension spring (used for parking brake shoe return) | 90507-20016 |
| 46550E | No. 2 tension spring (used for parking brake shoe return) | 90506-12051 |
| 46580 | No. 1 left parking brake shoe assembly | 46540-44010 |
| 46590 | No. 2 left parking brake shoe assembly | 46590-44010 |
| 47405A | Right brake shoe adjustment screw assembly (for parking brake) | 47405-30040 |
| 47406A | Left brake shoe adjustment screw assembly (for parking brake) | 47406-30040 |
| 47447E | No. 1 brake shoe limit spring pin (for parking brake) | 47447-30020 |
| 47447F | No. 2 brake shoe limit spring pin (for parking brake) | 47447-50010 |
| 47447H | No. 1 compression spring (for parking brake shoe limit) | 90501-16156 |
| 47447J | No. 2 compression spring (for parking brake shoe limit) | 90501-16157 |
| 47449A | No. 1 brake shoe limit spring seat (for parking brake) | 47449-30030 |
| 47449C | No. 2 brake shoe limit spring seat (for parking brake) | 47449-40010 |
| 47456A | Brake shoe guide (for parking brake) | 47456-33010 |
| 47459B | Brake shoe guide fixing bolt (for parking brake) | 47459-30010 |
| 47611 | Right parking brake shoe lever | 47611-28030 |
| 47611A | C-shaped washer (for parking brake shoe lever) | 90213-07018 |
| 47611B | Spacer (for parking brake shoe lever) | 90564-09184 · 90564-09185 · 90564-09186 |
| 47612 | Left parking brake shoe lever | 47612-28030 |
| 47613D | Compression spring (for parking brake shoe push rod) | 90504-14002 |
| 47613E | Right parking brake shoe push rod | 47613-28010 |
| 47614 | Left parking brake shoe push rod | 47614-28010 |
