Toyota RAV4 动力转向配管 — Figure 4503

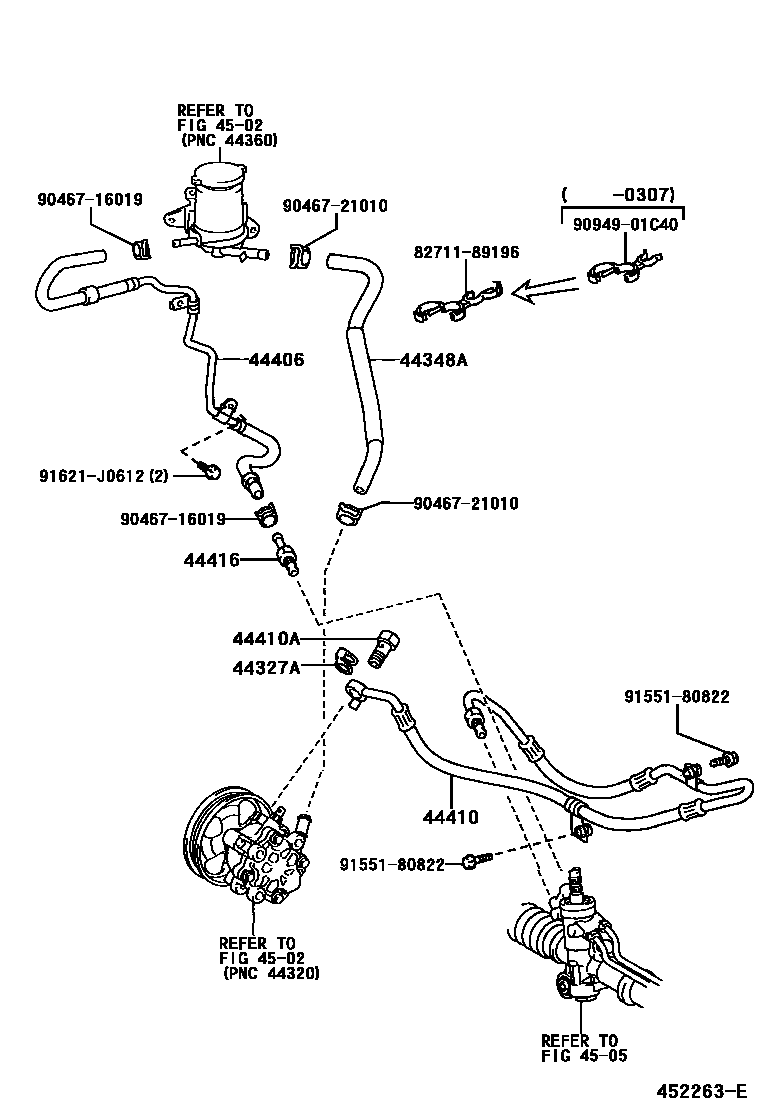

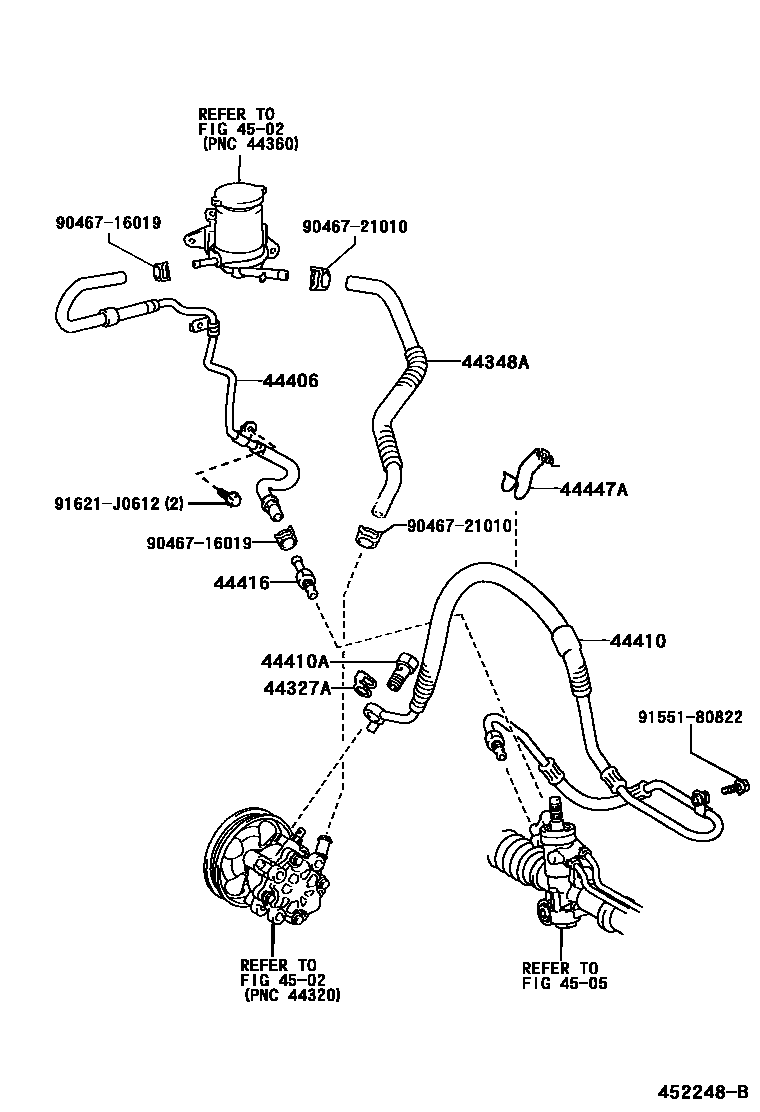

Toyota RAV4 EPC diagram 4503, 动力转向配管, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-30030 |
| 44348A | No. 1 hose (tank to pump) | 44348-42050 · 44348-42060 |
| 44406 | Oil return pipe sub-assembly | 44406-42080 · 44406-42100 |
| 44410 | Pressure supply pipe assembly | 44410-42060 · 44410-42080 · 44410-42120 · 44410-42140 |
| 44410A | Connector bolt (for pressure supply pipe) | 96341-41603 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-26080 · 44416-60370 |
| 44447A | Hose Bracket No. 1 | 44447-42010 |
