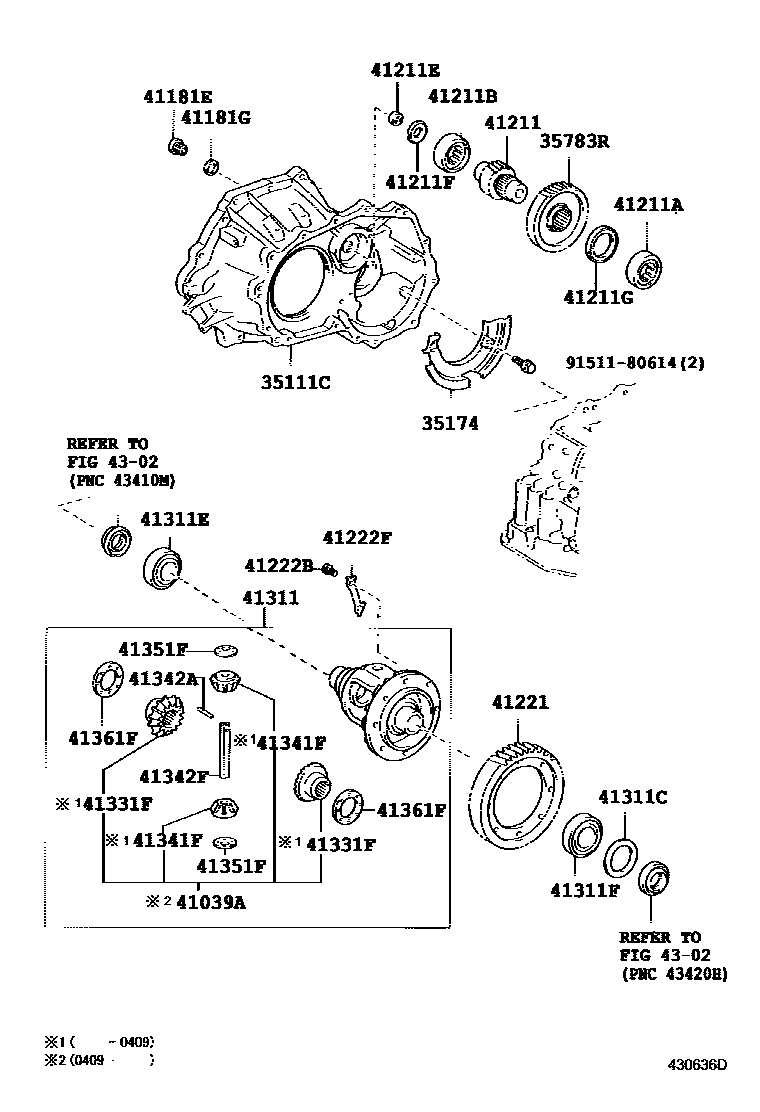

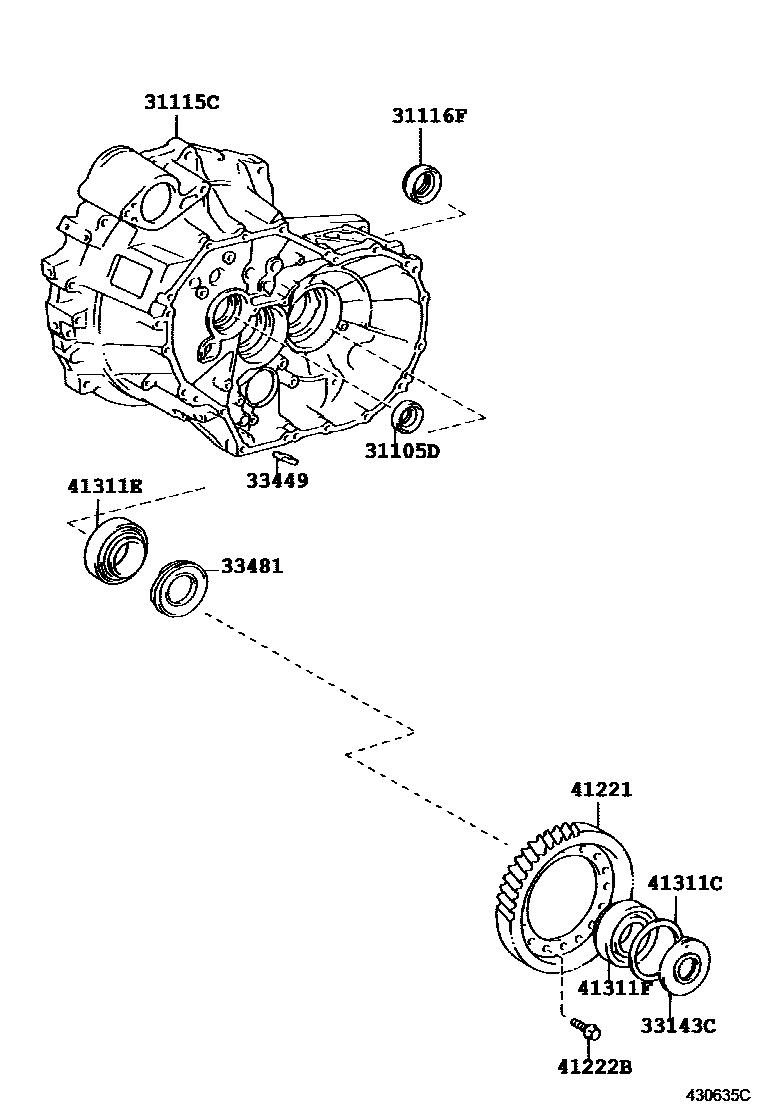

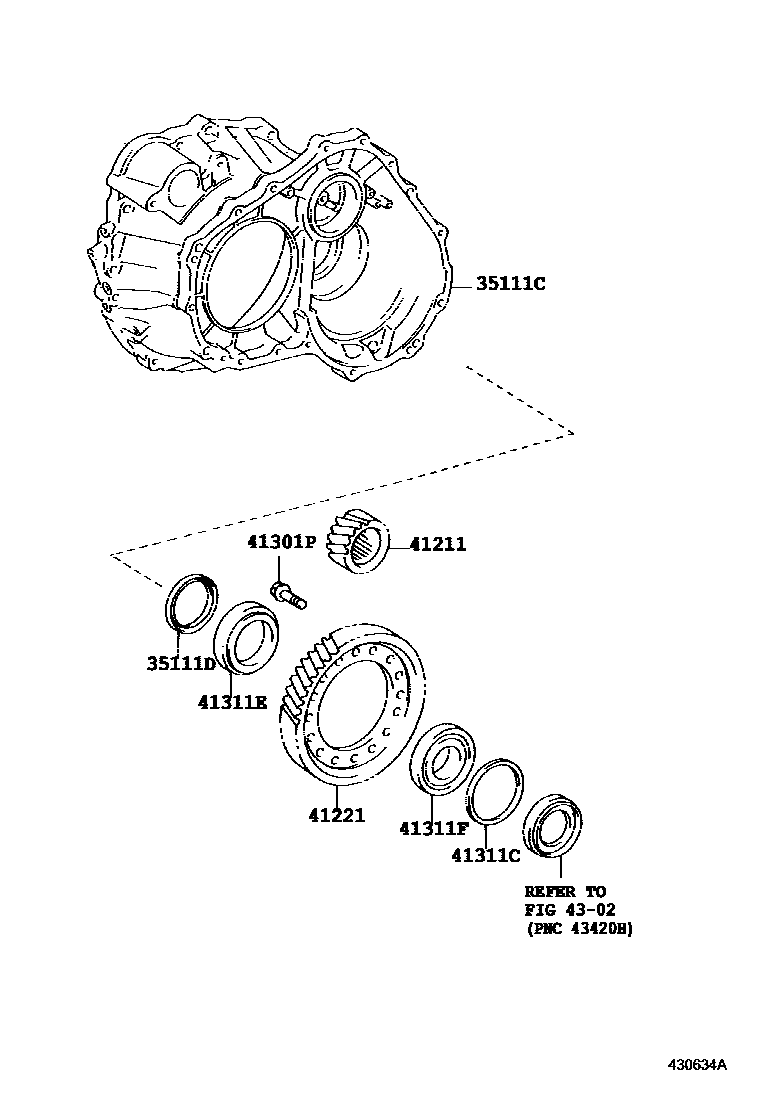

Toyota RAV4 前桥壳和差速器 — Figure 4301
Toyota RAV4 EPC diagram 4301, 前桥壳和差速器, with 3 images and 33 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30006 |
| 31115C | Front transmission axle housing (MTM) | 31115-42010 · 31115-42011 · 31115-42030 |
| 31116F | Oil seal (for front transmission axle housing cover) | 90311-62005 |
| 33143C | Front differential oil baffle | 33143-20040 |
| 33449 | derailleur magnet | 33449-20010 |
| 33481 | Speedometer driving gear (MTM) | 33481-42030 · 33481-42031 |
| 35111C | Transmission axle housing | 35105-20160 · 35105-42010 · 35105-42011 · 35105-42012 · 35105-42013 |
| 35111D | Oil seal (for transaxle housing) | 90311-62004 |
| 35174 | Transmission axle housing oil separator | 35174-20010 |
| 35783R | countershaft driven gear | 35783-52020 |
| 41039A | Differential gear assembly | 41039-32020 |
| 41181E | Screw plug (for front differential drain port) | 90341-18021 |
| 41181G | Gasket (for front differential drain plug) | 90430-18008 |
| 41211 | Differential drive pinion | 41211-42030 · 41211-52040 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-42040 · 41221-42060 · 41221-42080 · 41221-52090 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-12150 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41301P | Screw (for front differential case) | 90105-12302 |
| 41311 | front differential case | 41301-12210 · 41301-32071 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-76001 · 90564-76002 · 90564-76003 · 90564-76004 · 90564-76005 · 90564-76006 · 90564-76007 · 90564-76008 · 90564-76009 · 90564-76010 · 90564-76011 · 90564-76012 · 90564-76013 · 90564-76014 · 90564-76015 · 90564-76016 · 90564-76017 · 90564-76018 · 90564-79001 · 90564-79002 · 90564-79003 · 90564-79004 · 90564-79005 · 90564-79006 · 90564-79007 · 90564-79008 · 90564-79009 · 90564-79010 · 90564-79011 · 90564-79012 · 90564-79013 · 90564-79014 · 90564-79015 · 90564-79016 · 90564-79017 · 90564-79018 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-40016 · 90366-50014 · 90366-62004 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-44001 · 90366-50057 · 90366-62007 |
| 41331F | Front differential side gear | 41331-32010 |
| 41341F | Front differential planetary gear | 41341-30011 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 |
