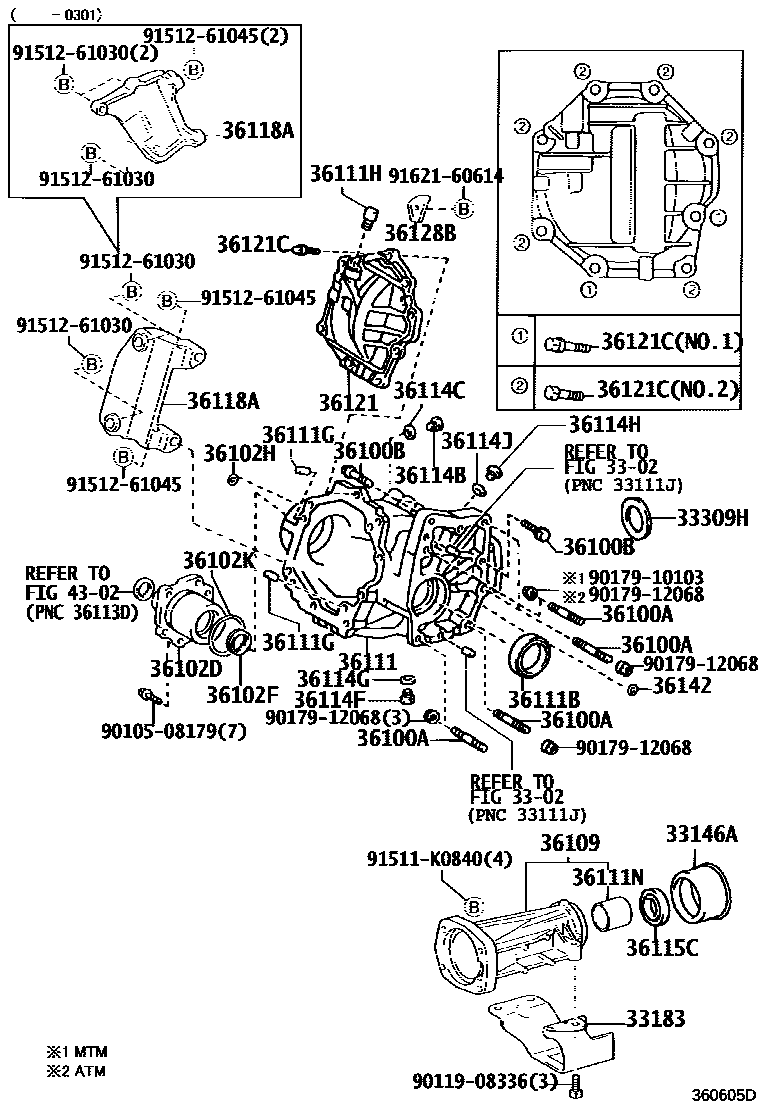

Toyota RAV4 Transfer Case & Extension Housing — Figure 3609
Toyota RAV4 EPC diagram 3609, Transfer Case & Extension Housing, with 1 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33146A | Transfer case extension housing dust cover | 33146-30010 · 33146-30020 |
| 33183 | Transfer case dynamic damper | 33183-21040 |
| 33309H | Transfer case output shaft washer | 36275-21010 · 36275-21020 · 36275-21030 · 36275-21040 · 36275-21050 · 36275-21060 · 36275-21070 · 36275-21080 · 36275-21090 · 36275-21100 · 36275-21110 · 36275-21120 · 36275-21130 · 36275-21140 · 36275-21150 · 36275-21160 · 36275-21170 · 36275-21180 · 36275-21190 · 36275-21200 · 36275-21210 · 36275-21220 · 36275-21230 · 36275-21240 · 36275-21250 · 36275-21260 · 36275-21270 · 36275-21280 · 36275-21290 · 36275-21300 · 36275-21310 · 36275-21320 · 36275-21330 · 36275-21340 · 36275-21350 · 36275-21360 · 36275-21370 · 36275-21380 · 36275-21390 · 36275-21400 · 36275-21410 · 36275-21420 · 36275-21430 · 36275-21440 · 36275-21450 · 36275-21460 |
| 36100A | Stud bolts (for securing transfer case and transaxle) | 90109-10176 · 90116-12020 · 90116-12033 · 90116-12034 · 92126-81250 |
| 36100B | Bolts (for securing transfer case and transaxle) | 90105-12228 |
| 36102D | Transfer case right bearing retainer sub-assembly | 36102-21010 · 36102-48010 |
| 36102F | No. 2 oil seal (for transfer case right bearing retainer) | 90316-37001 |
| 36102H | O-ring (for transfer case right bearing retainer) | 90301-11018 |
| 36102K | O-ring | 90301-70002 |
| 36109 | Transfer case extension housing sub-assembly | 36109-42010 |
| 36111 | transfer case | 36111-21030 · 36111-21031 · 36111-42020 |
| 36111B | Oil seal (for transfer case) | 90311-58009 |
| 36111G | Direct sales (for transfer case) | 90250-08030 · 90250-08046 · 90250-10017 |
| 36111H | Breather plug (for transfer case) | 90930-03133 |
| 36111N | Bushing (for transfer case) | 90999-73105 |
| 36114B | No. 1 screw plug (for transfer case) | 90341-18055 |
| 36114C | No. 1 gasket (for transfer case) | 12157-10010 |
| 36114F | Screw plug (for transfer case oil drain) | 90341-18057 |
| 36114G | Gasket (for transfer case drain plug) | 12157-10010 |
| 36114H | No. 2 screw plug (for transfer case) | 90341-18006 |
| 36114J | No. 2 gasket (for transfer case) | 12157-10010 |
| 36115C | T-type oil seal (for transfer case extension case) | 90311-38062 · 90311-38090 |
| 36118A | Transfer case right side reinforcement plate | 36118-42010 · 36118-42011 · 36118-42020 · 36118-42021 |
| 36121 | No. 1 transfer case cover | 36121-48010 |
| 36121C | Hexagon head bolt with washer base (for transfer case cover) | 90105-08351 · 91511-60820 · 91511-J0820 |
| 36128B | Air vent oil baffle | 36128-21010 |
| 36142 | Transfer case cover gasket | 36141-21010 |
