Toyota RAV4 变速器油冷却器和配管(ATM) — Figure 3514

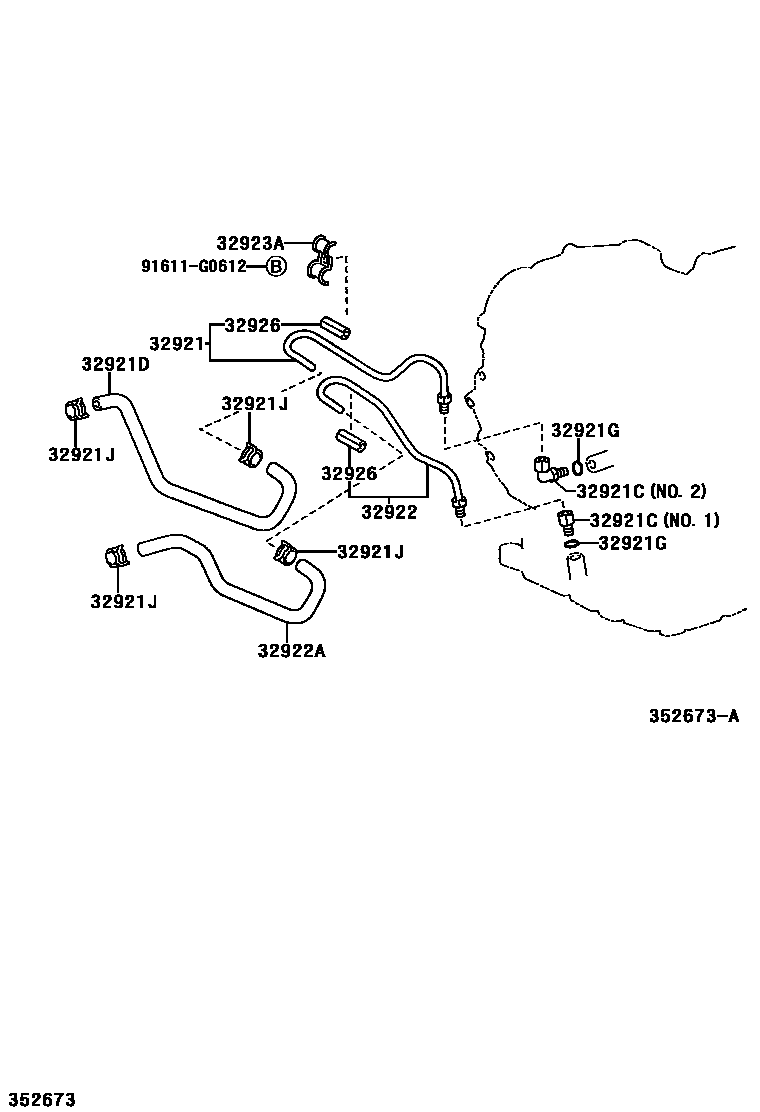

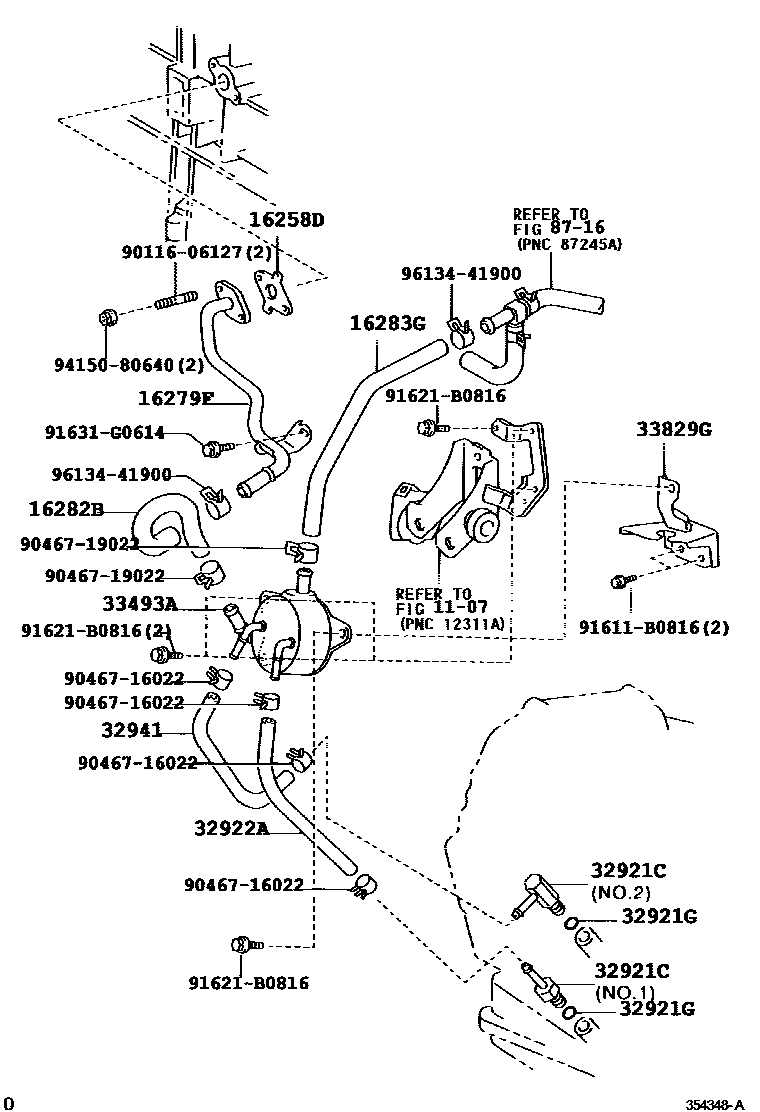

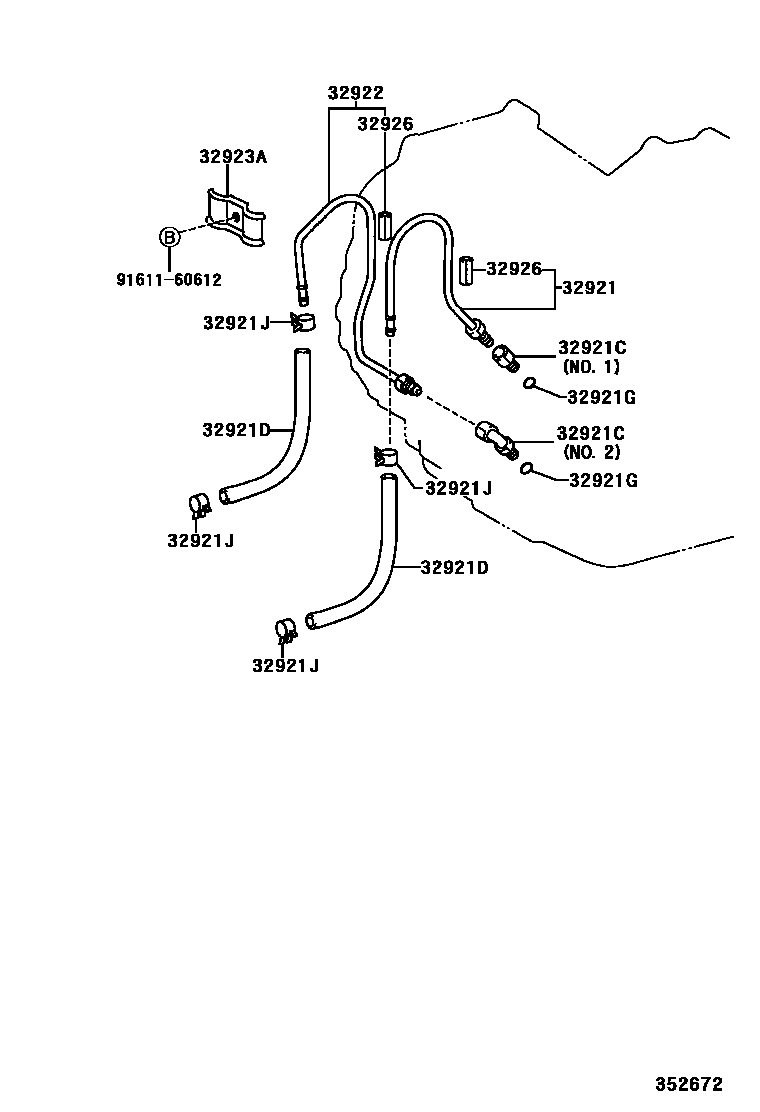

Toyota RAV4 EPC diagram 3514, 变速器油冷却器和配管(ATM), with 3 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16258D | Gasket (for water bypass pipe) | 16258-28040 |
| 16279F | No. 3 water bypass pipe | 16279-28050 |
| 16282B | HOSE, WATER BY-PASS, NO.5 | 16282-28060 |
| 16283G | HOSE, WATER BY-PASS, NO.6 | 16283-28090 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-42040 · 32921-48020 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13004 · 90404-16031 · 90407-13009 · 90407-16010 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 90445-17095 · 90445-17102 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32921J | Clamp (for transmission oil cooler hose) | 90467-16013 · 90467-16022 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-42040 · 32922-42060 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 90445-17069 · 90445-17101 |
| 32923A | Automatic transmission oil cooler pipe clamp | 90462-12074 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-42010 |
| 33493A | Transmission oil cooler | 33493-42020 |
| 33829G | Transmission control cable bracket | 33829-42010 |
