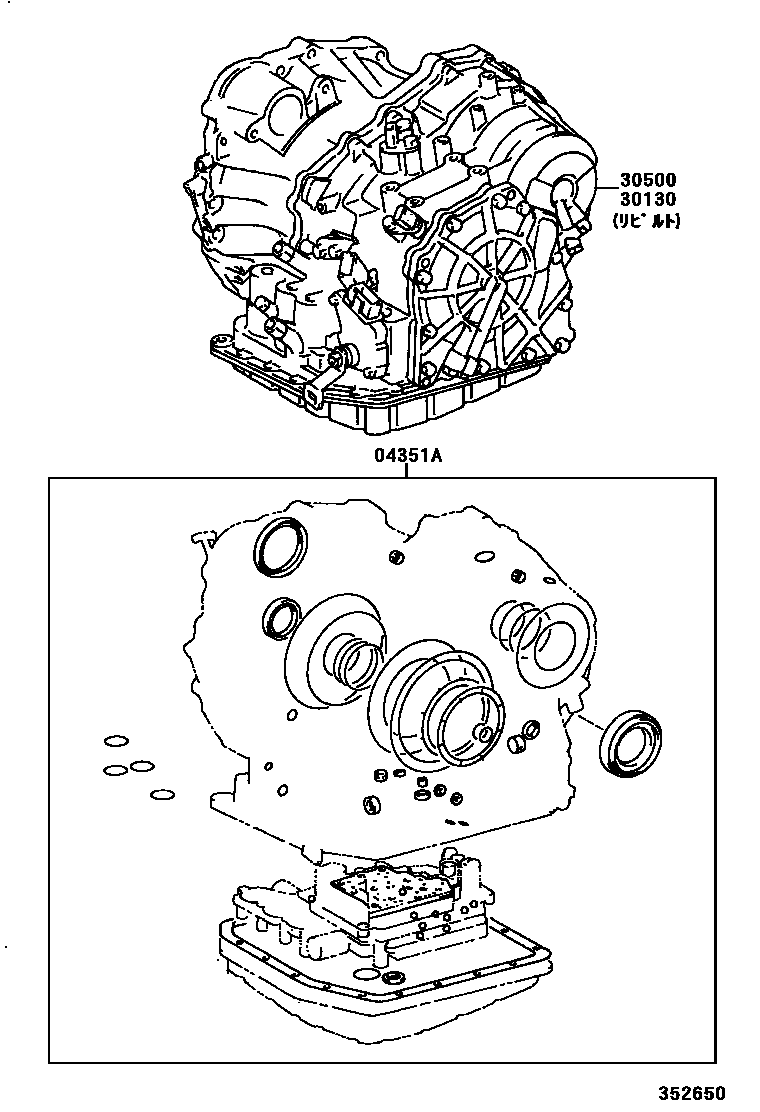

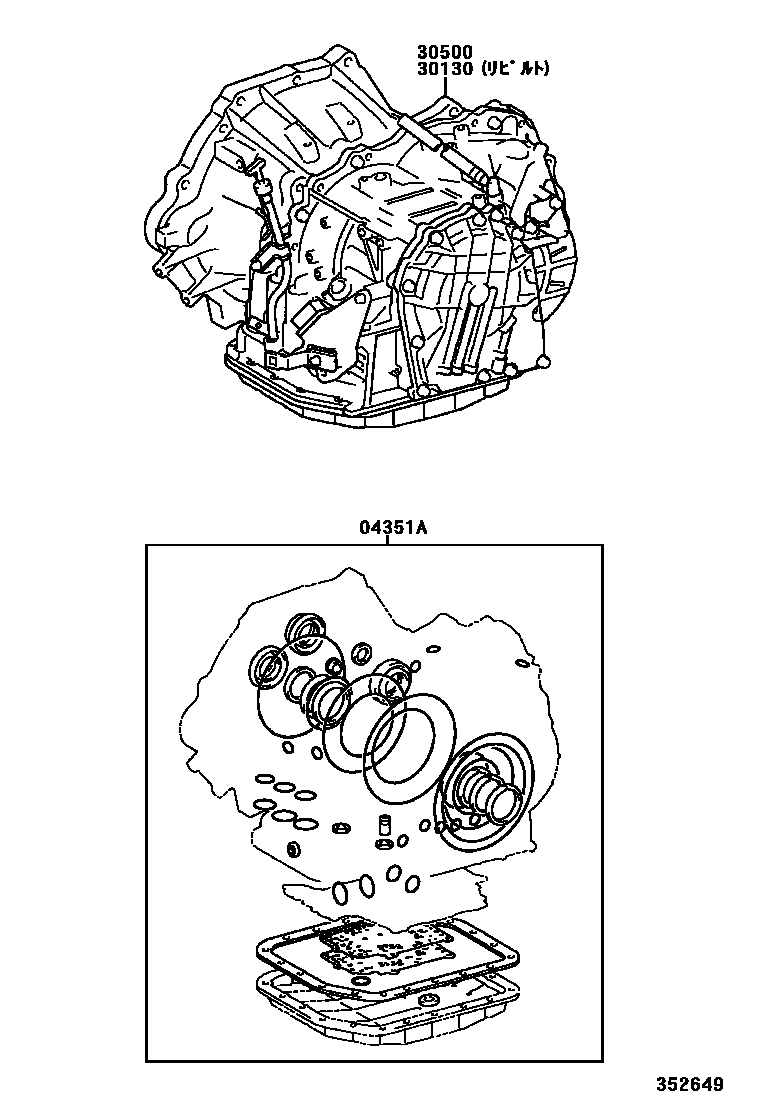

Toyota RAV4 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota RAV4 EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351A | Transaxle overhaul gasket assembly (ATM) | 04351-20120 · 04351-42030 · 04351-42100 · 04351-42110 |
| 30130 | Refurbished transmission axle assembly | 30130-42090 · 30130-42120 · 30130-42130 · 30130-42180 · 30130-42181 |
| 30500 | Automatic transmission axle assembly | 30500-42090 · 30500-42120 · 30500-42130 · 30500-42180 · 30500-42181 |
