Toyota RAV4 废气再循环系统 — Figure 2501

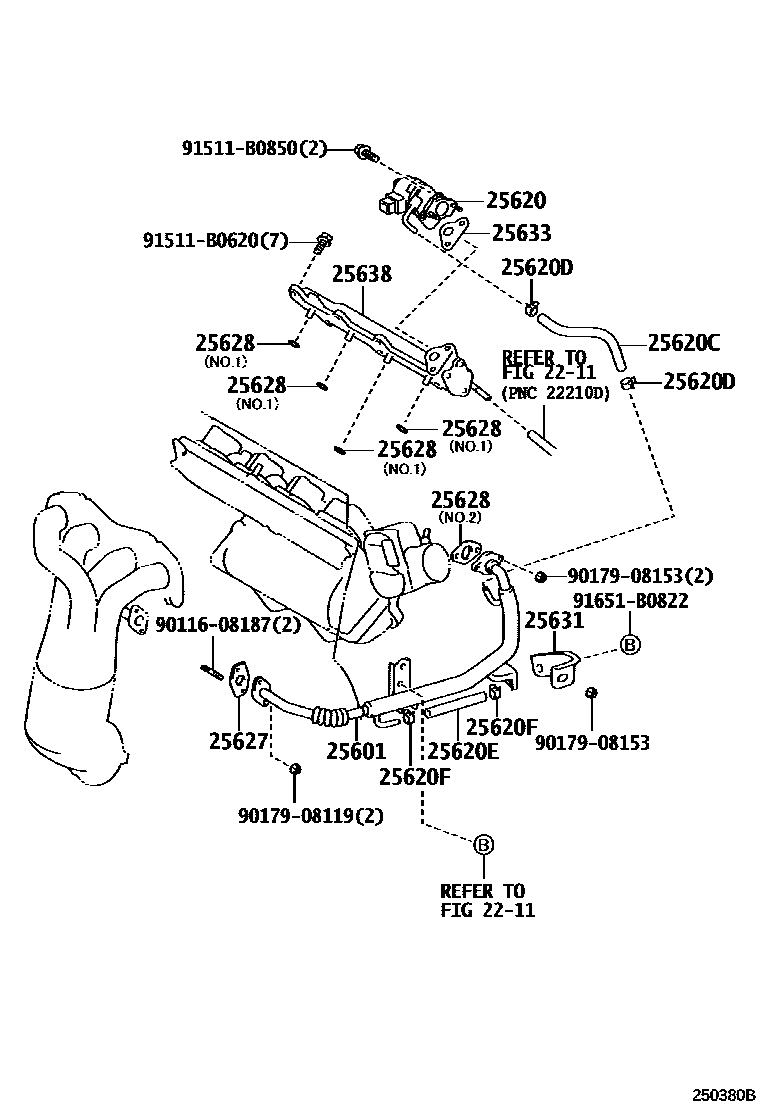

Toyota RAV4 EPC diagram 2501, 废气再循环系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 25601 | No. 1 EGR pipe assembly | 25611-28010 · 25611-28011 |
| 25620 | EGR valve assembly | 25620-28090 · 25620-28100 |
| 25620C | HOSE, WATER BY-PASS, NO.1 | 99555-10100 |
| 25620D | CLIP, WATER BY-PASS HOSE NO.1 | 96135-41300 · 96135-51300 |
| 25620E | HOSE, WATER BY-PASS, NO.2 | 99555-10200 |
| 25620F | CLIP, WATER BY-PASS HOSE NO.2 | 96135-41300 · 96135-51300 |
| 25627 | EGR valve gasket | 25627-74080 |
| 25628 | EGR air intake gasket | 25628-28010 · 25628-28030 |
| 25631 | No. 1 EGR tube stay | 25631-28010 |
| 25633 | EGR valve gasket | 25633-28010 |
| 25638 | EGR discharge chamber | 25638-28010 · 25638-28030 |
