Toyota RAV4 燃油喷射系统 — Figure 2211

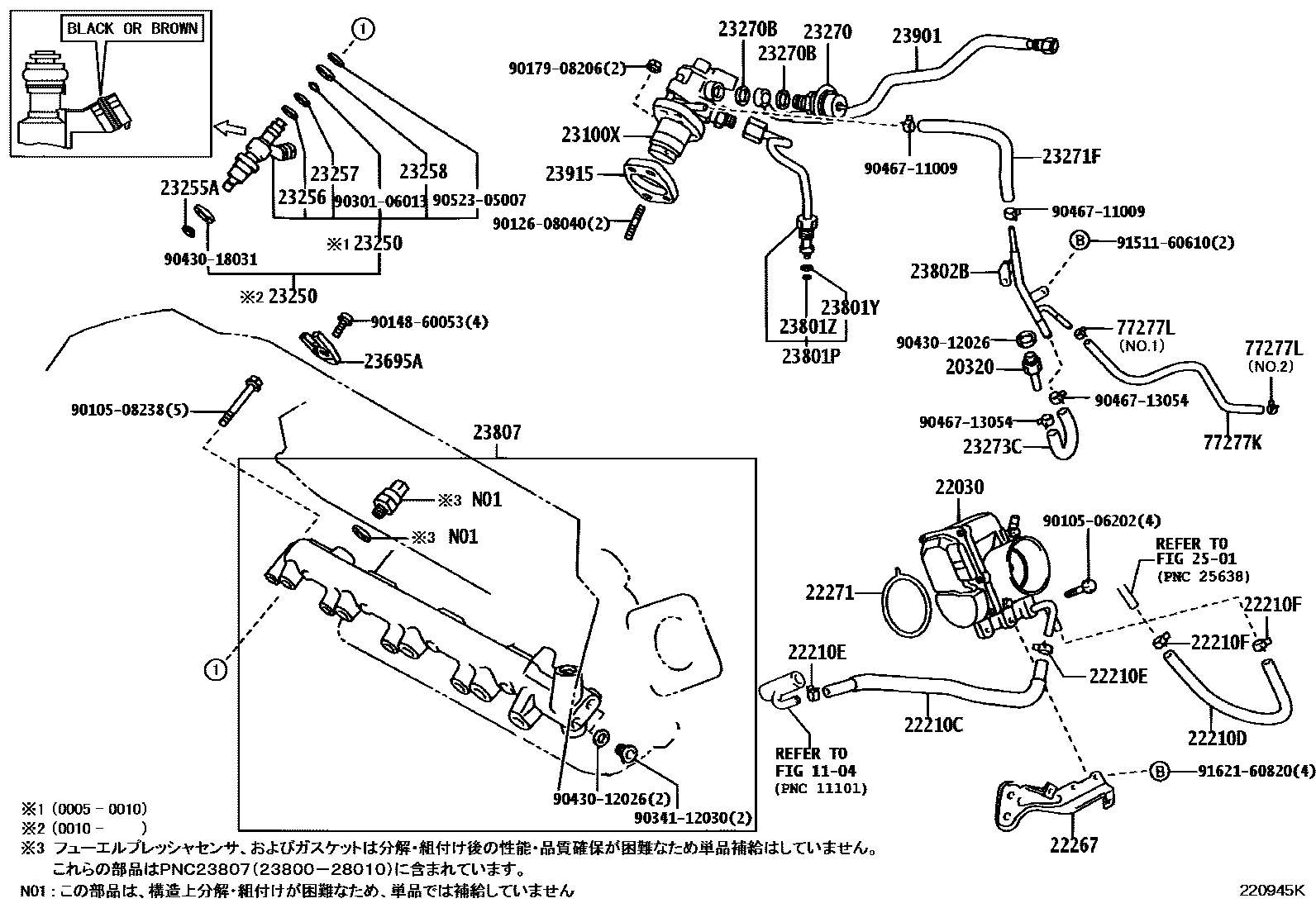

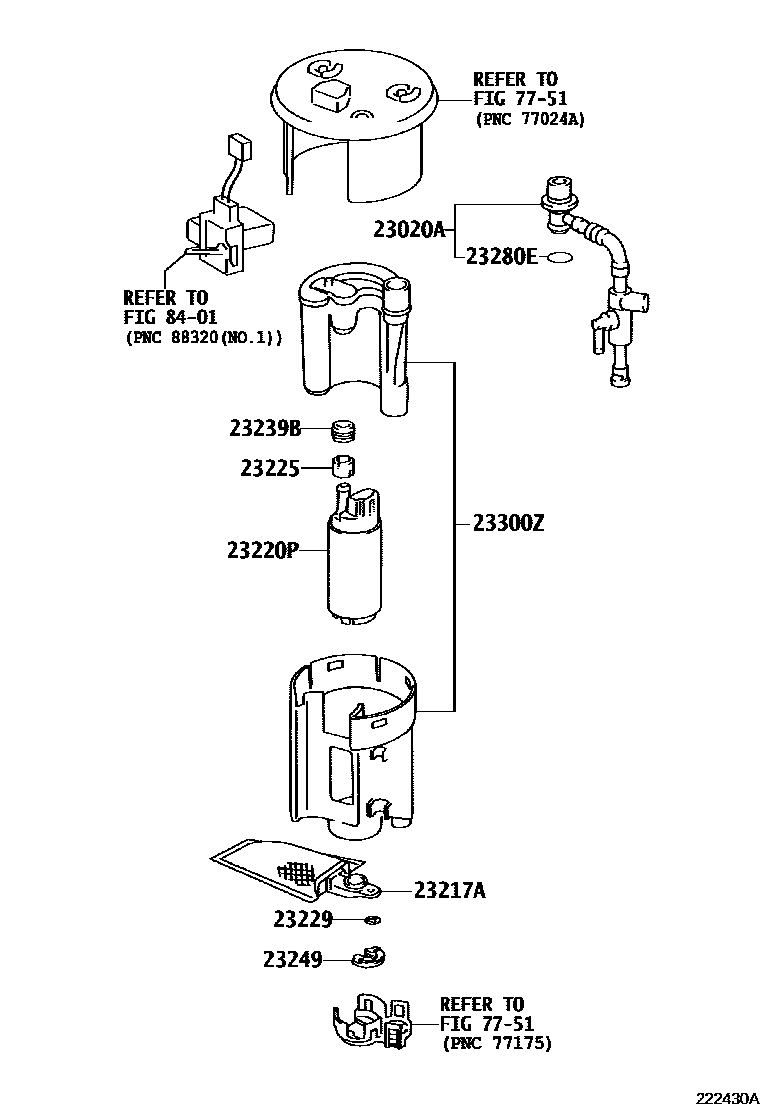

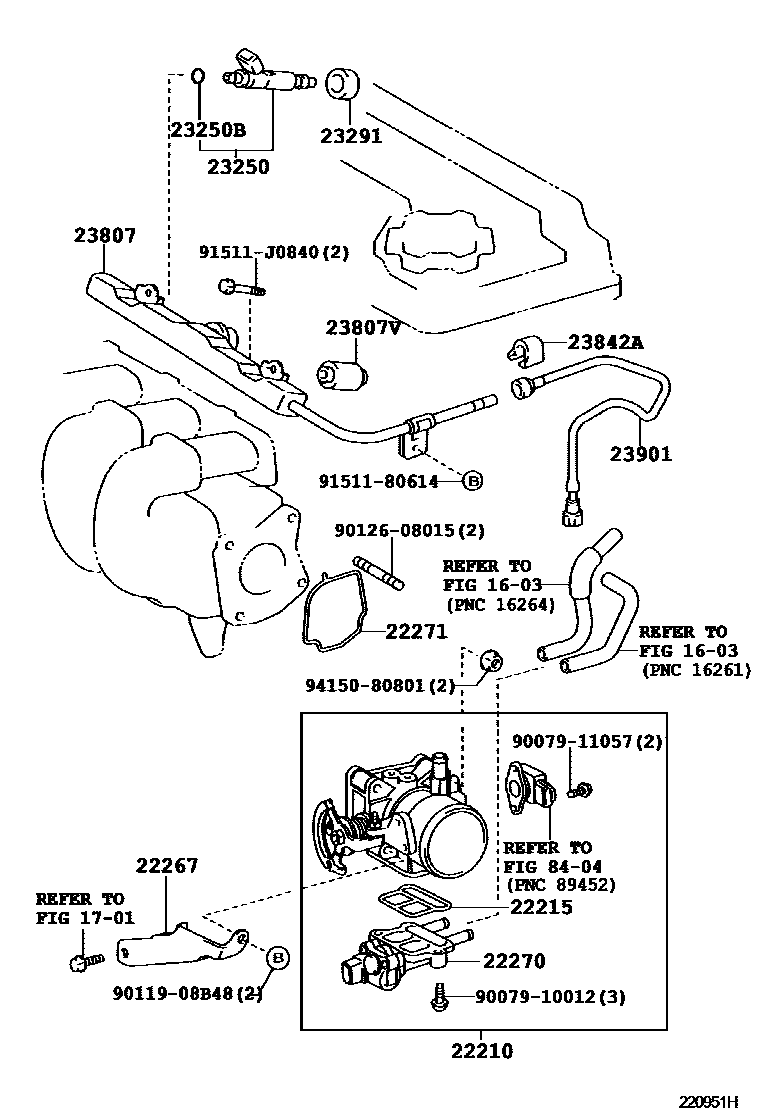

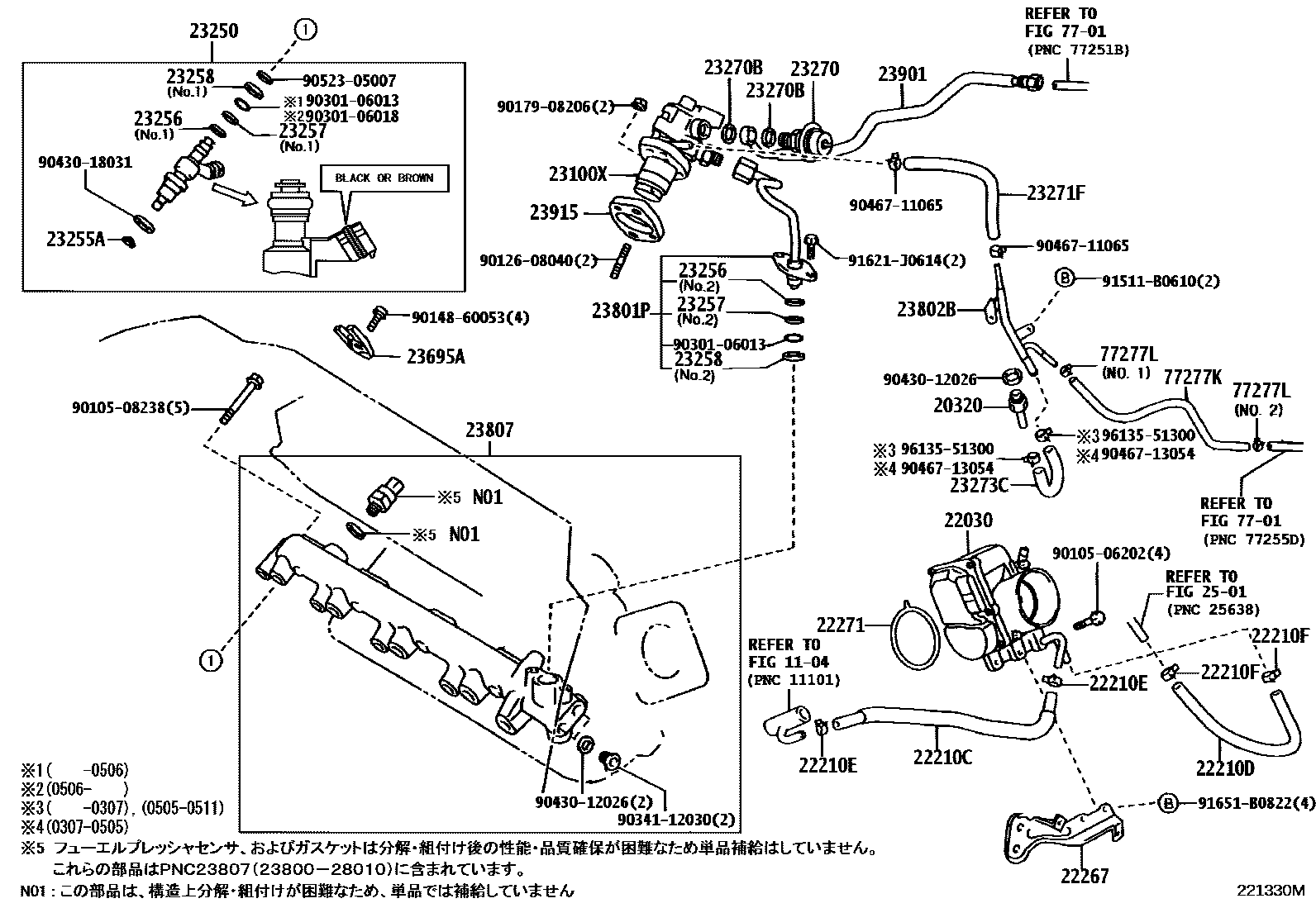

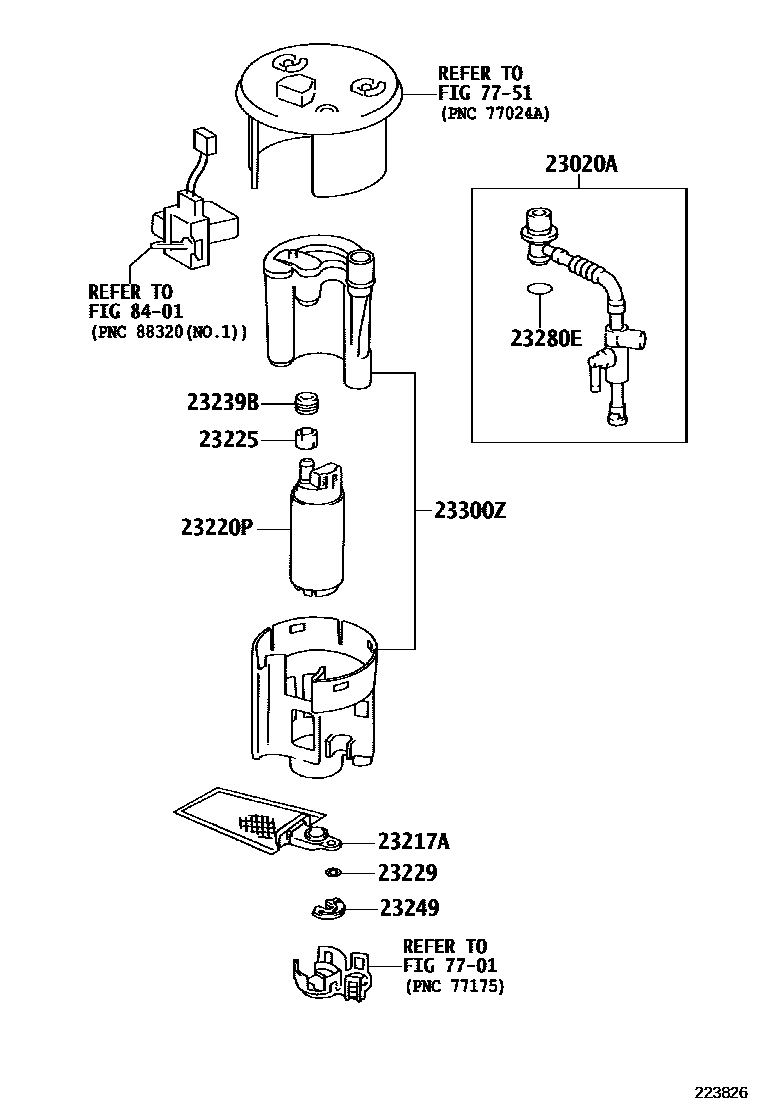

Toyota RAV4 EPC diagram 2211, 燃油喷射系统, with 5 images and 43 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 20320 | Fuel pressure reducing valve assembly | 20320-28010 · 20320-28011 |
| 22030 | Electronic throttle body assembly | 22030-28010 · 22030-28011 · 22030-28050 |
| 22210 | Throttle body assembly | 22210-22080 · 22210-22130 |
| 22210C | HOSE, WATER BY-PASS, NO.1 | 16261-28030 |
| 22210E | Hose clamp or clip (for water bypass hose No. 1) | 96135-41300 · 96135-51300 |
| 22210F | Hose clamp or clip (for No. 2 water bypass hose) | 96135-41300 · 96135-51300 |
| 22215 | Throttle body cover gasket | 22215-7A680 |
| 22267 | Throttle body bracket | 22267-22030 · 22267-28010 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-0D040 · 22270-22060 · 22270-22061 |
| 22271 | Throttle body gasket | 22271-22040 · 22271-28030 |
| 23020A | Fuel pressure regulator assembly with fuel injection pump | 23020-28010 · 23020-28020 |
| 23100X | fuel pump assembly | 23100-28040 · 23100-28041 · 23100-28042 |
| 23217A | fuel pump filter | 23217-28250 · 23217-74021 |
| 23220P | fuel pump assembly | 23221-28030 · 23221-28040 |
| 23225 | fuel pump septum | 23225-21010 · 23225-28010 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23239B | fuel pump filter seal | 23239-21010 |
| 23249 | Rubber gasket (for fuel pump) | 23249-74610 |
| 23250 | Fuel injector assembly | 23209-22040 · 23209-28030 · 23209-29025 · 23209-29035 |
| 23250B | O-ring (for fuel injector) | 90301-07024 |
| 23255A | Injector seal | 23255-28010 |
| 23256 | No. 1 injector retaining ring | 23256-74010 |
| 23257 | No. 2 injector retaining ring | 23257-74010 |
| 23258 | No. 3 injector retaining ring | 23258-28010 · 23258-28011 · 23258-74010 |
| 23270 | Fuel pressure pulsation damper assembly | 23270-28040 |
| 23270B | Gasket (for pulsation damper hose) | 23279-74010 |
| 23271F | fuel hose | 23271-28050 |
| 23273C | No. 2 fuel hose | 23273-28010 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07041 |
| 23291 | Injector vibration isolation pad | 23291-22020 |
| 23300Z | Fuel filter (for fuel tank) | 23300-28030 · 23300-28040 |
| 23695A | Injector body clamp | 23695-28010 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-28040 · 23801-28041 · 23801-28043 |
| 23801Y | padding | 90430-07006 |
| 23801Z | Snap ring (for fuel pipe) | 90520-05003 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-28020 |
| 23807 | Oil pipe sub-assembly | 23807-22030 · 23807-28020 · 23807-28021 · 23807-28023 · 23807-28024 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08055 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-22020 |
| 23901 | Fuel pipe sub-assembly | 23901-22110 · 23901-28020 · 23901-28021 |
| 23915 | Fuel pump vibration isolation pad | 23915-46010 · 23915-46011 |
| 77277K | Fuel hose (for oil return hose) | 77439-42010 · 77439-42020 |
| 77277L | Hose clip (for oil return hose) | 90467-11009 · 96135-51100 · 96135-51300 |
