Toyota RAV4 Alternator — Figure 1903

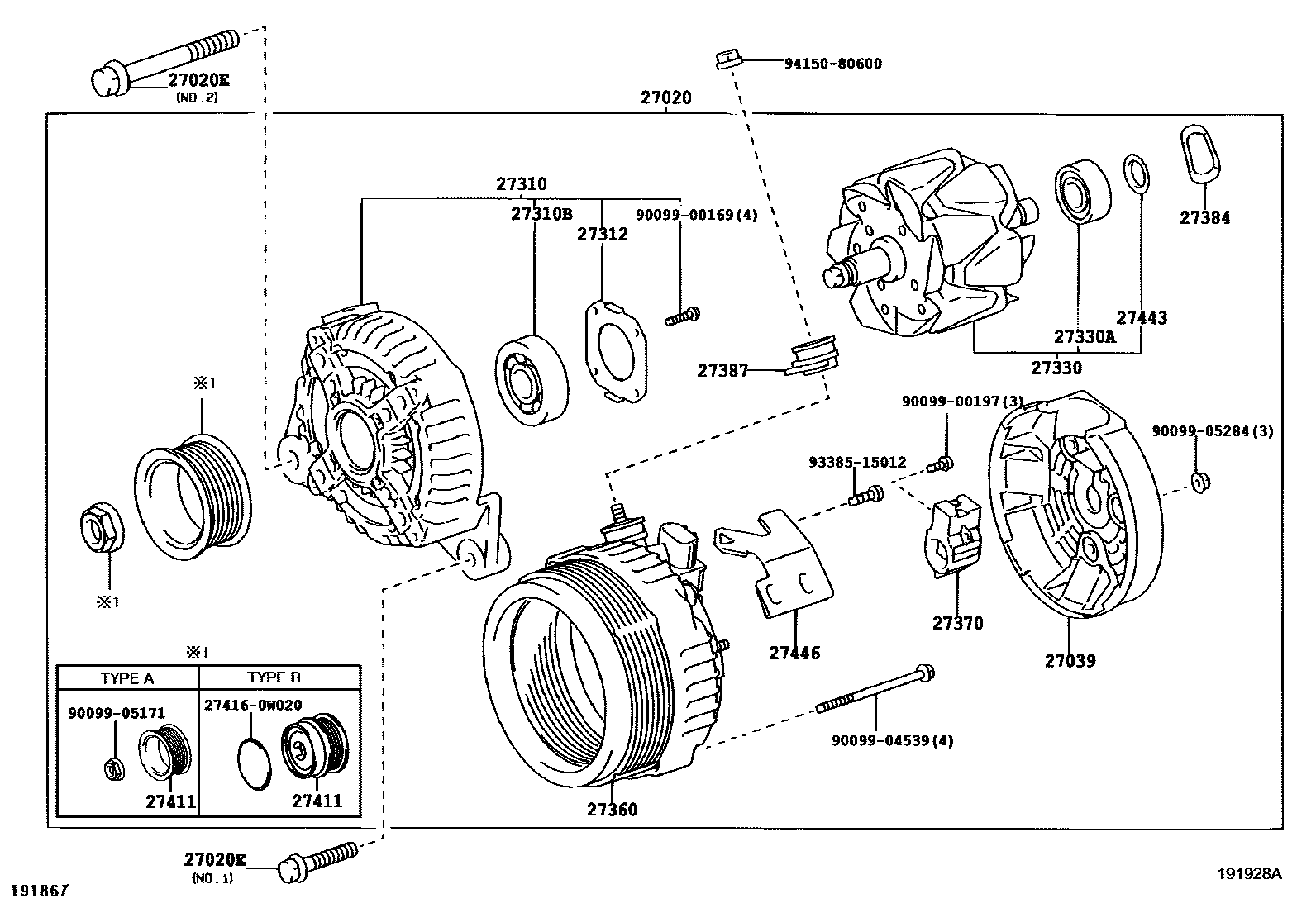

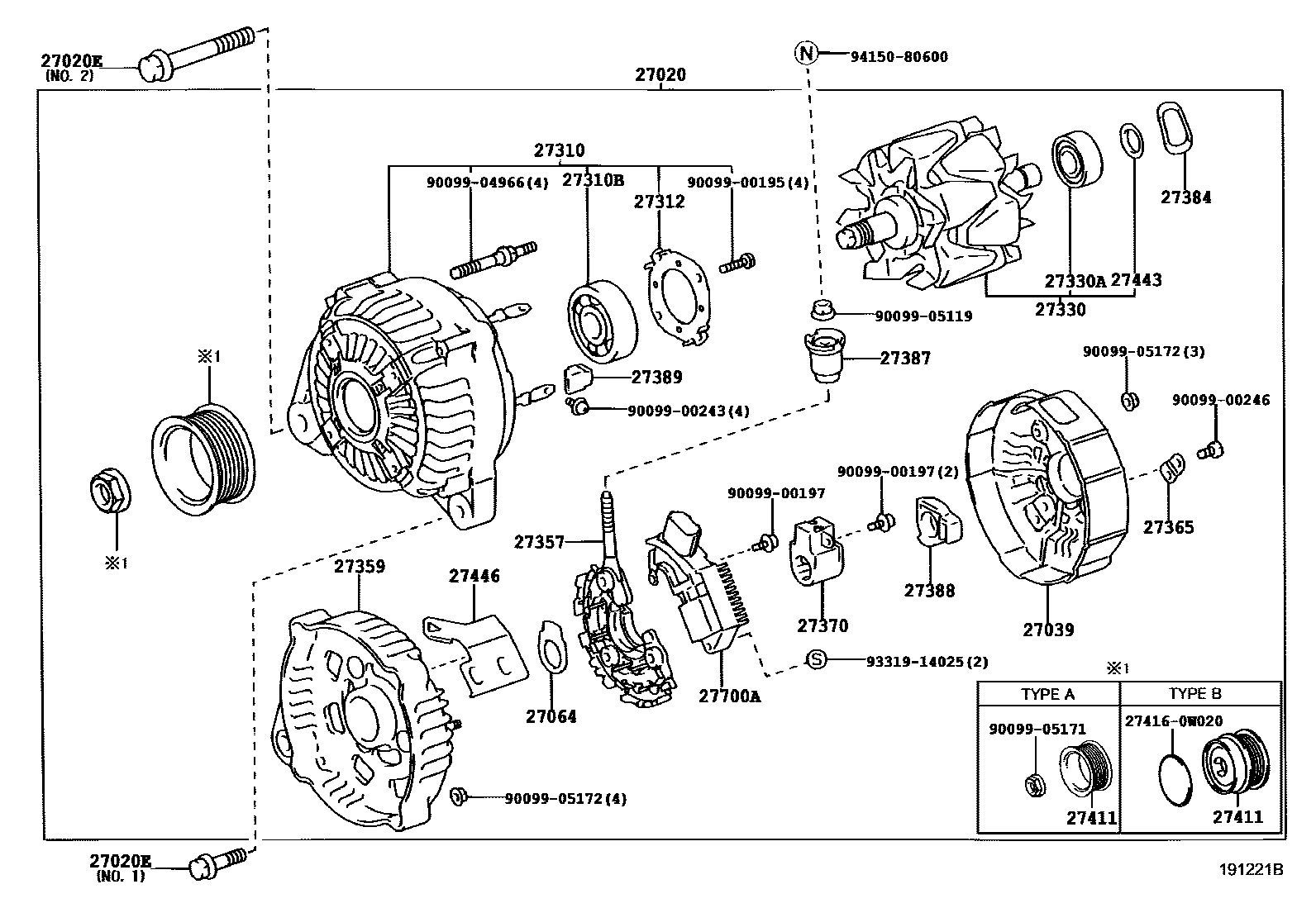

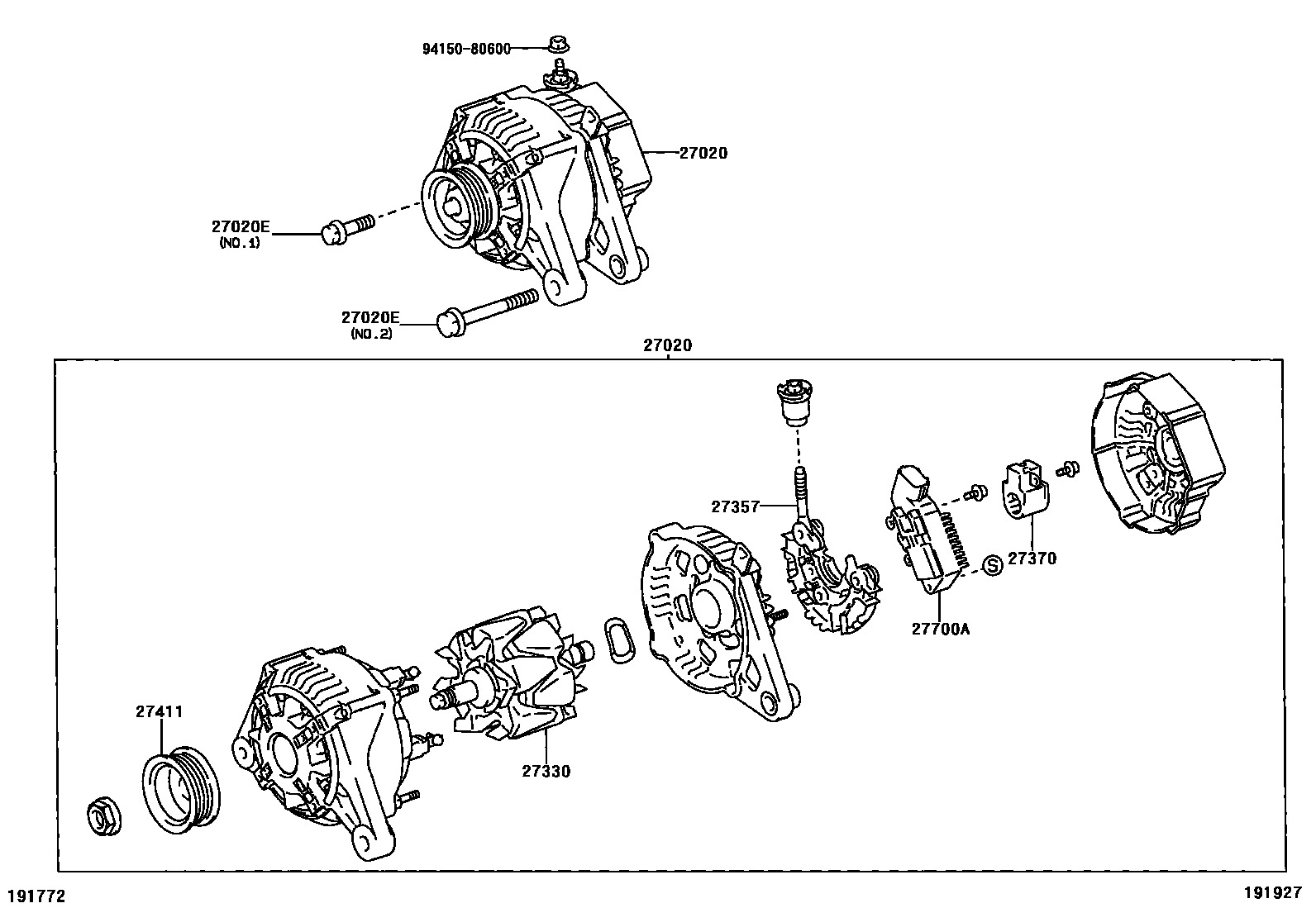

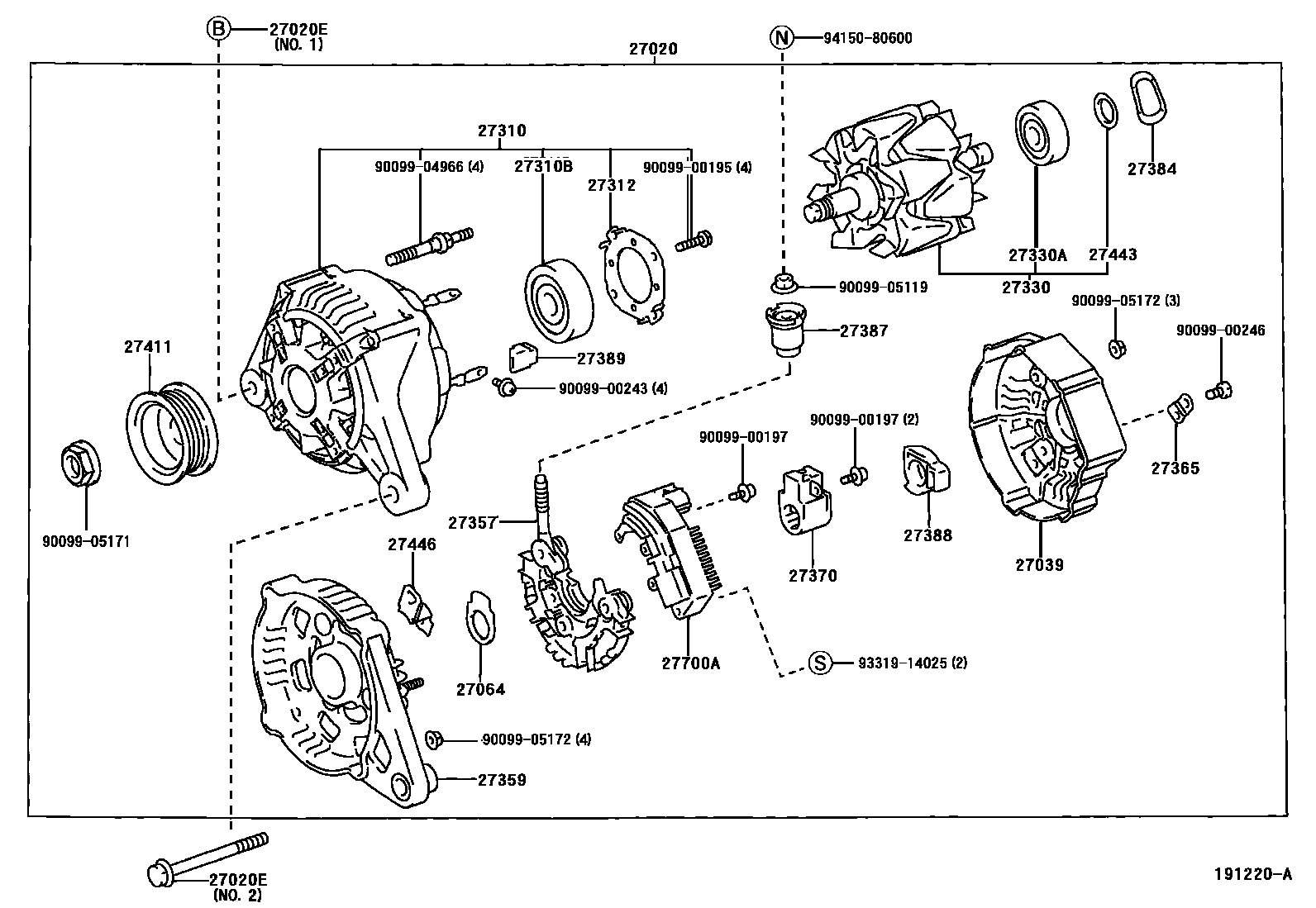

Toyota RAV4 EPC diagram 1903, Alternator, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 27020 | Alternator Assembly | 27060-22050 · 27060-28080 · 27060-28100 · 27060-28190 |
| 27020E | Bolts (for generator) | 90105-10075 · 91511-60840 · 91511-80830 · 91511-J0840 · 91512-81085 |
| 27039 | Alternator Rear End Cover | 27039-20060 · 27039-20160 · 27039-22050 · 27039-27060 · 27039-46190 |
| 27064 | Generator sealing plate | 27064-42010 |
| 27310 | Alternator Drive End Frame Assembly | 27310-22060 · 27310-28050 · 27310-28060 · 27310-28120 |
| 27310B | Bearing (for Alternator Drive End Frame) | 90099-10142 · 90099-10219 |
| 27312 | Retainer Plate | 27312-42010 · 27312-72100 |
| 27330 | Alternator Rotor Assembly | 27330-20070 · 27330-28050 · 27330-30070 · 27330-74550 |
| 27330A | Bearings (for generator rotor) | 90099-10140 |
| 27357 | Generator rectifier frame | 27357-22070 · 27357-70450 |
| 27359 | Generator rectifier end frame | 27359-22040 · 27359-28060 |
| 27360 | Alternator Stator Coil Assembly | 27360-28170 |
| 27365 | terminal board | 27365-55080 |
| 27370 | Alternator Brush Holder Assembly | 27370-58460 · 27370-75060 |
| 27384 | Washer | 27384-50030 |
| 27387 | Terminal Insulator | 27387-20130 · 27387-42021 |
| 27388 | Generator brush cover | 27388-42010 |
| 27389 | Terminal Insulator | 27389-42010 |
| 27411 | Alternator Pulley | 27411-28060 · 27411-50050 · 27415-0W090 |
| 27443 | Generator bearing cap | 27443-63020 |
| 27446 | Generator clamp | 27446-22040 · 27446-28060 · 27446-28120 |
| 27700A | Generator voltage regulator assembly | 27700-20050 |
