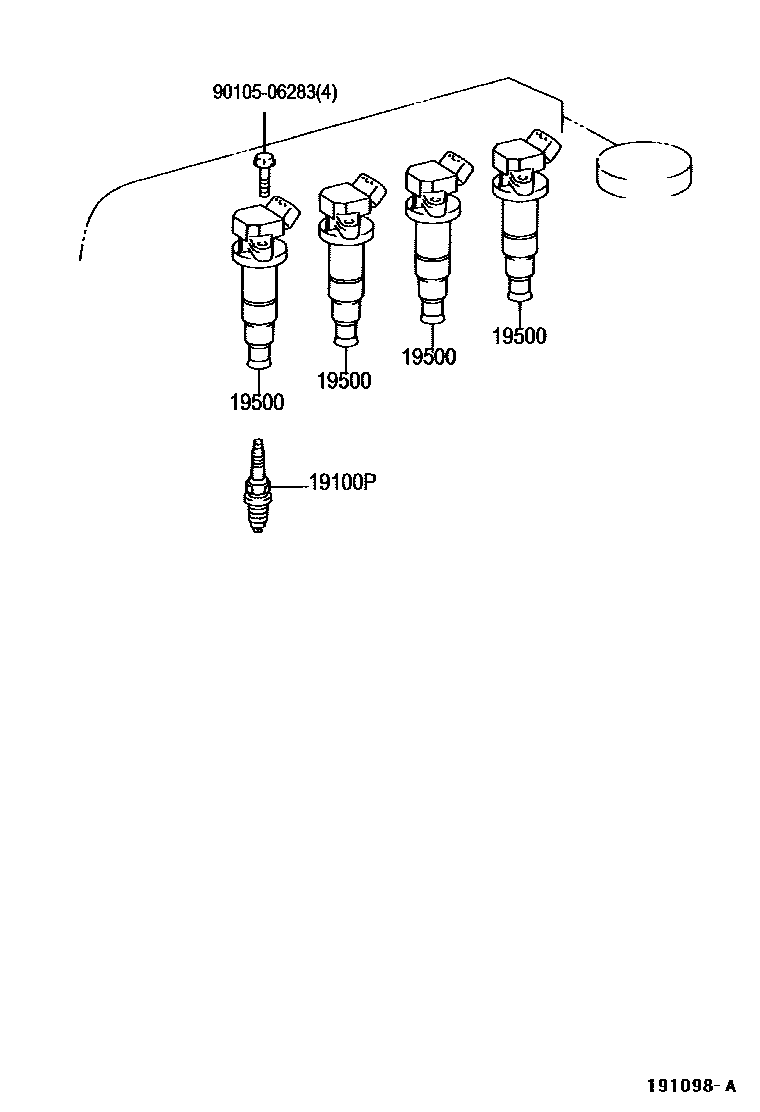

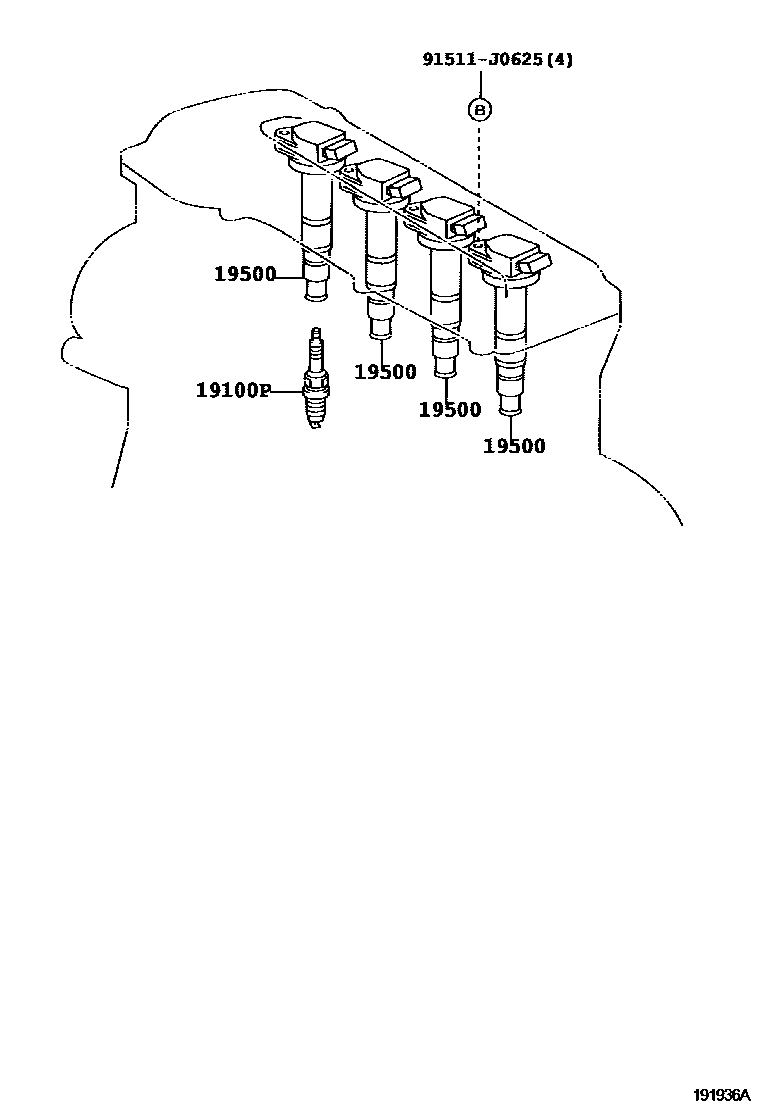

Toyota RAV4 点火线圈和火花塞 — Figure 1901
Toyota RAV4 EPC diagram 1901, 点火线圈和火花塞, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01164 · 90919-01221 |
| 19500 | Ignition coil assembly | 90080-19015 · 90080-19019 · 90919-02239 · 90919-02247 · 90919-02248 · 90919-T2002 |
