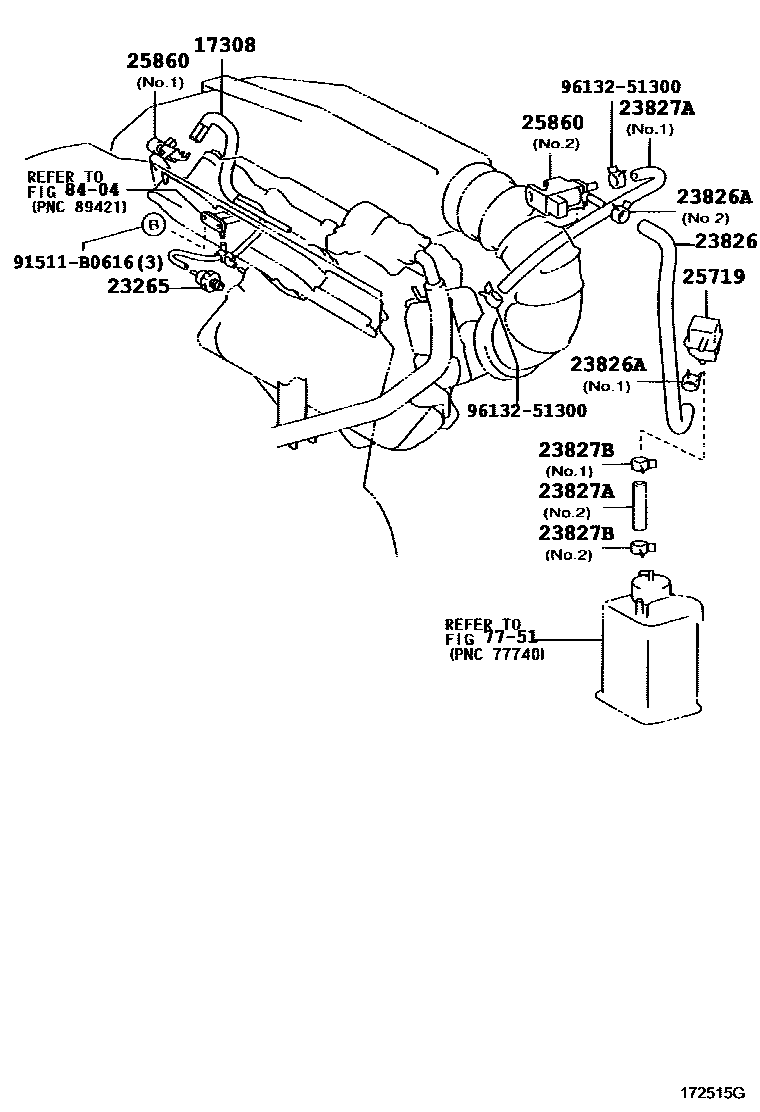

Toyota RAV4 vacuum tube — Figure 1708
Toyota RAV4 EPC diagram 1708, vacuum tube, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17308 | Vacuum hose sub-assembly (for idle boost) | 17308-28010 |
| 23265 | No. 1 gas filter | 90917-11037 |
| 23826 | No. 1 fuel vapor supply hose | 23826-22090 · 23826-28030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 90467-12056 · 96132-41100 · 96132-51100 |
| 23827A | No. 2 fuel vapor supply hose | 23827-22050 · 23827-28050 · 95326-07005 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90467-12056 · 96132-41100 · 96132-51100 |
| 23829 | No. 3 fuel vapor supply hose | 23829-22070 |
| 25719 | Vacuum pressure tank | 25719-62040 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-22070 · 25860-28020 · 25860-28030 · 25860-28070 |
