Toyota RAV4 Exhaust Pipe — Figure 1702

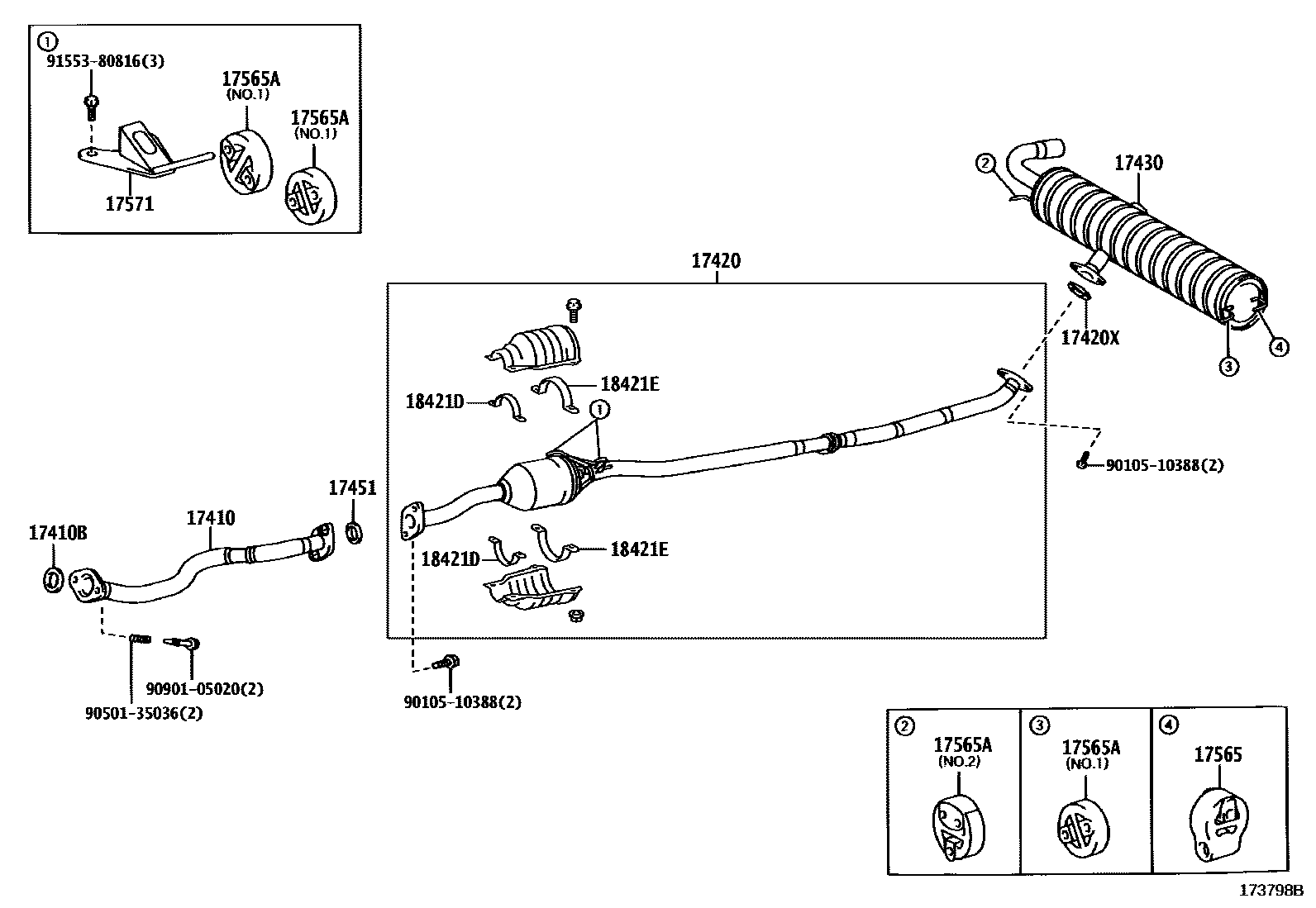

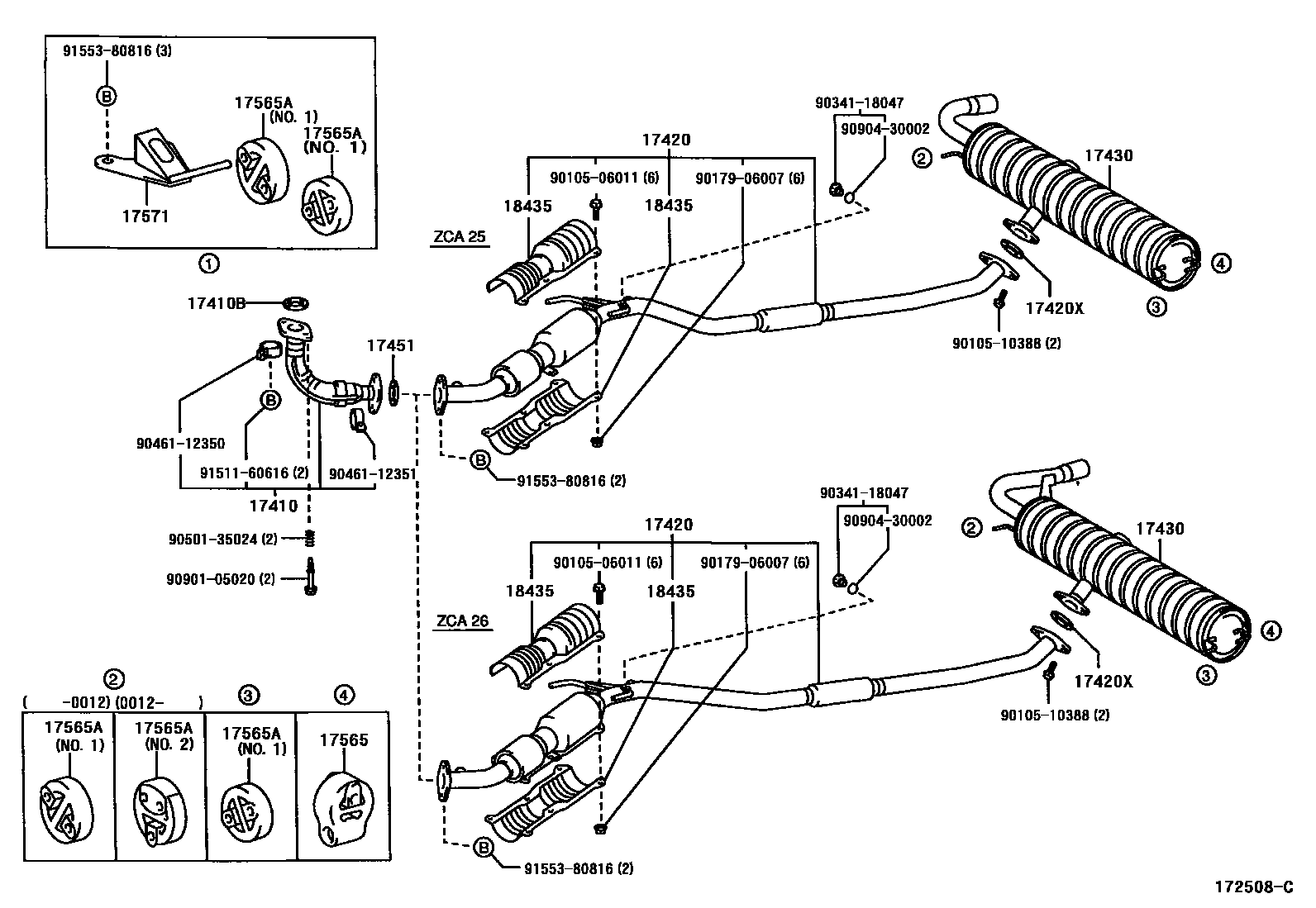

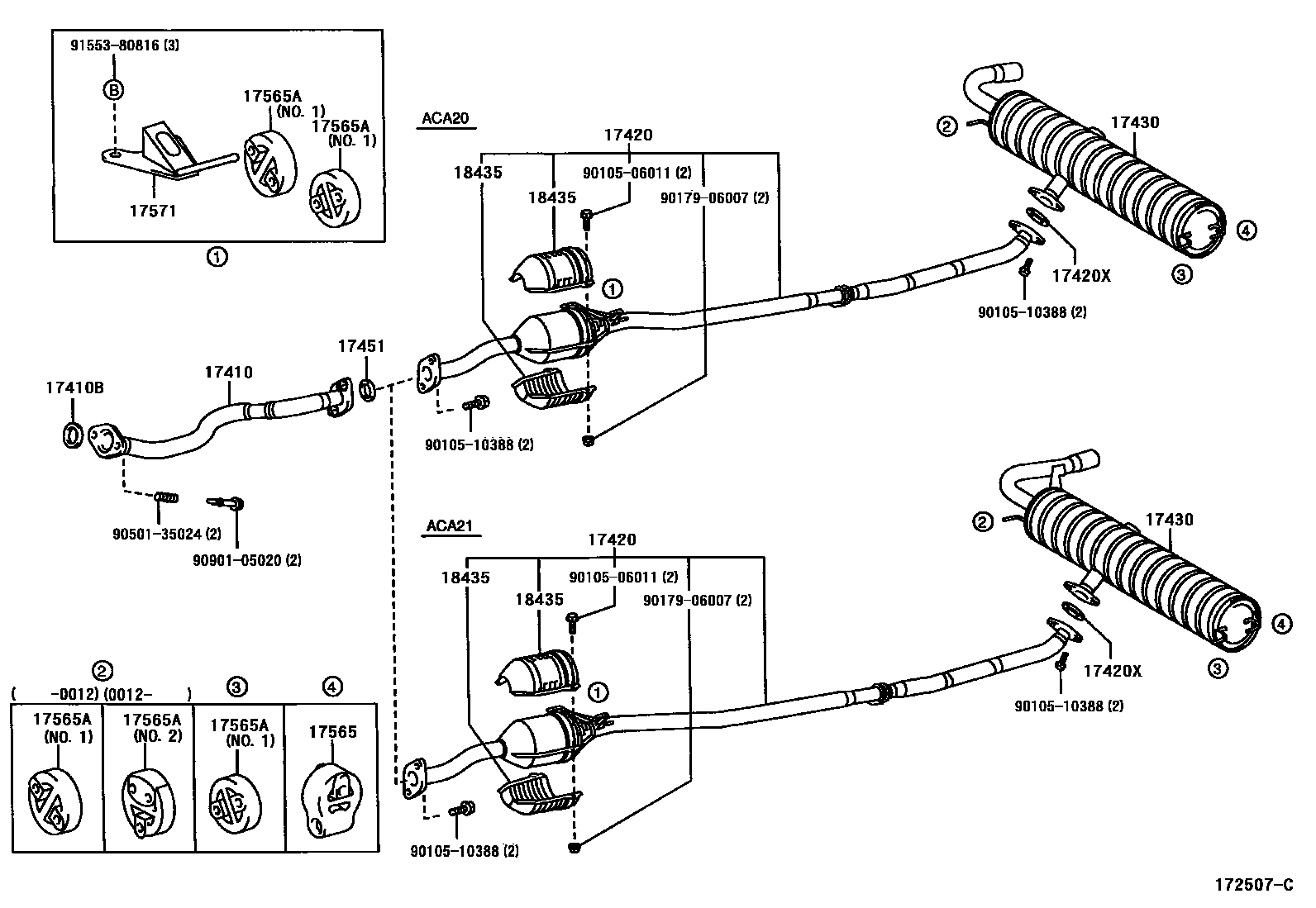

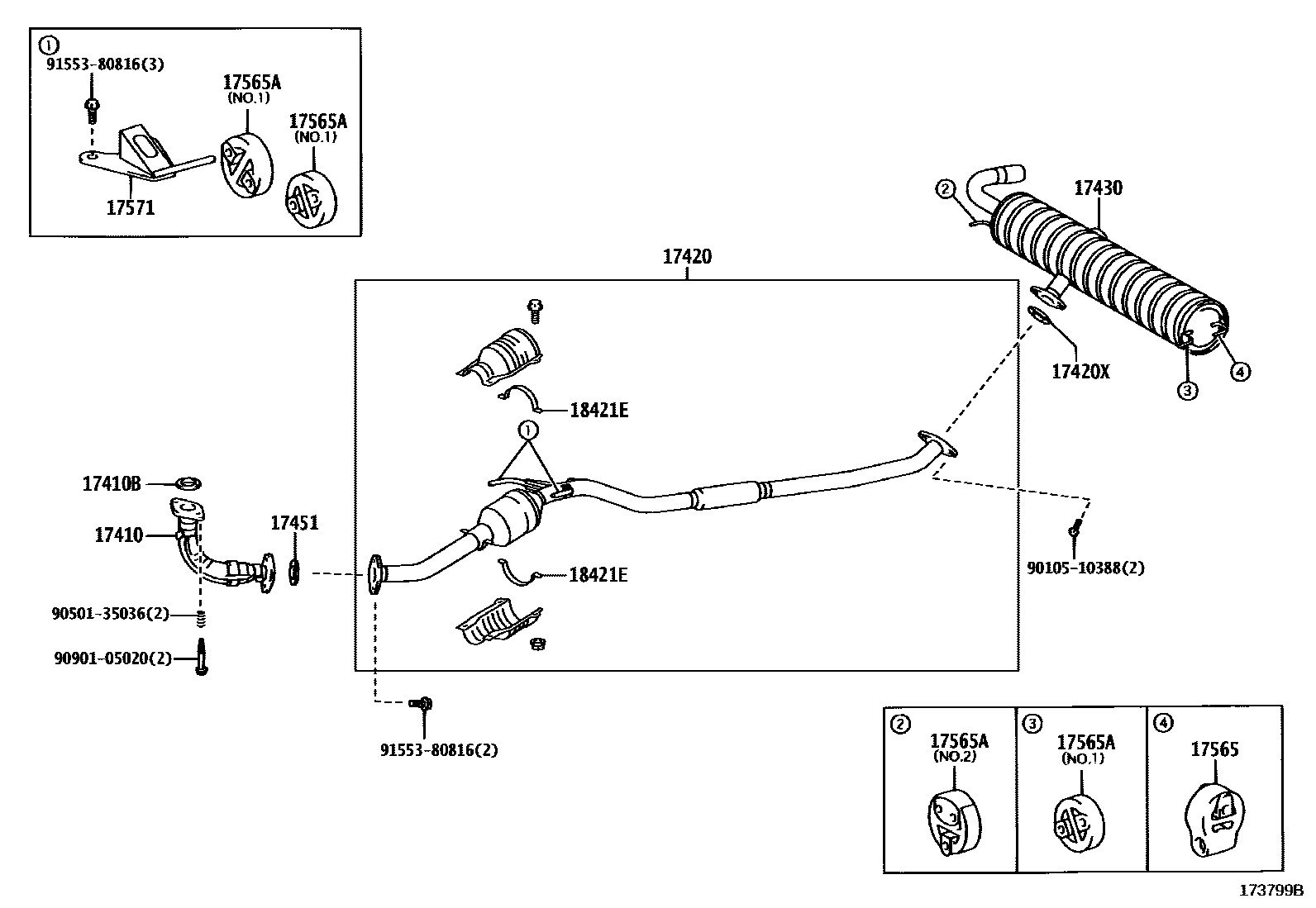

Toyota RAV4 EPC diagram 1702, Exhaust Pipe, with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-22150 · 17410-22460 · 17410-28180 · 17410-28460 |
| 17410B | Exhaust pipe gasket | 17451-16030 · 17451-74040 |
| 17420 | Central exhaust pipe assembly | 17420-22020 · 17420-22030 · 17420-22090 · 17420-22100 · 17420-28020 · 17420-28021 · 17420-28030 · 17420-28031 · 17420-28330 · 17420-28331 · 17420-28340 · 17420-28341 |
| 17420X | Center exhaust pipe liner | 90917-06062 |
| 17430 | Exhaust tailpipe assembly | 17430-22150 · 17430-22151 · 17430-22160 · 17430-22161 · 17430-28210 · 17430-28211 · 17430-28220 · 17430-28221 · 17430-28520 · 17430-28530 |
| 17451 | Exhaust pipe gasket | 90917-06073 · 90917-06074 |
| 17565 | No. 5 exhaust pipe lifting lug | 17565-15070 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-46040 · 17565-64180 |
| 17571 | No. 1 exhaust pipe bracket | 17571-28070 |
| 18421D | Toyota part | 17541-68010 |
| 18421E | Toyota part | 18421-22020 |
| 18435 | Three-way catalytic converter protection device | 18435-22010 · 18435-28020 |
